Toyota Fortuner (SUV)

2022-08 → 2023-07 · chassis GUN156,TGN156 · catalogue 6715E0 · Europe

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

35 part groups · 3 illustrations

Illustrations

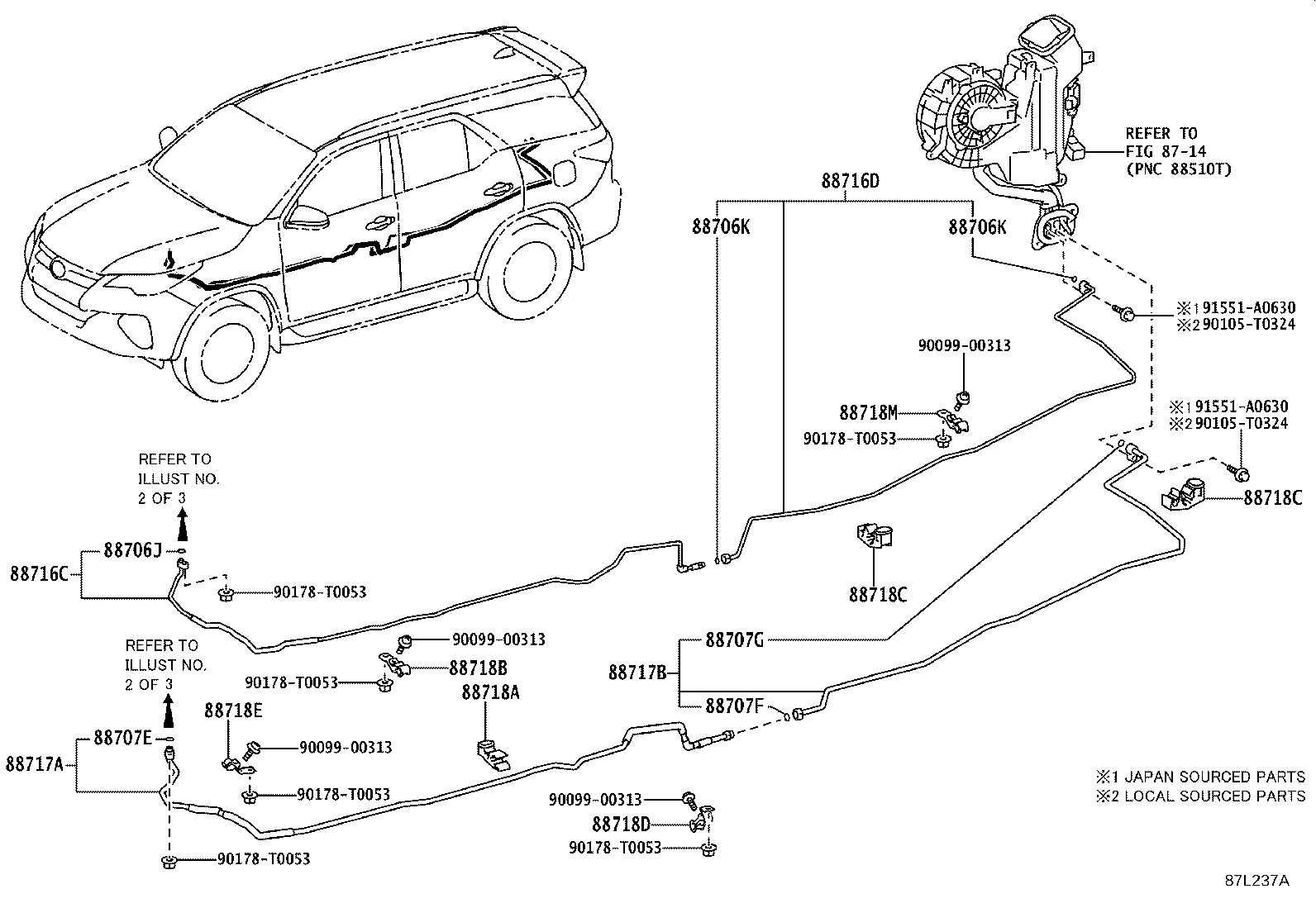

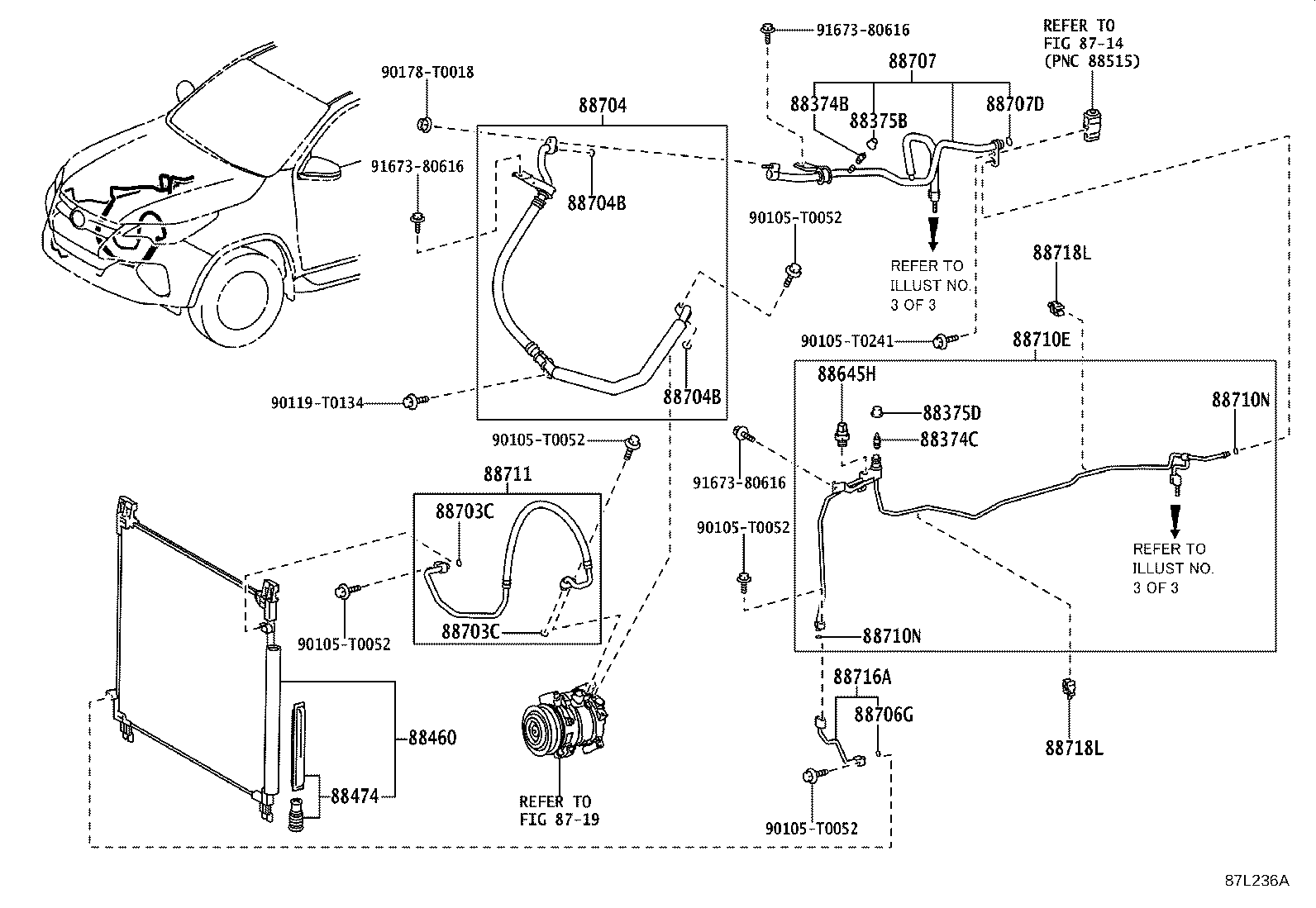

Figure 87L235A 87L235A 2022-08 → — Figure 87L236A 87L236A 2022-08 → — Figure 87L237A 87L237A 2022-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88706G Ring, O(FOR LIQUID TUBE)
88706J Ring, O, NO.3(FOR LIQUID TUBE)
88706K Ring, O, NO.4(FOR LIQUID TUBE)
88707 Pipe Sub-assy, Suction
88707D Ring, O(FOR SUCTION TUBE)
88707E Ring, O, NO.2(FOR SUCTION TUBE)
88707F Ring, O, NO.3(FOR SUCTION TUBE)
88707G Ring, O, NO.4(FOR SUCTION TUBE)
88710E Tube & Accessory Assy, Air Conditioner
88710N Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710P Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710T Ring, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718L Clamp, Piping
88718M Clamp, Piping
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
