Toyota Fortuner (SUV)
2022-08 → 2023-07 · chassis GUN156,TGN156 · catalogue 6715E0 · Europe
Supported model
Data version 2024-09

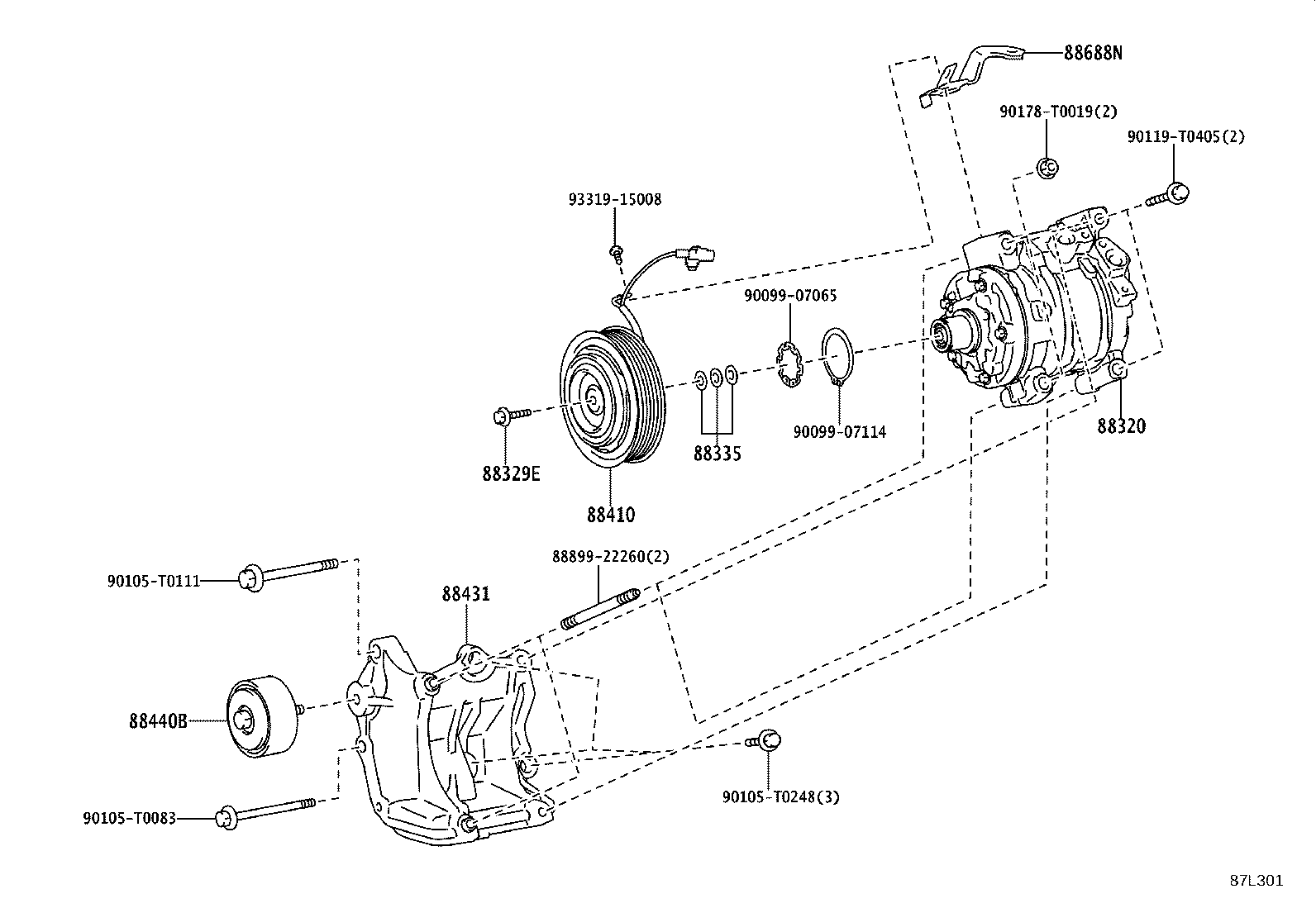

Heating & Air Conditioning - Compressor
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88329E | Bolt, Compressor, NO.1 |
| 88335 | Gasket Kit, Overhaul |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440B | Pulley Assy, Idle |
| 88688N | Bracket, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
