Toyota Fortuner (SUV)

2023-08 → present · chassis GUN156,TGN156 · catalogue 6715F0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

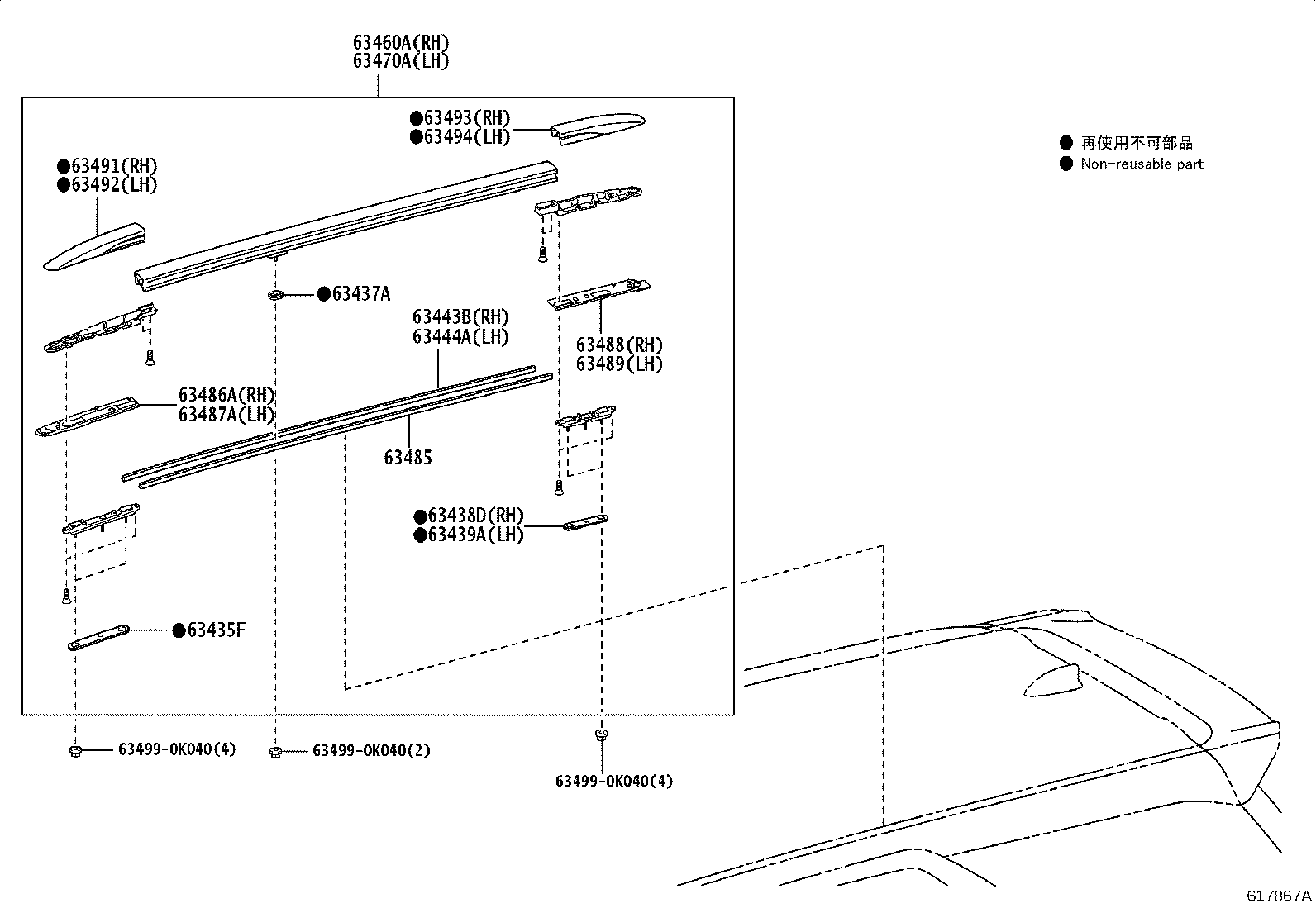

Exploded illustration 617867A 63435F — SEAL, ROOF CARRIER, NO.1 (2 parts) 63437A — SEAL, ROOF CARRIER, NO.2 (2 parts) 63485 — CUSHION, ROOF RACK LEG, CENTER (2 parts) 63438D — SEAL, ROOF CARRIER, NO.3 RH (2 parts) 63439A — SEAL, ROOF CARRIER, NO.3 LH (2 parts) 63443B — PROTECTOR, ROOF RACK, RH (2 parts) 63444A — PROTECTOR, ROOF RACK, LH (2 parts) 63460A — RACK ASSY, ROOF, RH (2 parts) 63470A — RACK ASSY, ROOF, LH (2 parts) 63486A — CUSHION, ROOF RACK LEG, FRONT RH (2 parts) 63487A — CUSHION, ROOF RACK LEG, FRONT LH (2 parts) 63488 — CUSHION, ROOF RACK LEG, REAR RH (2 parts) 63489 — CUSHION, ROOF RACK LEG, REAR LH (2 parts) 63491 — COVER, ROOF RACK LEG, FRONT RH (2 parts) 63492 — COVER, ROOF RACK LEG, FRONT LH (2 parts) 63493 — COVER, ROOF RACK LEG, REAR RH (2 parts) 63494 — COVER, ROOF RACK LEG, REAR LH (2 parts) 634990K040 — not listed in this catalogue 634990K040 — not listed in this catalogue 634990K040 — not listed in this catalogue
617867A · 17 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
63435F — Seal, Roof Carrier, NO.1
63437-0K020 note Seal, Roof Carrier, NO.1
2023-08 → 2024-07 ended
TGN156 L —
63437-0K020 Seal, Roof Carrier, NO.1
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63437A — Seal, Roof Carrier, NO.2
63439-0K010 Seal, Roof Carrier, NO.2
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63439-0K010 note Seal, Roof Carrier, NO.2
2023-08 → 2024-07 ended
TGN156 L —
63438D — Seal, Roof Carrier, NO.3 RH
63437-0K070 Seal, Roof Carrier, NO.3 RH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63437-0K070 note Seal, Roof Carrier, NO.3 RH
2023-08 → 2024-07 ended
TGN156 L —
63439A — Seal, Roof Carrier, NO.3 LH
63437-0K070 Seal, Roof Carrier, NO.3 LH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63437-0K070 note Seal, Roof Carrier, NO.3 LH
2023-08 → 2024-07 ended
TGN156 L —
63443B — Protector, Roof Rack, RH
63444-0K010 Protector, Roof Rack, RH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63444-0K010 note Protector, Roof Rack, RH
2023-08 → 2024-07 ended
TGN156 L —
63444A — Protector, Roof Rack, LH
63444-0K010 Protector, Roof Rack, LH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63444-0K010 note Protector, Roof Rack, LH
2023-08 → 2024-07 ended
TGN156 L —
63460A — Rack Assy, Roof, RH
63460-0K040 Rack Assy, Roof, RH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63460-0K040 note Rack Assy, Roof, RH
2023-08 → 2024-07 ended
TGN156 L —
63470A — Rack Assy, Roof, LH
63470-0K040 Rack Assy, Roof, LH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63470-0K040 note Rack Assy, Roof, LH
2023-08 → 2024-07 ended
TGN156 L —
63485 — Cushion, Roof Rack Leg, Center
63485-0K040 note Cushion, Roof Rack Leg, Center
2023-08 → 2024-07 ended
TGN156 L —
63485-0K040 Cushion, Roof Rack Leg, Center
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63486A — Cushion, Roof Rack Leg, Front RH
63486-0K040 Cushion, Roof Rack Leg, Front RH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63486-0K040 note Cushion, Roof Rack Leg, Front RH
2023-08 → 2024-07 ended
TGN156 L —
63487A — Cushion, Roof Rack Leg, Front LH
63487-0K040 Cushion, Roof Rack Leg, Front LH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63487-0K040 note Cushion, Roof Rack Leg, Front LH
2023-08 → 2024-07 ended
TGN156 L —
63488 — Cushion, Roof Rack Leg, Rear RH
63488-0K040 Cushion, Roof Rack Leg, Rear RH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63488-0K040 note Cushion, Roof Rack Leg, Rear RH
2023-08 → 2024-07 ended
TGN156 L —
63489 — Cushion, Roof Rack Leg, Rear LH
63489-0K040 note Cushion, Roof Rack Leg, Rear LH
2023-08 → 2024-07 ended
TGN156 L —
63489-0K040 Cushion, Roof Rack Leg, Rear LH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63491 — Cover, Roof Rack Leg, Front RH
63491-0K040 Cover, Roof Rack Leg, Front RH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63491-0K040 note Cover, Roof Rack Leg, Front RH
2023-08 → 2024-07 ended
TGN156 L —
63492 — Cover, Roof Rack Leg, Front LH
63492-0K040 Cover, Roof Rack Leg, Front LH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63492-0K040 note Cover, Roof Rack Leg, Front LH
2023-08 → 2024-07 ended
TGN156 L —
63493 — Cover, Roof Rack Leg, Rear RH
63493-0K040 Cover, Roof Rack Leg, Rear RH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63493-0K040 note Cover, Roof Rack Leg, Rear RH
2023-08 → 2024-07 ended
TGN156 L —
63494 — Cover, Roof Rack Leg, Rear LH
63494-0K040 Cover, Roof Rack Leg, Rear LH
2023-08 → 2024-07 ended
GUN156,TGN156 6FC —
63494-0K040 note Cover, Roof Rack Leg, Rear LH
2023-08 → 2024-07 ended
TGN156 L —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
