Toyota Fortuner (SUV)
2023-08 → present · chassis GUN156,TGN156 · catalogue 6715F0 · Europe
Supported model
Data version 2023-09

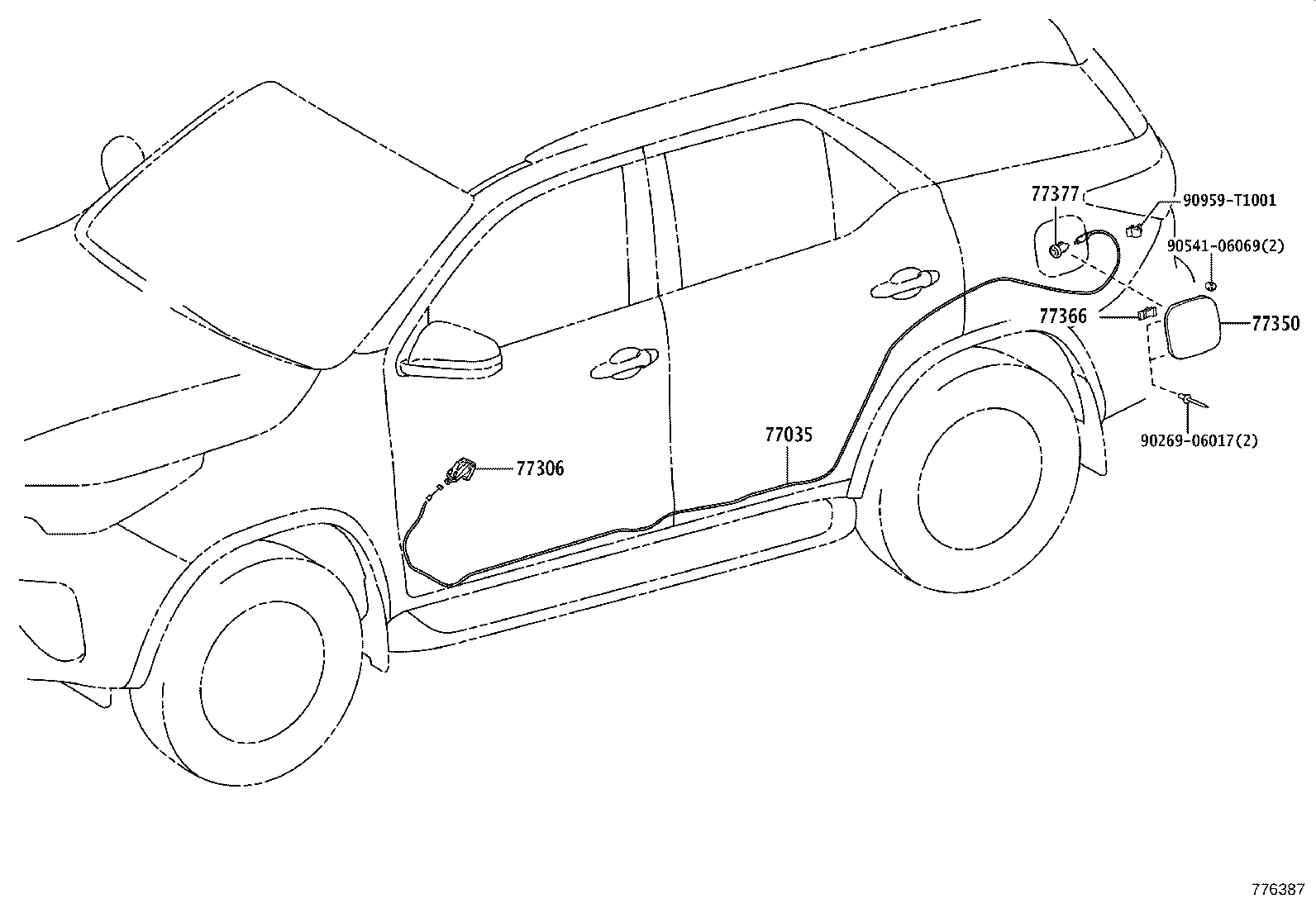

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77035 — Cable Sub-assy, Fuel Lid Lock Control | ||||
| 77035-0K410 |
Cable Sub-assy, Fuel Lid Lock Control
2023-08 → 2024-07
ended
|
GUN156,TGN156 | — | |
| 77306 — Lever Sub-assy, Fuel Lid Lock Open | ||||
| 77306-0K100 |
Lever Sub-assy, Fuel Lid Lock Open
2023-08 → 2024-07
ended
|
GUN156,TGN156 | — | |
| 77350 — Lid Assy, Fuel Filler Opening | ||||
| 77350-KK080 |
Lid Assy, Fuel Filler Opening
2023-08 → 2024-07
ended
|
GUN156,TGN156 | — | |
| 77366 — Spring, Fuel Filler Opening Lid Hinge | ||||
| 77360-0K010 |
Spring, Fuel Filler Opening Lid Hinge
2023-08 → 2024-07
ended
|
GUN156,TGN156 | — | |
| 77377 — Retainer, Fuel Filler Opening Lid Lock | ||||
| 77377-0D080 |
Retainer, Fuel Filler Opening Lid Lock
2023-08 → 2024-07
ended
|
GUN156,TGN156 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
