Toyota Fortuner (SUV)
2023-08 → present · chassis GUN156,TGN156 · catalogue 6715F0 · Europe
Supported model
Data version 2023-09

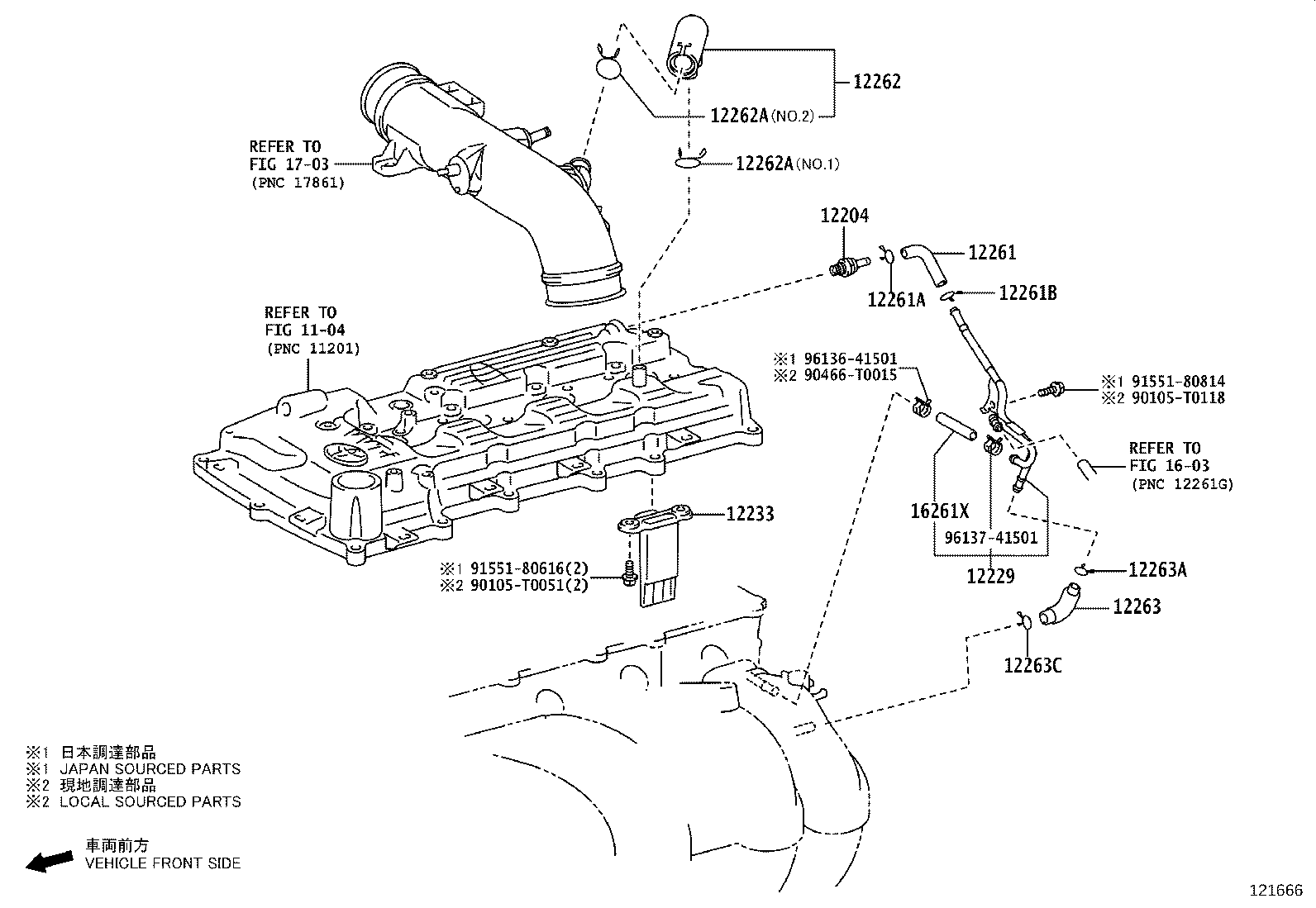

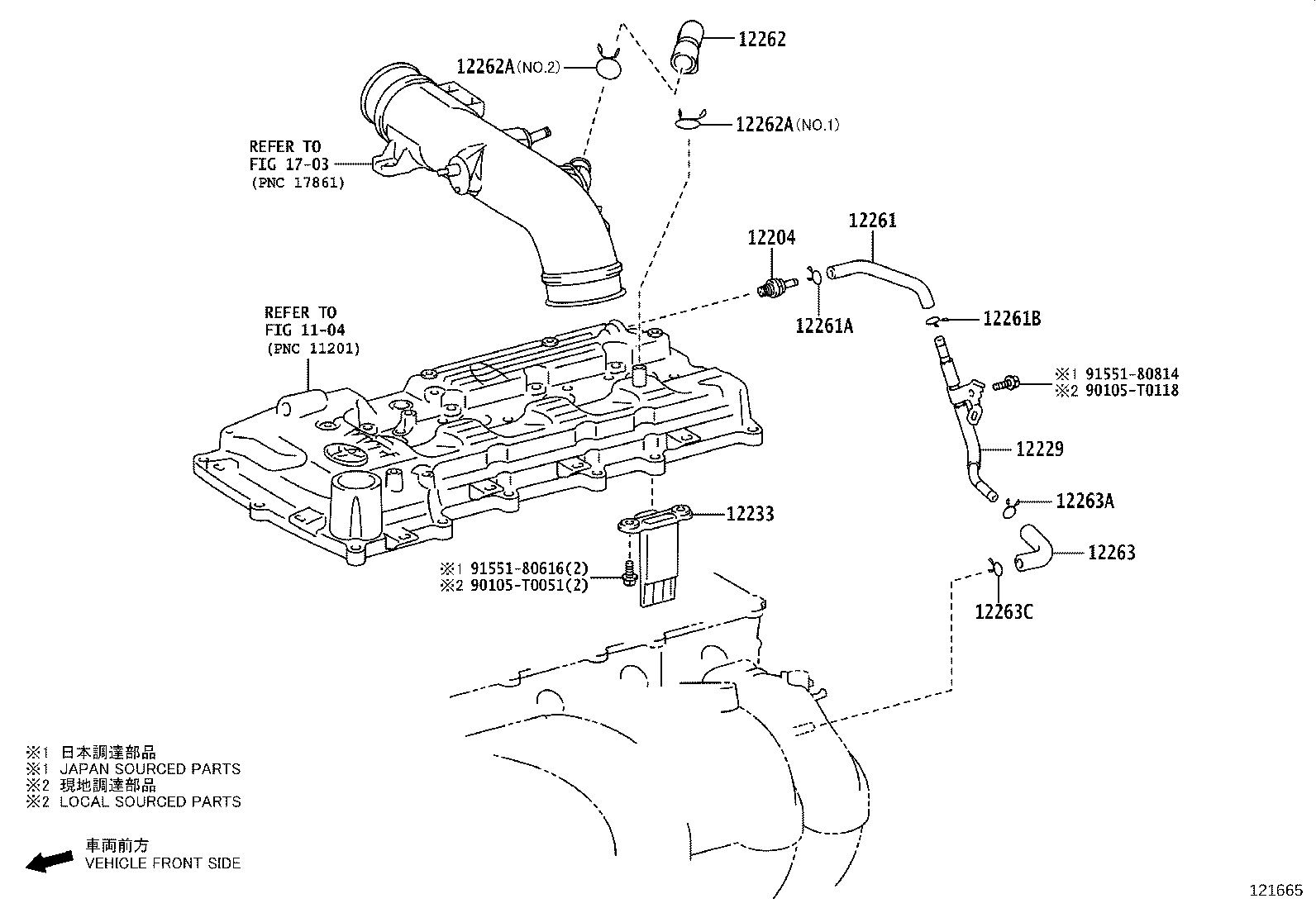

Ventilation Hose
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12229 | Pipe, Ventilation |
| 12233 | Connector, Ventilation NO.1 |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12261B | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12263 | Hose, Ventilation, NO.3 |
| 12263A | Clip(FOR VENTILATION HOSE) |
| 12263C | Clip(FOR VENTILATION HOSE) |
| 16261X | Hose, Water |
| 1629F | Hose, Water By-pass, NO.19 |
| 1629G | Hose, Water By-pass, NO.20 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
