Toyota Fortuner (SUV)
2023-08 → present · chassis GUN156,TGN156 · catalogue 6715F0 · Europe
Supported model
Data version 2023-09
Camshaft & Valve

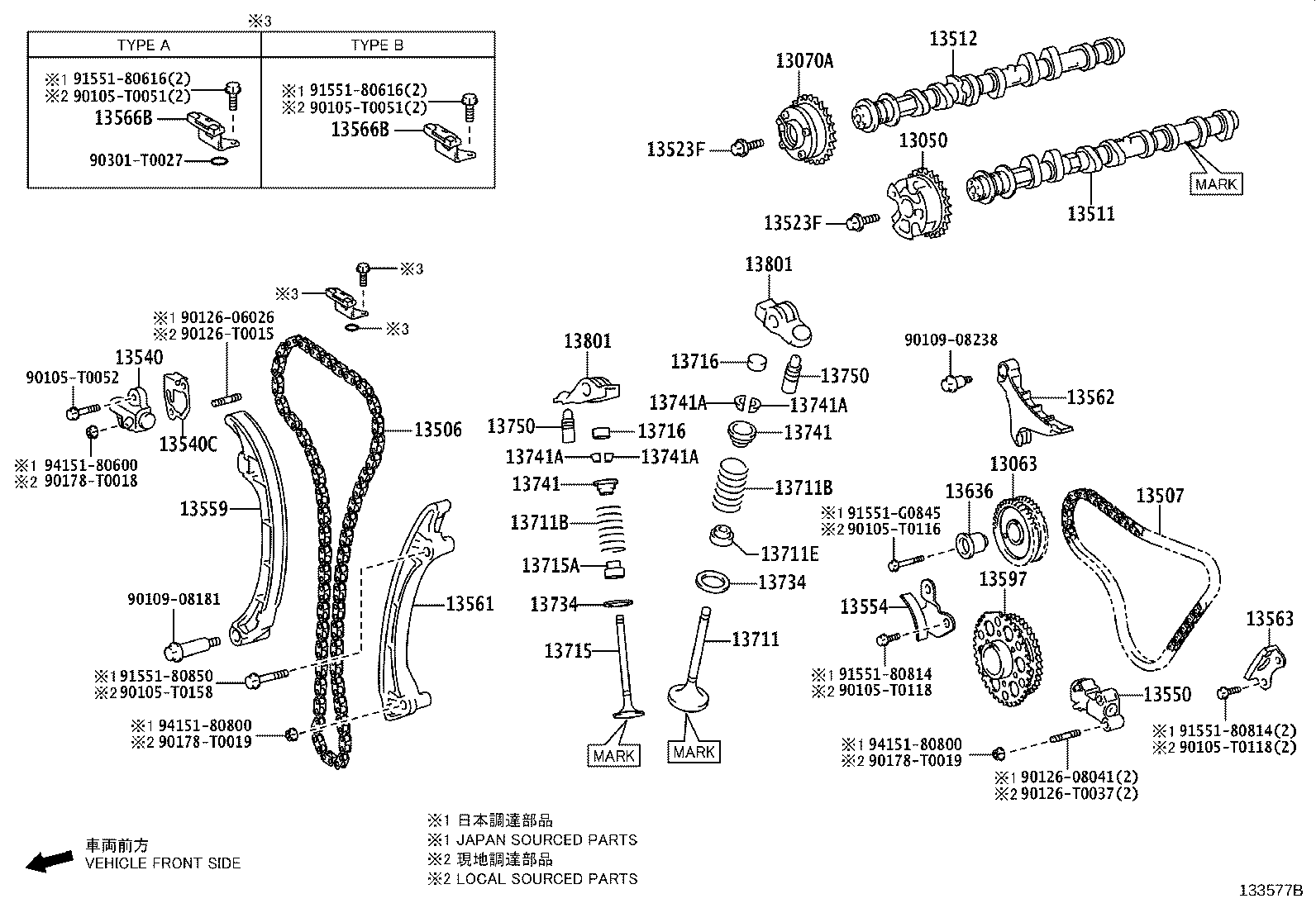

41 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 13050 | Gear Assy, Camshaft Timing |
| 13063 | Gear Sub-assy, Balanceshaft Drive |
| 13070A | Gear Assy, Camshaft Timing Exhaust |
| 13506 | Chain Sub-assy |
| 13507 | Chain Sub-assy, NO.2 |
| 13508E | Chain Sub-assy, NO.3 |
| 13511 | Camshaft |
| 13512 | Camshaft, NO.2 |
| 13516 | Jet, Oil |
| 13523 | Gear OR Sprocket, Camshaft Timing |
| 13523F | Bolt(FOR CAMSHAFT TIMING GEAR) |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13540C | Gasket(FOR CHAIN TENSIONER) |
| 13550 | Tensioner Assy, Chain, NO.2 |
| 13554 | Damper, Chain Vibration, NO.4 |
| 13559 | Slipper, Chain Tensioner |
| 13560A | Tensioner Assy, Chain, NO.3 |
| 13561 | Damper, Chain Vibration, NO.1 |
| 13562 | Damper, Chain Vibration, NO.2 |
| 13563 | Damper, Chain Vibration, NO.3 |
| 13566B | Guide, Timing Chain |
| 13577D | Plate, Lock |
| 13597 | Sprocket, Crankshaft Timing, NO.2 |
| 13613 | Gear, Injection Pump Drive |
| 13613M | Nut(FOR INJECTION PUMP DRIVE GEAR) |
| 13636 | Shaft, Balanceshaft Drive Gear |
| 13711 | Valve, Intake |
| 13711B | Spring, Compression(FOR INNER) |
| 13711E | Seal, Intake Valve Stem Oil |
| 13711M | Spring, Compression(FOR INTAKE VALVE) |
| 13715 | Valve, Exhaust |
| 13715A | Seal, Exhaust Valve Stem Oil |
| 13715H | Spring, Compression(FOR EXHAUST VALVE) |
| 13716 | Cap, Valve Stem |
| 13734 | Seat, Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13741B | Retainer, Intake Valve Spring |
| 13741C | Retainer, Exhaust Valve Spring |
| 13750 | Adjuster Assy, Valve Lash |
| 13801 | Arm Sub-assy, Valve Rocker, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
