Toyota Fortuner (SUV)
2023-08 → present · chassis GUN156,TGN156 · catalogue 6715F0 · Europe
Supported model
Data version 2023-09

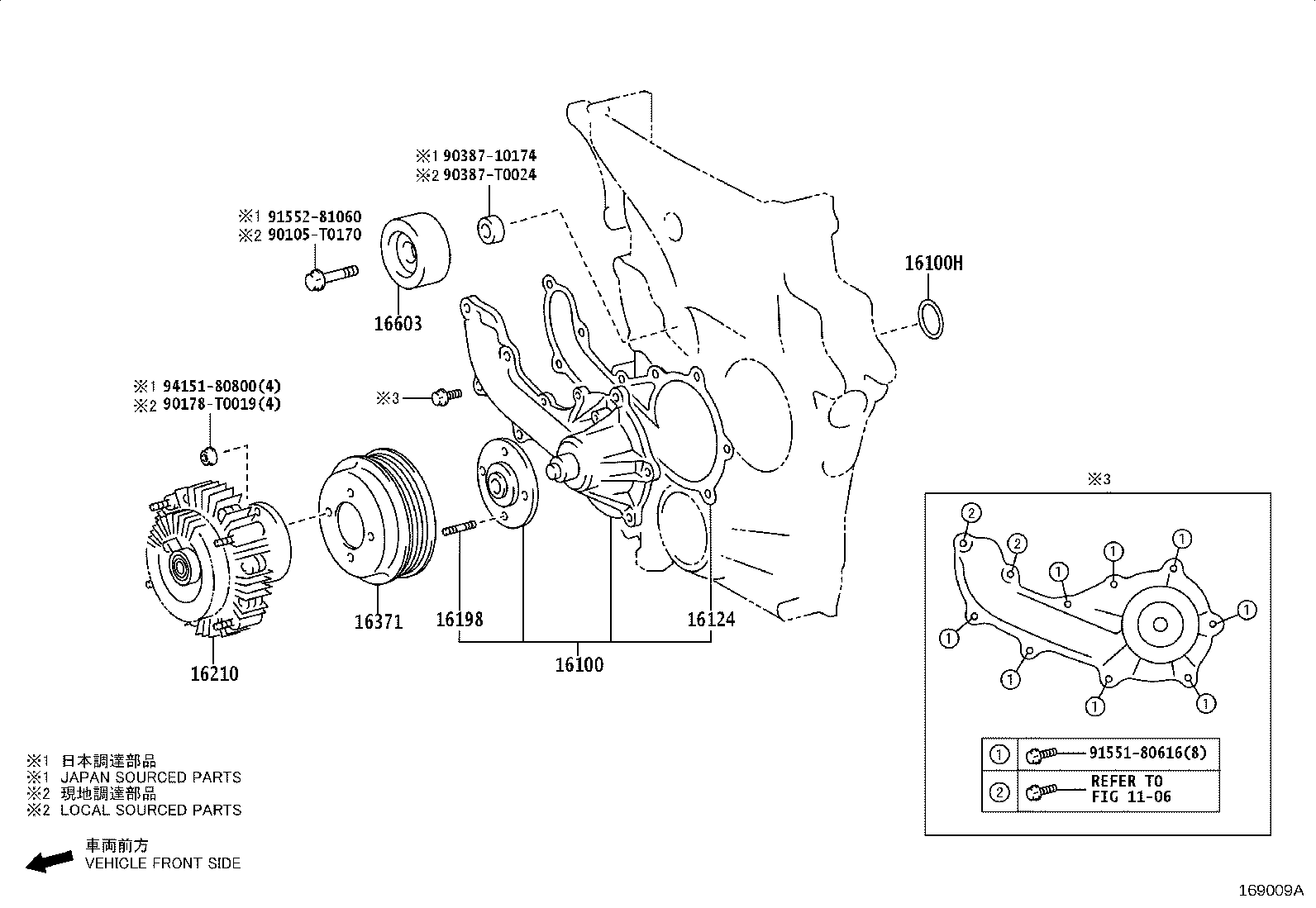

Water Pump
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100H | Ring, O(FOR WATER PUMP) |
| 16124 | Gasket, Water Pump Cover |
| 16198 | Bolt, Stud(FOR WATER PUMP PULLEY SEAT) |
| 16210 | Coupling Assy, Fluid |
| 16271 | Gasket, Water Pump |
| 16272 | Gasket, Water Pump, NO.2 |
| 16371 | Pulley, Fan |
| 16603 | Pulley Sub-assy, Idler, NO.1 |
| 16620 | Tensioner Assy, V-ribbed Belt |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
