Toyota Fortuner (SUV)
2023-08 → present · chassis GUN156,TGN156 · catalogue 6715F0 · Europe
Supported model
Data version 2023-09
Manifold
39 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15407A | Bolt, Union(FOR TURBO OIL INLET PIPE) |
| 15407B | Gasket(FOR TURBO OIL INLET PIPE) |
| 15407F | Clamp OR Clip, Oil Hose |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15474 | Pipe, Turbo Oil Outlet |
| 15474A | Hose, Turbo Oil Outlet |

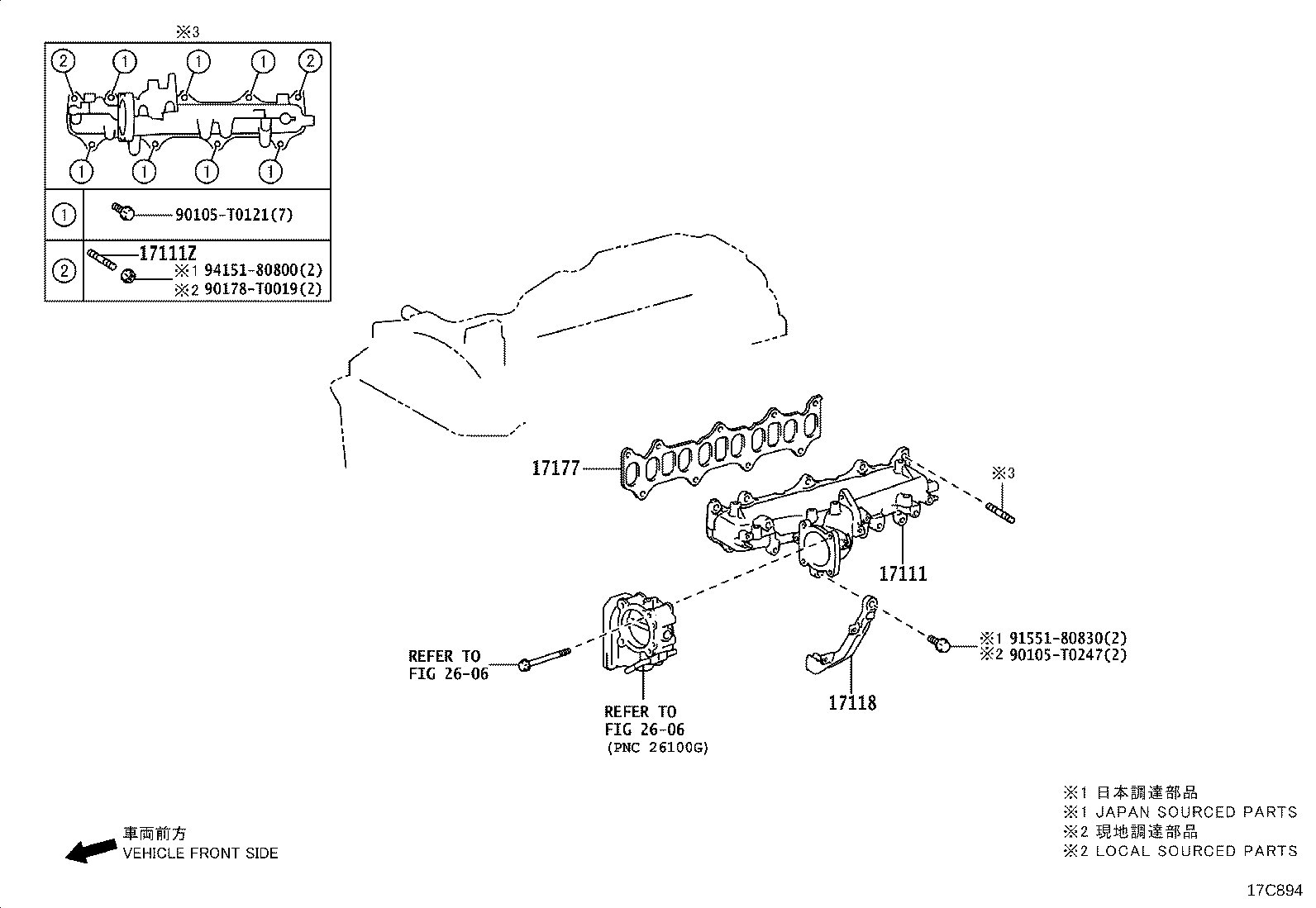

| 17111 | Manifold, Intake |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17118 | Stay, Manifold |
| 17136 | Insulator, Intake Manifold, NO.2 |

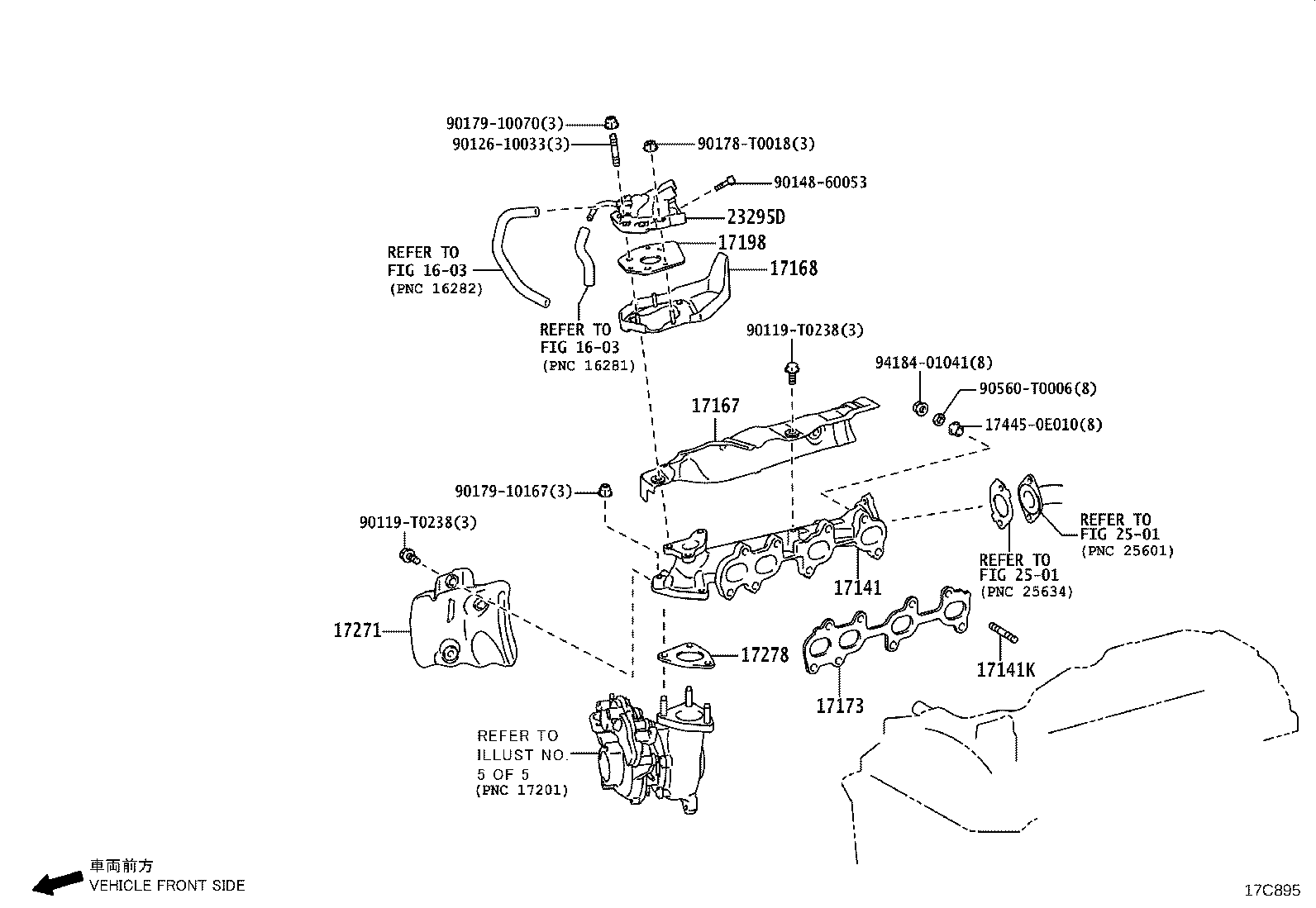

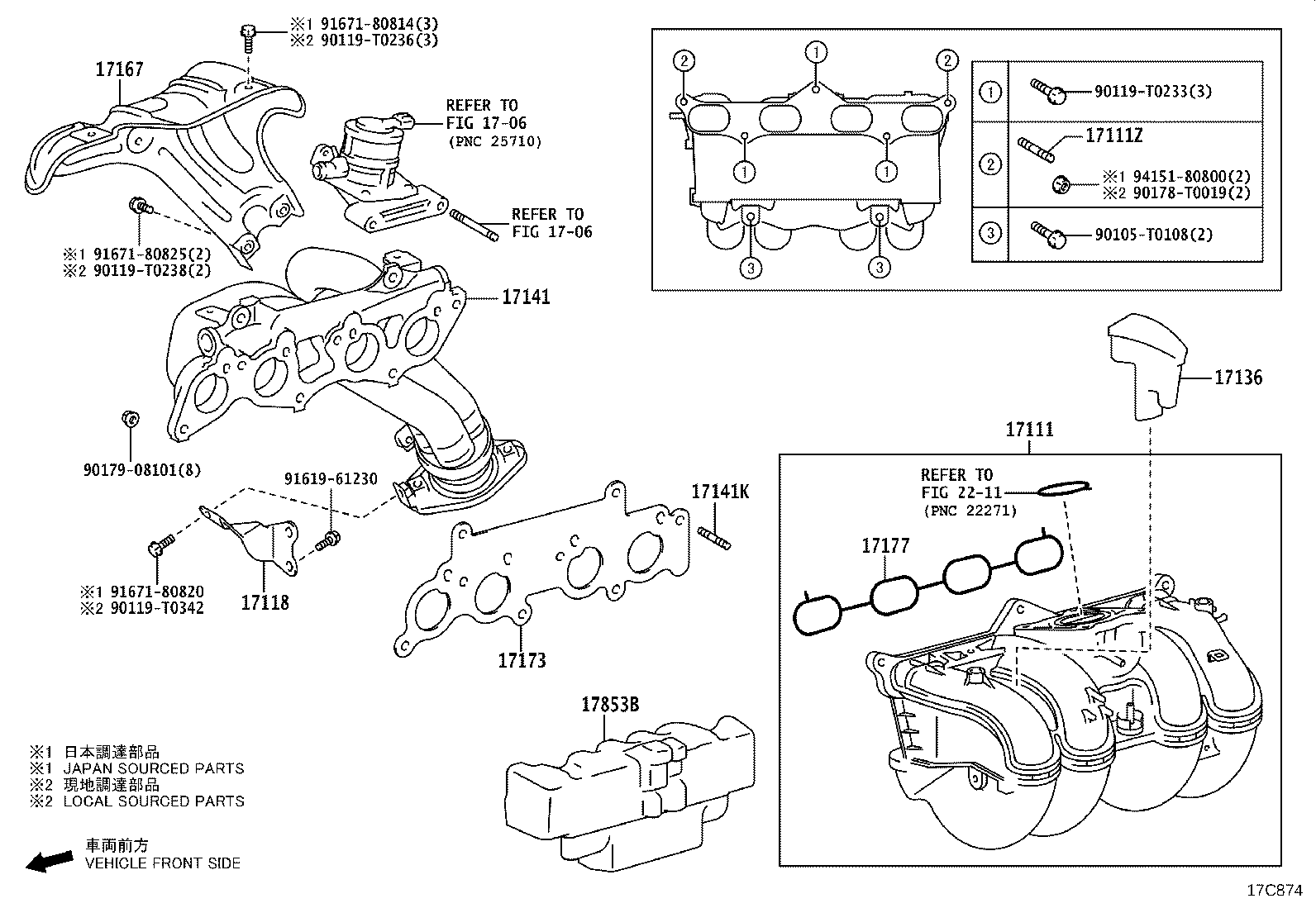

| 17141 | Manifold, Exhaust |
| 17141K | Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17198 | Gasket, Exhaust Manifold, NO.2 |

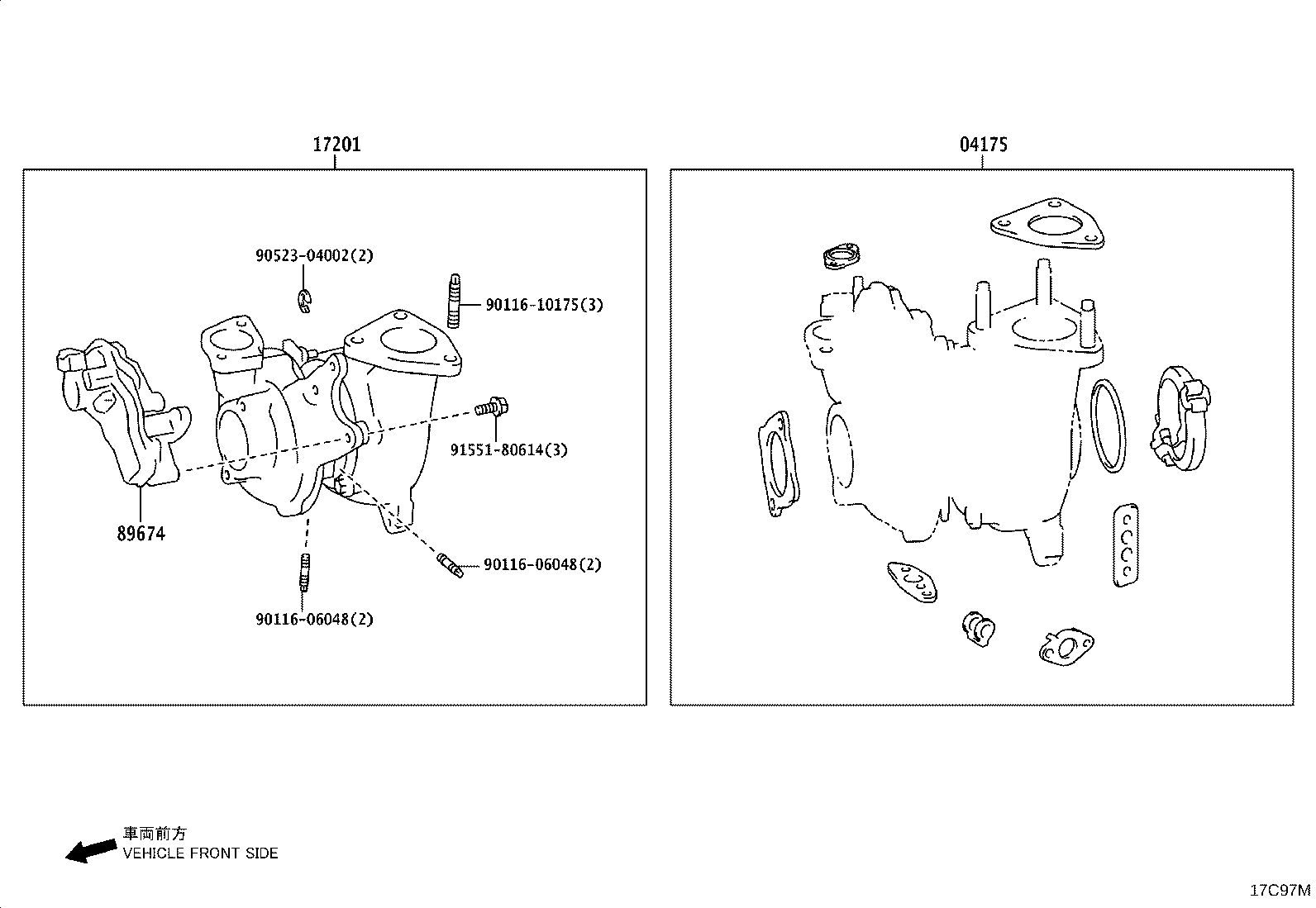

| 17201 | Turbocharger Sub-assy |
| 17203B | Elbow Sub-assy, Compressor Inlet |
| 17271 | Insulator, Turbo, NO.1 |
| 17275 | Elbow, Compressor Outlet |
| 17276 | Gasket, Compressor Inlet |
| 17277 | Gasket, Compressor Outlet |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17293 | Stay, Turbocharger |
| 17293B | Bolt(FOR TURBOCHARGER STAY) |
| 17293C | Nut(FOR TURBOCHARGER STAY) |
| 17298 | Stay, Compressor Elbow |
| 17452B | Clamp, Exhaust Pipe |
| 17568A | Stay, Exhaust Pipe Support |
| 17569D | Stay, Exhaust Pipe Support, NO.2 |
| 17853B | Insulator, Intake Manifold |
| 23295D | Holder, Injector, NO.1 |

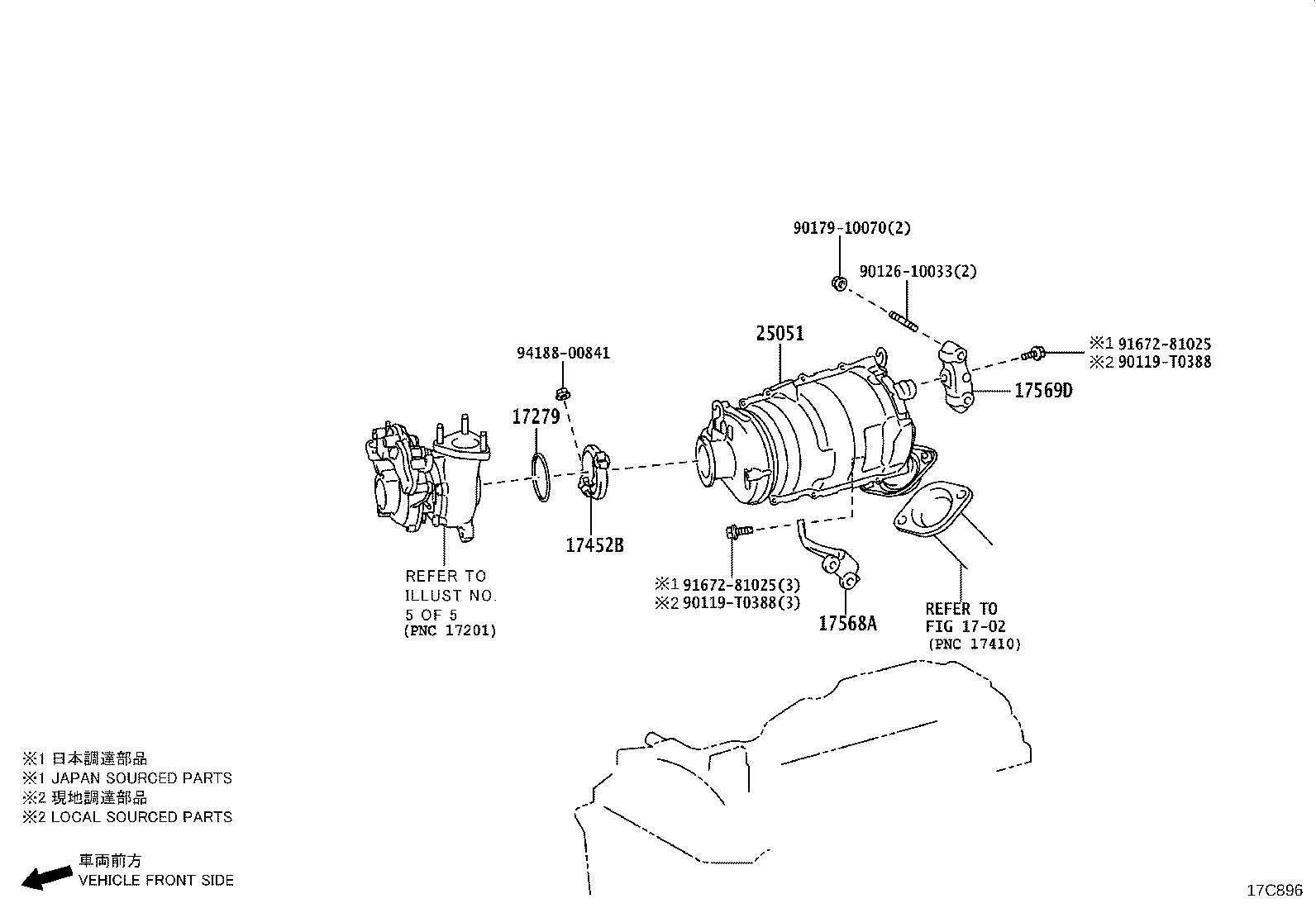

| 25051 | Converter Sub-assy, Exhaust Manifold |
| 89674 | Motor, Turbocharger Variable Nozzle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
