Toyota Fortuner (SUV)
2023-08 → present · chassis GUN156,TGN156 · catalogue 6715F0 · Europe
Supported model
Data version 2023-09

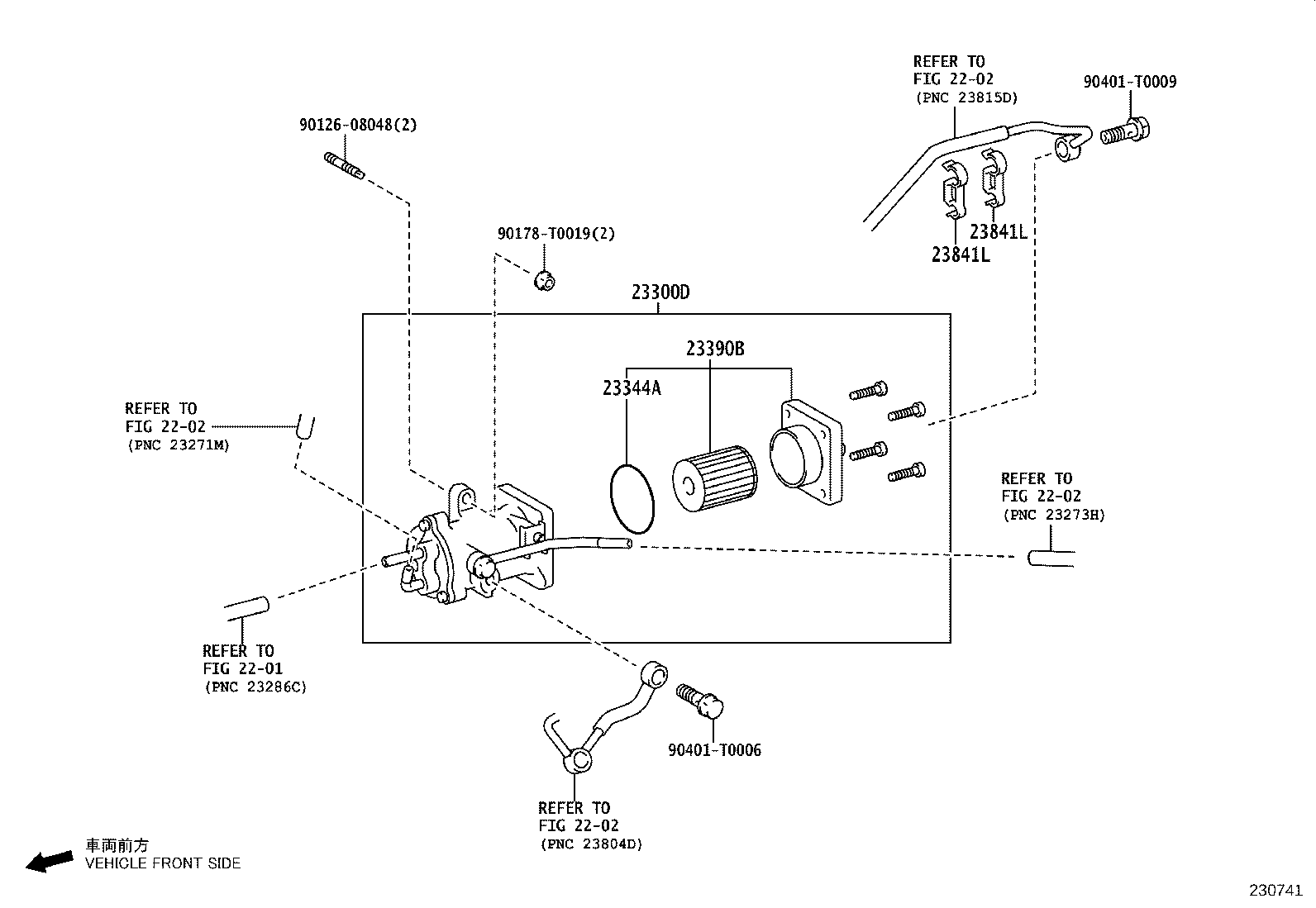

Fuel Filter
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23300 | Filter Assy, Fuel |
| 23300D | Filter Assy, Fuel(FOR DIESEL) |
| 23328 | Gasket(FOR FUEL FILTER) |
| 23344 | Gasket, Clamping Nut(FOR FUEL FILTER) |
| 23344A | Gasket, Fuel Filter Element |
| 23380 | Cap Assy, Fuel Filter |
| 23388A | Plug, Fuel Filter Drain |
| 23390 | Element Assy, Fuel Filter |
| 23390B | Element Assy, Fuel Filter, NO.2 |
| 23841L | Clamp, Fuel Pipe |
| 23921 | Support, Fuel Filter |
| 23925 | Stay, Fuel Filter Support |
| 23926 | Stay, Fuel Filter Support, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
