Toyota Fortuner (SUV)

2023-08 → present · chassis GUN156,TGN156 · catalogue 6715F0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

202 part groups · 9 illustrations

Illustrations

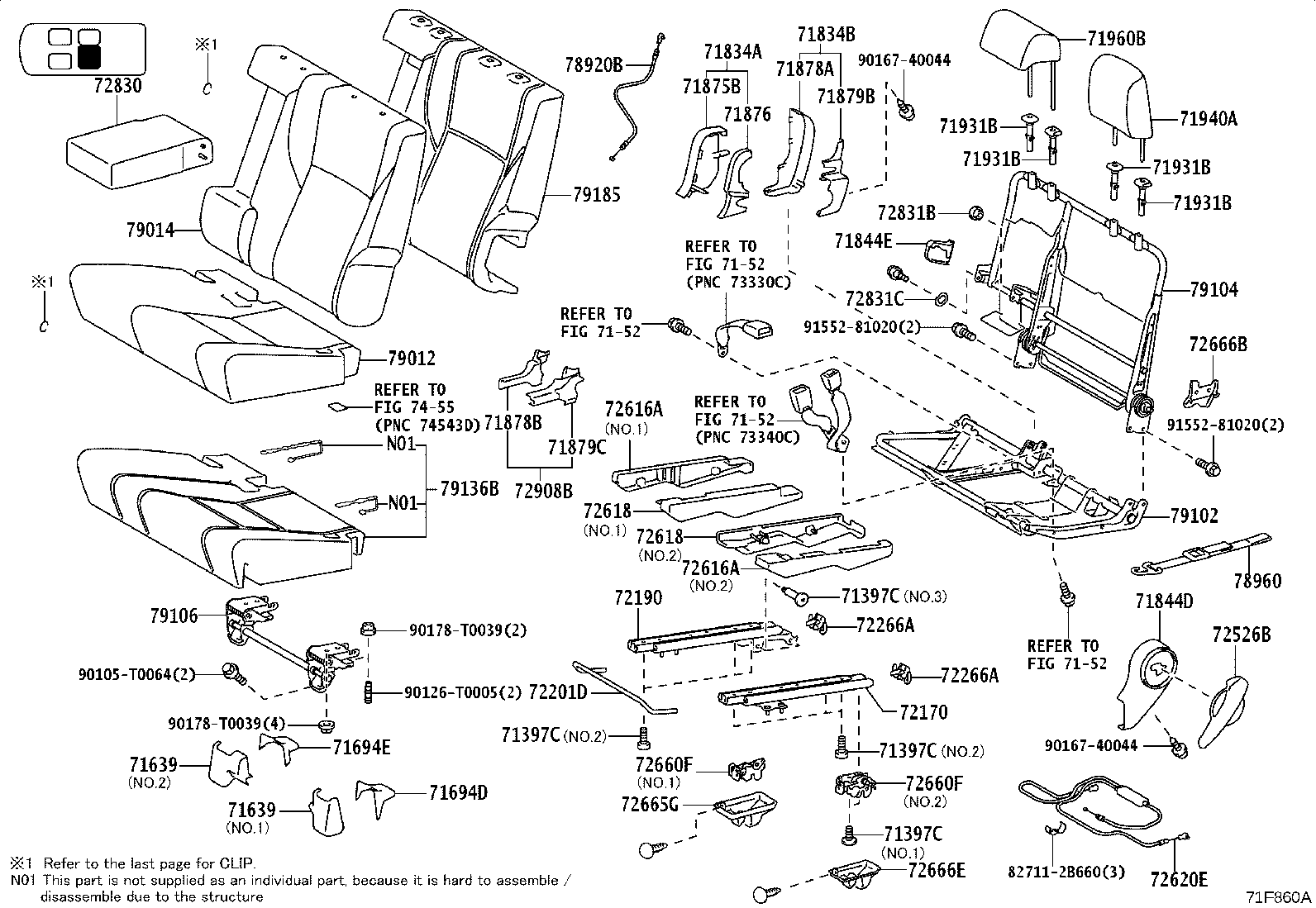

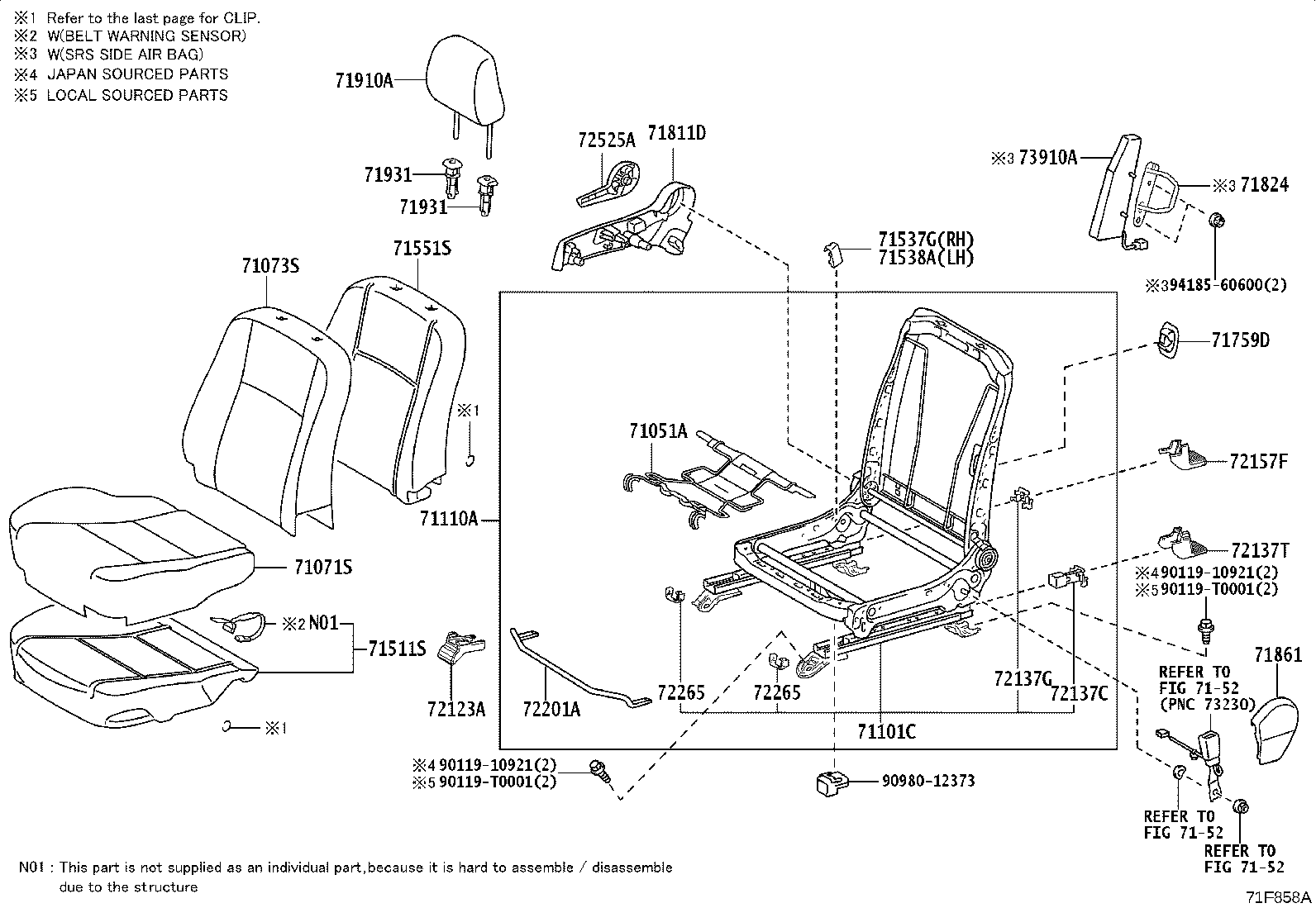

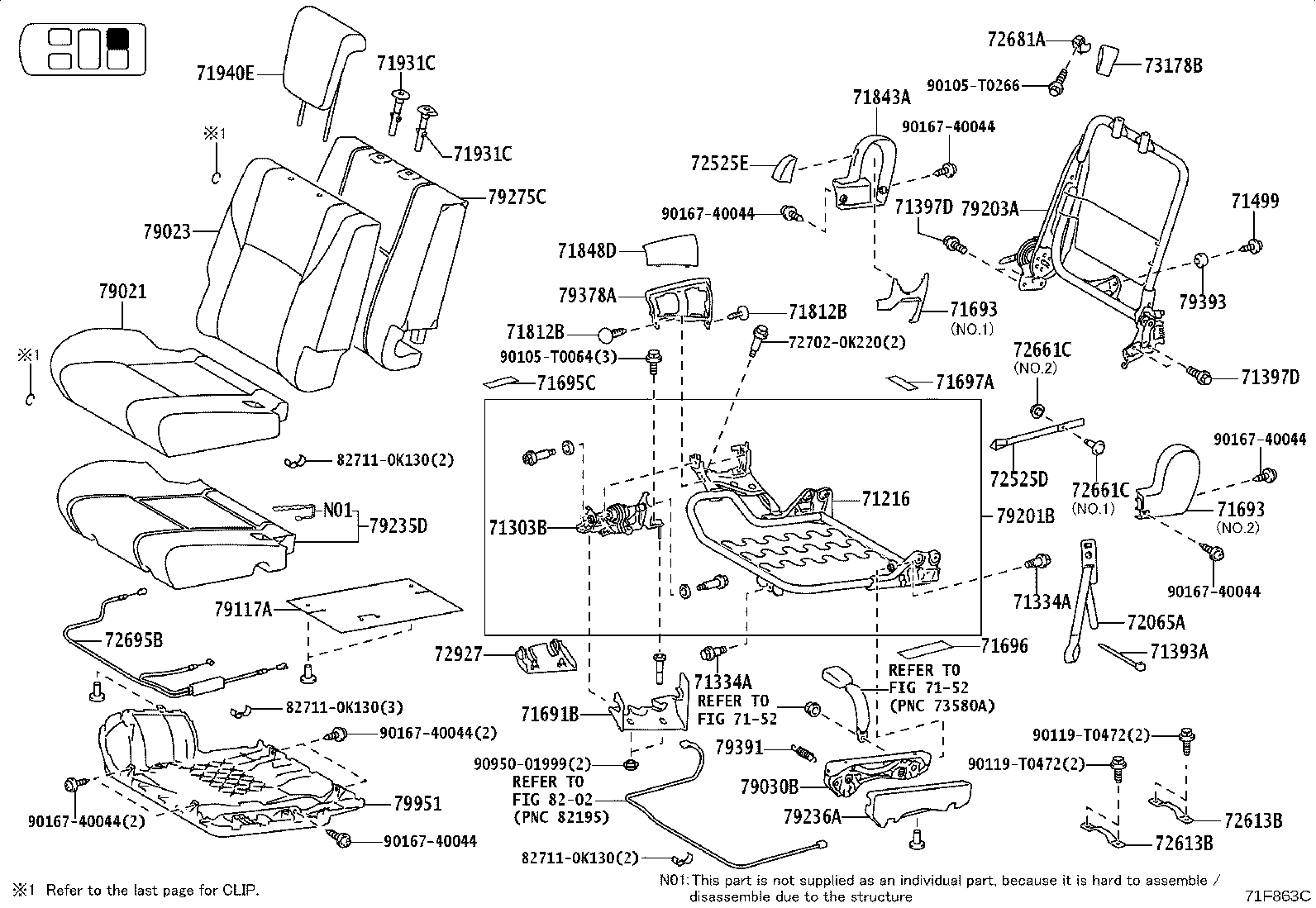

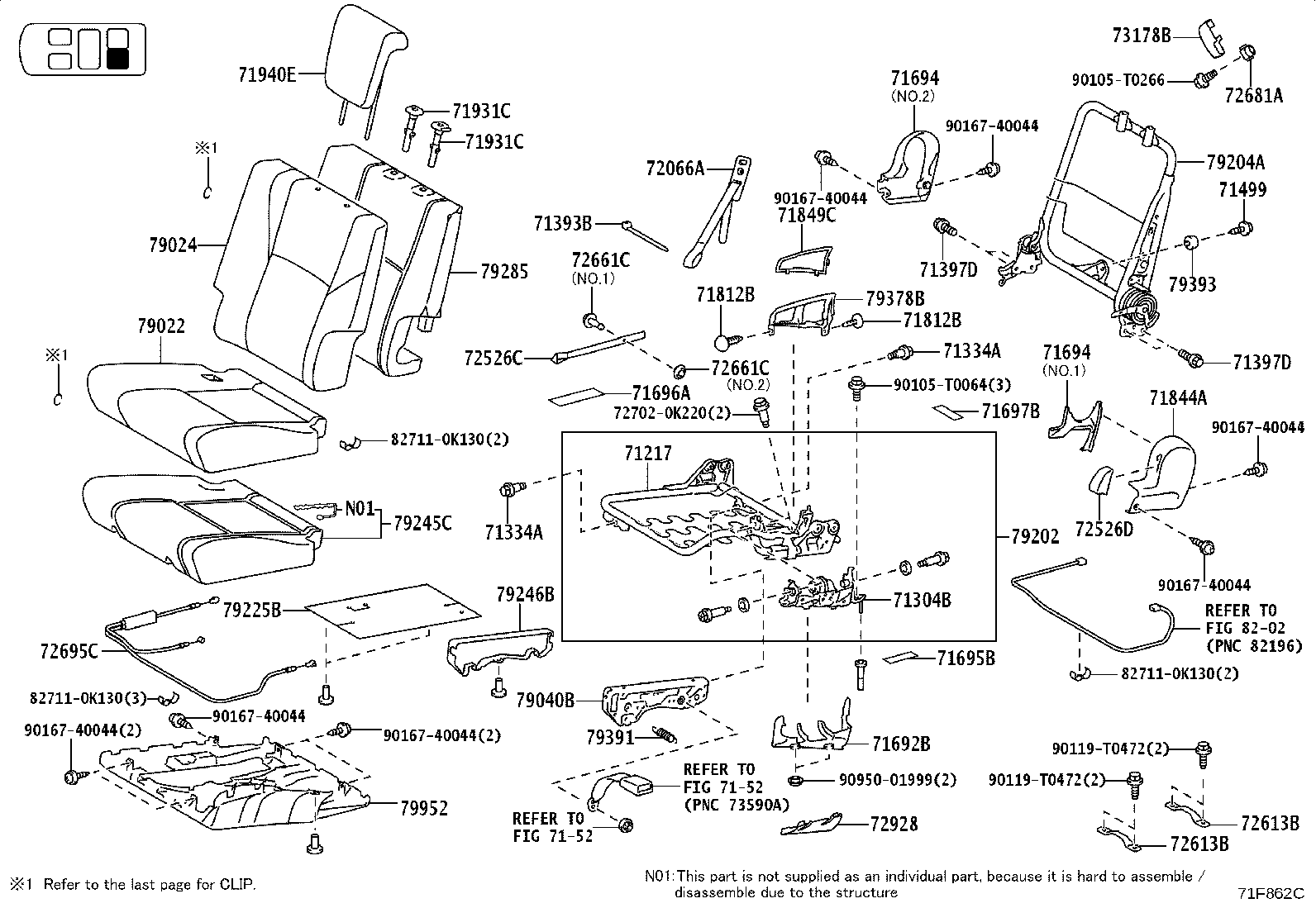

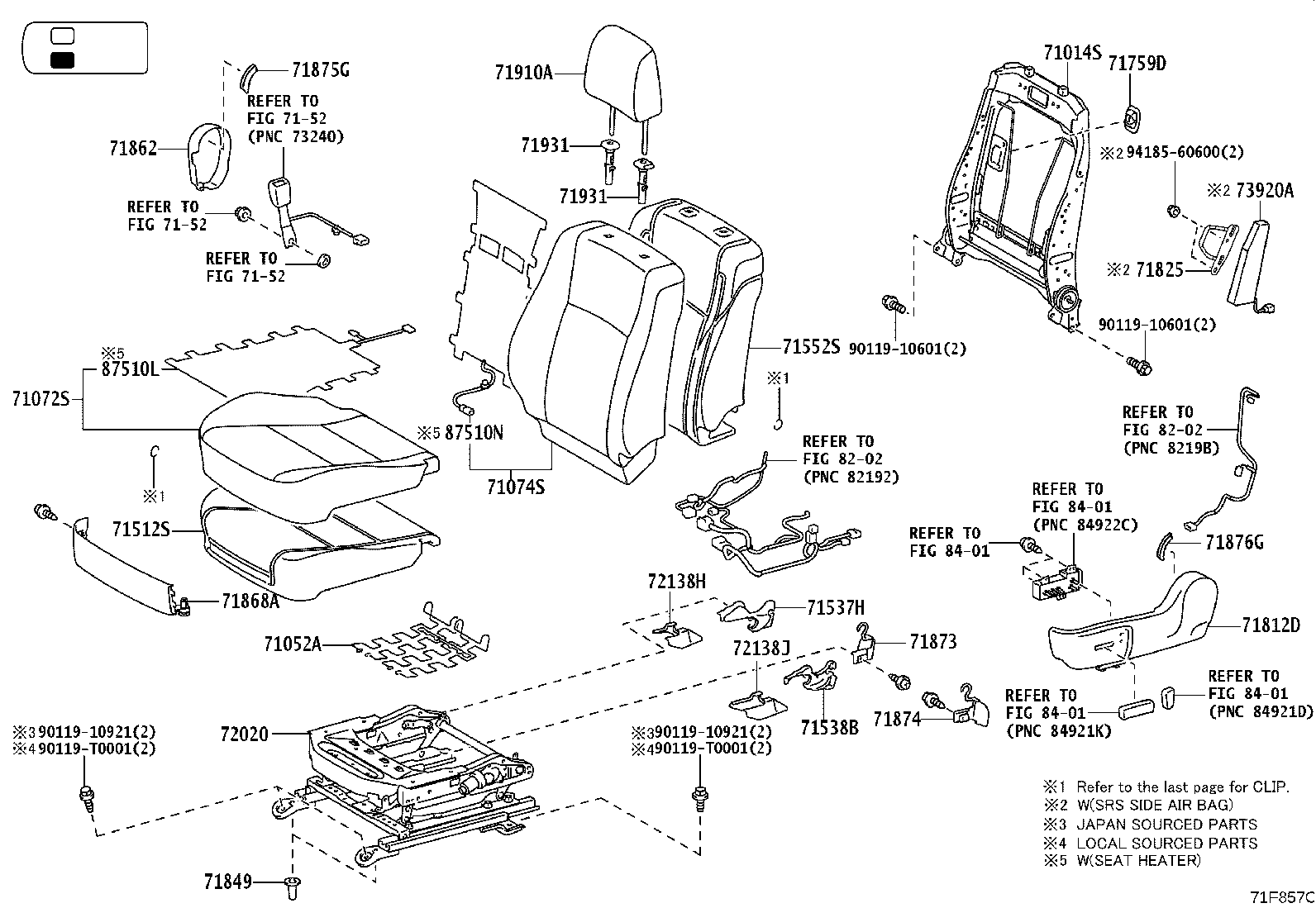

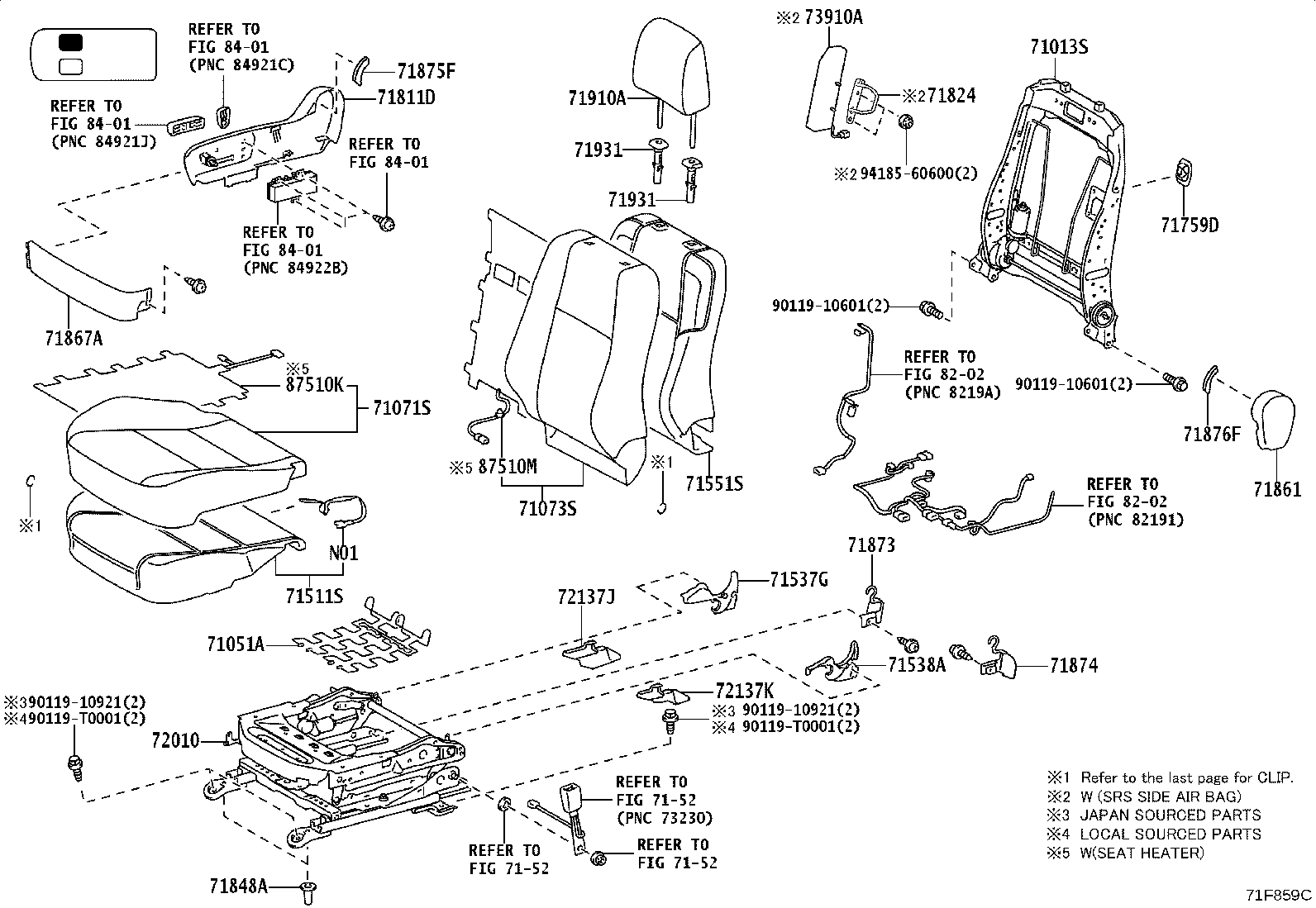

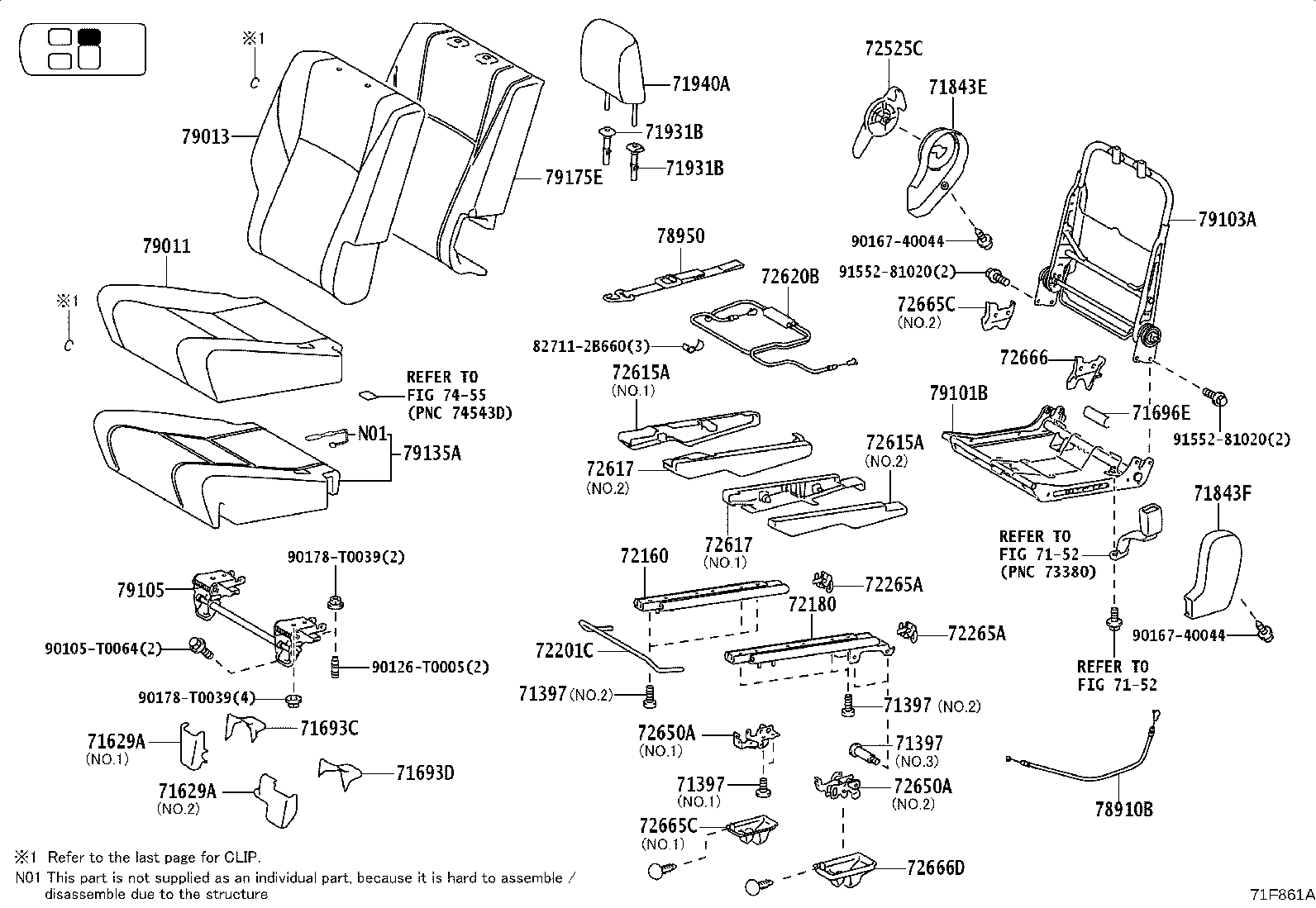

Figure 71F856A 71F856A 2023-08 → — Figure 71F857C 71F857C 2023-08 → — Figure 71F858A 71F858A 2023-08 → — Figure 71F859C 71F859C 2023-08 → — Figure 71F860A 71F860A 2023-08 → — Figure 71F861A 71F861A 2023-08 → — Figure 71F862C 71F862C 2023-08 → — Figure 71F863C 71F863C 2023-08 → — Figure 71F855A 71F855A 2023-08 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71101C Seat Sub-assy, Front RH
71102A Seat Sub-assy, Front LH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71216 Frame, Rear Seat Cushion, Rear RH
71217 Frame, Rear Seat Cushion, Rear LH
71303B Hinge Sub-assy, Rear NO.2 Seat, RH
71304B Hinge Sub-assy, Rear NO.2 Seat, LH
71334A Stopper, Rear Seat Leg
71393A Band, Rear Seat Cushion, RH
71393B Band, Rear Seat Cushion, LH
71397 Stopper, Rear Seat
71397C Stopper, Rear Seat
71397D Stopper, Rear Seat
71499 Stopper, Rear Seatback
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71629A Cover, Rear Seat Cushion Hinge, RH
71639 Cover, Rear Seat Cushion Hinge, LH
71691B Cover, Rear Seat Lock, Outer RH
71692B Cover, Rear Seat Lock, Outer LH
71693 Cover, Rear Seat Cushion Hinge, Lower RH
71693C Cover, Rear Seat Cushion Hinge, Outer RH
71693D Cover, Rear Seat Cushion Hinge, Inner RH
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71694D Cover, Rear Seat Cushion Hinge, Outer LH
71694E Cover, Rear Seat Cushion Hinge, Inner LH
71695B Protector, Rear Seat, NO.1 LH
71695C Protector, Rear Seat, NO.1
71696 Protector, Rear Seat, NO.2
71696A Protector, Rear Seat, NO.2 LH
71696E Protector, Rear Seat, NO.2 RH
71697A Protector, Rear Seat, NO.3 RH
71697B Protector, Rear Seat, NO.3 LH
71759D Hook, Front Seatback, NO.2
71811D Shield, Front Seat Cushion, RH
71812B Clip(FOR REAR SEAT CUSHION COVER)
71812D Shield, Front Seat Cushion, LH
71824 Bracket, Front Seat Side, NO.1 RH
71825 Bracket, Front Seat Side, NO.1 LH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834B Cover, Rear Seat Reclining, NO.2 LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71843E Cover, Rear Seat Reclining, RH (FOR RH SEAT)
71843F Cover, Rear Seat Reclining, LH (FOR RH SEAT)
71844A Cover, Rear Seat Reclining, NO.2 LH
71844D Cover, Rear Seat Reclining, LH (FOR LH SEAT)
71844E Cover, Rear Seat Reclining, RH (FOR LH SEAT)
71848A Cap, Seat Adjuster Cover, RH
71848D Cap, Seat Adjuster Cover, RH(FOR RH SEAT)
71849 Cap, Seat Adjuster Cover, LH
71849C Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71878A Cover, Rear Seat Reclining, Inner RH
71878B Cover, Rear Seat Reclining, Inner RH
71879B Cover, Rear Seat Reclining, Inner LH
71879C Cover, Rear Seat Reclining, Inner LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940A Headrest Assy, Rear Seat
71940E Headrest Assy, NO.2 Seat
71960B Headrest Assy, Rear Seat, Center
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72065A Hook Sub-assy,Rear Seat Cushion Lock,RH
72066A Hook Sub-assy,Rear Seat Cushion Lock,LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72137C Cover, Seat Track Inner, RH
72137G Cover, Seat Track, Outer RH
72137J Cover, Front Seat Track, RH Rear Outer
72137K Cover, Front Seat Track, RH Rear Inner
72137T Cover, Seat Track Bracket, Outer Rear RH
72138 Cover, Seat Track, Outer LH
72138E Cover, Seat Track, Inner LH
72138H Cover, Front Seat Track, LH Rear Inner
72138J Cover, Front Seat Track, LH Rear Outer
72138N Cover, Seat Track Bracket, Outer Rear LH
72157F Cover, Seat Track Bracket, Inner Rear RH
72158E Cover, Seat Track Bracket, Inner Rear LH
72160 Track Assy, Rear Seat, Outer RH
72170 Track Assy, Rear Seat, Outer LH
72180 Track Assy, Rear Seat, Inner RH
72190 Track Assy, Rear Seat Inner, LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72201C Handle Sub-assy, Seat Track, RH
72201D Handle Sub-assy, Seat Track, LH
72265 Cover, Seat Track Upper Rail, RH
72265A Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72266A Cover, Seat Track Upper Rail, LH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72525C Handle, Reclining Adjuster Release, NO.1 RH
72525D Handle, Reclining Adjuster Release, NO.2 RH
72525E Handle, Reclining Adjuster Release, NO.3 RH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72526C Handle, Reclining Adjuster Release, NO.2 LH
72526D Handle, Reclining Adjuster Release, NO.3 LH
72526E Handle, Reclining Adjuster Release, LH
72613B Striker, Rear Seat Lock
72615A Cover, Rear Seatback Lock Striker, RH
72616A Cover, Rear Seatback Lock Striker, LH
72617 Retainer, Seatback Lock Striker Cover
72618 Protector, Rear Seatback Lock Striker
72620B Cable Assy, Rear NO.1 Seat Lock
72620E Cable Assy, Rear NO.1 Seat Lock
72650A Lock Assy, Rear Seat, RH
72660F Lock Assy, Rear Seat, LH
72661C Button, Rear Seatback Lock Release
72665C Cover, Rear Seat Lock, RH
72665G Cover, Rear Seat Lock, RH(FOR LH SEAT)
72666 Cover, Rear Seatback Lock, LH
72666B Cover, Rear Seat Lock, LH
72666D Cover, Rear Seat Lock, LH(FOR RH SEAT)
72666E Cover, Rear Seat Lock, LH(FOR LH SEAT)
72681A Hook, Rear Seat
72695B Cable, Rear Seat Lock Control, RH
72695C Cable, Rear Seat Lock Control, LH
72830 Armrest Assy, Rear Seat, Center
72831B Plate, Rear Seat Center Armrest, NO.1
72831C Plate, Rear Seat Center Armrest, NO.2
72908B Cover Sub-assy, Rear Seat Cush Under, LH
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
73178B Cap, Seat Belt Anchor Cover
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
78910B Cable Assy, Fold Seat Lock Control, NO.1 RH
78920B Cable Assy, Fold Seat Lock Control, NO.1 LH
78950 Band Assy, Fold Seat Stopper, NO.1
78960 Band Assy, Fold Seat Stopper, NO.2
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013 Cover Sub-assy, NO.1 Seatback, RH
79014 Cover Sub-assy, NO.1 Seatback, LH
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79030B Leg Assy, Rear NO.2 Seat, RH
79040B Leg Assy, Rear NO.2 Seat, LH
79101B Frame Sub-assy, NO.1 Seat Cushion, RH
79102 Frame Sub-assy, NO.1 Seat Cushion, LH
79103A Frame Sub-assy, NO.1 Seatback, RH
79104 Frame Sub-assy, NO.1 Seatback, LH
79105 Leg Sub-assy, NO.1 Seat, RH
79106 Leg Sub Assy, NO.1 Seat, LH
79117A Carpet, Rear NO.2 Seat Cushion, RH
79135A Pad, NO.1 Seat Cushion, RH
79136B Pad, NO.1 Seat Cushion, LH
79175E Pad, NO.1 Seatback, RH
79185 Pad, NO.1 Seatback, LH
79201B Frame Sub-assy, NO.2 Seat Cushion, RH
79202 Frame Sub-assy, NO.2 Seat Cushion, LH
79203A Frame Sub-assy, NO.2 Seatback, RH
79204A Frame Sub-assy, NO.2 Seatback, LH
79225B Carpet, Rear NO.2 Seat Cushion, LH
79235D Pad, NO.2 Seat Cushion, RH
79236A Cover, NO.2 Seat Leg
79245C Pad, NO.2 Seat Cushion, LH
79246B Cover, NO.2 Seat Leg, B
79275C Pad, NO.2 Seatback, RH
79285 Pad, NO.2 Seatback, LH
79378A Cover, NO.3 Seat Cushion Hinge, RH
79378B Cover, NO.3 Seat Cushion Hinge, LH
79391 Spring, Rear Seat Cushion
79393 Cushion, Rear NO.2 Seatback
79951 Cover, NO.1 Seat Cushion
79952 Cover, NO.2 Seat Cushion
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
