Toyota Fortuner (SUV)

2023-08 → present · chassis GUN156,TGN156 · catalogue 6715F0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

11 part groups · 2 illustrations

Illustrations

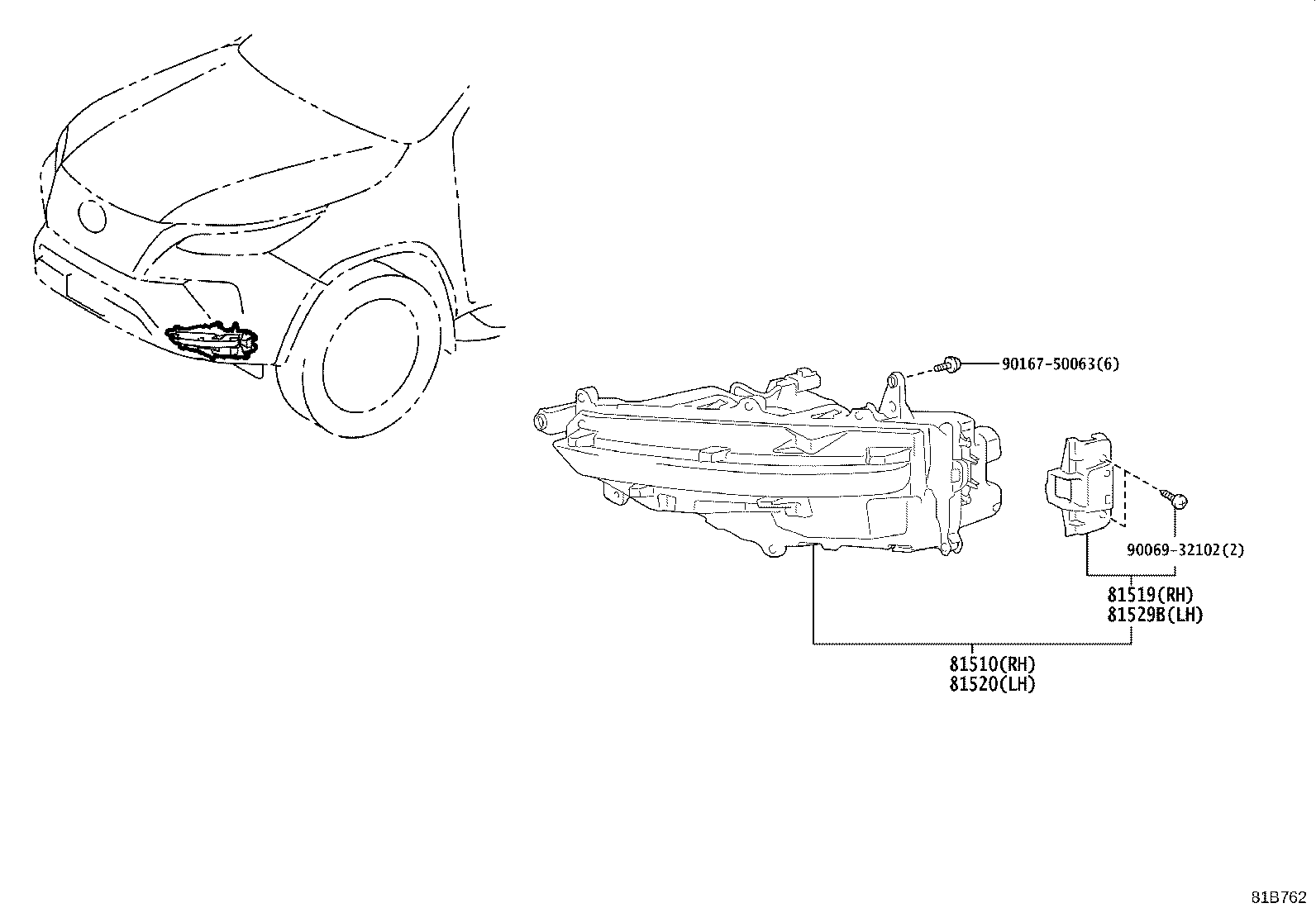

Figure 81B760 81B760 2023-08 → — Figure 81B762 81B762 2023-08 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81510H Bulb (FOR FRONT CLEARANCE LAMP)
81511B Lens & Body, Front Turn Signal Lamp, RH
81517 Socket, Front Turn Signal Lamp
81518B Socket Cover, Front Turn Signal Lamp
81519 Bracket, Front Turn Signal Lamp, RH
81520 Lamp Assy, Front Turn Signal, LH
81521B Lens & Body, Front Turn Signal Lamp, LH
81529B Bracket, Front Turn Signal Lamp, LH
81615F Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
