Toyota Fortuner (SUV)

2023-08 → present · chassis GUN156,TGN156 · catalogue 6715F0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

71 part groups · 13 illustrations

Illustrations

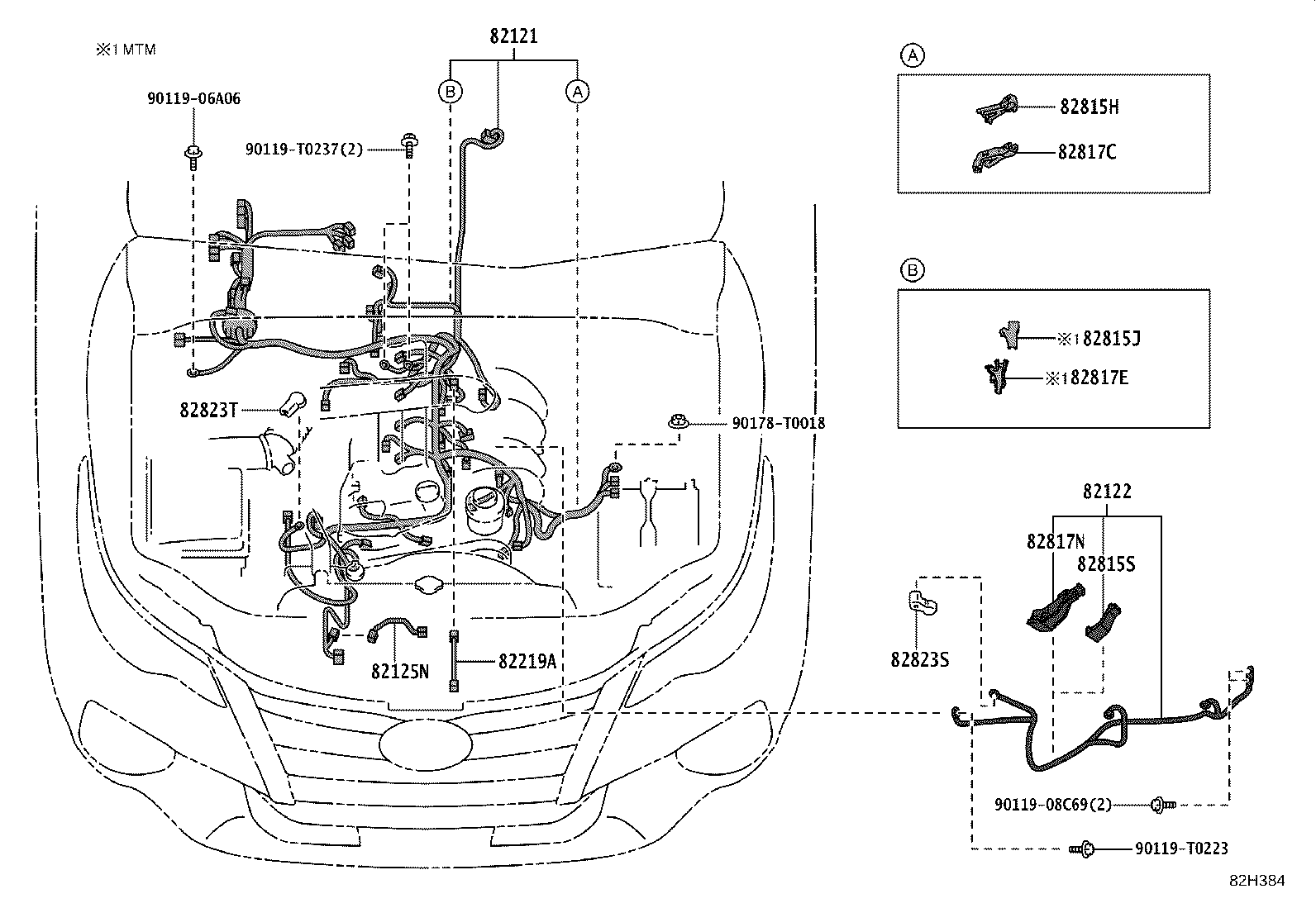

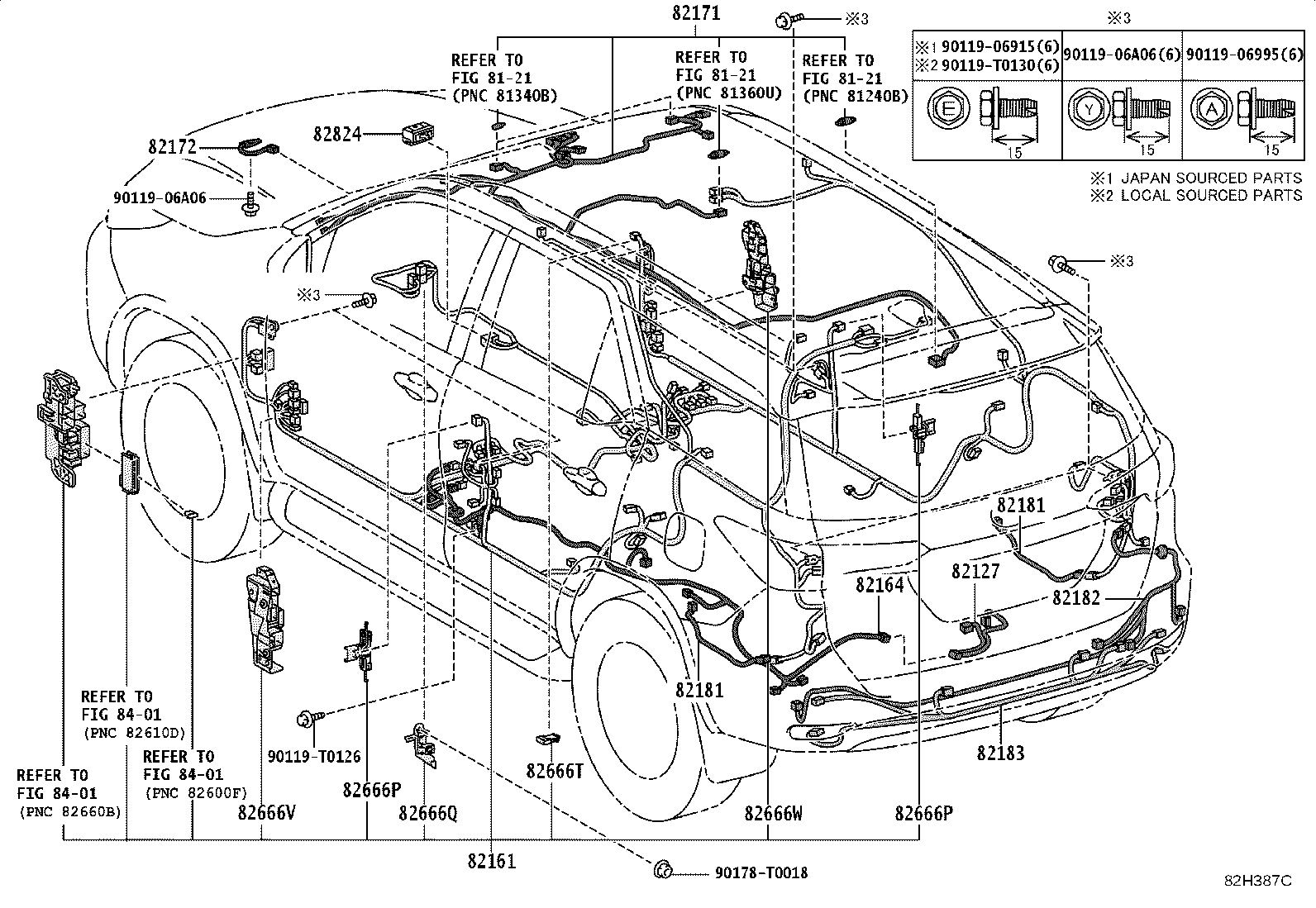

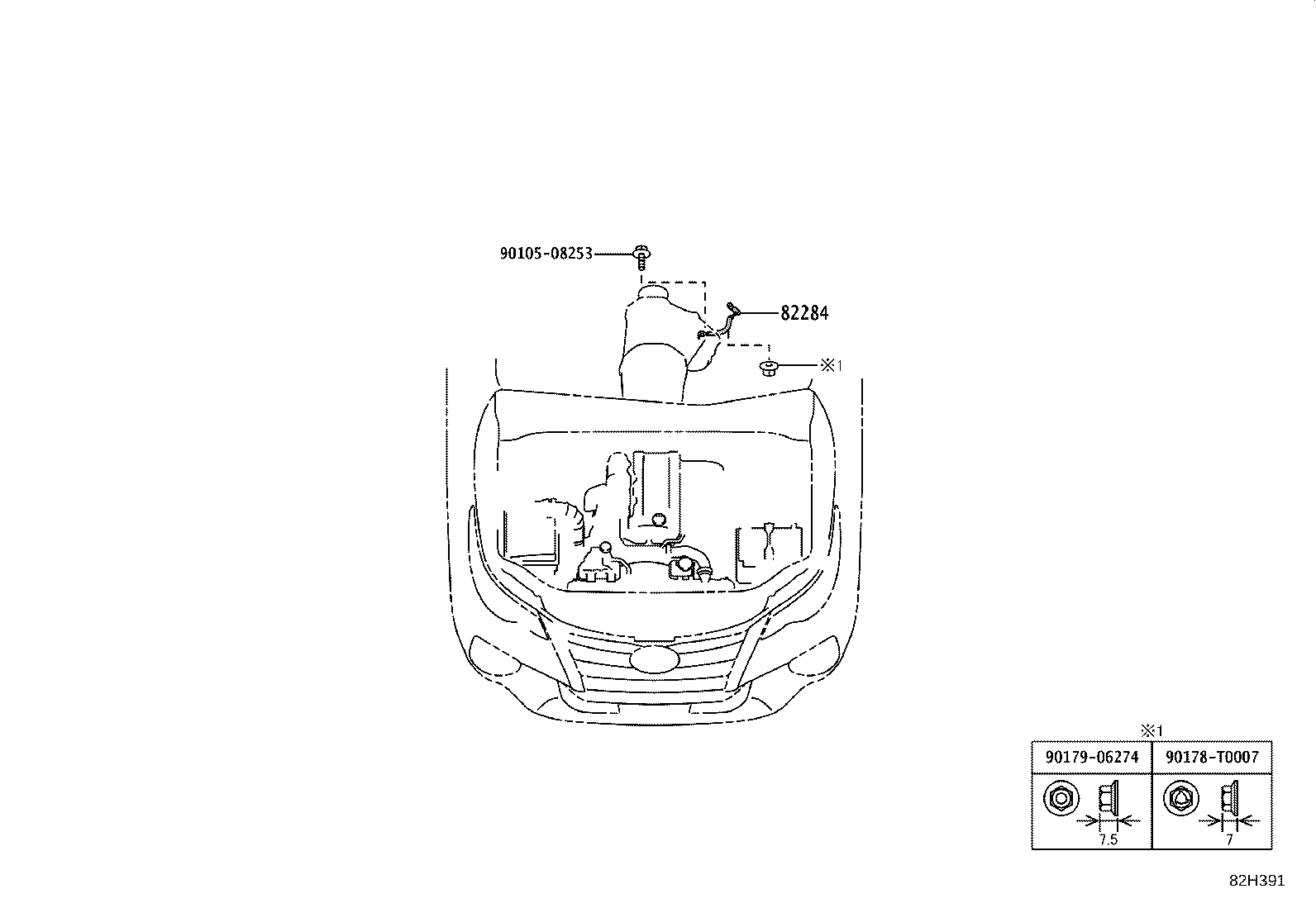

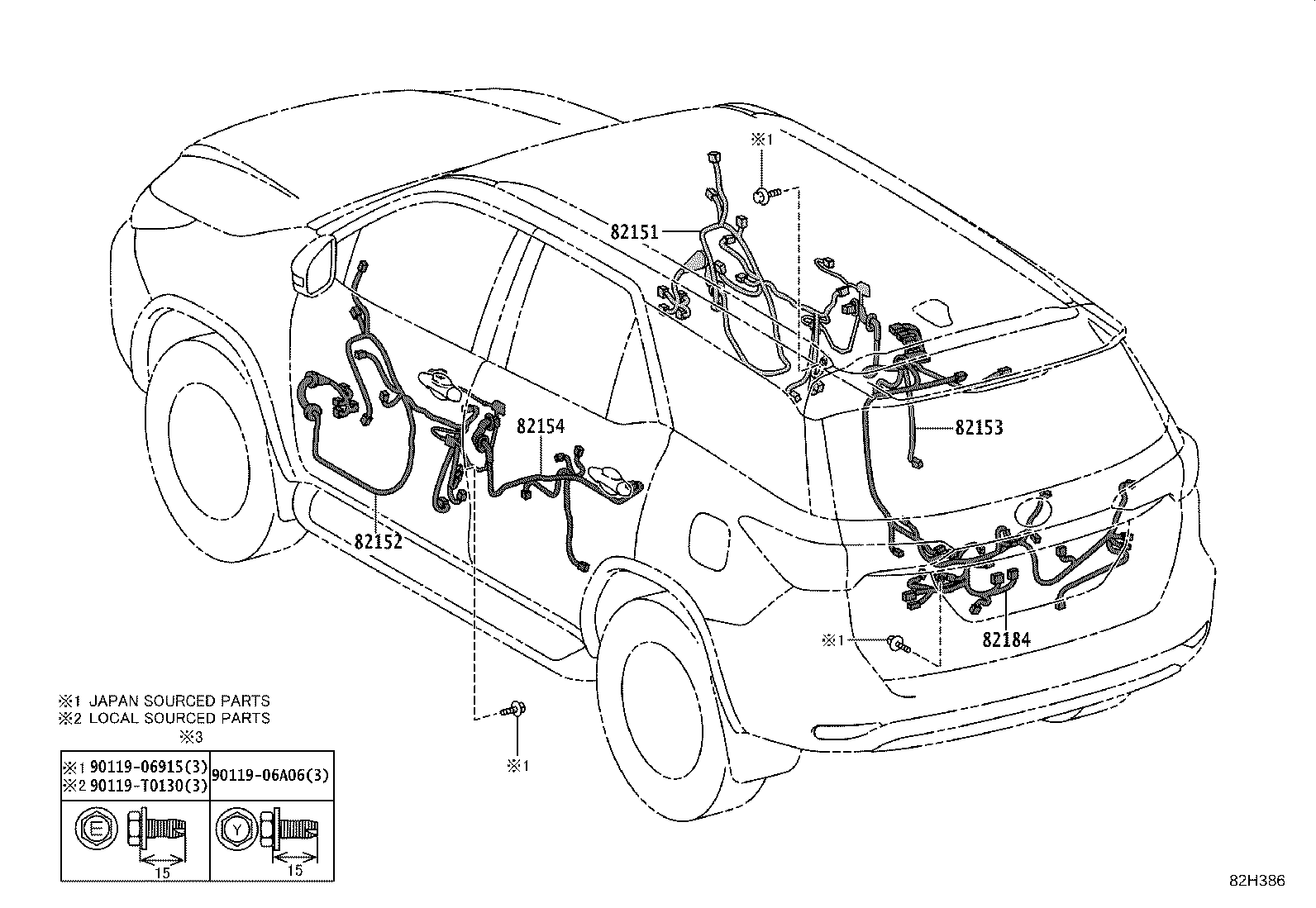

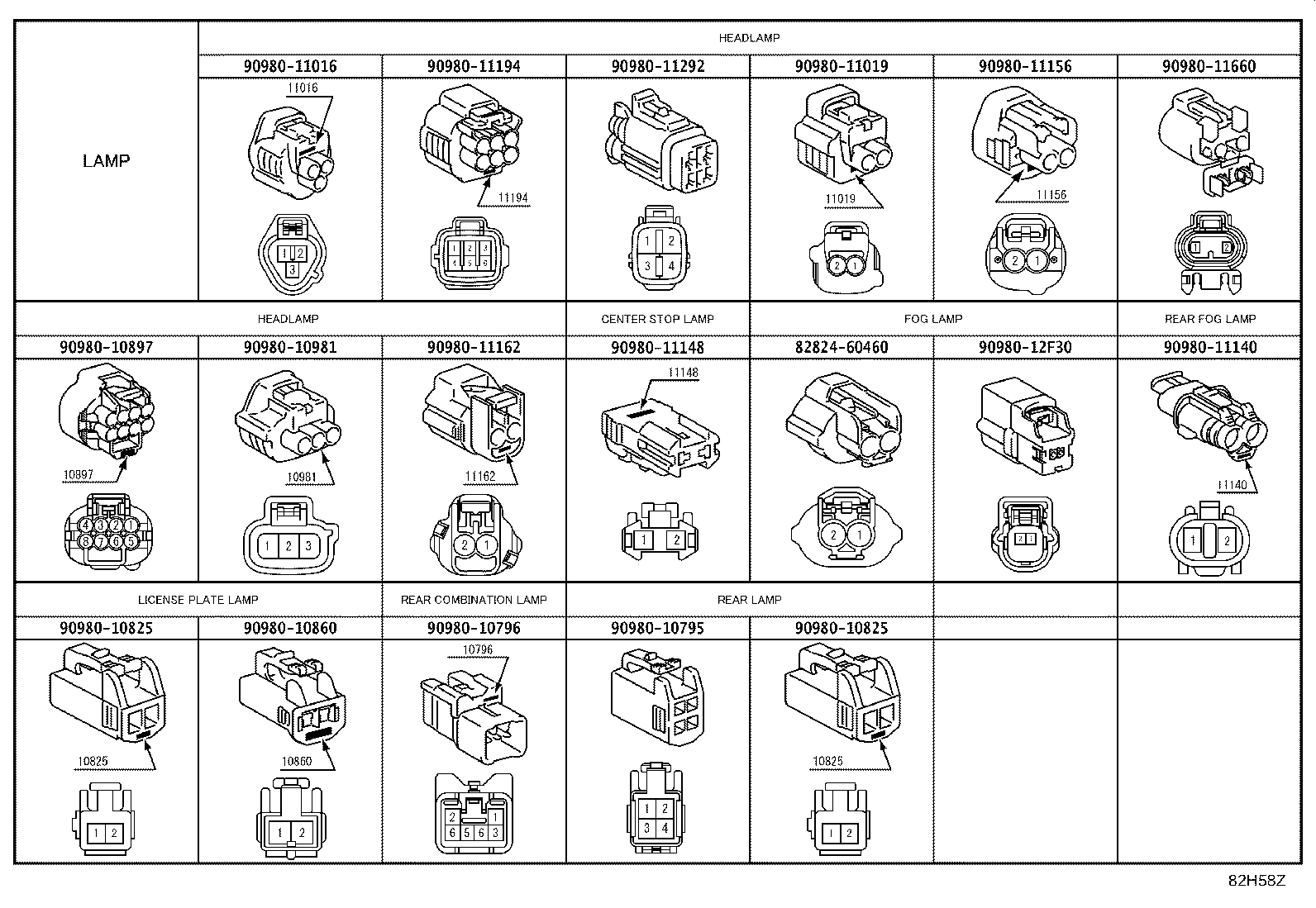

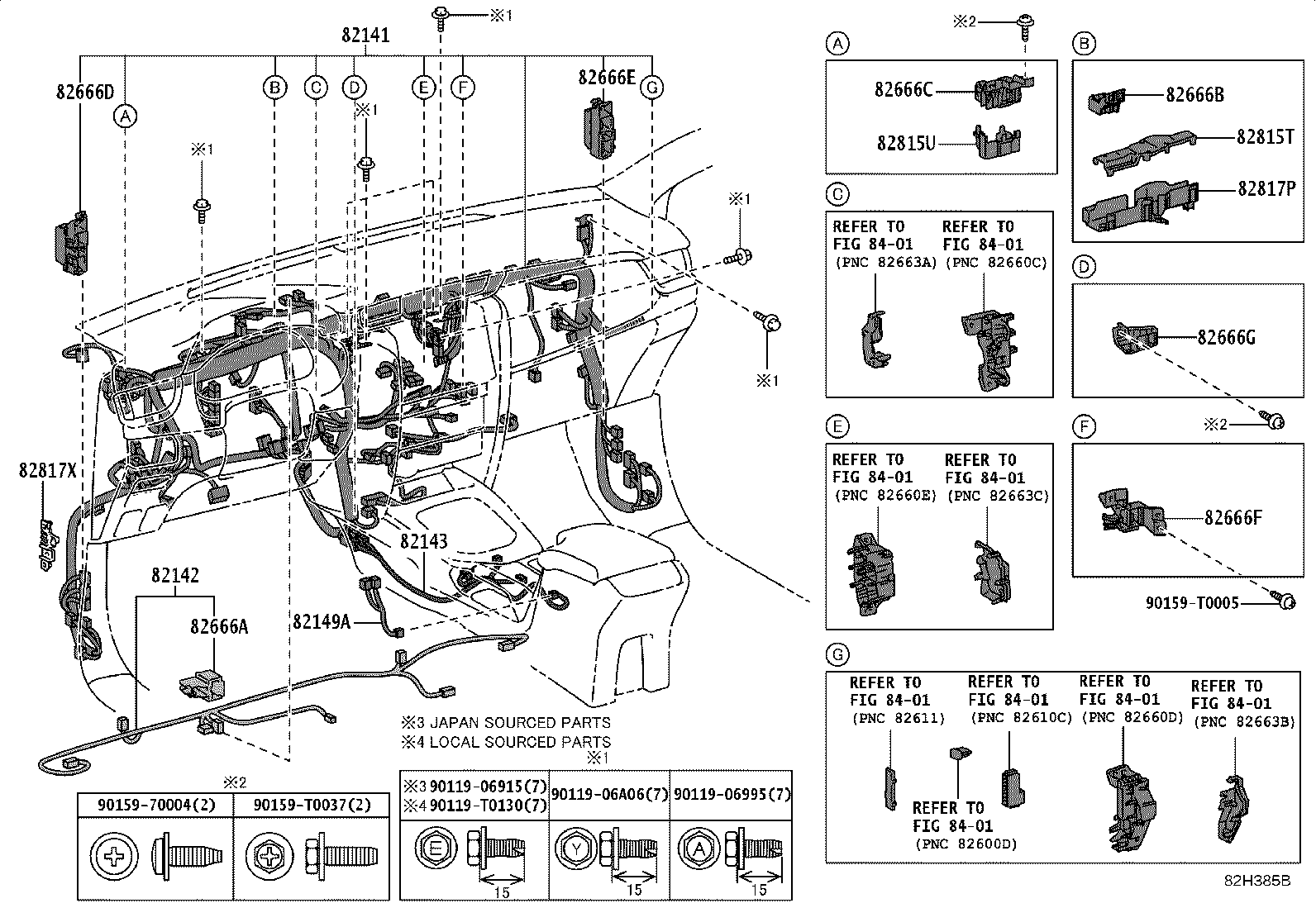

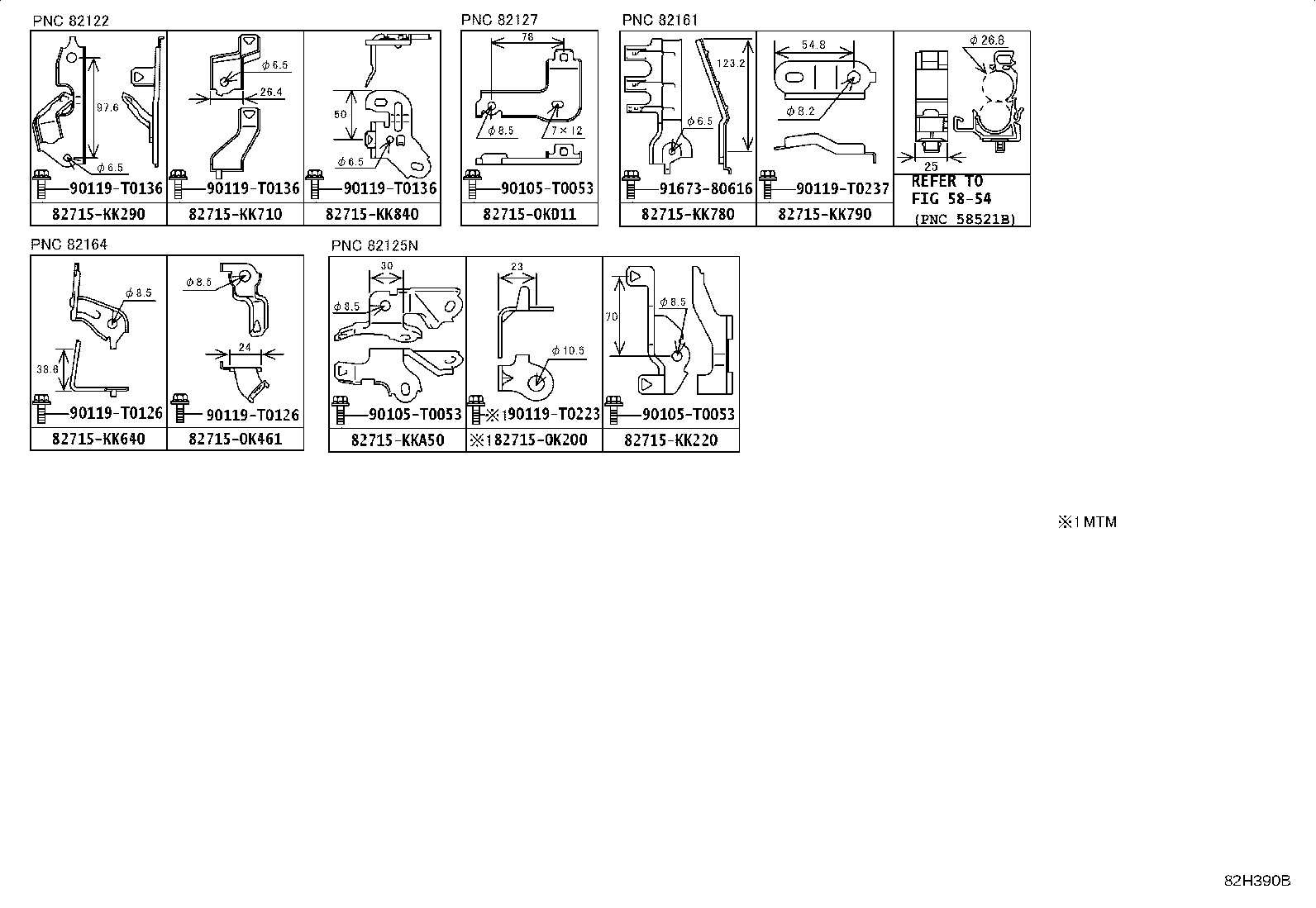

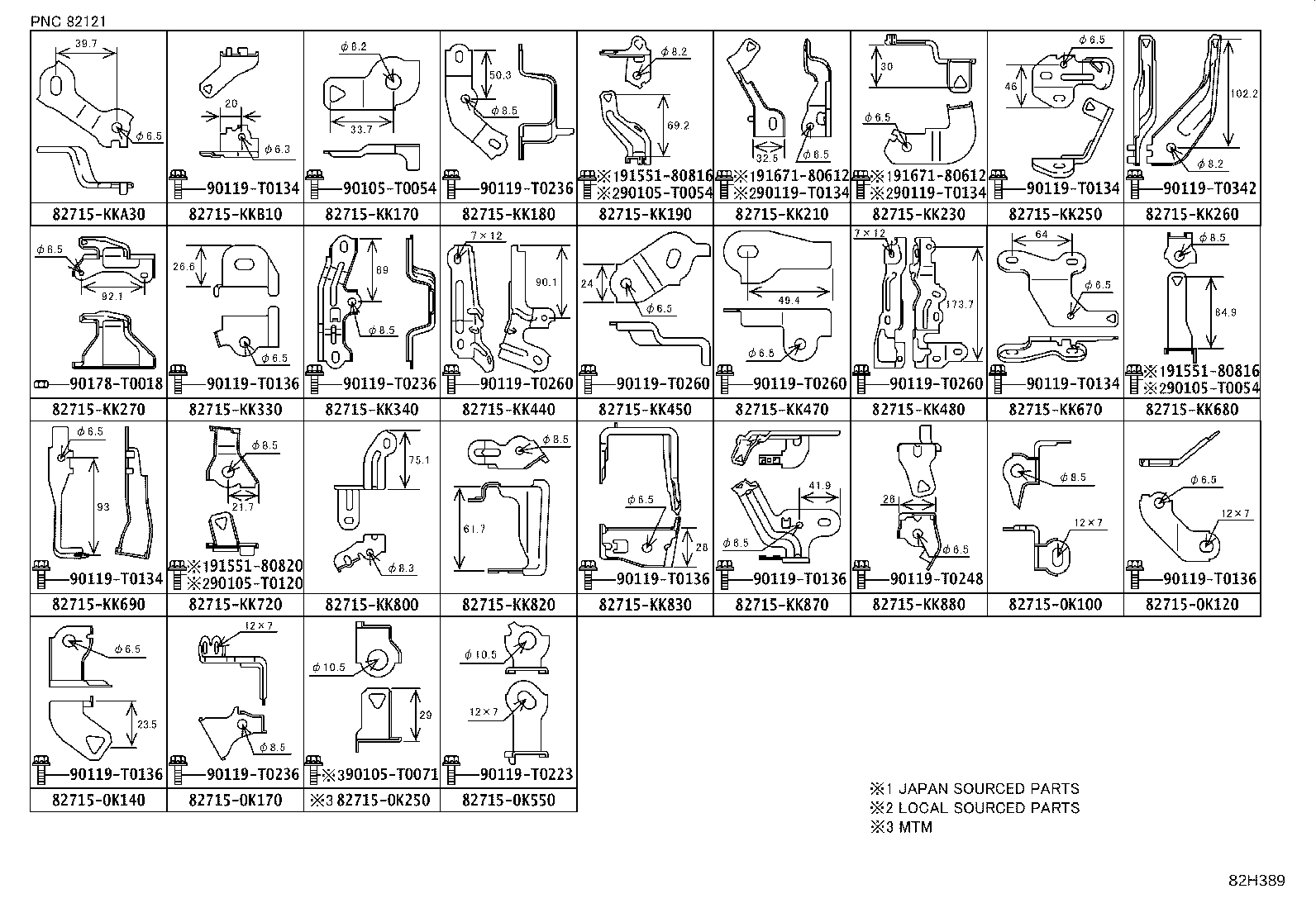

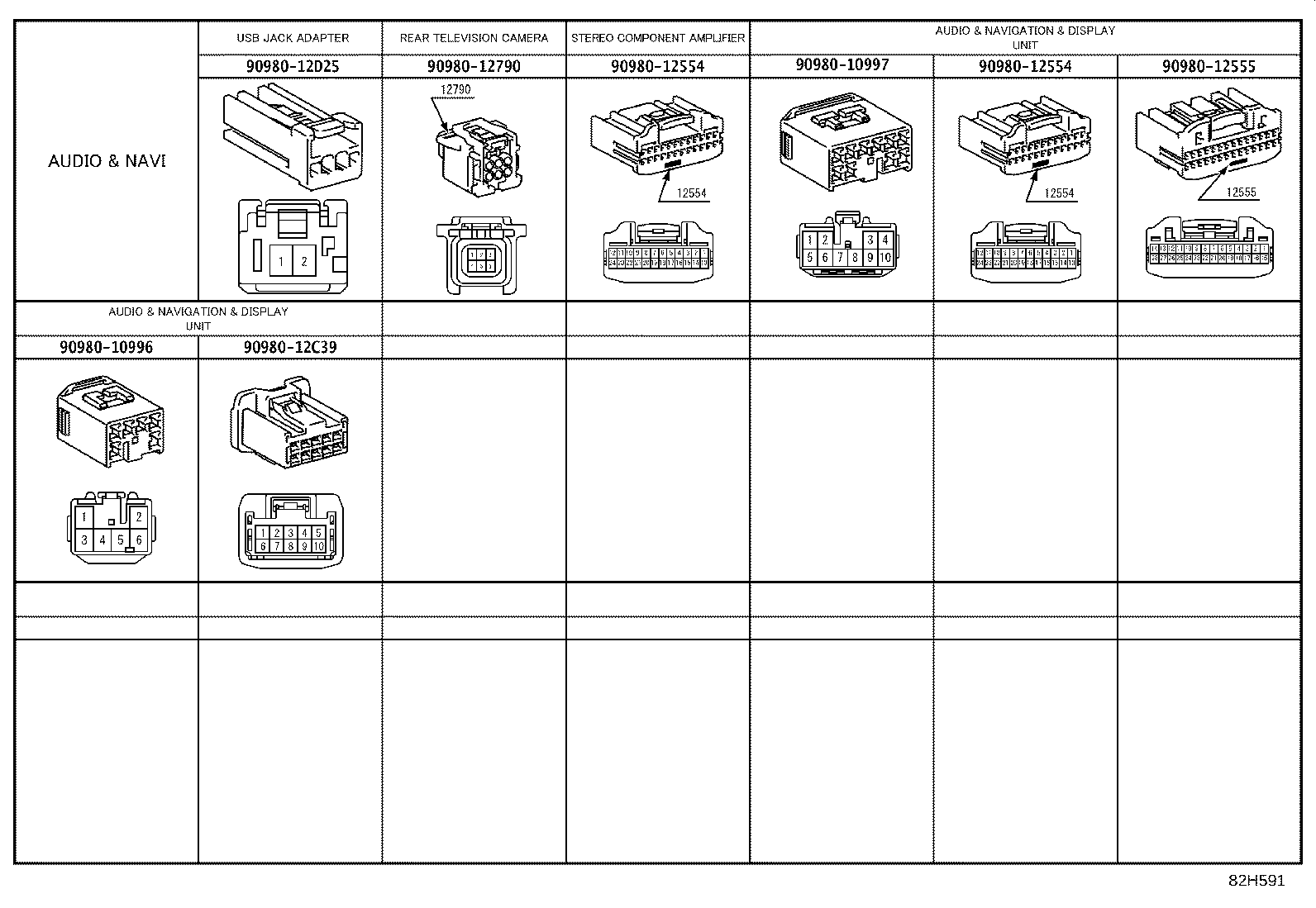

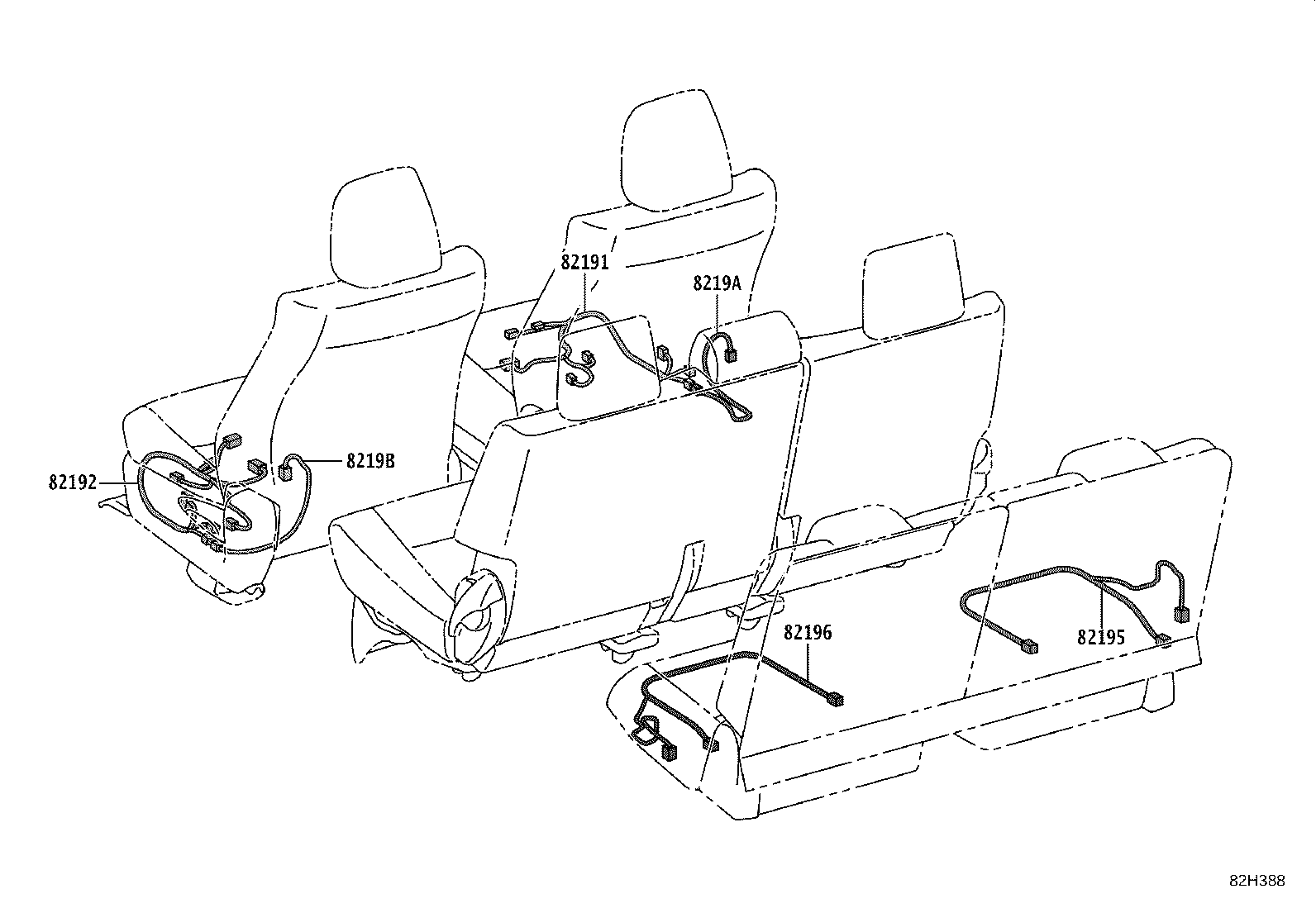

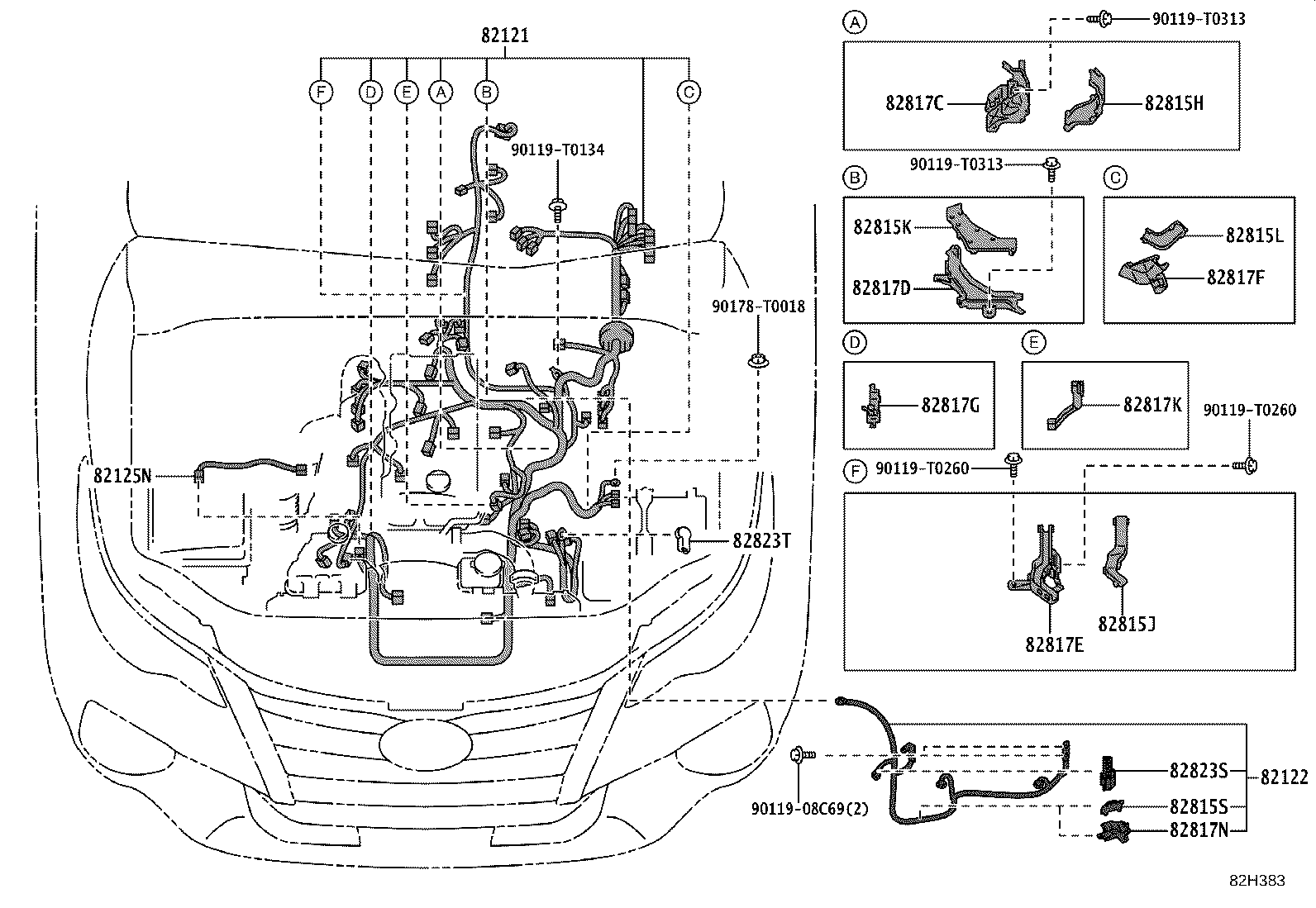

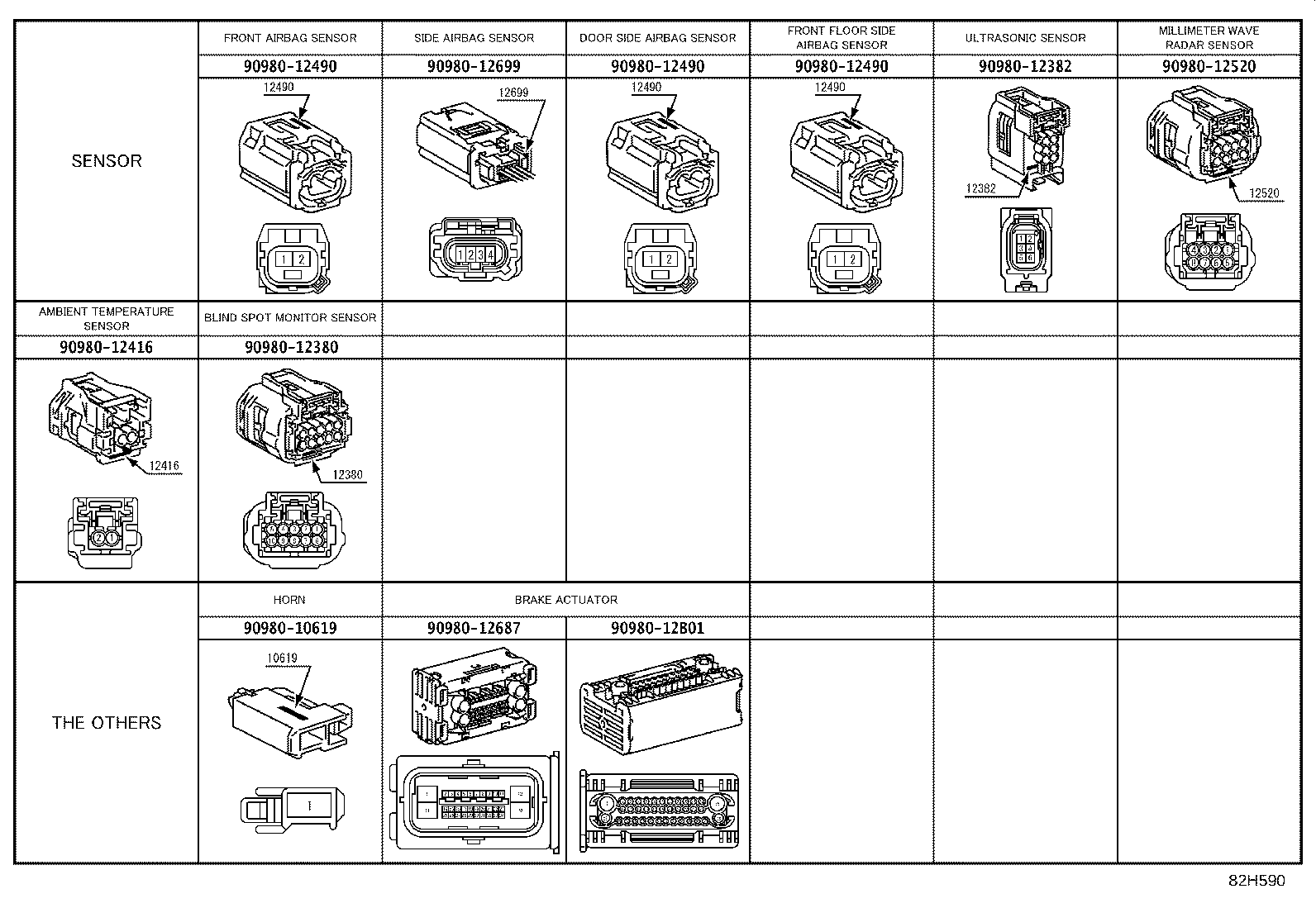

Figure 82H382A 82H382A 2023-08 → — Figure 82H383 82H383 2023-08 → — Figure 82H384 82H384 2023-08 → — Figure 82H385B 82H385B 2023-08 → — Figure 82H386 82H386 2023-08 → — Figure 82H387C 82H387C 2023-08 → — Figure 82H388 82H388 2023-08 → — Figure 82H389 82H389 2023-08 → — Figure 82H390B 82H390B 2023-08 → — Figure 82H391 82H391 2023-08 → — Figure 82H58Z 82H58Z 2023-08 → — Figure 82H590 82H590 2023-08 → — Figure 82H591 82H591 2023-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82119C Wire, Engine Room, NO.5
8211A Wire, Engine Room, NO.6
82121 Wire, Engine
82122 Wire, Engine, NO.2
82125N Wire, Engine, NO.5
82127 Wire, Differential
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82149A Wire, Instrument Panel, NO.5
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82164 Wire, Frame
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
82219A Wire, Sensor
82284 Wire, Earth
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817K Protector, Wiring Harness, NO.10
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817X Protector, Wiring Harness, NO.17
82821N Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
