Toyota Fortuner (SUV)
2023-08 → present · chassis GUN156,TGN156 · catalogue 6715F0 · Europe
Supported model
Data version 2023-09
Switch & Relay & Computer
132 part groups · 13 illustrations

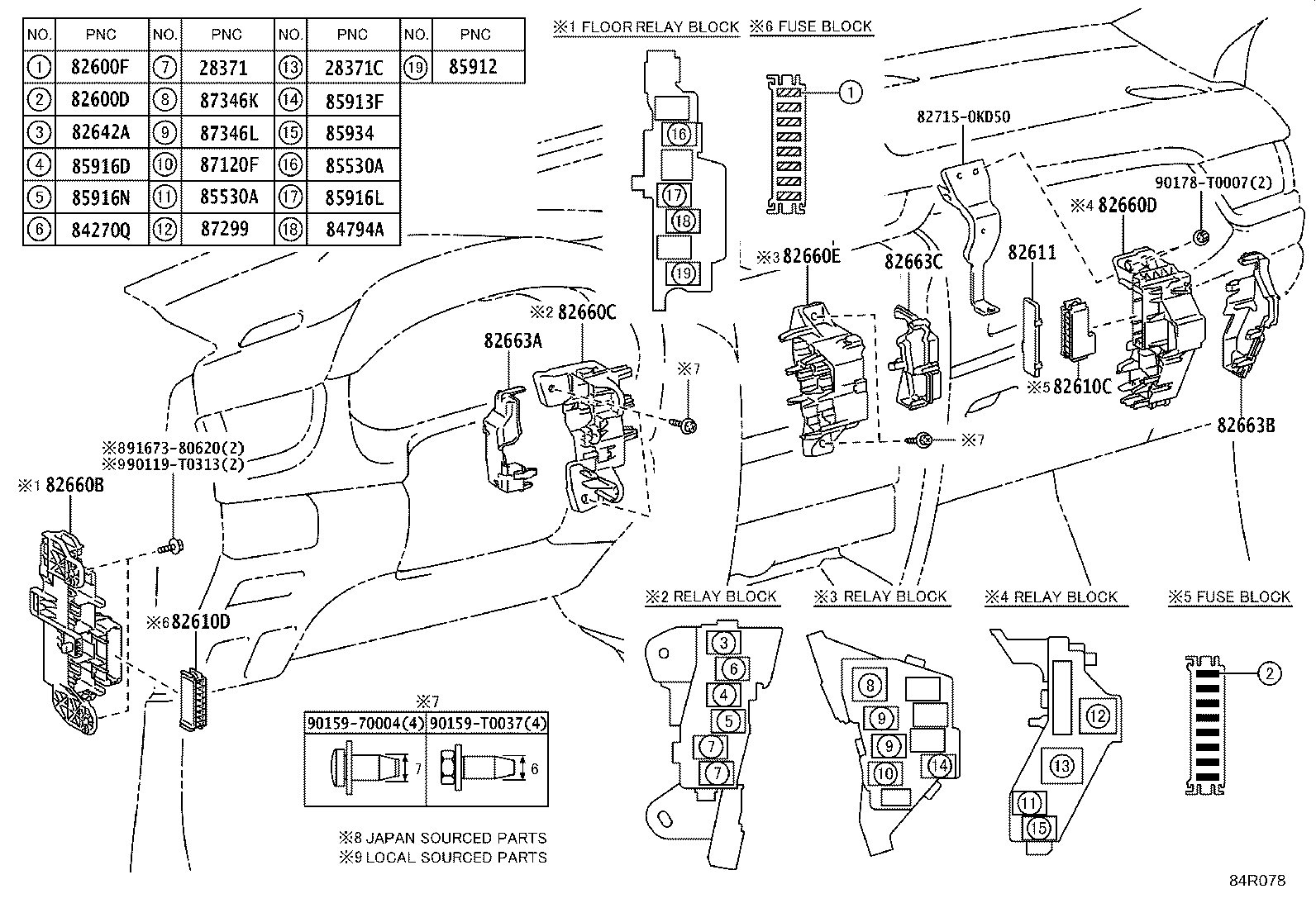

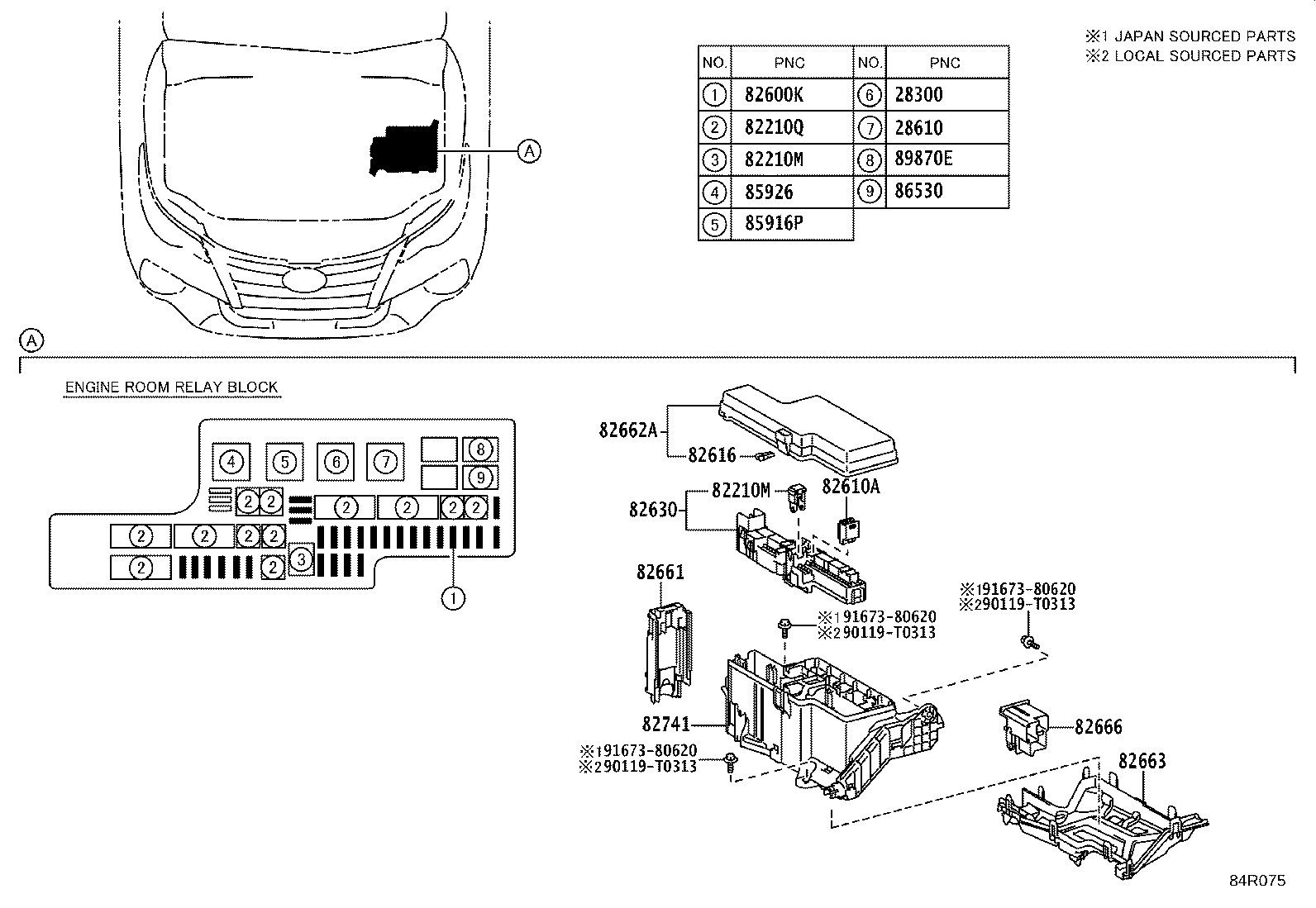

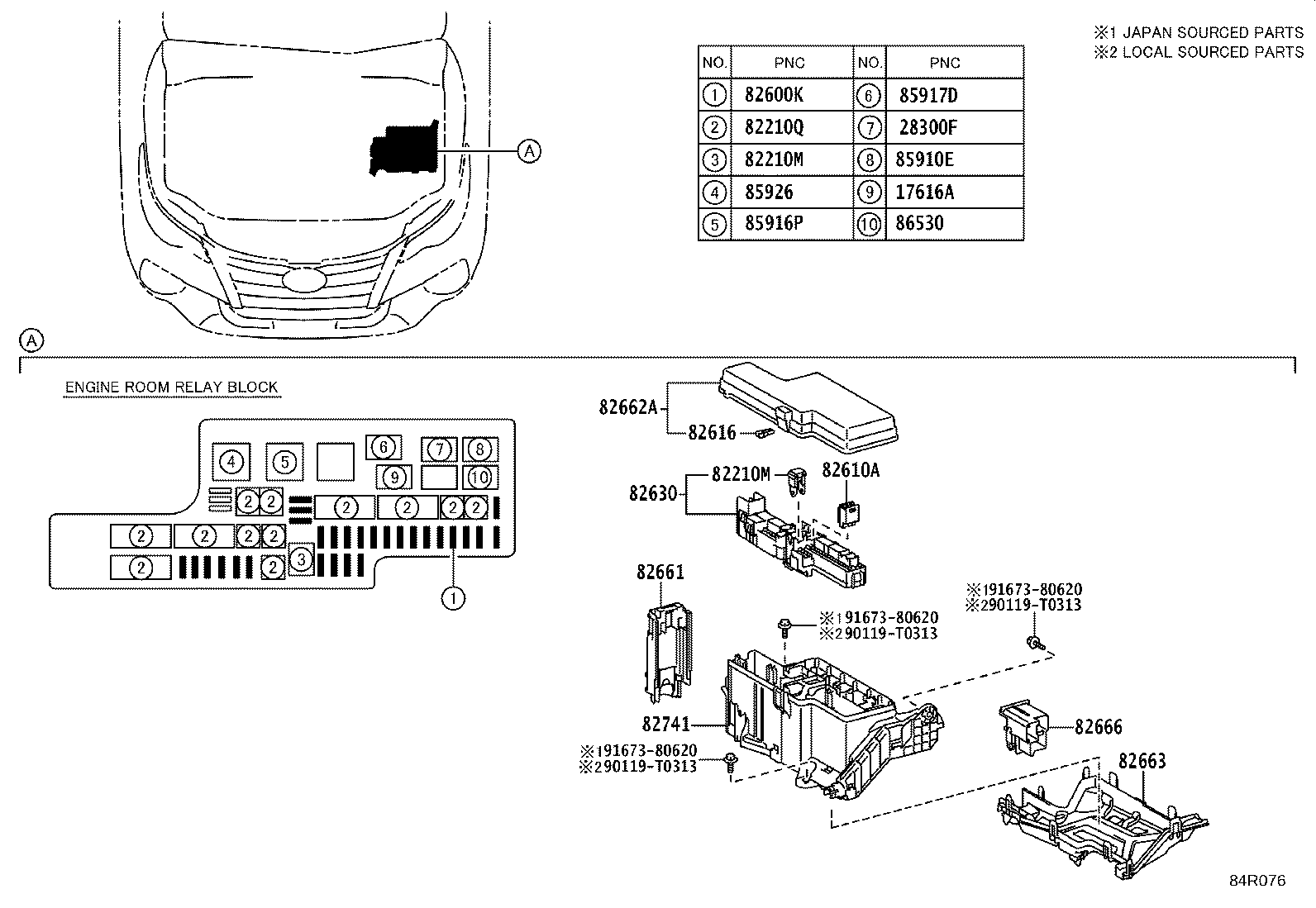

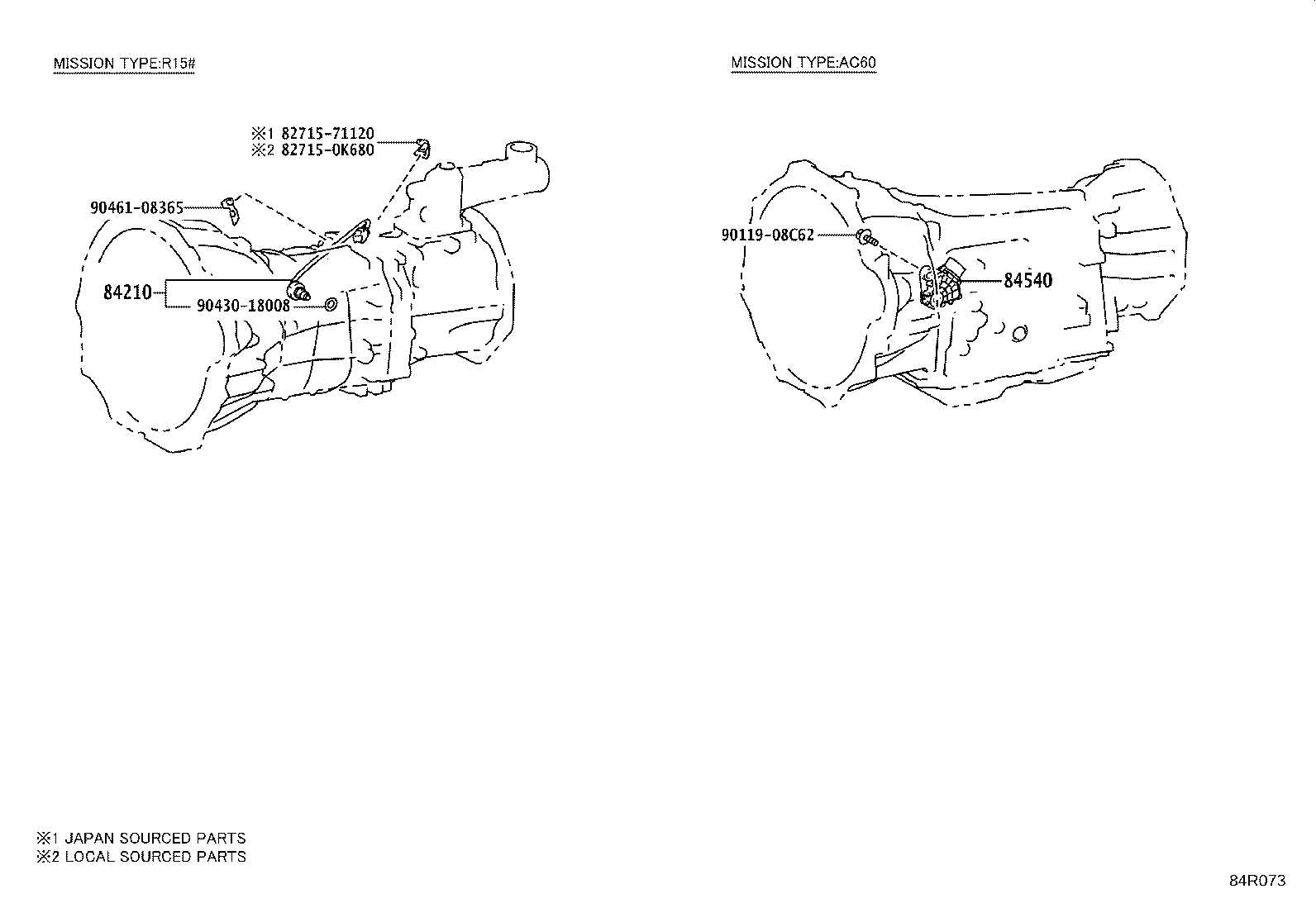

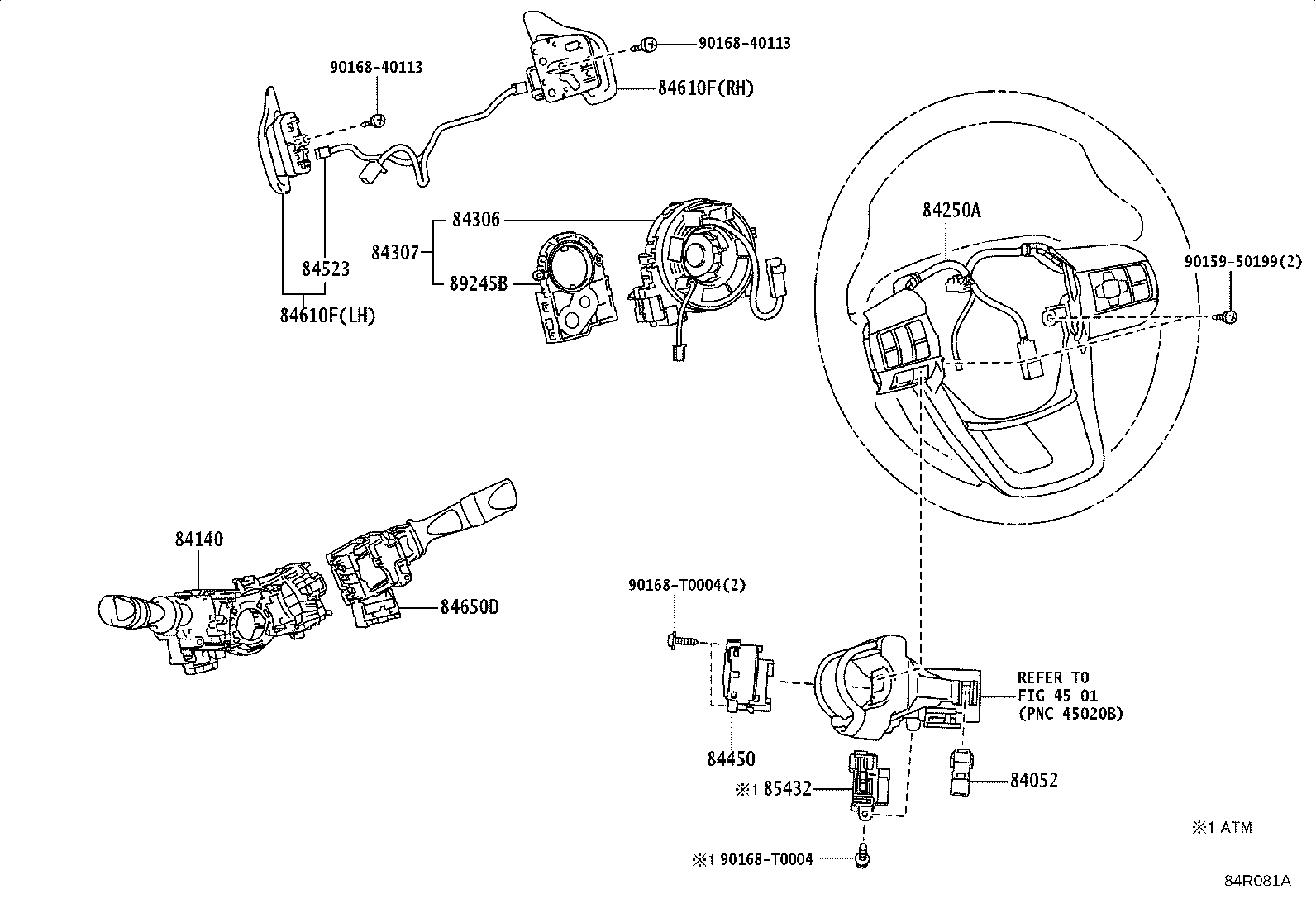

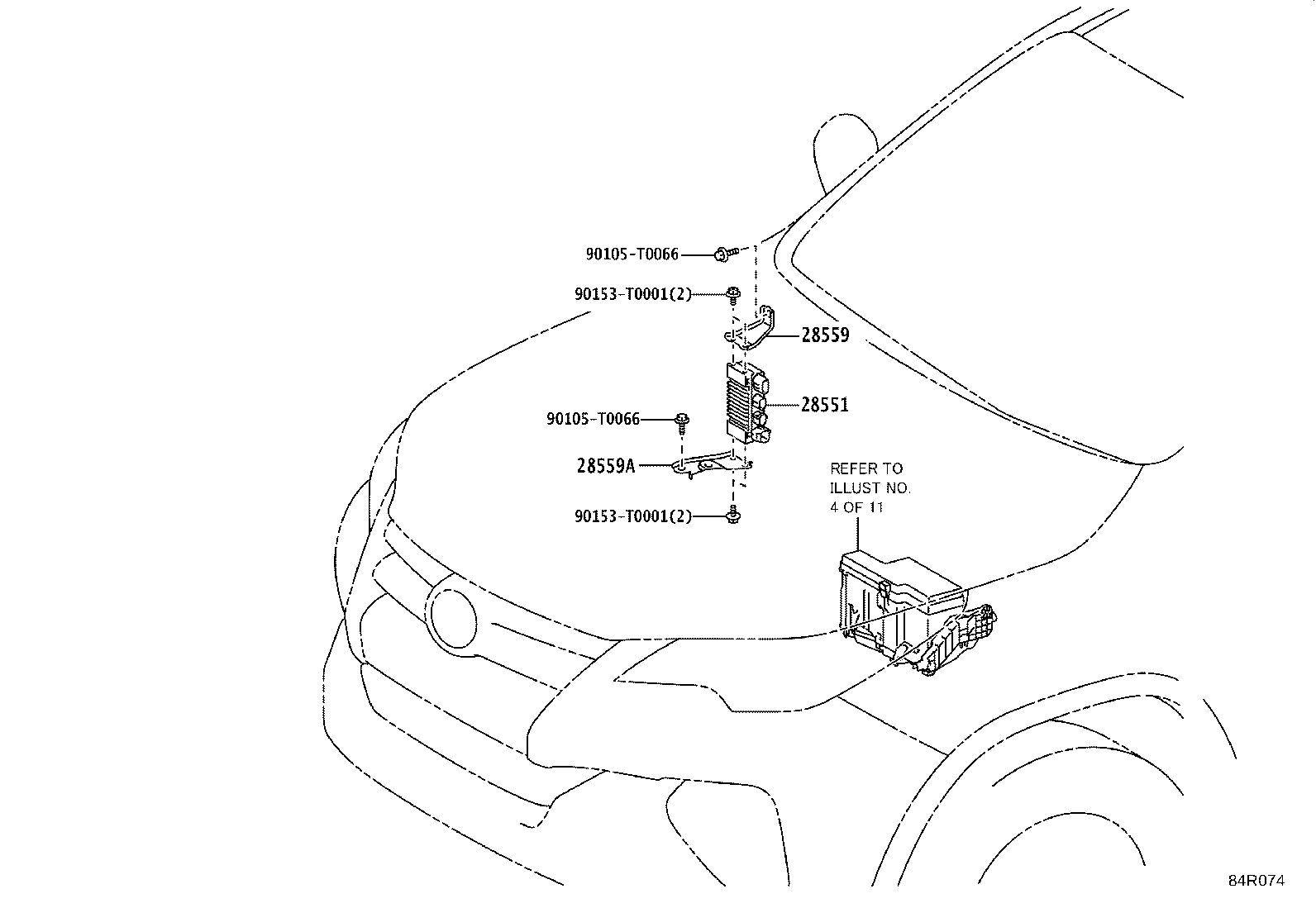

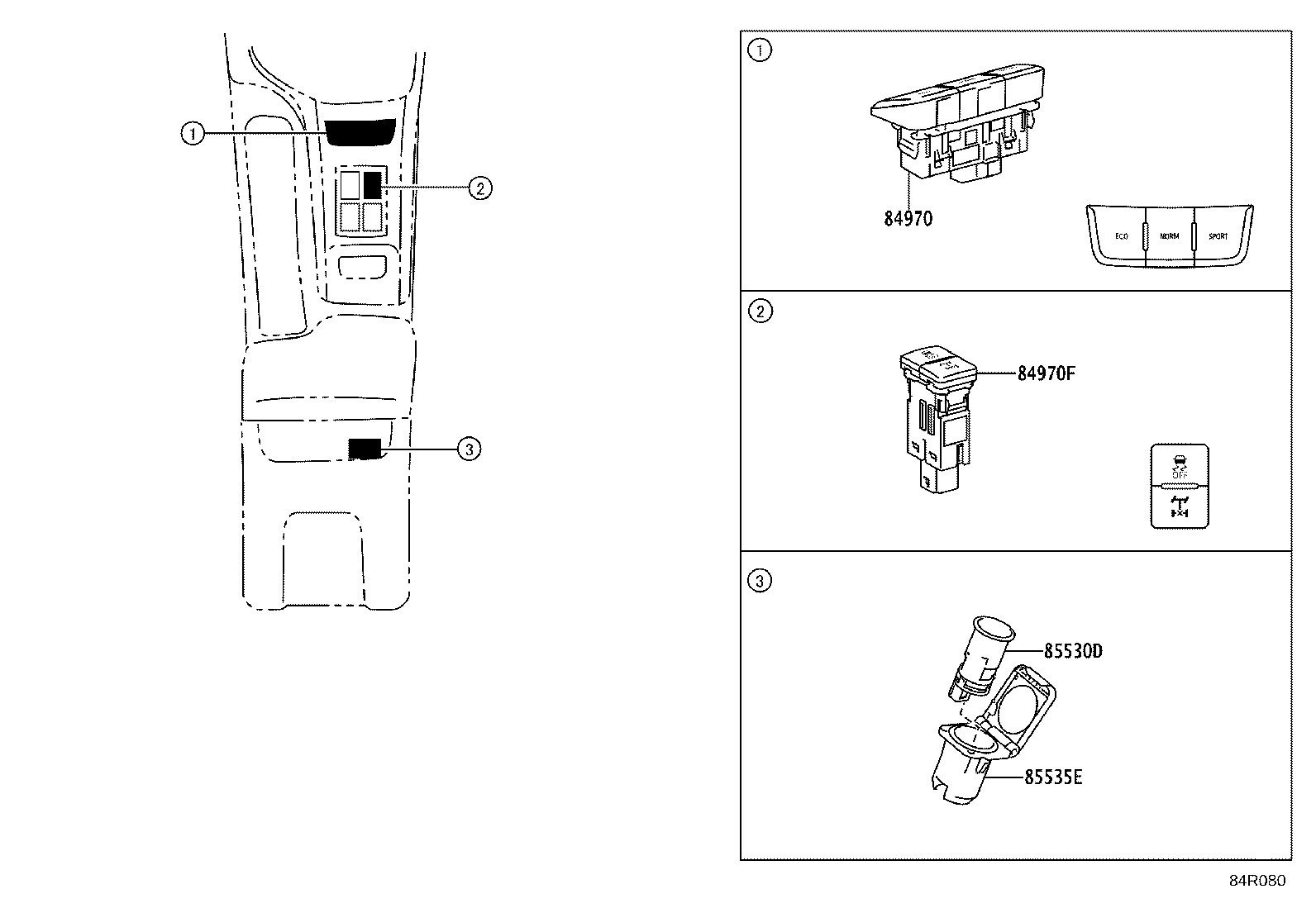

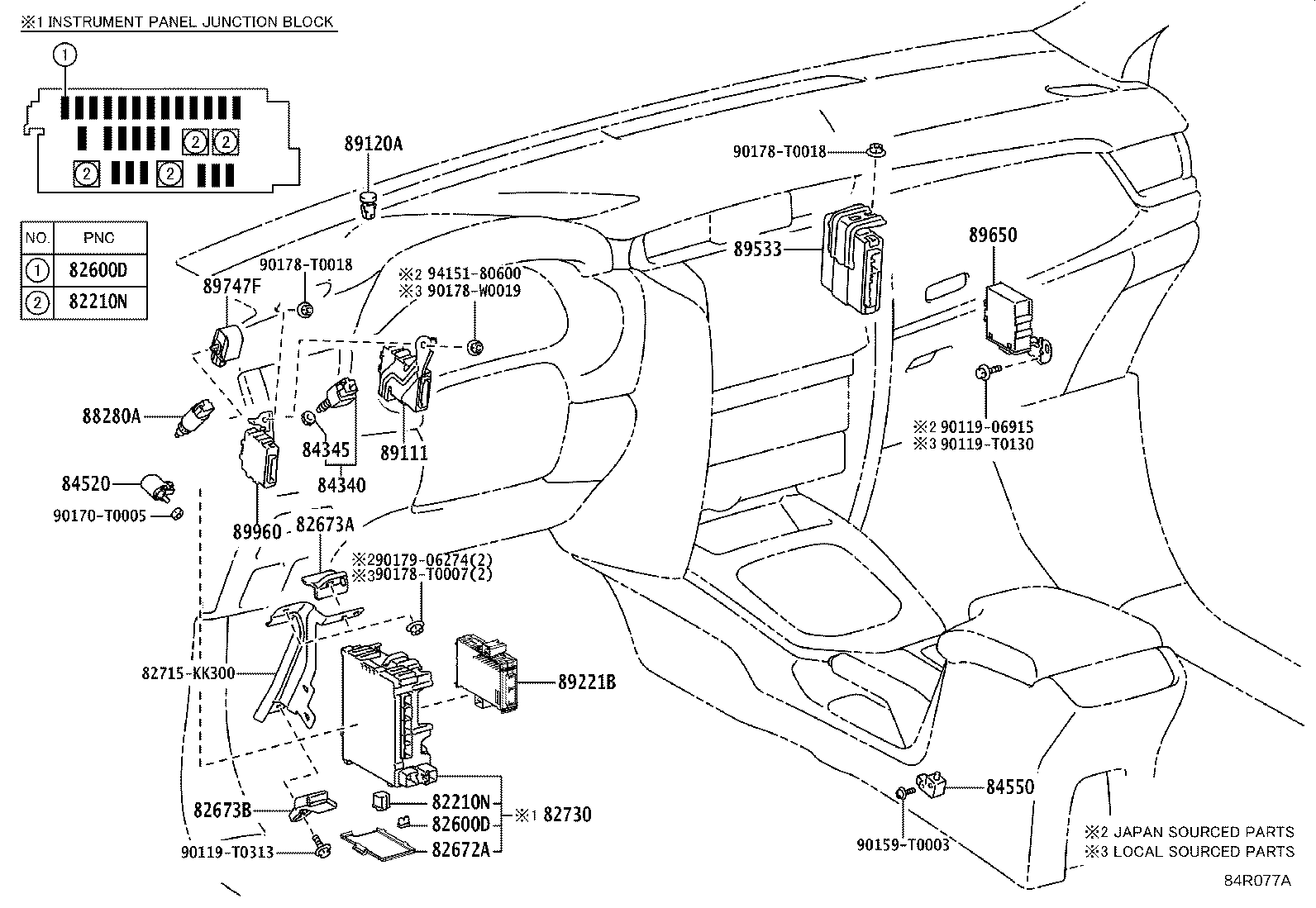

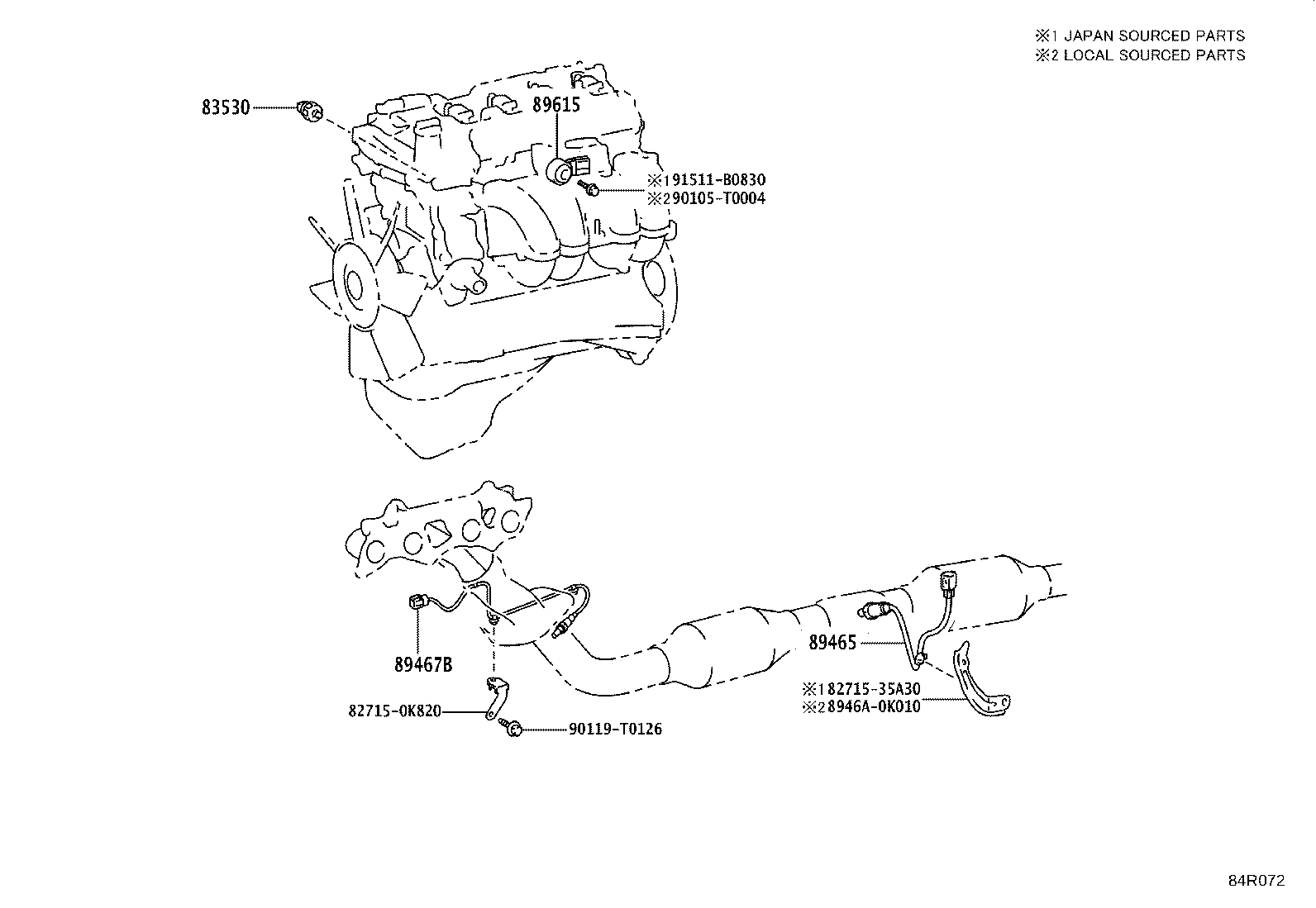

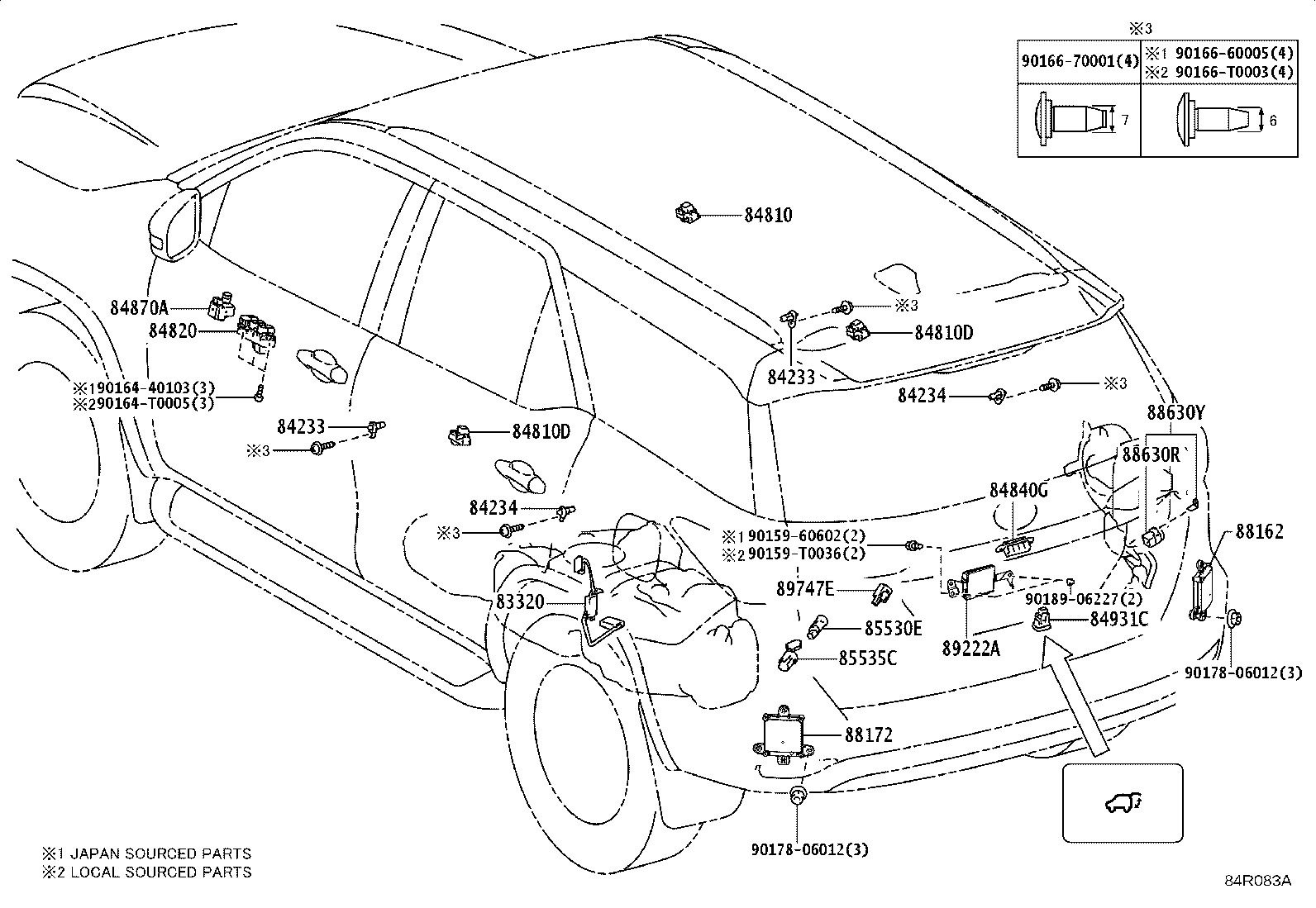

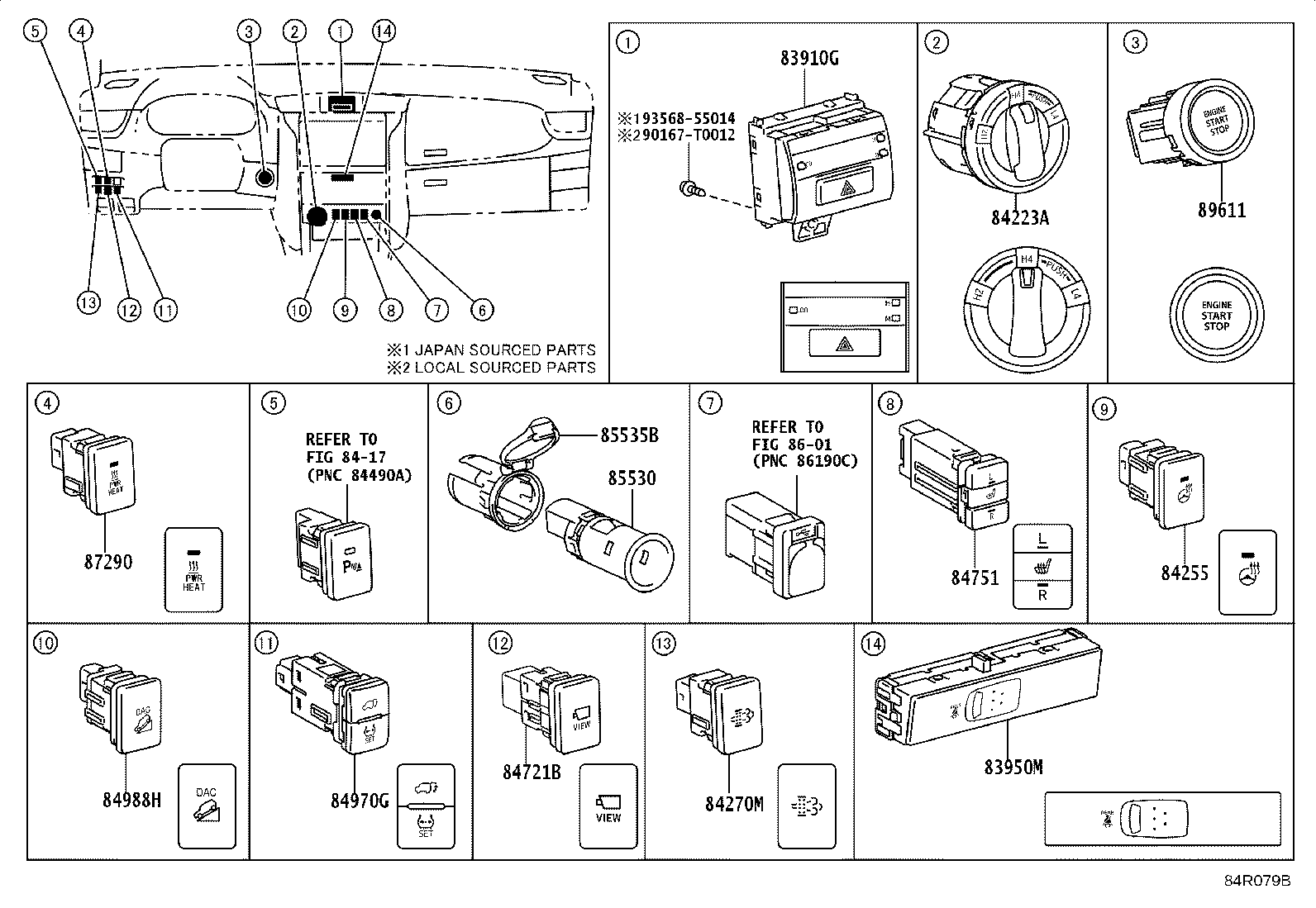

Illustrations
Part groups
| PNC | Description |
|---|---|
| 17616A | Relay, Air Pump |
| 28300 | Relay Assy, Starter |
| 28300F | Relay Assy, Starter, NO.2 |
| 28371 | Relay, Ignition, NO.1 |
| 28371C | Relay, Ignition, NO.2 |
| 28551 | Controller, Glow Plug |
| 28559 | Bracket, Glow Plug Controller, NO.1 |
| 28559A | Bracket, Glow Plug Controller, NO.2 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 82210M | Fusible Link |
| 82210N | Instrument Panel Fusible Link |
| 82210Q | Front Compartment Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600F | Fuse, Fuse Block |
| 82600K | Front Compartment Fuse |
| 82610A | Block Assy, Fuse |
| 82610C | Block Assy, Fuse |
| 82610D | Block Assy, Fuse |
| 82611 | Cover, Fuse Block |
| 82616 | Puller, Fuse |
| 82630 | Holder Assy, Fuse |
| 82642A | Relay, Running Light |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82663C | Cover, Relay Block Lower, NO.4 |
| 82666 | Holder, Connector |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82730 | Block Assy, Instrument Panel Junction |
| 82741 | Block, Engine Room Relay |
| 83320 | Gage Assy, Fuel Sender |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83910G | Clock Assy |
| 83950M | Lamp Assy, Telltale |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84223A | Switch, Transfer Position |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84255 | Switch, Steering Heater |
| 84270M | Switch Assy, Diesel Particulate Reduction |
| 84270Q | Relay, Lamp Cut |
| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |
| 84523 | Wire, Switch NO.1 |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84610F | Switch Assy, Transmission Shift |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84721B | Switch, Panoramic View Monitor |
| 84751 | Switch, Seat Heater |
| 84794A | Relay, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84921C | Knob, Power Seat Switch, RH |
| 84921D | Knob, Power Seat Switch, LH |
| 84921J | Knob, Power Seat Switch, RH |
| 84921K | Knob, Power Seat Switch, LH |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84931C | Switch, Back Door Control |
| 84970 | Switch Assy, Combination |
| 84970F | Switch Assy, Combination, NO.3 |
| 84970G | Switch Assy, Combination, NO.4 |
| 84988H | Switch, Downhill Assist Control |
| 85432 | Solenoid, Key Interlock |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530A | Relay, Power Outlet Socket |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535C | Cover, Power Outlet Socket, Rear |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85910E | Relay, Injector |
| 85912 | Relay, Defogger |
| 85913F | Relay, Steering Heater |
| 85916D | Relay, Fog Lamp |
| 85916L | Relay, Rear Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85917D | Relay, Heater(FOR AIR FUEL RATIO SENSOR) |
| 85926 | Relay, Headlamp Dimmer |
| 85934 | Relay, Magnet-clutch |
| 86530 | Relay Assy, Horn |
| 87120F | Relay, Viscous Heater |
| 87290 | Switch Assy, Heater |
| 87299 | Relay, Heater |
| 87346K | Relay, Ptc Heater |
| 87346L | Relay, Ptc Heater |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 88280A | Switch Assy, Clutch |
| 88630R | Relay Assy, Cooler, NO.3 |
| 88630Y | Relay, Rear Cooler |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221B | Computer, Body |
| 89222A | Computer, Multiplex Network Door |
| 89245B | Sensor, Steering |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89425A | Sensor, Exhaust Gas Temperature, NO.2 |
| 89425B | Sensor, Exhaust Gas Temperature, NO.3 |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89481B | Sensor, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89533 | Computer, 4 Wheel Drive Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89747E | Buzzer, Power Back Door Warning |
| 89747F | Buzzer, Blind Spot Monitor |
| 89870E | Relay, Electronic Driver Unit |
| 89960 | Computer Assy, Headlamp Leveling |
