Toyota Fortuner (SUV)

2023-08 → present · chassis GUN156,TGN156 · catalogue 6715F0 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

7 part groups · 2 illustrations

Illustrations

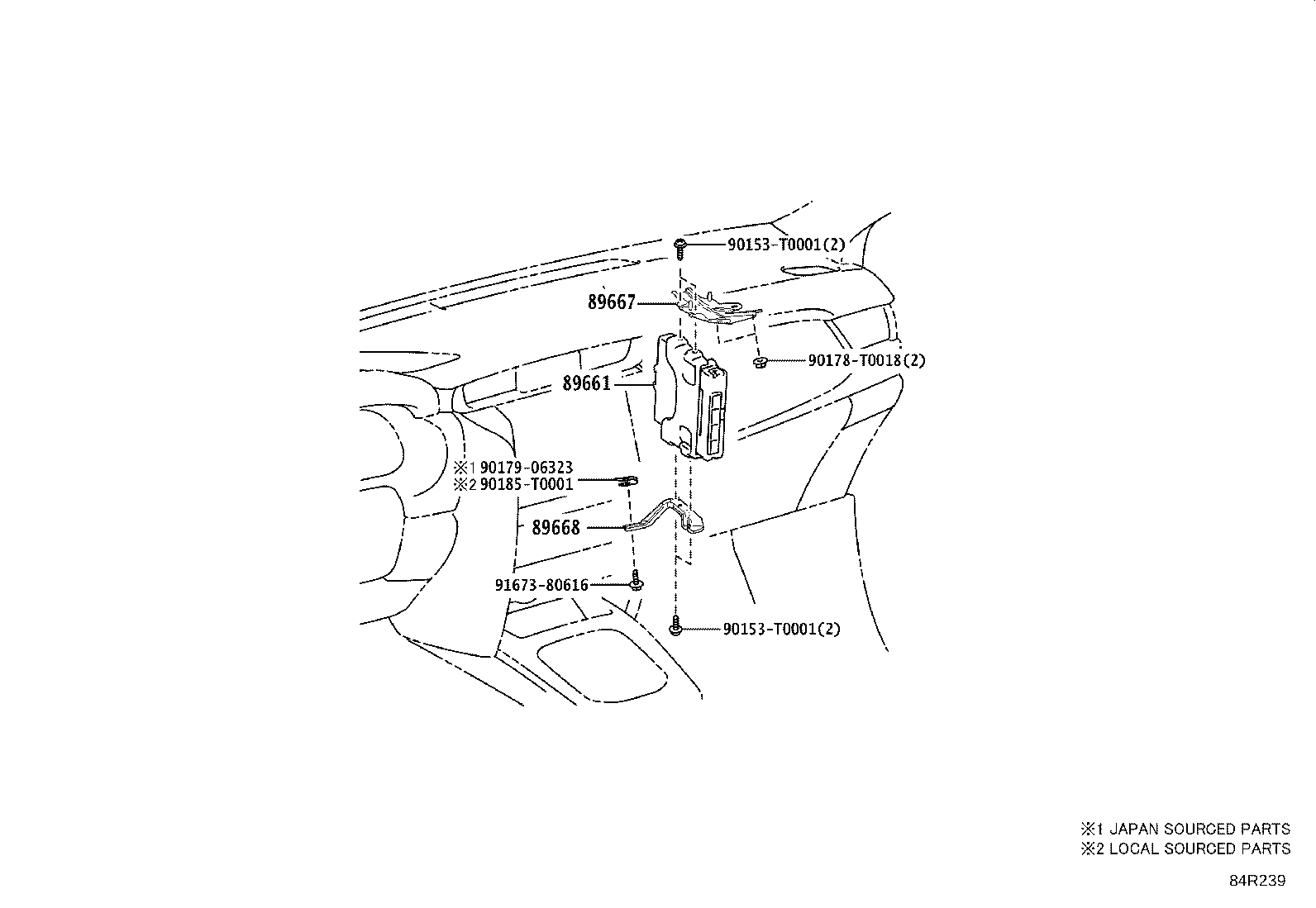

Figure 84R238A 84R238A 2023-08 → — Figure 84R239 84R239 2023-08 → —

Part groups

PNCDescription
89421N Sensor, Air Pressure
89422 Sensor, Water Temperature (FOR E.F.I.)
89581B Driver, Air Injection Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89879A Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
