Toyota Fortuner (SUV)
2023-08 → present · chassis GUN156,TGN156 · catalogue 6715F0 · Europe
Supported model
Data version 2023-09

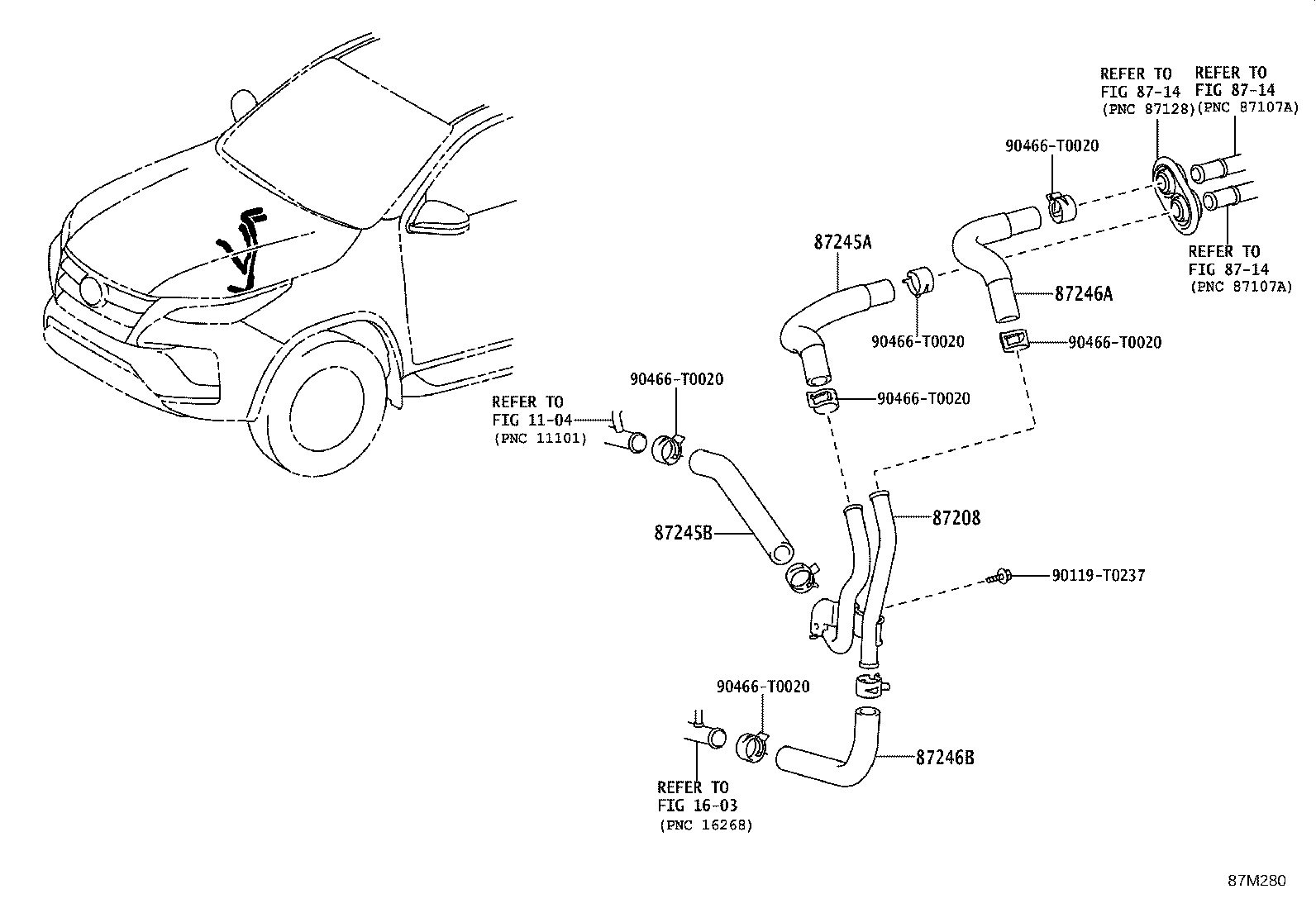

Heating & Air Conditioning - Water Piping
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87124 | Clamp, Heater |
| 87124A | Clamp, Heater |
| 87124F | Clamp, Heater Hose, NO.1 |
| 87208 | Pipe Sub-assy, Heater Water |
| 87245A | Hose, Heater Water, Inlet A |
| 87245B | Hose, Heater Water, Inlet B |
| 87246A | Hose, Heater Water, Outlet A |
| 87246B | Hose, Heater Water, Outlet B |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
