Toyota Fortuner (SUV)
2024-08 → present · chassis GUN156,TGN156 · catalogue 6715G0 · Europe
Supported model
Data version 2024-07

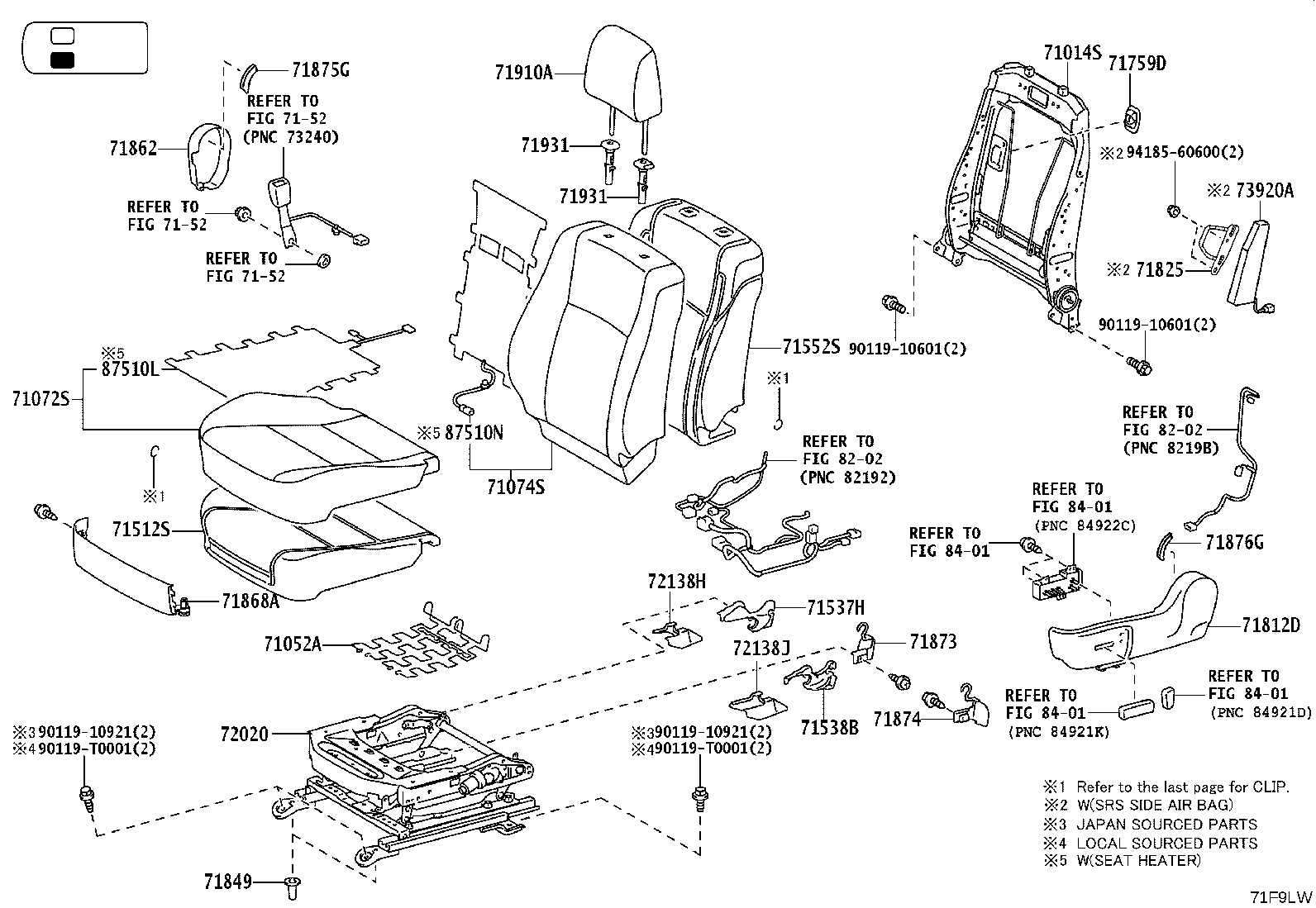

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71014S — Frame Sub-assy, Front Seatback, LH | ||||
| 71014-0KA10 note |
Frame Sub-assy, Front Seatback, LH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71014-0KA10 |
Frame Sub-assy, Front Seatback, LH
2024-08 → —
|
GUN156 H | — | |
| 71052A — Spring Sub-assy, Front Seat Cushion, LH | ||||
| 71051-06070 note |
Spring Sub-assy, Front Seat Cushion, LH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71051-06070 |
Spring Sub-assy, Front Seat Cushion, LH
2024-08 → —
|
GUN156 H | — | |
| 71051-0K230 note |
Spring Sub-assy, Front Seat Cushion, LH
2024-08 → —
|
GUN156 H | — | |
| 71051-0K230 |
Spring Sub-assy, Front Seat Cushion, LH
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) | ||||
| 71072-F0280-C0 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71072-F0280-C0 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71072-F0280-E0 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71072-F0280-E0 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71072-F0C60-C1 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71072-F0C60-E1 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71072-F0C70-C1 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71072-F0C70-E1 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71072-F0C80-C1 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71072-F0C80-C1 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71072-F0C80-E1 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71072-F0C80-E1 note |
Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE) | ||||
| 71074-0KZ40-C1 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71074-0KZ40-E1 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71074-0KZ50-C1 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71074-0KZ50-E1 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71074-0KZ60-C1 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71074-0KZ60-C1 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71074-0KZ60-E1 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71074-0KZ60-E1 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71074-F0010-C1 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71074-F0010-C1 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71074-F0010-E1 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71074-F0010-E1 note |
Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) | ||||
| 71512-0K341 |
Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71512-0K341 note |
Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71512-0KB10 |
Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71512-0KB10 note |
Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71537H — Protector, Front Seat Cushion Edge, RH(FOR LH SEAT) | ||||
| 71537-0D400 |
Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71537-0D400 note |
Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
2024-08 → —
|
GUN156 H | — | |
| 71537-0K150-C0 note |
Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
2024-08 → —
|
GUN156 H | — | |
| 71537-0K150-C0 note |
Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71538B — Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) | ||||
| 71538-0K200-C0 note |
Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2024-08 → —
|
GUN156 H | — | |
| 71538-0K200-C0 note |
Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE) | ||||
| 71552-0KJ00 |
Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71552-0KJ10 |
Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 6FC | — | |
| 71759D — Hook, Front Seatback, NO.2 | ||||
| 71759-0K070-C0 note |
Hook, Front Seatback, NO.2
2024-08 → —
|
GUN156,TGN156 | — | |
| 71812D — Shield, Front Seat Cushion, LH | ||||
| 71812-0D650-C1 note |
Shield, Front Seat Cushion, LH
2024-08 → —
|
TGN156 L | — | |
| 71812-0D660-C1 note |
Shield, Front Seat Cushion, LH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71812-0D660-C1 note |
Shield, Front Seat Cushion, LH
2024-08 → —
|
GUN156 H | — | |
| 71812-0K120-C0 note |
Shield, Front Seat Cushion, LH
2024-08 → —
|
GUN156 H | — | |
| 71812-0K120-C0 note |
Shield, Front Seat Cushion, LH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71825 — Bracket, Front Seat Side, NO.1 LH | ||||
| 71162-0K010 |
Bracket, Front Seat Side, NO.1 LH
2024-08 → —
|
GUN156,TGN156 6FC | — | |
| 71849 — Cap, Seat Adjuster Cover, LH | ||||
| 71848-47010 note |
Cap, Seat Adjuster Cover, LH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71848-47010 |
Cap, Seat Adjuster Cover, LH
2024-08 → —
|
GUN156 H | — | |
| 71862 — Shield, Front Seat Cushion, Inner LH | ||||
| 71862-0D450-C0 note |
Shield, Front Seat Cushion, Inner LH
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71862-0D450-C0 note |
Shield, Front Seat Cushion, Inner LH
2024-08 → —
|
GUN156 H | — | |
| 71862-0K250-C0 note |
Shield, Front Seat Cushion, Inner LH
2024-08 → —
|
GUN156 H | — | |
| 71862-0K250-C0 note |
Shield, Front Seat Cushion, Inner LH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71868A — Shield, Front Seat Cushion, Inner NO.1 LH | ||||
| 71868-0K030-C0 note |
Shield, Front Seat Cushion, Inner NO.1 LH
2024-08 → —
|
GUN156 H | — | |
| 71868-0K030-C0 note |
Shield, Front Seat Cushion, Inner NO.1 LH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71873 — Shield, Front Seat Cushion, Lower RH | ||||
| 71873-06520 |
Shield, Front Seat Cushion, Lower RH
2024-08 → —
|
GUN156 H | — | |
| 71873-06520 note |
Shield, Front Seat Cushion, Lower RH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71874-0K210 |
Shield, Front Seat Cushion, Lower RH
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71874-0K210 note |
Shield, Front Seat Cushion, Lower RH
2024-08 → —
|
GUN156 H | — | |
| 71874 — Shield, Front Seat Cushion, Lower LH | ||||
| 71874-06490 |
Shield, Front Seat Cushion, Lower LH
2024-08 → —
|
GUN156 H | — | |
| 71874-06490 note |
Shield, Front Seat Cushion, Lower LH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71874-0K200 |
Shield, Front Seat Cushion, Lower LH
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71874-0K200 note |
Shield, Front Seat Cushion, Lower LH
2024-08 → —
|
GUN156 H | — | |
| 71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) | ||||
| 71875-0K280 |
Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2024-08 → —
|
GUN156 H | — | |
| 71875-0K280 note |
Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) | ||||
| 71876-0K280 |
Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2024-08 → —
|
GUN156 H | — | |
| 71876-0K280 note |
Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71910A — Headrest Assy, Front Seat | ||||
| 71910-0KN50-C1 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156 H | — | |
| 71910-0KN50-C1 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71910-0KN50-E1 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71910-0KN50-E1 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156 H | — | |
| 71910-0KN70-C2 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156 H | — | |
| 71910-0KN70-C2 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71910-0KN70-E1 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156 H | — | |
| 71910-0KN70-E1 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71931 — Support, Front Seat Headrest | ||||
| 71930-0D140-C1 note |
Support, Front Seat Headrest
2024-08 → —
|
GUN156,TGN156 | — | |
| 71931-0D150-C1 note |
Support, Front Seat Headrest
2024-08 → —
|
GUN156,TGN156 | — | |
| 72020 — Adjuster Assy, Front Seat, LH | ||||
| 72020-0K080 |
Adjuster Assy, Front Seat, LH
2024-08 → —
|
GUN156 H | — | |
| 72020-0K080 note |
Adjuster Assy, Front Seat, LH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 72138H — Cover, Front Seat Track, LH Rear Inner | ||||
| 72158-KK010-C0 note |
Cover, Front Seat Track, LH Rear Inner
2024-08 → —
|
GUN156 H | — | |
| 72158-KK010-C0 note |
Cover, Front Seat Track, LH Rear Inner
2024-08 → —
|
GUN156,TGN156 S | — | |
| 72138J — Cover, Front Seat Track, LH Rear Outer | ||||
| 72137-KK010-C0 note |
Cover, Front Seat Track, LH Rear Outer
2024-08 → —
|
GUN156 H | — | |
| 72137-KK010-C0 note |
Cover, Front Seat Track, LH Rear Outer
2024-08 → —
|
GUN156,TGN156 S | — | |
| 73920A — Airbag Assy, Front Seat, LH | ||||
| 73920-0K210 |
Airbag Assy, Front Seat, LH
2024-08 → —
|
GUN156,TGN156 6FC | — | |
| 87510L — Heater Assy, Front Seat Cushion, LH | ||||
| 87510-0K220 |
Heater Assy, Front Seat Cushion, LH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 87510-0K220 note |
Heater Assy, Front Seat Cushion, LH
2024-08 → —
|
GUN156 H | — | |
| 87510-0K220 note |
Heater Assy, Front Seat Cushion, LH
2024-08 → —
|
TGN156 L | — | |
| 87510-0K230 |
Heater Assy, Front Seat Cushion, LH
2024-08 → —
|
GUN156 H | — | |
| 87510-0K230 note |
Heater Assy, Front Seat Cushion, LH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 87510N — Heater Assy, Front Seatback, LH | ||||
| 87530-0K080 |
Heater Assy, Front Seatback, LH
2024-08 → —
|
GUN156,TGN156 6FC | — | |
| 87530-0K080 note |
Heater Assy, Front Seatback, LH
2024-08 → —
|
TGN156 L | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
