Toyota Fortuner (SUV)
2024-08 → present · chassis GUN156,TGN156 · catalogue 6715G0 · Europe
Supported model
Data version 2024-07

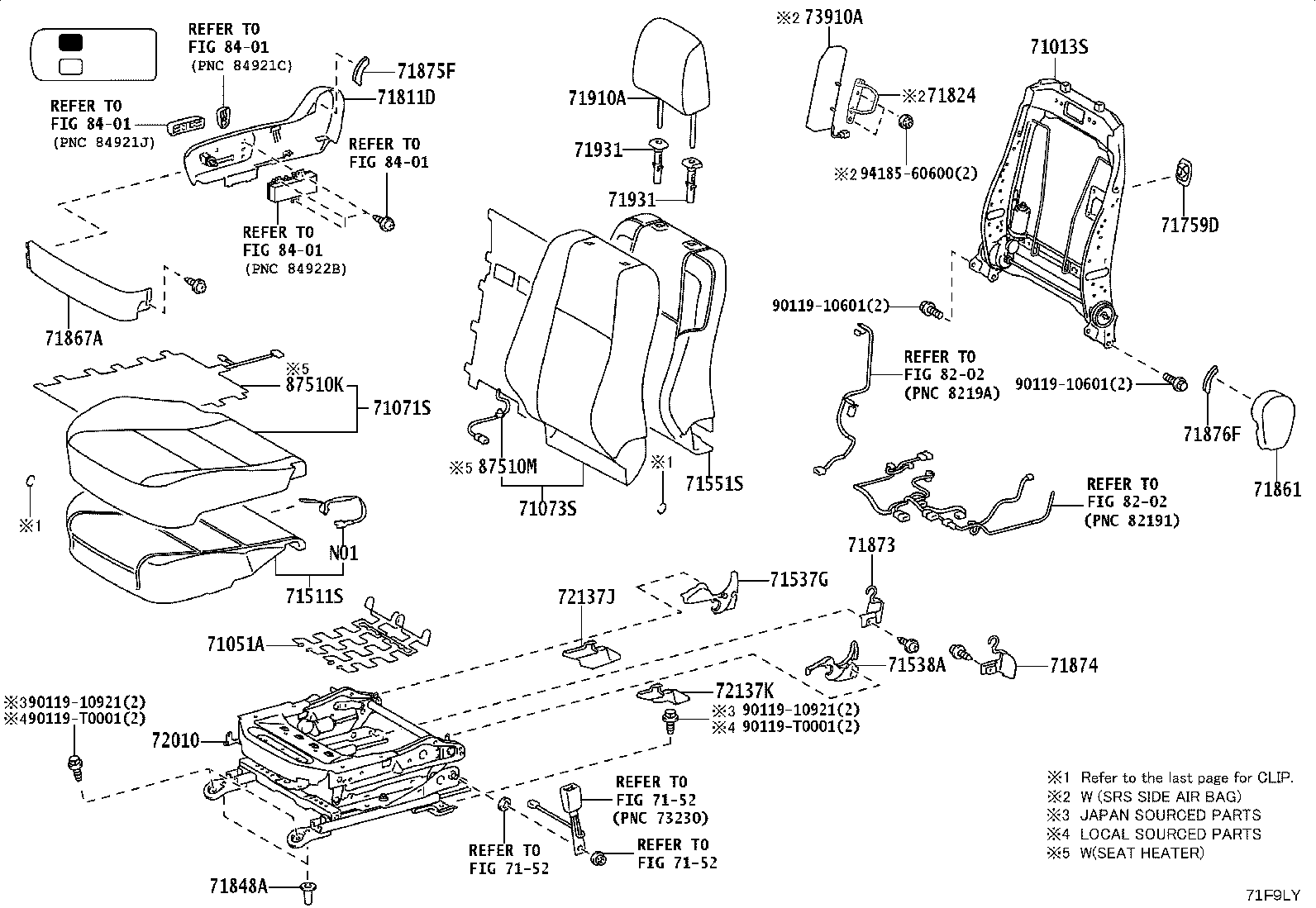

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71013S — Frame Sub-assy, Front Seatback, RH | ||||
| 71013-0KA10 note |
Frame Sub-assy, Front Seatback, RH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71013-0KA10 |
Frame Sub-assy, Front Seatback, RH
2024-08 → —
|
GUN156 H | — | |
| 71051A — Spring Sub-assy, Front Seat Cushion, RH | ||||
| 71051-06070 note |
Spring Sub-assy, Front Seat Cushion, RH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71051-06070 |
Spring Sub-assy, Front Seat Cushion, RH
2024-08 → —
|
GUN156 H | — | |
| 71051-0K230 note |
Spring Sub-assy, Front Seat Cushion, RH
2024-08 → —
|
GUN156 H | — | |
| 71051-0K230 |
Spring Sub-assy, Front Seat Cushion, RH
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) | ||||
| 71071-F0290-C0 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71071-F0290-C0 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71071-F0290-E0 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71071-F0290-E0 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71071-F0D40-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71071-F0D40-E1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71071-F0D50-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71071-F0D50-E1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71071-F0D60-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71071-F0D60-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71071-F0D60-E1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71071-F0D60-E1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE) | ||||
| 71027-0KC60-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71027-0KC60-E1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71027-0KC70-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71027-0KC70-E1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71027-0KC80-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71027-0KC80-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71027-0KC80-E1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71027-0KC80-E1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71027-0KD20-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71027-0KD20-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71027-0KD20-E1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71027-0KD20-E1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) | ||||
| 71501-0K281 |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71501-0K281 note |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71501-0K460 |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71501-0K460 note |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156 H | — | |
| 71537G — Protector, Front Seat Cushion Edge, RH(FOR RH SEAT) | ||||
| 71537-0D400 note |
Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2024-08 → —
|
GUN156 H | — | |
| 71537-0D400 |
Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71537-0K150-C0 note |
Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2024-08 → —
|
GUN156 H | — | |
| 71537-0K150-C0 note |
Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71538A — Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) | ||||
| 71537-0D400 |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71537-0D400 note |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2024-08 → —
|
GUN156 H | — | |
| 71538-0K200-C0 note |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2024-08 → —
|
GUN156 H | — | |
| 71538-0K200-C0 note |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE) | ||||
| 71551-0KG40 |
Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
TGN156 L | — | |
| 71551-0KG50 |
Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
|
GUN156,TGN156 6FC | — | |
| 71759D — Hook, Front Seatback, NO.2 | ||||
| 71759-0K070-C0 note |
Hook, Front Seatback, NO.2
2024-08 → —
|
GUN156,TGN156 | — | |
| 71811D — Shield, Front Seat Cushion, RH | ||||
| 71811-0D560-C0 note |
Shield, Front Seat Cushion, RH
2024-08 → —
|
TGN156 L | — | |
| 71811-0D570-C0 note |
Shield, Front Seat Cushion, RH
2024-08 → —
|
GUN156 H | — | |
| 71811-0D570-C0 note |
Shield, Front Seat Cushion, RH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71811-0K140-C0 note |
Shield, Front Seat Cushion, RH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71811-0K140-C0 note |
Shield, Front Seat Cushion, RH
2024-08 → —
|
GUN156 H | — | |
| 71824 — Bracket, Front Seat Side, NO.1 RH | ||||
| 71161-0K010 |
Bracket, Front Seat Side, NO.1 RH
2024-08 → —
|
GUN156,TGN156 6FC | — | |
| 71848A — Cap, Seat Adjuster Cover, RH | ||||
| 71848-47010 |
Cap, Seat Adjuster Cover, RH
2024-08 → —
|
GUN156 H | — | |
| 71848-47010 note |
Cap, Seat Adjuster Cover, RH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71861 — Shield, Front Seat Cushion, Inner RH | ||||
| 71861-0D440-C0 note |
Shield, Front Seat Cushion, Inner RH
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71861-0D440-C0 note |
Shield, Front Seat Cushion, Inner RH
2024-08 → —
|
GUN156 H | — | |
| 71861-0K220-C0 note |
Shield, Front Seat Cushion, Inner RH
2024-08 → —
|
GUN156 H | — | |
| 71861-0K220-C0 note |
Shield, Front Seat Cushion, Inner RH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71867A — Shield, Front Seat Cushion, Inner NO.1 RH | ||||
| 71867-0K040-C0 note |
Shield, Front Seat Cushion, Inner NO.1 RH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71867-0K040-C0 note |
Shield, Front Seat Cushion, Inner NO.1 RH
2024-08 → —
|
GUN156 H | — | |
| 71873 — Shield, Front Seat Cushion, Lower RH | ||||
| 71873-06520 |
Shield, Front Seat Cushion, Lower RH
2024-08 → —
|
GUN156 H | — | |
| 71873-06520 note |
Shield, Front Seat Cushion, Lower RH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71874-0K210 |
Shield, Front Seat Cushion, Lower RH
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71874-0K210 note |
Shield, Front Seat Cushion, Lower RH
2024-08 → —
|
GUN156 H | — | |
| 71874 — Shield, Front Seat Cushion, Lower LH | ||||
| 71874-06490 |
Shield, Front Seat Cushion, Lower LH
2024-08 → —
|
GUN156 H | — | |
| 71874-06490 note |
Shield, Front Seat Cushion, Lower LH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71874-0K200 |
Shield, Front Seat Cushion, Lower LH
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71874-0K200 note |
Shield, Front Seat Cushion, Lower LH
2024-08 → —
|
GUN156 H | — | |
| 71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) | ||||
| 71875-0K280 note |
Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71875-0K280 |
Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2024-08 → —
|
GUN156 H | — | |
| 71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) | ||||
| 71876-0K280 |
Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2024-08 → —
|
GUN156 H | — | |
| 71876-0K280 note |
Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71910A — Headrest Assy, Front Seat | ||||
| 71910-0KN50-C1 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71910-0KN50-C1 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156 H | — | |
| 71910-0KN50-E1 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156,TGN156 L,S | — | |
| 71910-0KN50-E1 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156 H | — | |
| 71910-0KN70-C2 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156 H | — | |
| 71910-0KN70-C2 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71910-0KN70-E1 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156 H | — | |
| 71910-0KN70-E1 note |
Headrest Assy, Front Seat
2024-08 → —
|
GUN156,TGN156 S | — | |
| 71931 — Support, Front Seat Headrest | ||||
| 71930-0D140-C1 note |
Support, Front Seat Headrest
2024-08 → —
|
GUN156,TGN156 | — | |
| 71931-0D150-C1 note |
Support, Front Seat Headrest
2024-08 → —
|
GUN156,TGN156 | — | |
| 72010 — Adjuster Assy, Front Seat, RH | ||||
| 72010-0K100 |
Adjuster Assy, Front Seat, RH
2024-08 → —
|
GUN156 H | — | |
| 72010-0K100 note |
Adjuster Assy, Front Seat, RH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 72137J — Cover, Front Seat Track, RH Rear Outer | ||||
| 72137-KK010-C0 note |
Cover, Front Seat Track, RH Rear Outer
2024-08 → —
|
GUN156 H | — | |
| 72137-KK010-C0 note |
Cover, Front Seat Track, RH Rear Outer
2024-08 → —
|
GUN156,TGN156 S | — | |
| 72137K — Cover, Front Seat Track, RH Rear Inner | ||||
| 72157-KK010-C0 note |
Cover, Front Seat Track, RH Rear Inner
2024-08 → —
|
GUN156 H | — | |
| 72157-KK010-C0 note |
Cover, Front Seat Track, RH Rear Inner
2024-08 → —
|
GUN156,TGN156 S | — | |
| 73910A — Airbag Assy, Front Seat, RH | ||||
| 73910-0K210 |
Airbag Assy, Front Seat, RH
2024-08 → —
|
GUN156,TGN156 6FC | — | |
| 87510K — Heater Assy, Front Seat Cushion, RH | ||||
| 87510-0K230 |
Heater Assy, Front Seat Cushion, RH
2024-08 → —
|
GUN156 H | — | |
| 87510-0K230 note |
Heater Assy, Front Seat Cushion, RH
2024-08 → —
|
GUN156,TGN156 S | — | |
| 87510M — Heater Assy, Front Seatback, RH | ||||
| 87530-0K080 |
Heater Assy, Front Seatback, RH
2024-08 → —
|
GUN156,TGN156 6FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
