Toyota Fortuner (SUV)

2024-08 → present · chassis GUN156,TGN156 · catalogue 6715G0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

14 part groups · 3 illustrations

Illustrations

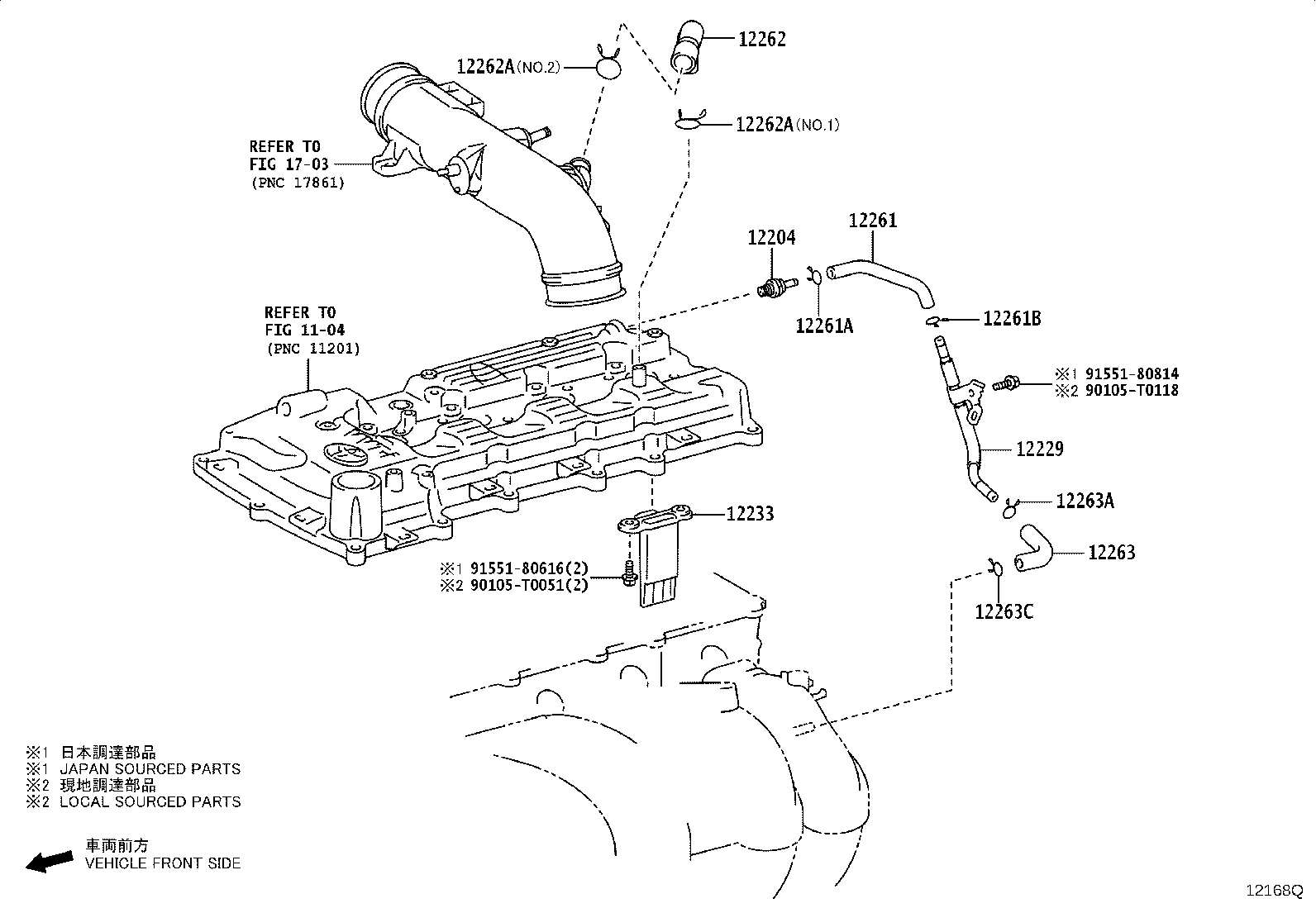

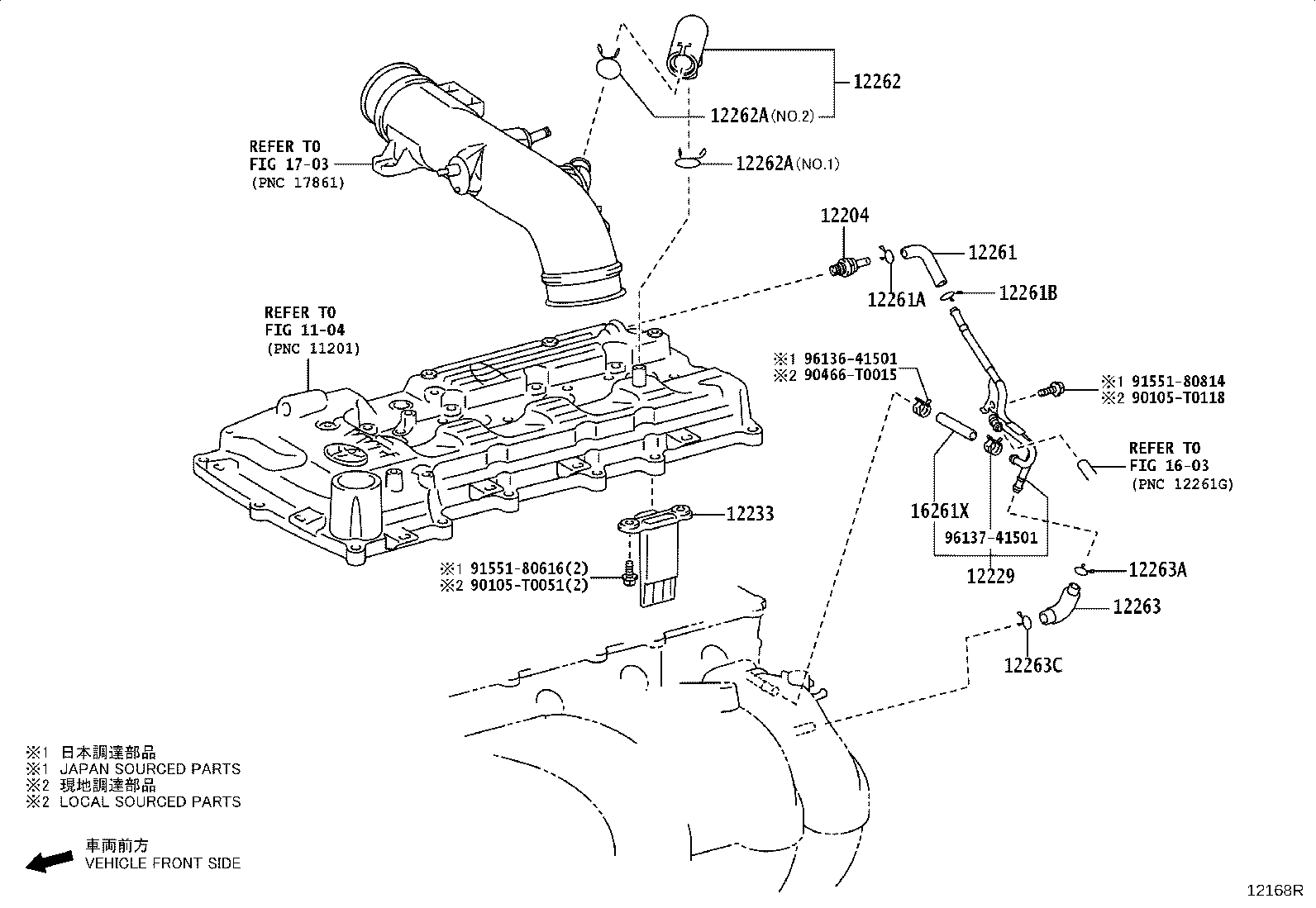

Figure 12168U 12168U 2024-08 → — Figure 12168Q 12168Q 2024-08 → — Figure 12168R 12168R 2024-08 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12229 Pipe, Ventilation
12233 Connector, Ventilation NO.1
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12261B Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12263C Clip(FOR VENTILATION HOSE)
16261X Hose, Water
1629F Hose, Water By-pass, NO.19
1629G Hose, Water By-pass, NO.20
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
