Toyota Fortuner (SUV)
2024-08 → present · chassis GUN156,TGN156 · catalogue 6715G0 · Europe
Supported model
Data version 2024-07

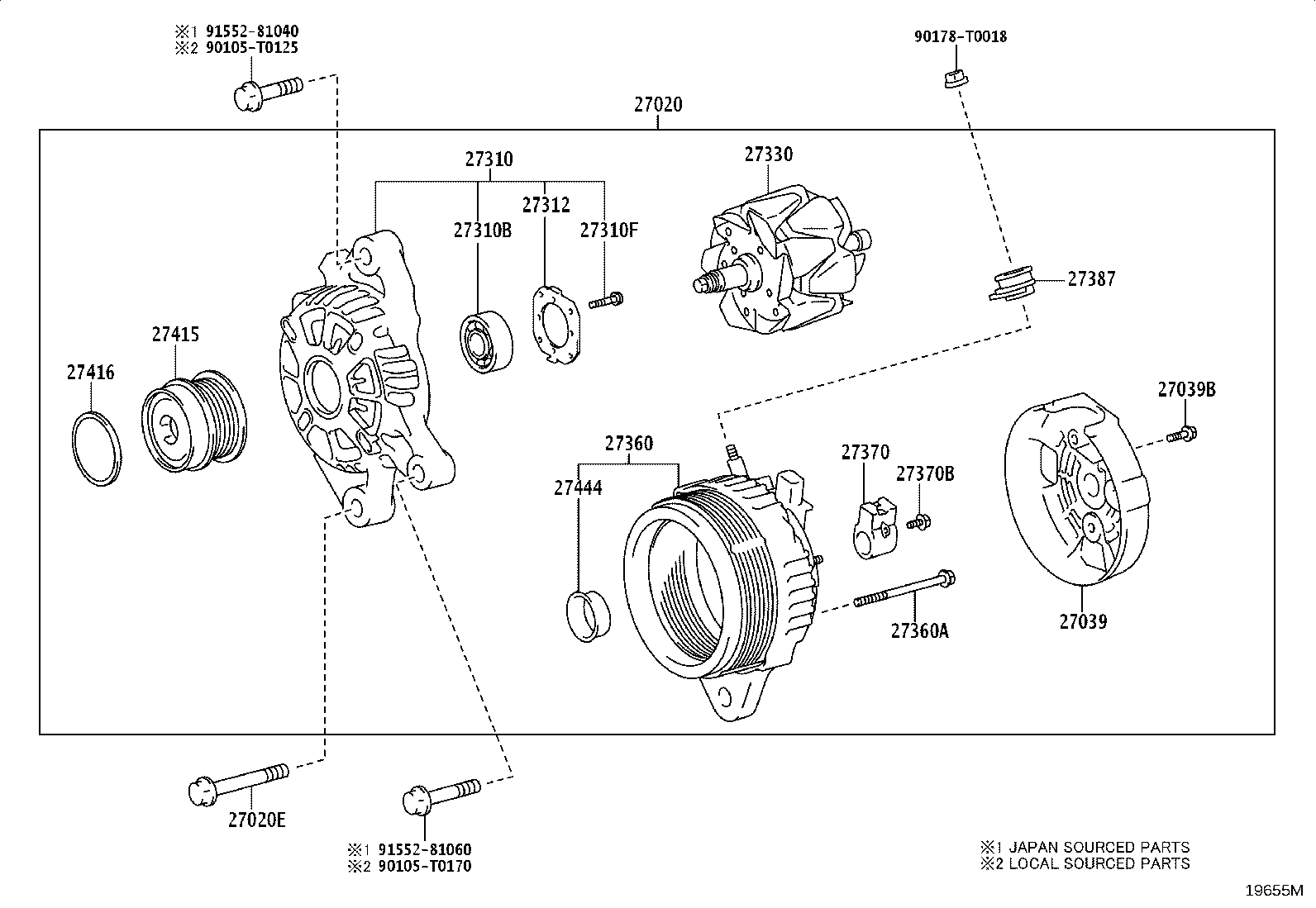

Alternator
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27020E | Bolt(FOR ALTERNATOR) |
| 27039 | Cover, Alternator Rear End |
| 27039B | Bolt(FOR ALTERNATOR REAR END COVER) |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27310F | Screw(FOR ALTERNATOR DRIVE END FRAME) |
| 27312 | Plate, Retainer |
| 27330 | Rotor Assy, Alternator |
| 27360 | Coil Assy, Alternator |
| 27360A | Bolt(FOR ALTERNATOR COIL) |
| 27370 | Holder Assy, Alternator Brush |
| 27370B | Screw(FOR ALTERNATOR BRUSH HOLDER) |
| 27387 | Insulator, Terminal |
| 27415 | Pulley, Alternator W/Clutch |
| 27416 | Cap, Alternator Pulley |
| 27444 | Packing, Alternator Bearing Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
