Toyota Fortuner (SUV)
2024-08 → present · chassis GUN156,TGN156 · catalogue 6715G0 · Europe
Supported model
Data version 2024-07
Injection Pump Assembly

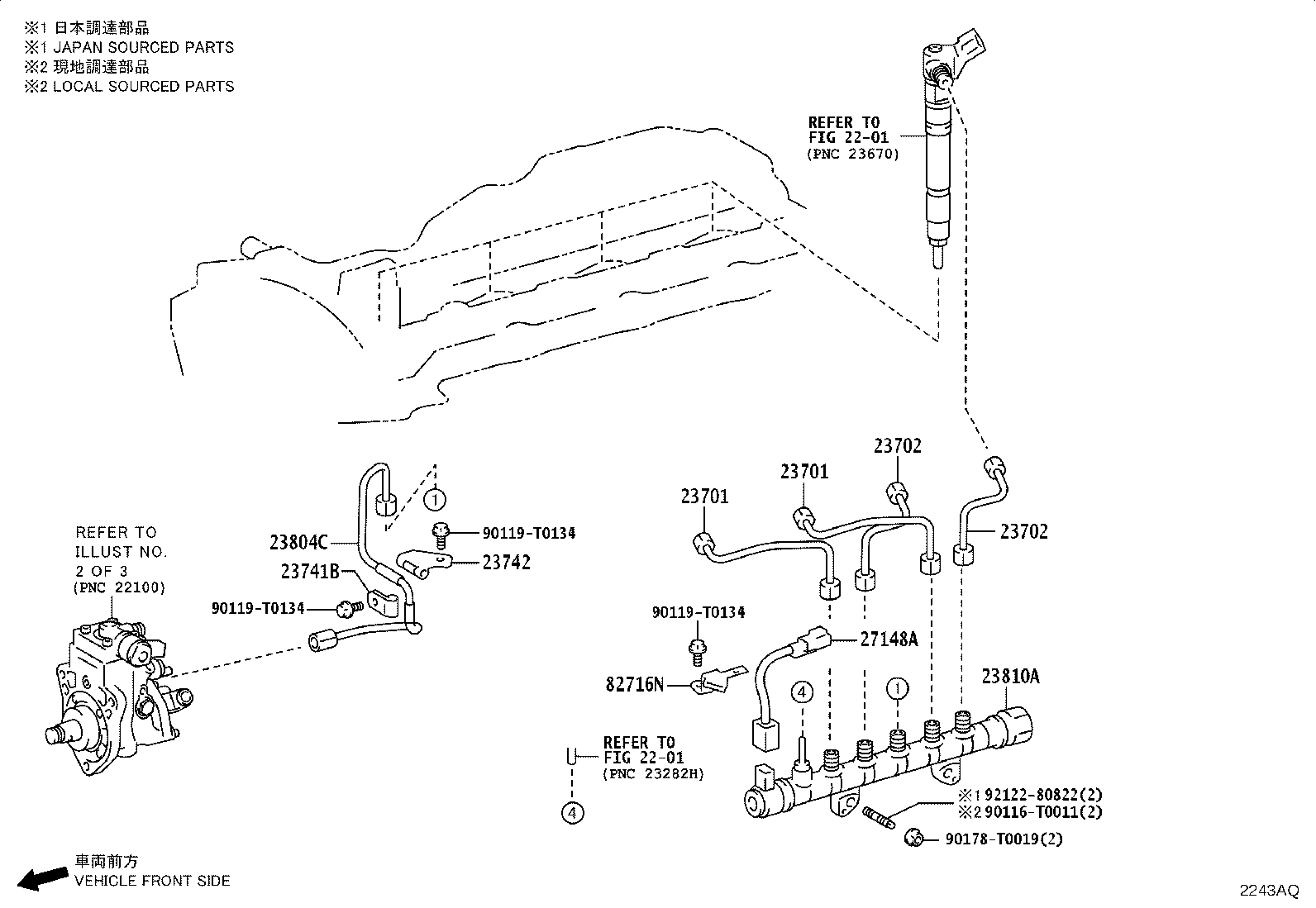

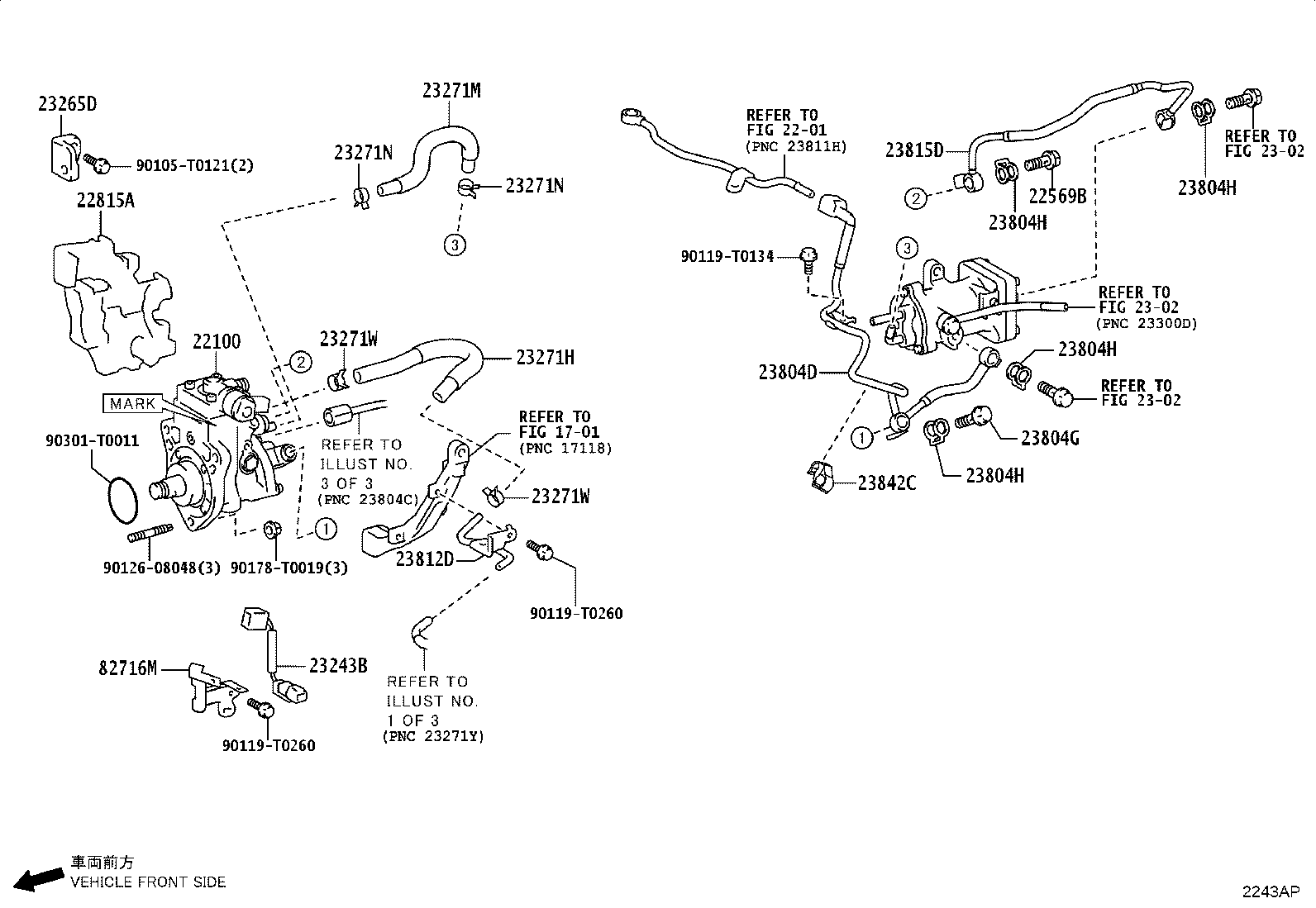

32 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 22100 | Pump Assy, Injection OR Supply |
| 22569B | Screw, Supply Pump Hollow |
| 22815A | Insulator, Injection Pump |
| 23243B | Wire, Fuel Pump Motor |
| 23265D | Bracket, Fuel Pump, NO.1 |
| 23271H | Hose, Fuel, NO.1 |
| 23271M | Hose, Fuel |
| 23271N | Clip, Hose |
| 23271W | Clip(FOR FUEL HOSE NO.1) |
| 23271Y | Hose, Fuel |
| 23271Z | Clip, Hose |
| 23273H | Hose, Fuel, NO.2 |
| 23701 | Pipe Sub-assy, Injection, NO.1 |
| 23702 | Pipe Sub-assy, Injection, NO.2 |
| 23741B | Clamp, Injection Pipe |
| 23742 | Clamp, Injection Pipe, NO.2 |
| 23802F | Hose, Fuel |
| 23804C | Pipe Sub-assy, Fuel Inlet |
| 23804D | Pipe Sub-assy, Fuel, NO.4 |
| 23804G | Bolt, Union(FOR FUEL PIPE NO.4) |
| 23804H | Gasket(FOR FUEL PIPE) |
| 23810A | Rail Assy, Common |
| 23812D | Pipe, Fuel, NO.2 |
| 23815D | Pipe, Fuel, NO.3 |
| 23841H | Clamp, Fuel Hose |
| 23842C | Clamp, Fuel Pipe, NO.2(FOR INJECTION PUMP) |
| 23842E | Clamp, Fuel Pipe, NO.1 |
| 23842F | Clamp, Fuel Pipe, NO.2 |
| 23881C | Bracket, Fuel Hose |
| 27148A | Wire, Connecting |
| 82716M | Bracket, Wiring Harness Clamp, NO.1 |
| 82716N | Bracket, Wiring Harness Clamp, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
