Toyota Fortuner (SUV)
2024-08 → present · chassis GUN156,TGN156 · catalogue 6715G0 · Europe
Supported model
Data version 2024-07

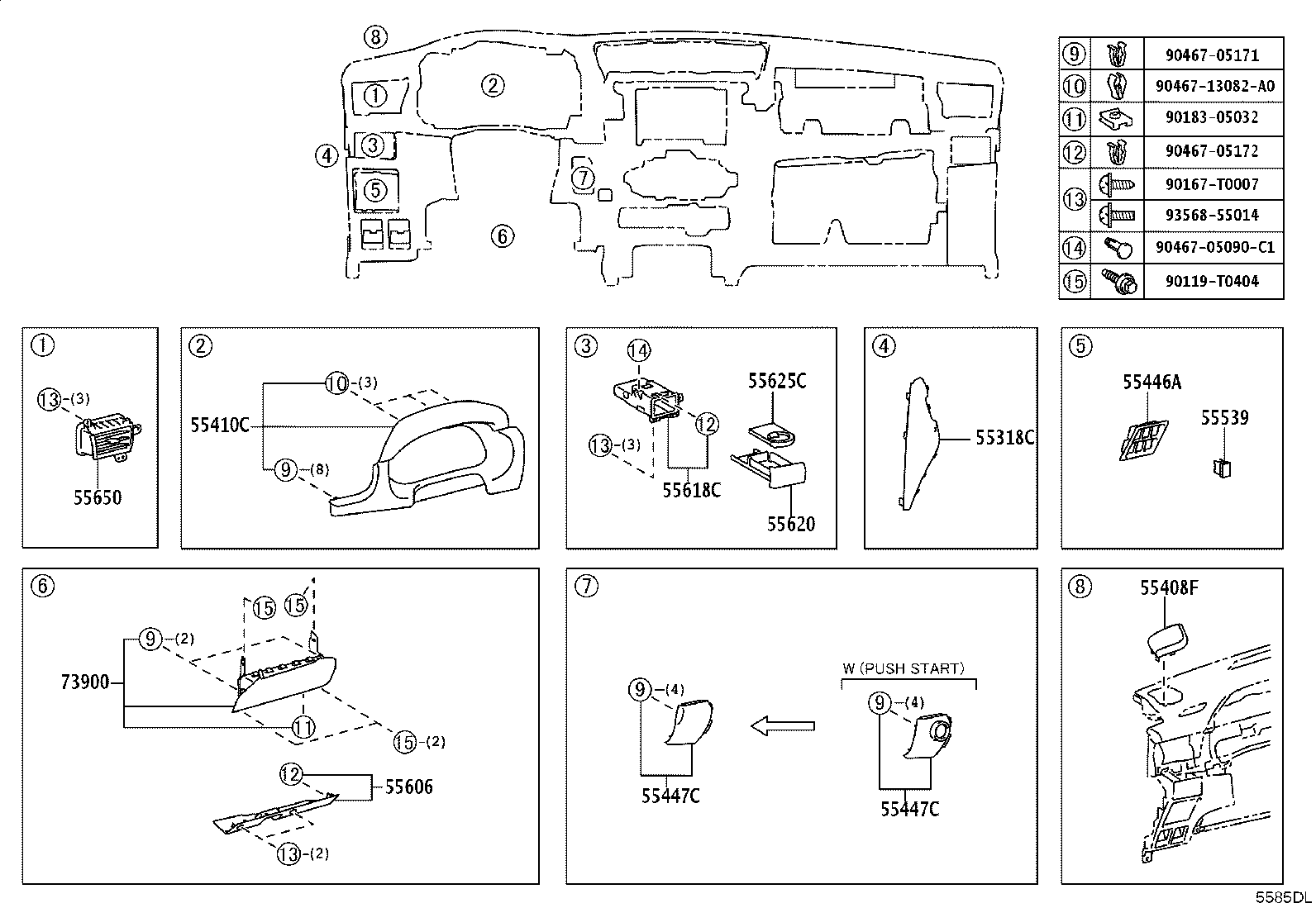

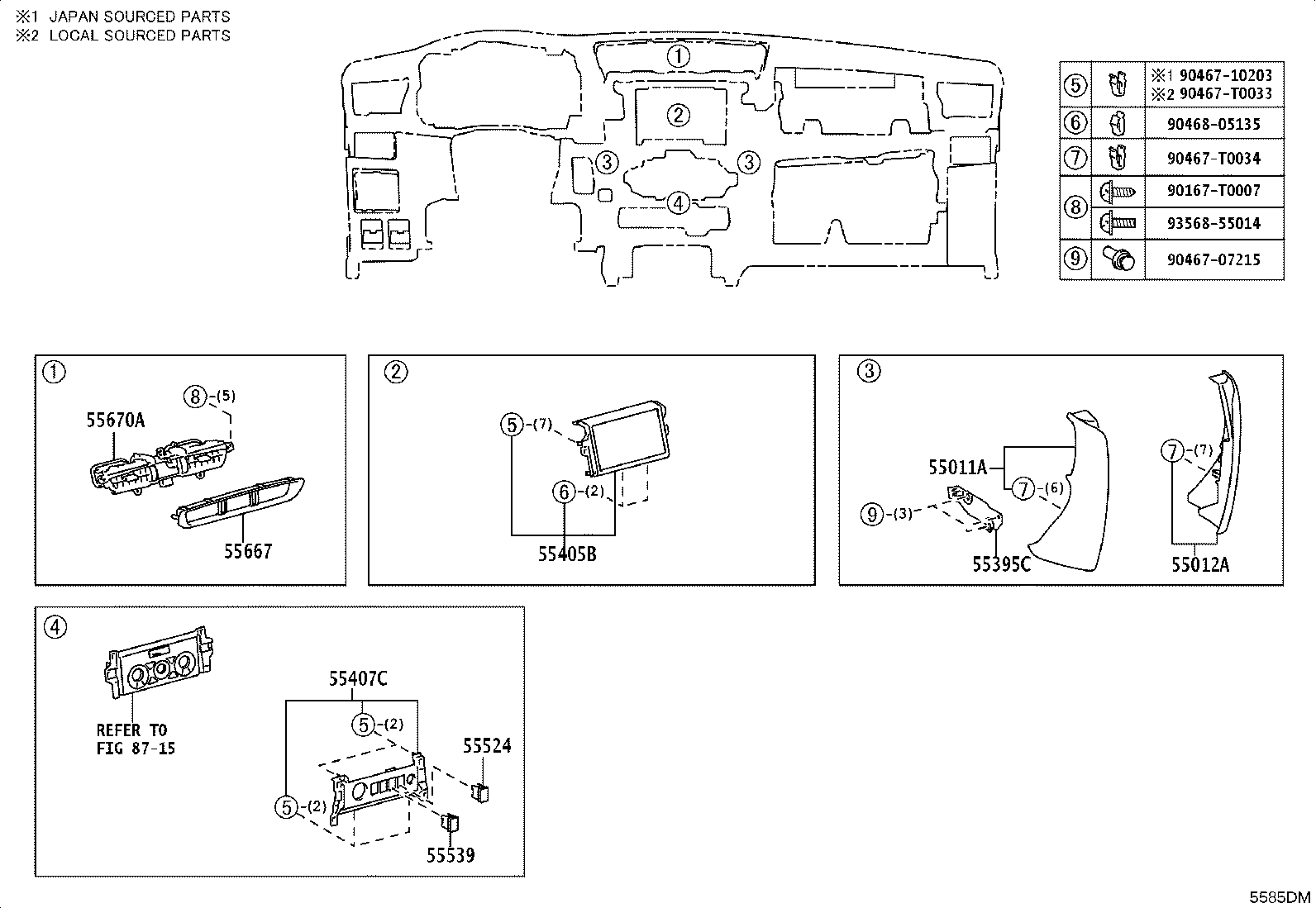

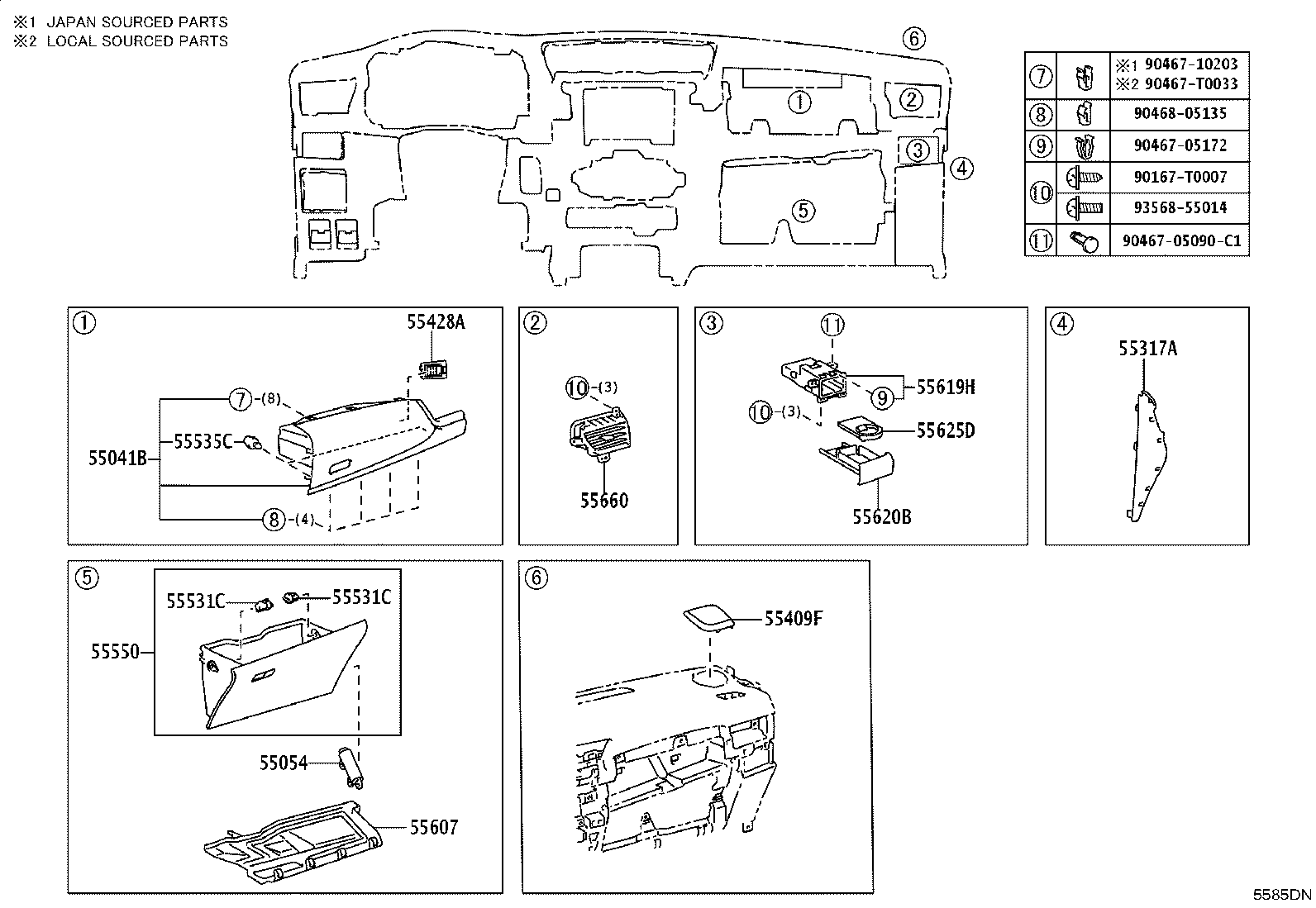

Instrument Panel & Glove Compartment
49 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161V | Piece, Instrument Panel |
| 55011A | Garnish Sub-assy, Instrument Panel, NO.1 |
| 55012A | Garnish Sub-assy, Instrument Panel, NO.2 |
| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55349C | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55359C | Coshion, Instrument Panel, NO.5 |
| 55368C | Bracket, Meter Mounting |
| 55395C | Cover, Instrument Panel Bracket, Inner NO.1 LH |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55407C | Cover Sub-assy, Instrument, Lower |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55428A | Cover, Glove Compartment Door Side |
| 55446A | Base, Switch Hole, NO.1 |
| 55447C | Base, Switch Hole, NO.2 |
| 55474B | Garnish, Instrument Cluster Finish Panel |
| 55524 | Cover, Switch Bace Hole |
| 55531C | Pin, Glove Door Stopper |
| 55535C | Cushion, Glove Compartment Door |
| 55539 | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55618C | Holder, Instrument Panel Cup |
| 55619H | Holder, Instrument Panel Cup, NO.2 |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55620B | Holder, Instrument Panel Cup |
| 55625C | Tray, Instrument Panel Cup Holder |
| 55625D | Tray, Instrument Panel Cup Holder |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55667 | Garnish, Instrument Panel Register Bezel |
| 55670A | Register Assy, Instrument Panel, Center |
| 61181 | Bracket, Instrument Panel Side |
| 61182D | Bracket, Instrument Panel Side |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
