Toyota Fortuner (SUV)

2024-08 → present · chassis GUN156,TGN156 · catalogue 6715G0 · Europe

Supported model Data version 2024-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

22 part groups · 2 illustrations

Illustrations

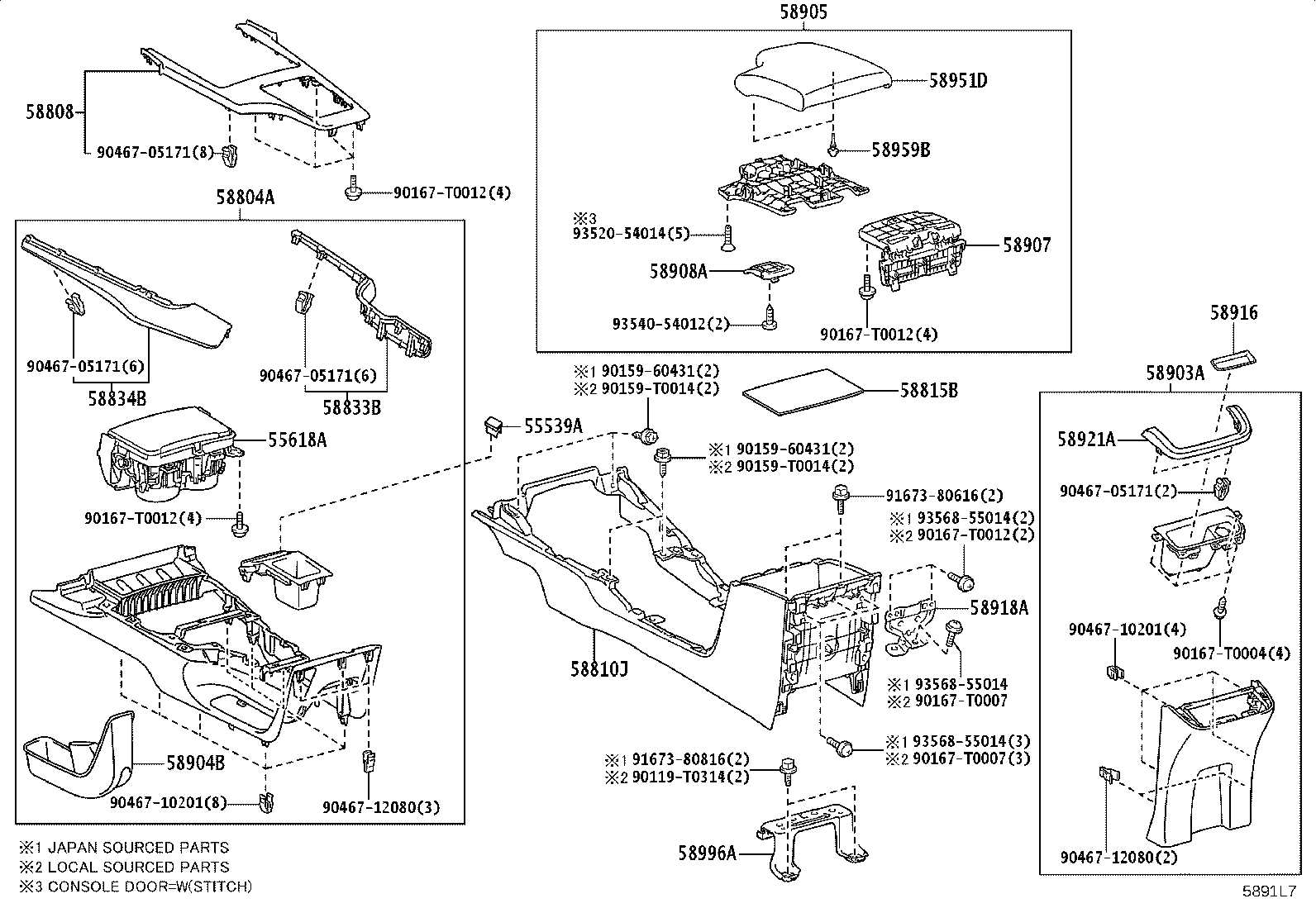

Figure 5891L6 5891L6 2024-08 → — Figure 5891L7 5891L7 2024-08 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
55618A Holder, Console Box Cup
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58815B Carpet, Console Box
58822A Panel, Console, Upper Rear
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58840A Cover Assy, Shifting Hole
58903A Panel Sub-assy, Console Rear End
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58916 Mat, Box Bottom
58918A Bracket, Box Support
58921A Panel, Rear Console, Upper
58951D Door, Console Compartment, Outer
58959B Cushion, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
