Toyota 4-Runner Truck (JPP)
1988-08 → 1995-11 · chassis RN8#,90,12#,VZN85,9#,VZN120 · catalogue 672450 · Europe
Discontinued model
Data version 1996-08

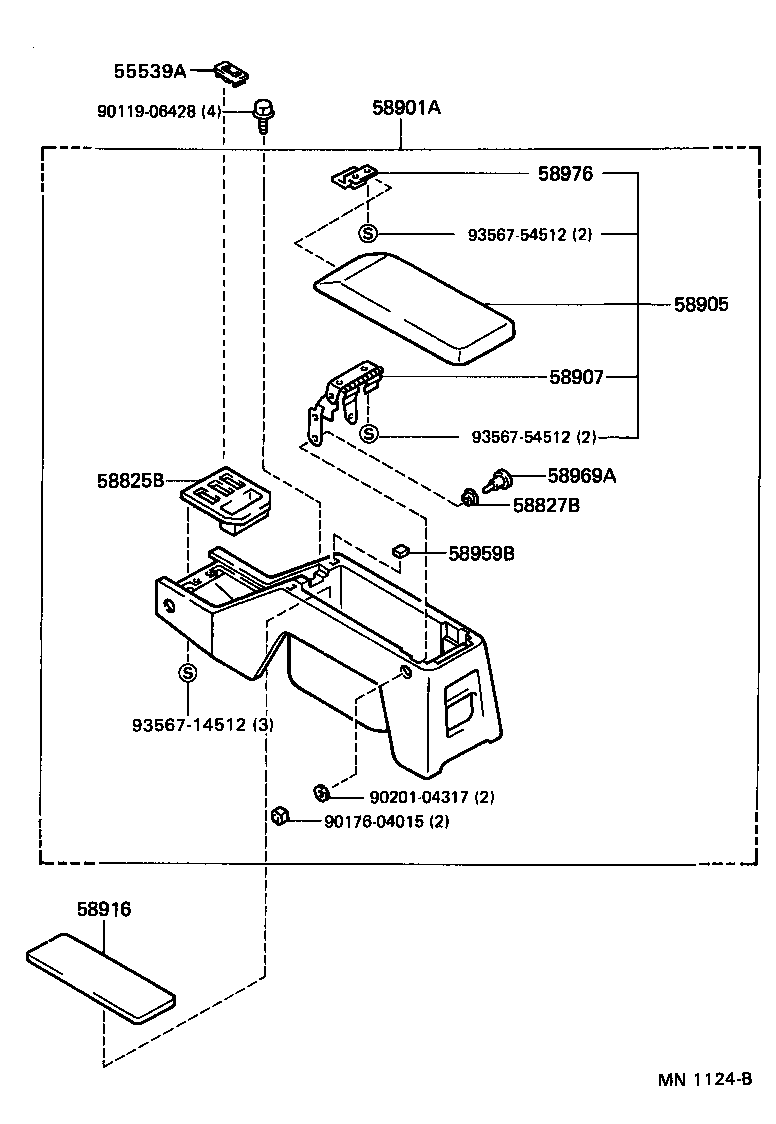

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55539A — Cover, Spare Switch Hole | ||||
| 55539-20020-12 note |
Cover, Spare Switch Hole
1989-04 → 1991-08
ended
|
RN12#,VZN120 | — | |
| 55539-20020-24 note |
Cover, Spare Switch Hole
1989-04 → 1995-11
ended
|
RN12#,VZN120 | — | |
| 55539-20020-24 note |
Cover, Spare Switch Hole
1993-08 → 1995-11
ended
|
VZN120 | — | |
| 55539-20020-B0 note |
Cover, Spare Switch Hole
1994-08 → 1995-11
ended
|
VZN120 | — | |
| 55539-20020-B0 note |
Cover, Spare Switch Hole
1989-04 → 1995-11
ended
|
RN12#,VZN120 | — | |
| 55539-20020-E0 note |
Cover, Spare Switch Hole
1989-04 → 1991-08
ended
|
RN12#,VZN120 | — | |
| 55539-20020-E1 note |
Cover, Spare Switch Hole
1991-08 → 1993-08
ended
|
VZN120 | — | |
| 55539-20020-E2 note |
Cover, Spare Switch Hole
1993-08 → 1995-11
ended
|
VZN120 | — | |
| 55539-20020-E2 note |
Cover, Spare Switch Hole
1993-08 → 1995-11
ended
|
VZN120 | — | |
| 58825B — Pocket, Console Box | ||||
| 58825-89109-02 note |
Pocket, Console Box
1988-08 → 1991-08
ended
|
VZN90 SR5 | — | |
| 58825-89109-03 note |
Pocket, Console Box
1988-08 → 1990-10
ended
|
VZN90 SR5 | — | |
| 58825-89109-04 note |
Pocket, Console Box
1988-08 → 1990-10
ended
|
VZN90 SR5 | — | |
| 58825-89109-06 note |
Pocket, Console Box
1988-08 → 1990-10
ended
|
VZN90 SR5 | — | |
| 58825-89109-B0 note |
Pocket, Console Box
1990-10 → 1995-01
ended
|
VZN90 SR5 | — | |
| 58825-89109-E0 note |
Pocket, Console Box
1990-10 → 1991-08
ended
|
VZN90 SR5 | — | |
| 58825-89109-J0 note |
Pocket, Console Box
1990-10 → 1995-01
ended
|
VZN90 SR5 | — | |
| 58825-89110-02 note |
Pocket, Console Box
1989-04 → 1991-08
ended
|
RN120,VZN120 | — | |
| 58825-89110-03 note |
Pocket, Console Box
1989-04 → 1995-11
ended
|
RN120,VZN120 | — | |
| 58825-89110-04 note |
Pocket, Console Box
1989-04 → 1995-11
ended
|
RN120,VZN120 | — | |
| 58825-89110-06 note |
Pocket, Console Box
1989-04 → 1991-08
ended
|
RN120,VZN120 | — | |
| 58825-89110-E1 note |
Pocket, Console Box
1991-08 → 1993-08
ended
|
VZN120 | — | |
| 58825-89110-E2 note |
Pocket, Console Box
1993-08 → 1995-11
ended
|
VZN120 | — | |
| 58827B — Spacer, Console Compartment Door Stopper | ||||
| 58827-20021 |
Spacer, Console Compartment Door Stopper
1991-08 → 1995-11
ended
|
VZN120,90 SR5 | — | |
| 58827-20021 |
Spacer, Console Compartment Door Stopper
1989-04 → 1991-08
ended
|
RN120,VZN120 | — | |
| 58901A — Box Sub-assy, Console, Rear | ||||
| 58901-35050-B0 note |
Box Sub-assy, Console, Rear
1991-08 → 1995-01
ended
|
VZN90 SR5 | — | |
| 58901-35050-J0 note |
Box Sub-assy, Console, Rear
1991-08 → 1995-01
ended
|
VZN90 SR5 | — | |
| 58901-35070-B0 note |
Box Sub-assy, Console, Rear
1991-08 → 1995-11
ended
|
VZN120 | — | |
| 58901-35070-E0 note |
Box Sub-assy, Console, Rear
1991-08 → 1993-08
ended
|
VZN120 | — | |
| 58901-35070-E1 note |
Box Sub-assy, Console, Rear
1993-08 → 1995-11
ended
|
VZN120 | — | |
| 58901-35070-J0 note |
Box Sub-assy, Console, Rear
1991-08 → 1995-11
ended
|
VZN120 | — | |
| 58901-89126-02 note |
Box Sub-assy, Console, Rear
1988-08 → 1991-08
ended
|
VZN90 SR5 | — | |
| 58901-89126-03 note |
Box Sub-assy, Console, Rear
1988-08 → 1991-08
ended
|
VZN90 SR5 | — | |
| 58901-89126-04 note |
Box Sub-assy, Console, Rear
1988-08 → 1991-08
ended
|
VZN90 SR5 | — | |
| 58901-89126-06 note |
Box Sub-assy, Console, Rear
1988-08 → 1991-08
ended
|
VZN90 SR5 | — | |
| 58901-89129-02 note |
Box Sub-assy, Console, Rear
1989-04 → 1991-08
ended
|
RN120 | — | |
| 58901-89129-03 note |
Box Sub-assy, Console, Rear
1989-04 → 1991-08
ended
|
RN120 | — | |
| 58901-89129-04 note |
Box Sub-assy, Console, Rear
1989-04 → 1991-08
ended
|
RN120 | — | |
| 58901-89129-06 note |
Box Sub-assy, Console, Rear
1989-04 → 1991-08
ended
|
RN120 | — | |
| 58901-89130-02 note |
Box Sub-assy, Console, Rear
1989-04 → 1991-08
ended
|
VZN120 | — | |
| 58901-89130-03 note |
Box Sub-assy, Console, Rear
1989-04 → 1991-08
ended
|
VZN120 | — | |
| 58901-89130-04 note |
Box Sub-assy, Console, Rear
1989-08 → 1991-08
ended
|
VZN120 | — | |
| 58901-89130-06 note |
Box Sub-assy, Console, Rear
1989-04 → 1991-08
ended
|
VZN120 | — | |
| 58901-89131-02 note |
Box Sub-assy, Console, Rear
1989-04 → 1991-08
ended
|
RN121 | — | |
| 58901-89131-02 note |
Box Sub-assy, Console, Rear
1989-04 → 1991-08
ended
|
RN120,VZN120 | — | |
| 58901-89131-03 note |
Box Sub-assy, Console, Rear
1989-04 → 1991-08
ended
|
RN121 | — | |
| 58901-89131-03 note |
Box Sub-assy, Console, Rear
1989-04 → 1995-11
ended
|
RN120,VZN120 | — | |
| 58901-89131-04 note |
Box Sub-assy, Console, Rear
1989-04 → 1991-08
ended
|
RN121 | — | |
| 58901-89131-04 note |
Box Sub-assy, Console, Rear
1989-04 → 1995-11
ended
|
RN120,VZN120 | — | |
| 58901-89131-06 note |
Box Sub-assy, Console, Rear
1989-04 → 1991-08
ended
|
RN120,VZN120 | — | |
| 58901-89131-06 note |
Box Sub-assy, Console, Rear
1989-04 → 1991-08
ended
|
RN121 | — | |
| 58901-89131-E0 note |
Box Sub-assy, Console, Rear
1991-08 → 1993-08
ended
|
VZN120 | — | |
| 58901-89131-E1 note |
Box Sub-assy, Console, Rear
1993-08 → 1995-11
ended
|
VZN120 | — | |
| 58905 — Door Sub-assy, Console Compartment | ||||
| 58905-35030-B0 note |
Door Sub-assy, Console Compartment
1991-08 → 1995-11
ended
|
VZN120,90 SR5 | — | |
| 58905-35030-E0 note |
Door Sub-assy, Console Compartment
1991-08 → 1993-08
ended
|
VZN120 | — | |
| 58905-35030-E1 note |
Door Sub-assy, Console Compartment
1993-08 → 1995-11
ended
|
VZN120 | — | |
| 58905-35030-J0 note |
Door Sub-assy, Console Compartment
1991-08 → 1995-11
ended
|
VZN120,90 SR5 | — | |
| 58905-89102-02 note |
Door Sub-assy, Console Compartment
1989-04 → 1991-08
ended
|
RN120 | — | |
| 58905-89102-03 note |
Door Sub-assy, Console Compartment
1989-04 → 1990-10
ended
|
RN120 | — | |
| 58905-89102-04 note |
Door Sub-assy, Console Compartment
1989-04 → 1990-10
ended
|
RN120 | — | |
| 58905-89102-06 note |
Door Sub-assy, Console Compartment
1989-04 → 1990-10
ended
|
RN120 | — | |
| 58905-89102-B0 note |
Door Sub-assy, Console Compartment
1990-10 → 1991-08
ended
|
RN120 | — | |
| 58905-89102-E0 note |
Door Sub-assy, Console Compartment
1990-10 → 1991-08
ended
|
RN120 | — | |
| 58905-89102-J0 note |
Door Sub-assy, Console Compartment
1990-10 → 1991-08
ended
|
RN120 | — | |
| 58905-89103-02 note |
Door Sub-assy, Console Compartment
1988-08 → 1991-08
ended
|
VZN120,90 SR5 | — | |
| 58905-89103-03 note |
Door Sub-assy, Console Compartment
1988-08 → 1991-08
ended
|
VZN120,90 SR5 | — | |
| 58905-89103-04 note |
Door Sub-assy, Console Compartment
1988-08 → 1991-08
ended
|
VZN120,90 SR5 | — | |
| 58905-89103-06 note |
Door Sub-assy, Console Compartment
1988-08 → 1991-08
ended
|
VZN120,90 SR5 | — | |
| 58907 — Hinge Sub-assy, Console Compartment Door | ||||
| 58907-89102 |
Hinge Sub-assy, Console Compartment Door
1988-08 → 1995-11
ended
|
RN120,VZN120,90 SR5 | — | |
| 58916 — Mat, Box Bottom | ||||
| 58916-89101 |
Mat, Box Bottom
1988-08 → 1993-05
ended
|
RN120,VZN120,90 SR5 | — | |
| 58916-89101 |
Mat, Box Bottom
1993-05 → 1993-06
ended
|
VZN90 SR5 | — | |
| 58959B — Cushion, Console Compartment Door | ||||
| 58959-89101 |
Cushion, Console Compartment Door
1989-04 → 1991-08
ended
|
RN12# | — | |
| 58959-89101 |
Cushion, Console Compartment Door
1988-08 → 1995-11
ended
|
VZN120,90 SR5 | — | |
| 58959-89101 note |
Cushion, Console Compartment Door
1989-04 → 1995-11
ended
|
VZN120 | — | |
| 58969A — Retainer, Console Compartment Door Stopper | ||||
| 58969-20010 |
Retainer, Console Compartment Door Stopper
1988-08 → 1995-11
ended
|
RN120,VZN120,90 SR5 | — | |
| 58976 — Striker, Console Compartment Door Lock | ||||
| 58976-22020 |
Striker, Console Compartment Door Lock
1989-04 → 1991-08
ended
|
RN12# | — | |
| 58976-22020 |
Striker, Console Compartment Door Lock
1988-08 → 1995-11
ended
|
VZN120,90 SR5 | — | |
| 58976-22020 note |
Striker, Console Compartment Door Lock
1989-04 → 1995-11
ended
|
VZN120 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
