Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN8#,90,12#,VZN85,9#,VZN120 · catalogue 672450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 9 illustrations

Illustrations

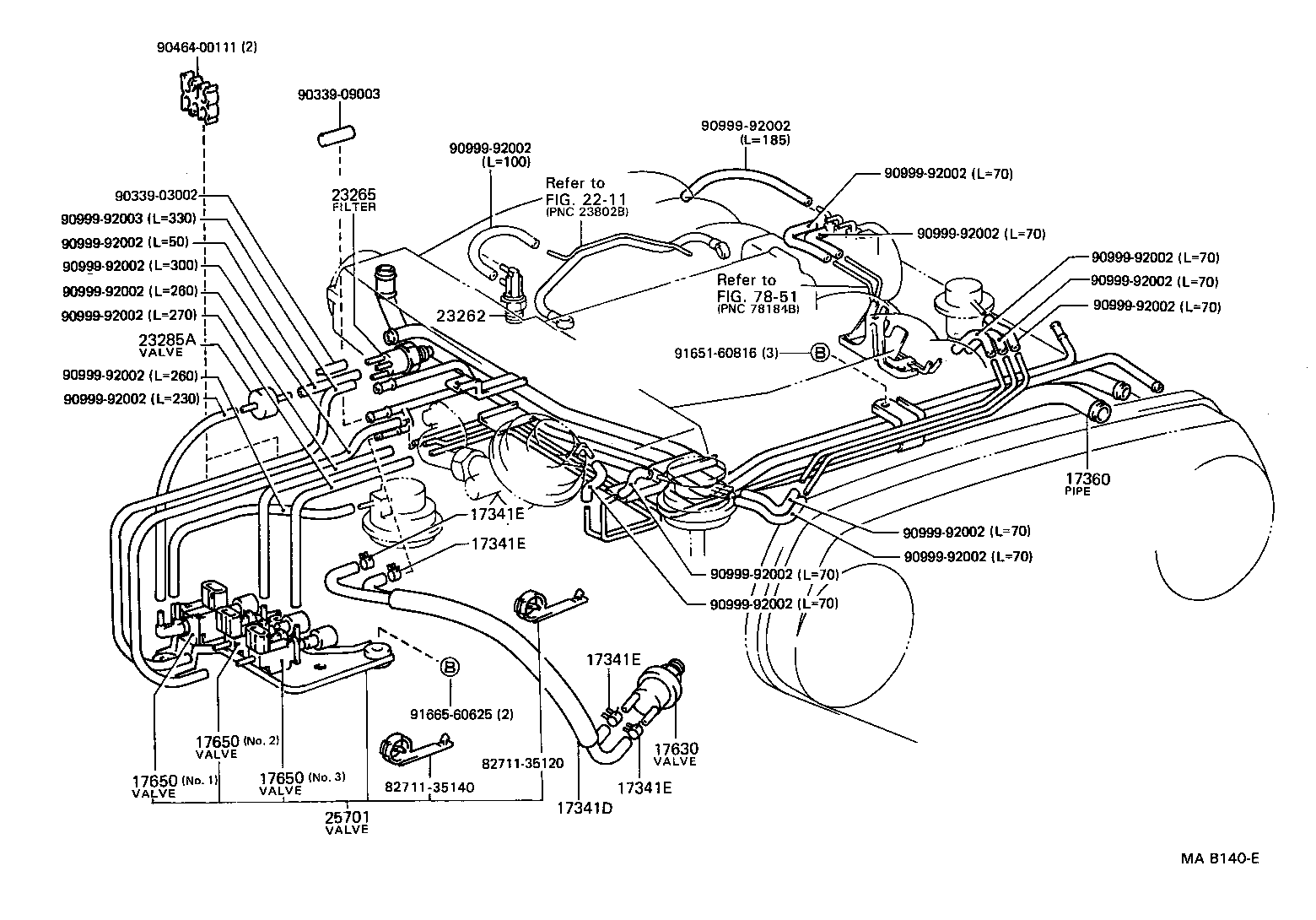

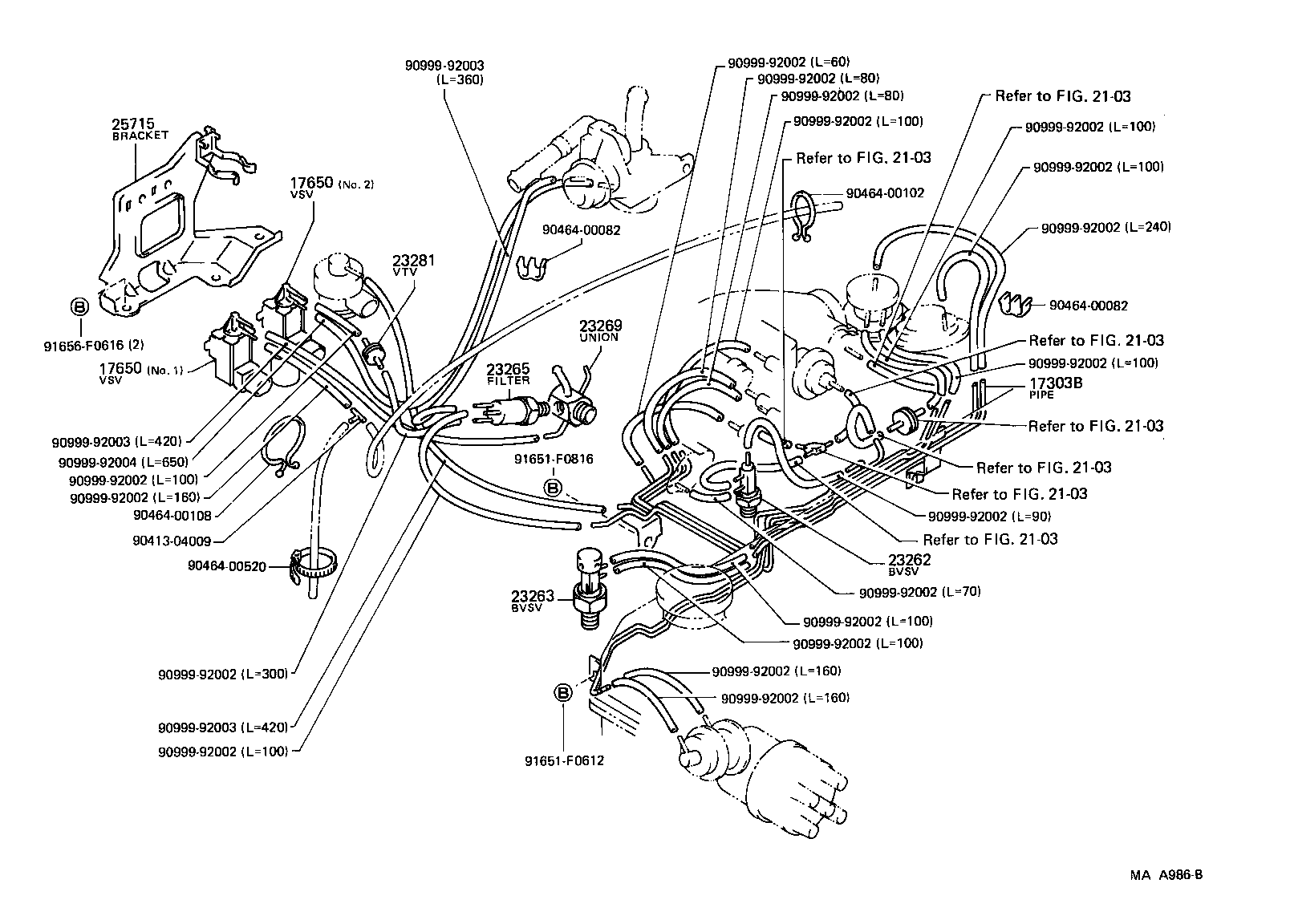

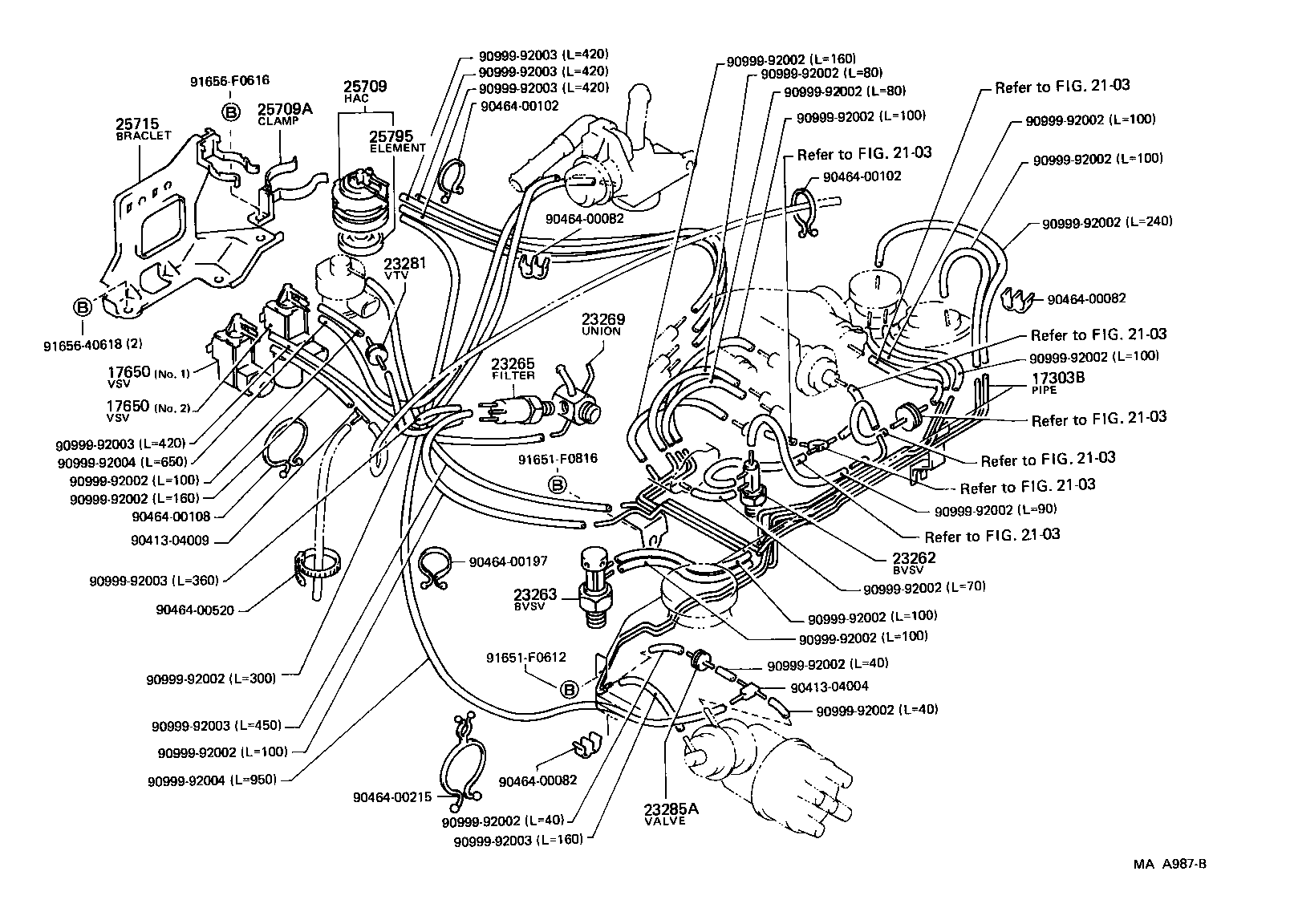

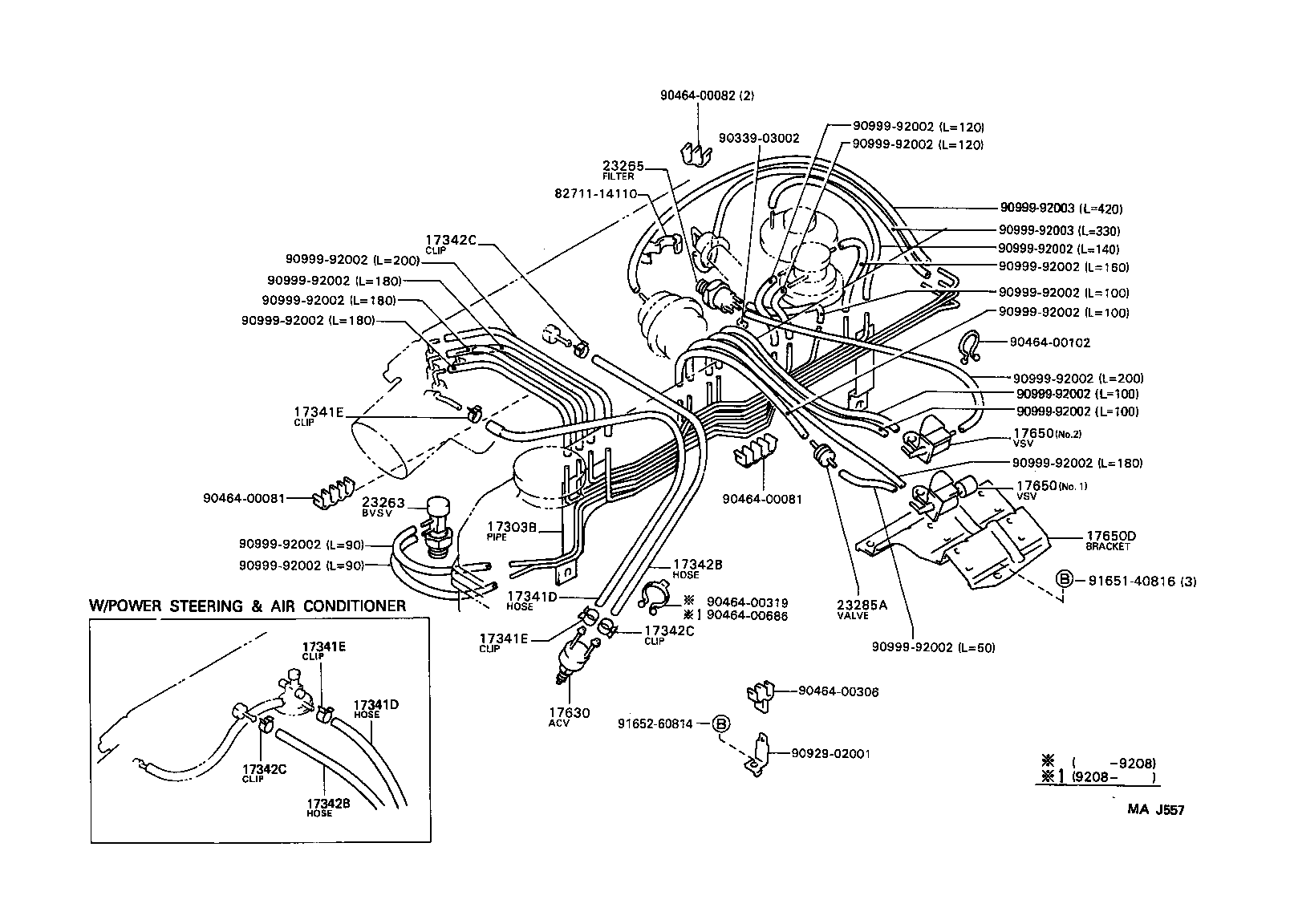

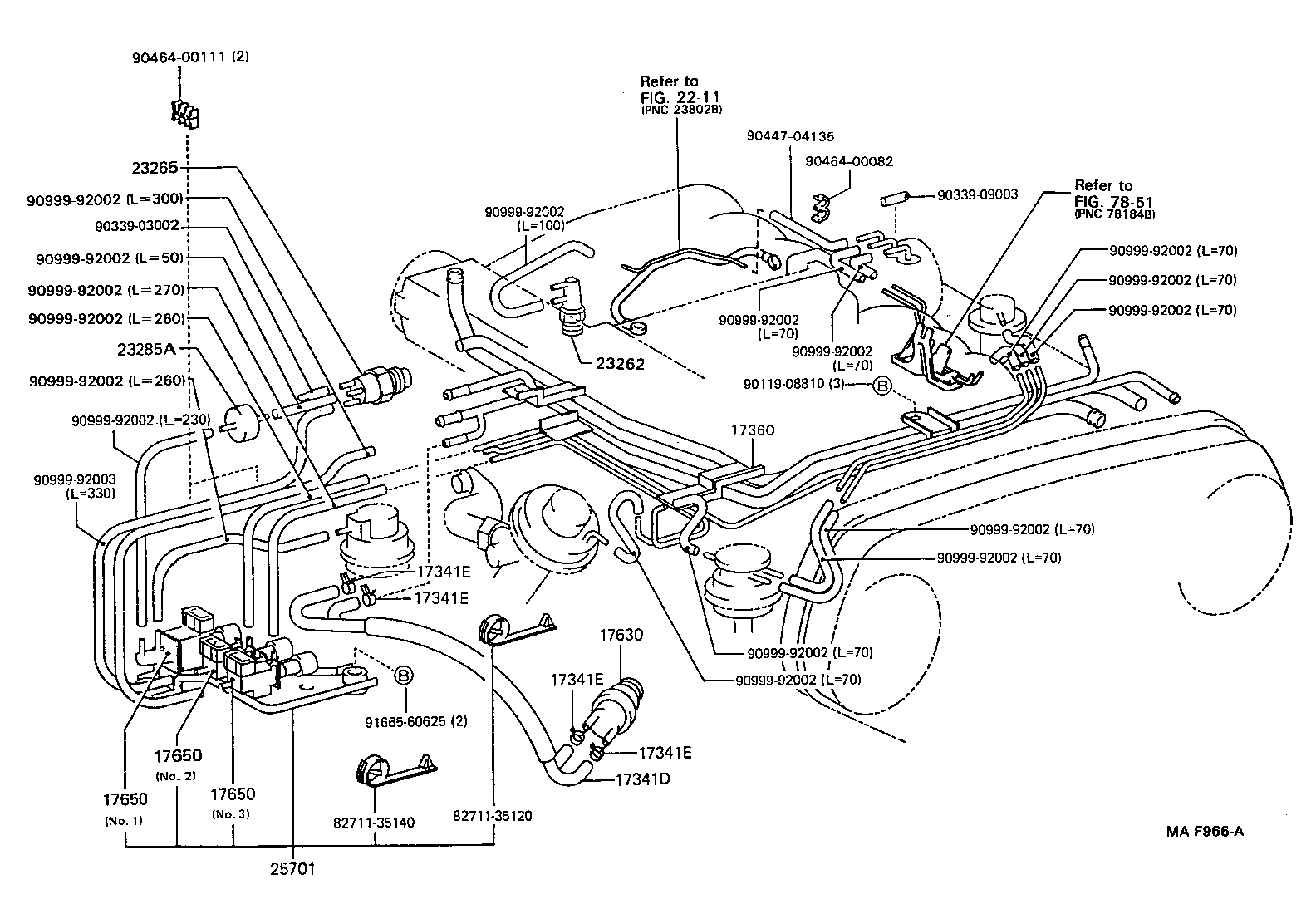

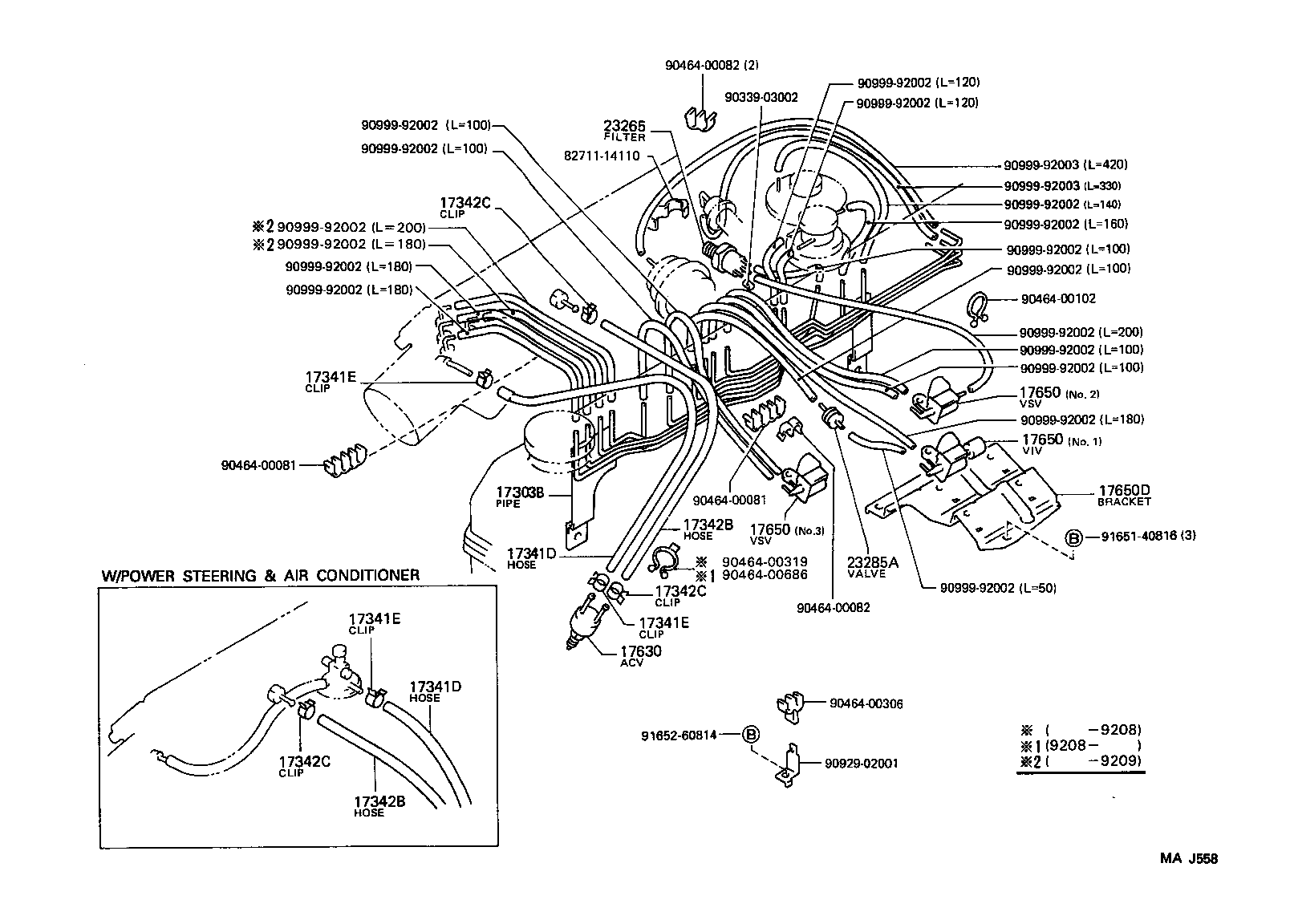

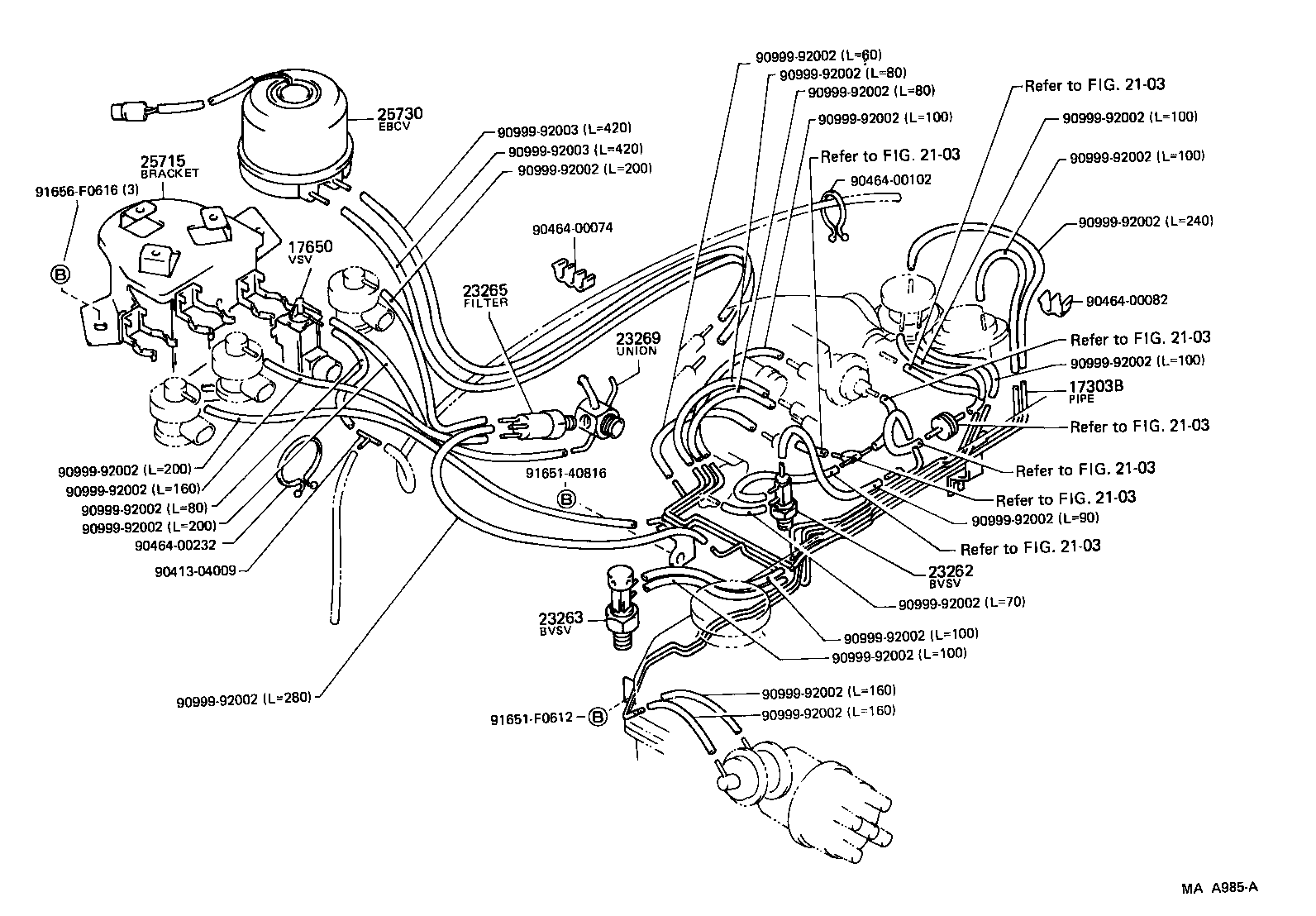

Figure MA9504B MA9504B 1988-08 → — Figure MAA985A MAA985A 1988-08 → 1989-08 Figure MAA986B MAA986B 1988-08 → 1990-08 Figure MAA987B MAA987B 1988-08 → 1990-08 Figure MAJ557 MAJ557 1988-08 → — Figure MAJ558 MAJ558 1988-08 → — Figure MA9504B MA9504B 1988-08 → — Figure MAB140E MAB140E 1988-08 → 1991-08 Figure MAF966A MAF966A 1991-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17360 Tube Assy, Air
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
25701 Valve Set, Emission Control
25709 Valve Sub-assy, High Altitude Compensator
25709A Clamp(FOR HIGH ALTITUDE COMPENSATOR VALVE)
25715 Bracket, Emission Control Valve
25730 Valve Assy, Electric Bleed Air Control
25795 Element, Altitude Compensator Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
