Toyota 4-Runner Truck (JPP)
1988-08 → 1995-11 · chassis RN8#,90,12#,VZN85,9#,VZN120 · catalogue 672450 · Europe
Discontinued model
Data version 1996-08

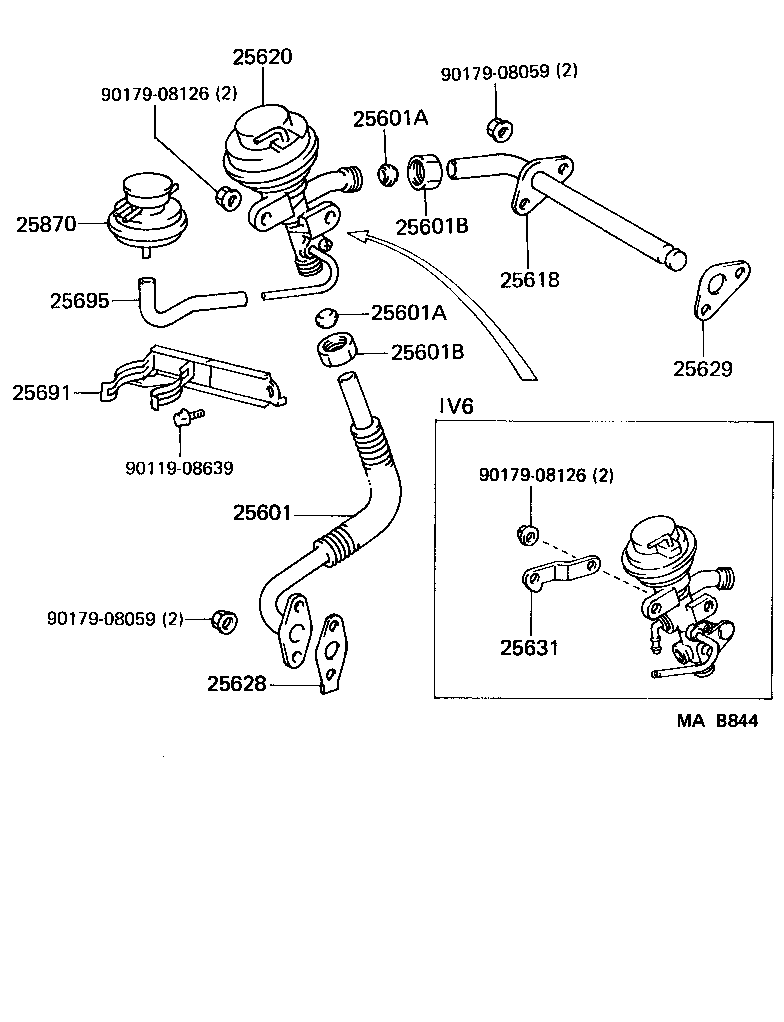

Exhaust Gas Recirculation System
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601A | Sleeve, Ball, Egr Pipe, NO.1 |
| 25601B | Nut, Union, Egr Pipe, NO.1 |
| 25618 | Inlet, Egr |
| 25620 | Valve Assy, Egr |
| 25620A | Bolt, Stud(FOR EGR VALVE) |
| 25628 | Gasket, Egr Inlet |
| 25629 | Gasket, Egr Valve Adapter |
| 25631 | Stay, Egr Pipe, NO.1 |
| 25690 | Modulator Assy, Egr Vacuum |
| 25690A | Hose(FOR EGR VACUUM MODULATOR) |
| 25691 | Bracket, Egr Vacuum Modulator |
| 25695 | Hose, Egr Vacuum Modulator |
| 25870 | Valve Assy, Egr Vacuum Modulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
