Factory parts data · Europe

Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN8#,90,12#,VZN85,9#,VZN120 · catalogue 672450 · Europe

Discontinued model Data version 1996-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

10 part groups · 5 illustrations

Illustrations

Figure MCG350E

MCG350E 1988-08 → 1995-11

Figure MCN568C

MCN568C 1988-08 → 1995-11

Figure MCL400C

MCL400C 1988-08 → 1995-11

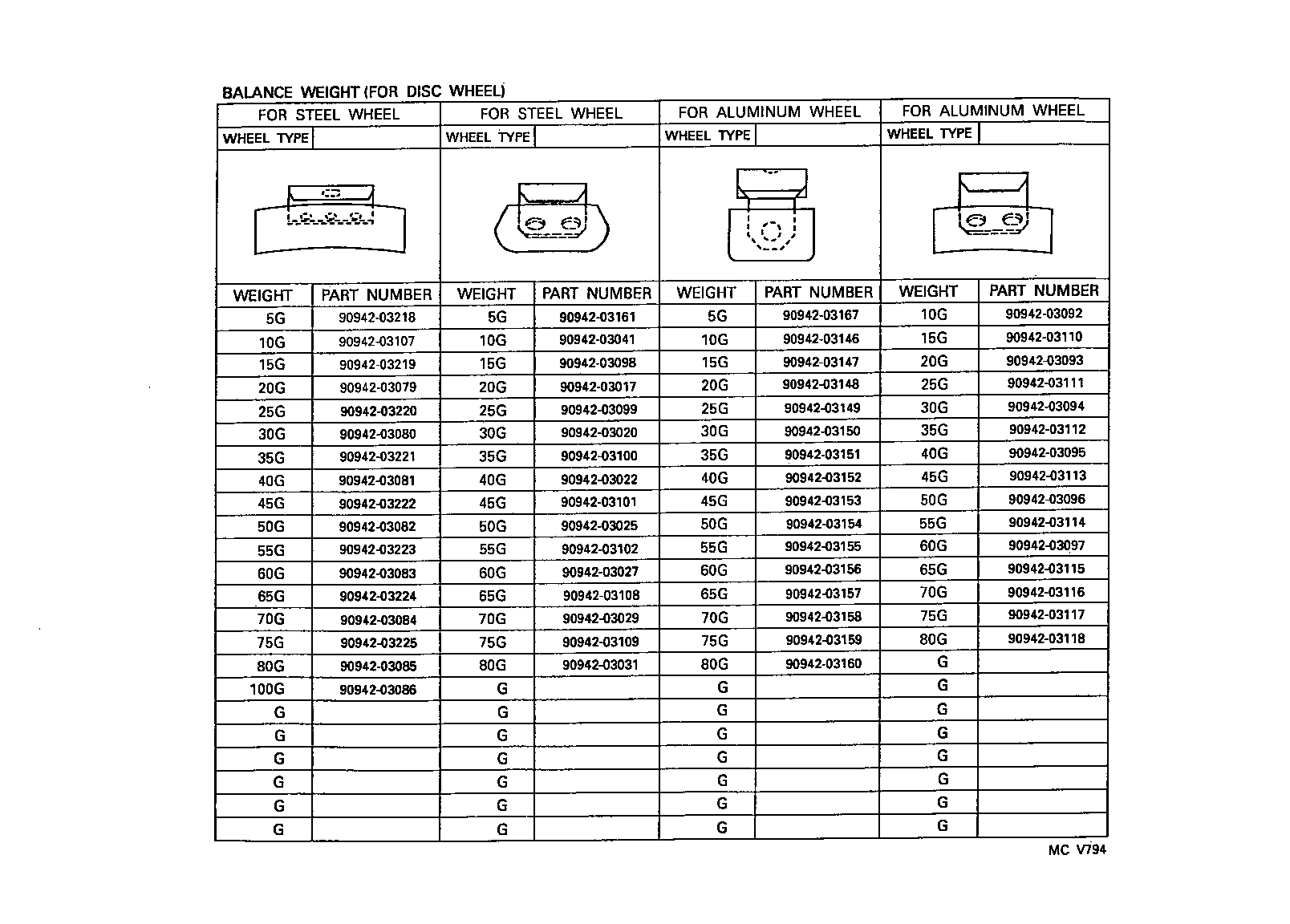

Figure MCV794

MCV794 1988-08 → —

Figure MCV795

MCV795 1988-08 → —

Part groups

PNC	Description
42601A	Wheel, Disc (FOR SPARE)
42601C	Nut, Hub (FOR AXLE)
42601F	Wheel, Disc (FOR FRONT)
42601R	Wheel, Disc (FOR REAR)
42603	Ornament Sub-assy, Wheel Hub
42611G	Valve (FOR TUBELESS TIRE)
42621	Cap, Wheel
42624	Ring, Wheel Cap
42652	Tire
42652A	Tire (FOR SPARE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
