Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN8#,90,12#,VZN85,9#,VZN120 · catalogue 672450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

10 part groups · 4 illustrations

Illustrations

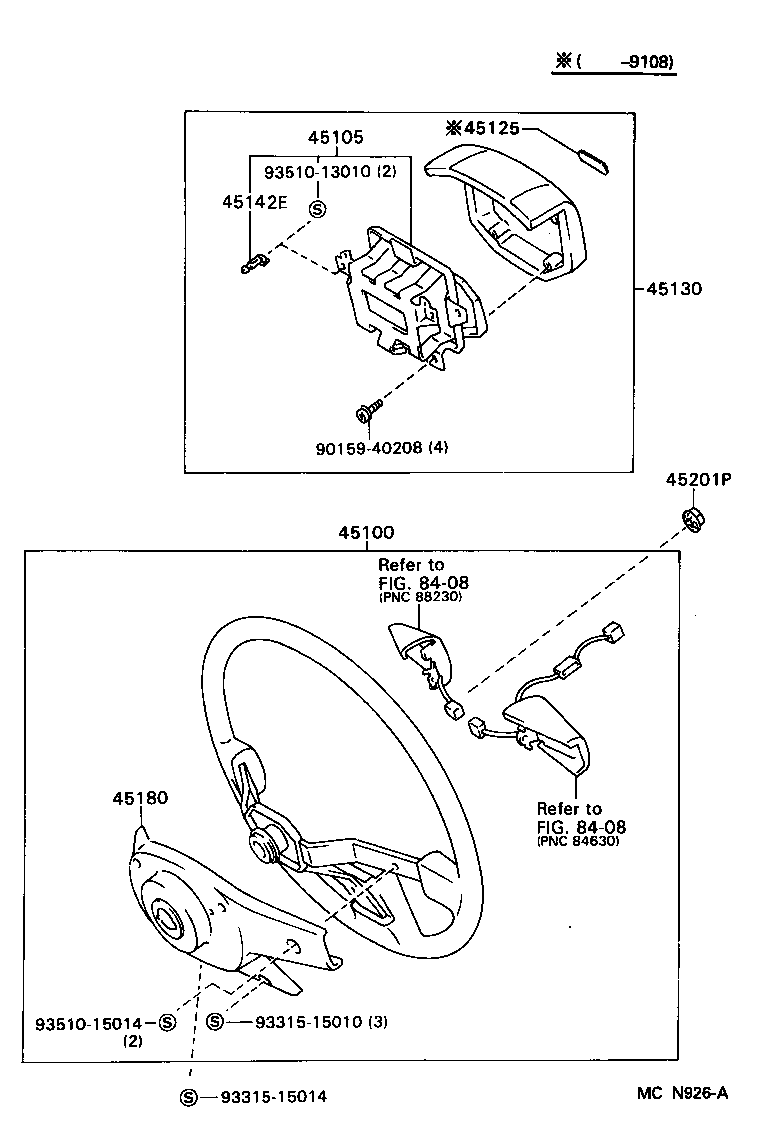

Figure NC5200A NC5200A 1988-08 → 1991-08 Figure MCN410A MCN410A 1991-08 → 1995-11 Figure MCN924A MCN924A 1988-08 → 1995-11 Figure MCN926A MCN926A 1988-08 → 1995-11

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45112 Pad, Steering Wheel
45125 Mark, Steering Wheel Pad
45130 Button Assy, Horn
45136 Plate, Horn Button Contact
45142 Seat, Horn Button Contact, NO.1
45142E Piece, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
