Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN8#,90,12#,VZN85,9#,VZN120 · catalogue 672450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

7 part groups · 2 illustrations

Illustrations

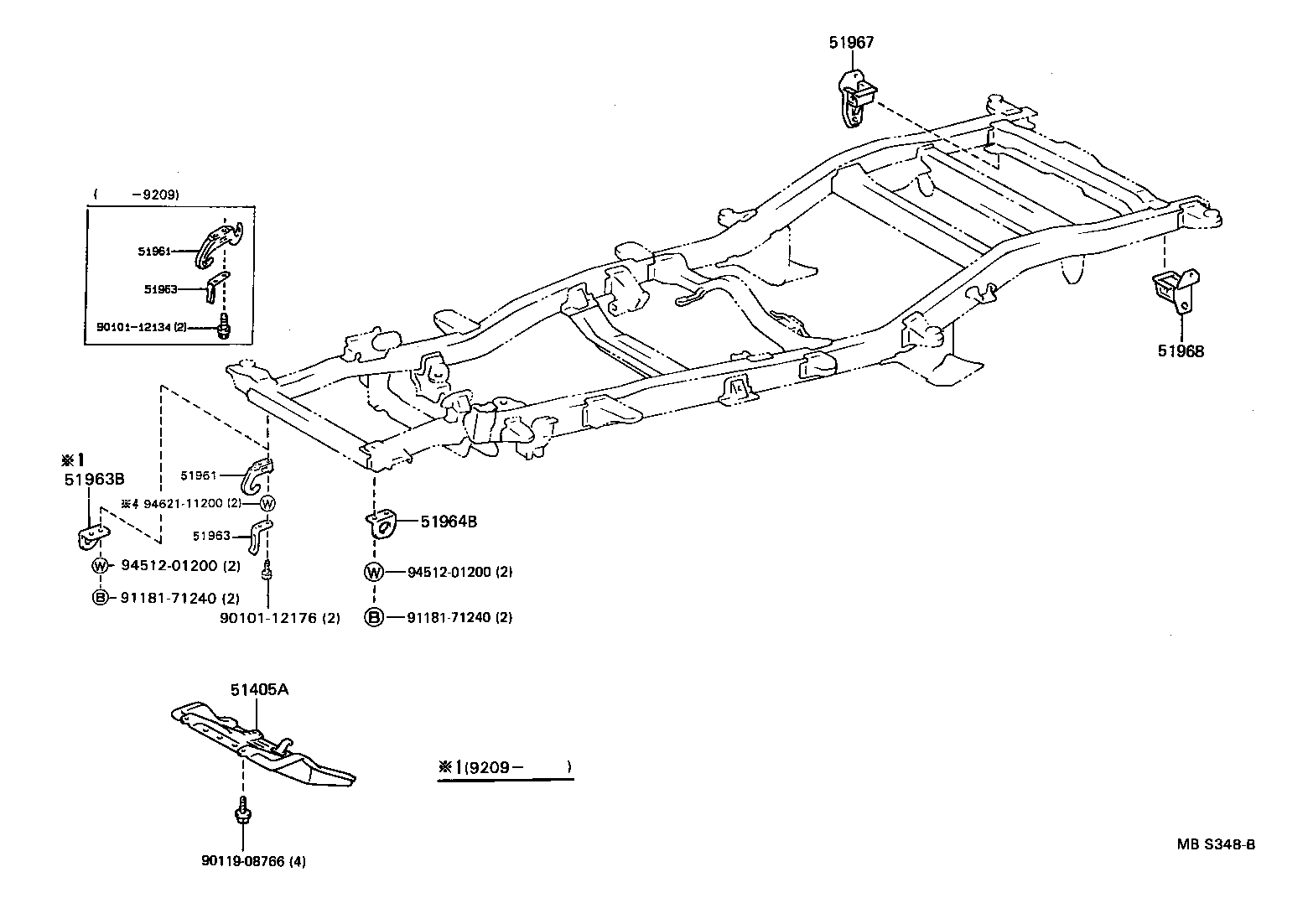

Figure MBP308B MBP308B 1988-08 → — Figure MBS348B MBS348B 1989-04 → —

Part groups

PNCDescription
51405A Cover Sub-assy, Engine Under, NO.1
51961 Hook, NO.1
51963 Stopper, Hook Wire
51963B Hook, Transport, Front RH
51964B Hook, Transport, Front LH
51967 Hook, Transport, Rear
51968 Spacer, Hook
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
