Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN8#,90,12#,VZN85,9#,VZN120 · catalogue 672450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

8 part groups · 4 illustrations

Illustrations

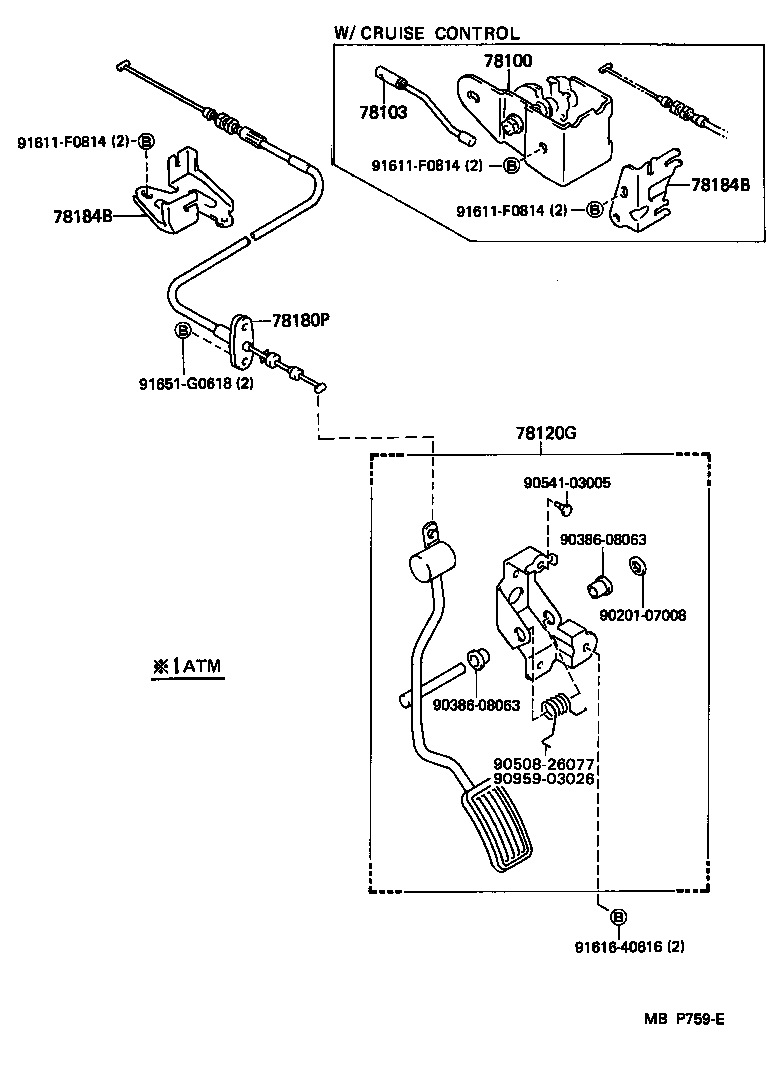

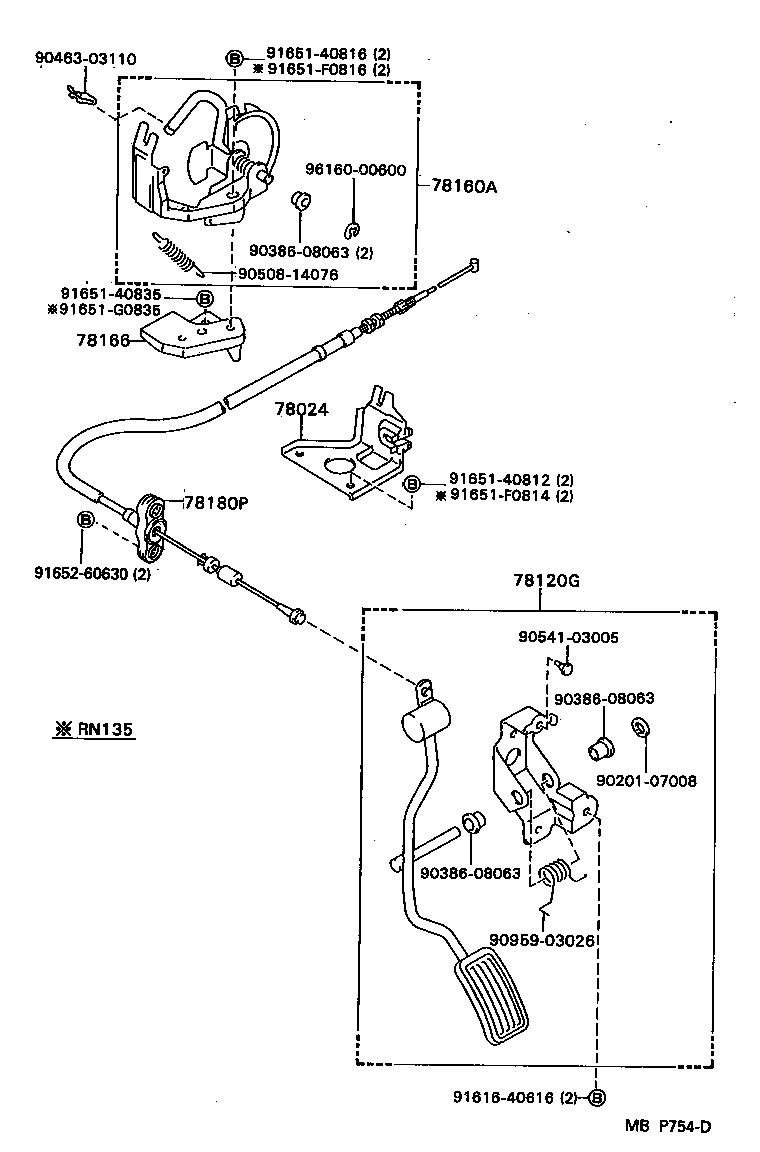

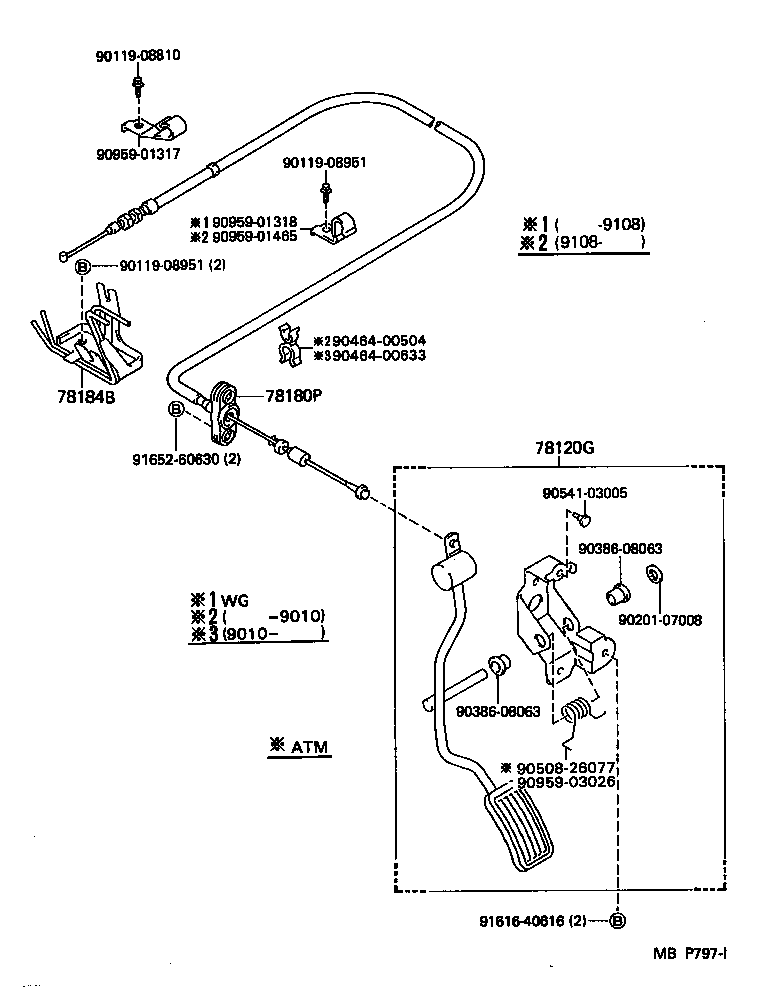

Figure MBP757C MBP757C 1988-08 → — Figure MBP754D MBP754D 1988-08 → — Figure MBP759E MBP759E 1988-08 → — Figure MBP797I MBP797I 1988-08 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78120G Rod Assy, Accelerator Pedal
78160A Bellcrank Assy, Accel Control W/Bracket
78166 Bracket, Accel Control NO.2 Bellcrank
78180P Cable Assy, Accelerator Control
78184B Bracket, Accelerator Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
