Toyota 4-Runner Truck (JPP)
1988-08 → 1995-11 · chassis RN8#,90,12#,VZN85,9#,VZN120 · catalogue 672450 · Europe
Discontinued model
Data version 1996-08

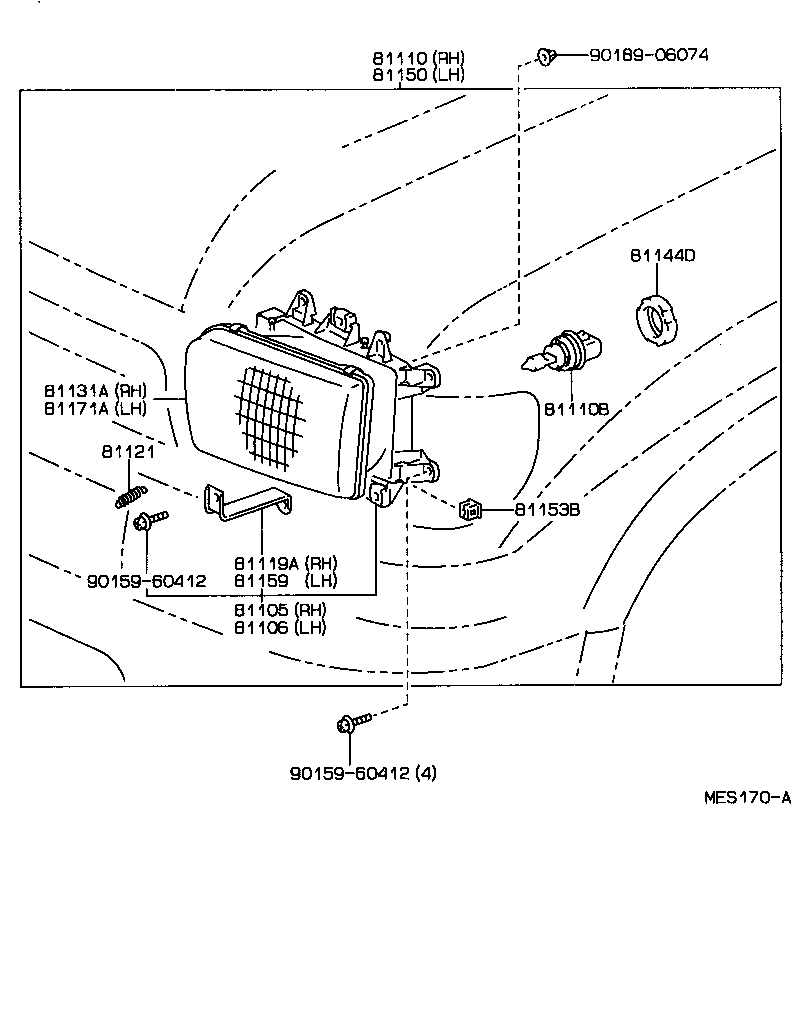

Headlamp
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81105 | Housing Sub-assy, Headlamp, RH |
| 81106 | Housing Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110S | Sealed Beam Unit, NO.1 |
| 81111A | Ring, Sealed Beam Retaining, NO.1 RH |
| 81113 | Ring, Sealed Beam Mounting, NO.1 RH |
| 81119A | Bracket Assy, Head Lamp, RH |
| 81121 | Spring, Headlamp Tension |
| 81126 | Plate, Headlamp |
| 81131A | Unit, Headlamp, RH |
| 81144D | Cap, Headlamp Locking |
| 81150 | Headlamp Assy, LH |
| 81151A | Ring, Sealed Beam Retaining, NO.1 LH |
| 81153 | Ring, Sealed Beam Mounting, NO.1 LH |
| 81153B | Bearing, Headlamp |
| 81159 | Bracket Assy, Head Lamp, LH |
| 81171A | Unit, Headlamp, LH |
| 81195 | Screw, Headlamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
