Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN8#,90,12#,VZN85,9#,VZN120 · catalogue 672450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

11 part groups · 4 illustrations

Illustrations

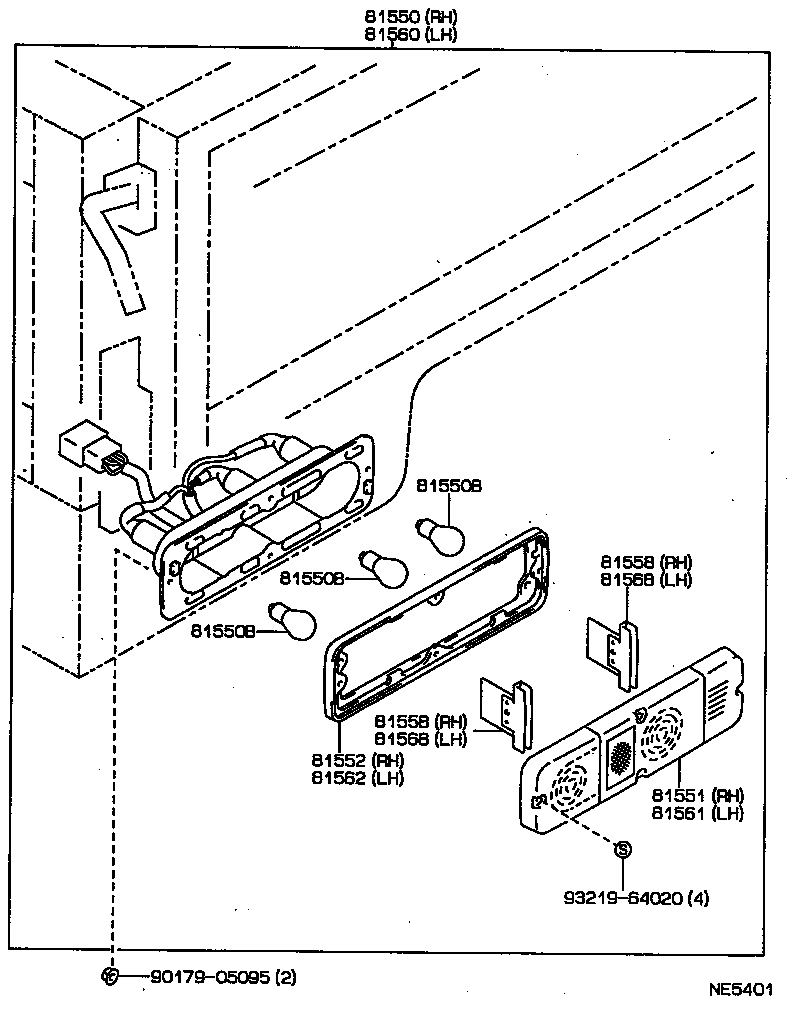

Figure NE5402 NE5402 1988-08 → — Figure NE5401 NE5401 1988-08 → 1993-08 Figure MEM622 MEM622 1989-04 → 1992-08 Figure MEM622 MEM622 1992-08 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
