Toyota 4-Runner Truck (JPP)

1988-08 → 1995-11 · chassis RN8#,90,12#,VZN85,9#,VZN120 · catalogue 672450 · Europe

Discontinued model Data version 1996-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

14 part groups · 3 illustrations

Illustrations

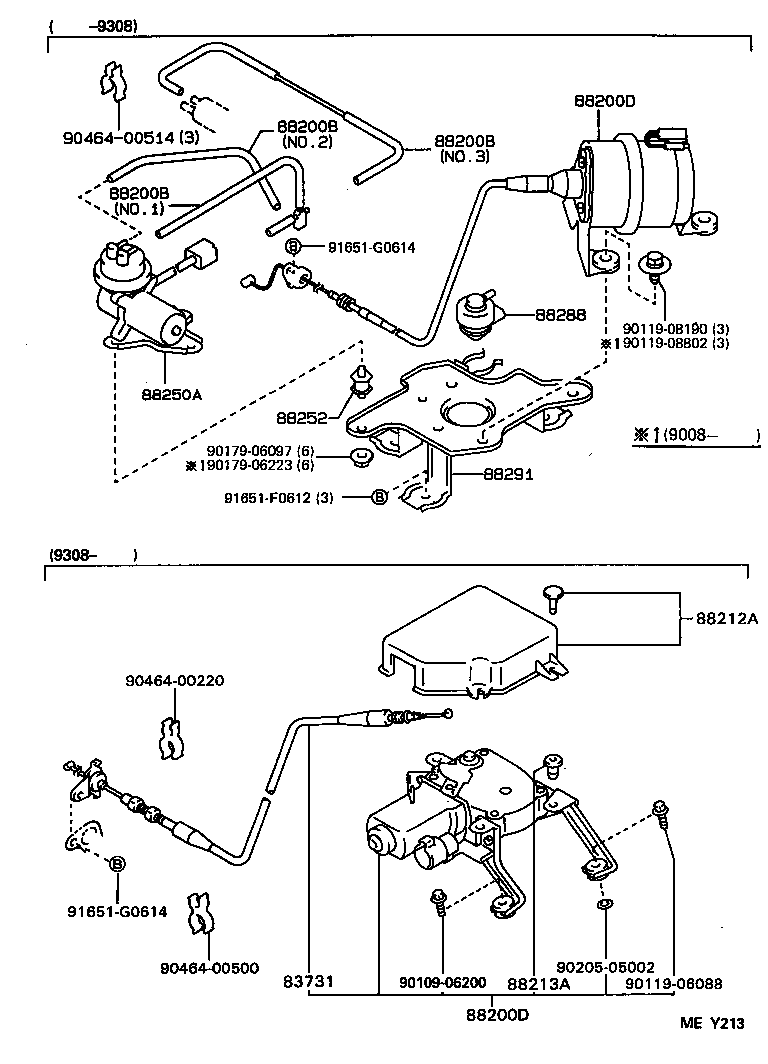

Figure MEY216 MEY216 1988-08 → — Figure MEY213 MEY213 1988-08 → — Figure NE1133A NE1133A 1988-08 → —

Part groups

PNCDescription
83731 Cable, Cruise Control
84630 Switch Assy, Cruise Control Main
88200B Hose, Cruise Control Vacuum
88200D Actuator Assy, Cruise Control
88212A Cover, Cruise Control Actuator
88213A Grommet, Cruise Control Actuator Cover
88220A Relay Assy, Speed Control Main
88230 Switch Assy, Cruise Control(AUTO DRIVE) Control
88240 Computer Assy, Cruise Control
88250A Pump Assy, Cruise Control
88252 Cushion, Vacuum Pump
88280C Switch Assy, Clutch
88288 Switch, Vacuum Speed Control
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
