Toyota 4-Runner Truck (JPP)
1988-08 → 1995-11 · chassis RN8#,90,12#,VZN85,9#,VZN120 · catalogue 672450 · Europe
Discontinued model
Data version 1996-08

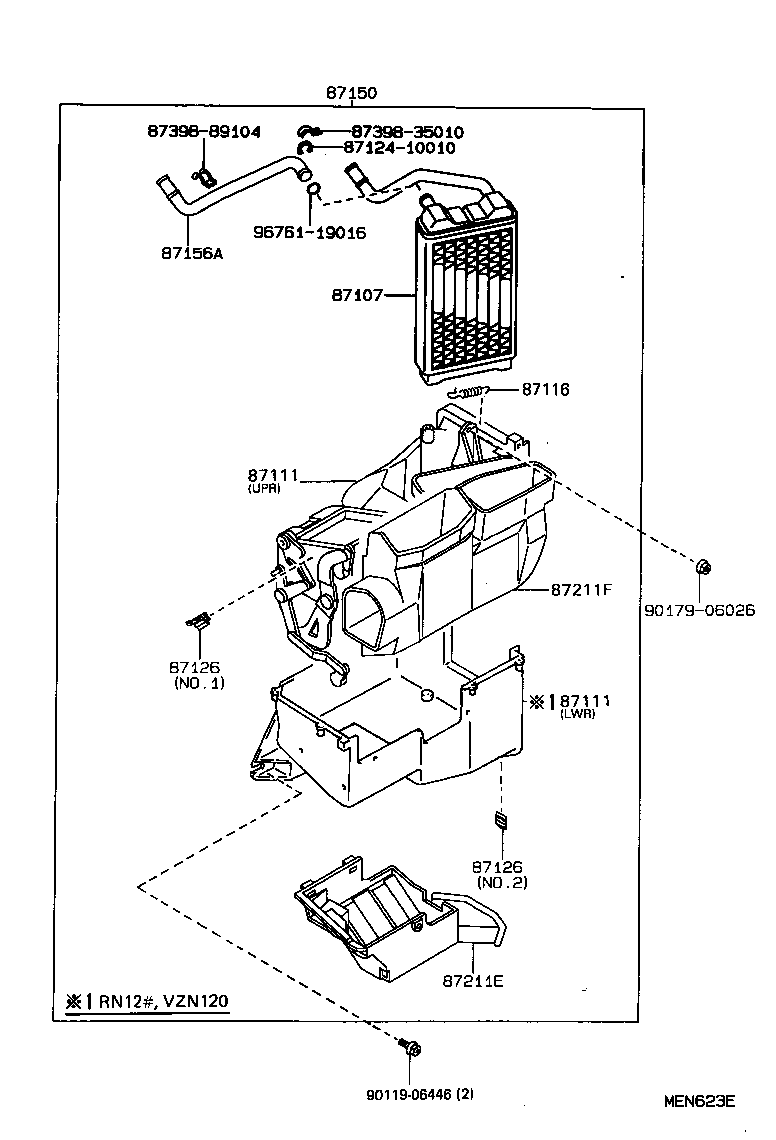

Heating & Air Conditioning - Heater Unit & Blower
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |
| 87110 | Heater Assy |
| 87111 | Case, Heater |
| 87116 | Spring, Heater Case Fastening |
| 87126 | Clamp, Heater Control |
| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |
| 87138R | Resistor, Rear Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87156A | Connector, Heater Water Hose |
| 87211E | Duct, Air |
| 87211F | Duct, Air |
| 87211L | Duct, Air |
| 87240H | Valve Assy, Water Unit |
| 87452A | Bracket, Heater, Front |
| 87452B | Bracket, Heater, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
