Toyota 4-Runner Truck (JPP)
1988-08 → 1995-11 · chassis RN8#,90,12#,VZN85,9#,VZN120 · catalogue 672450 · Europe
Discontinued model
Data version 1996-08

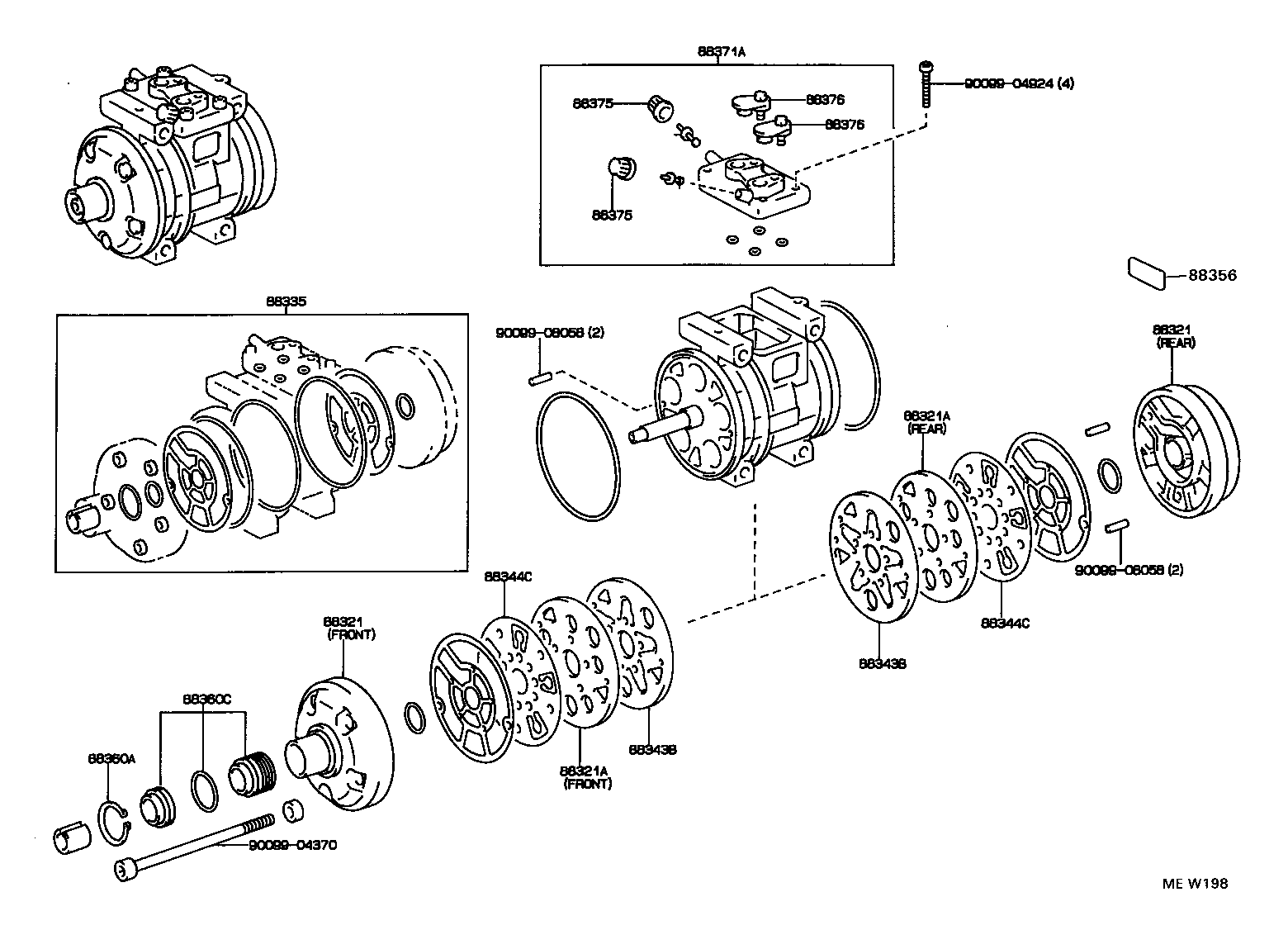

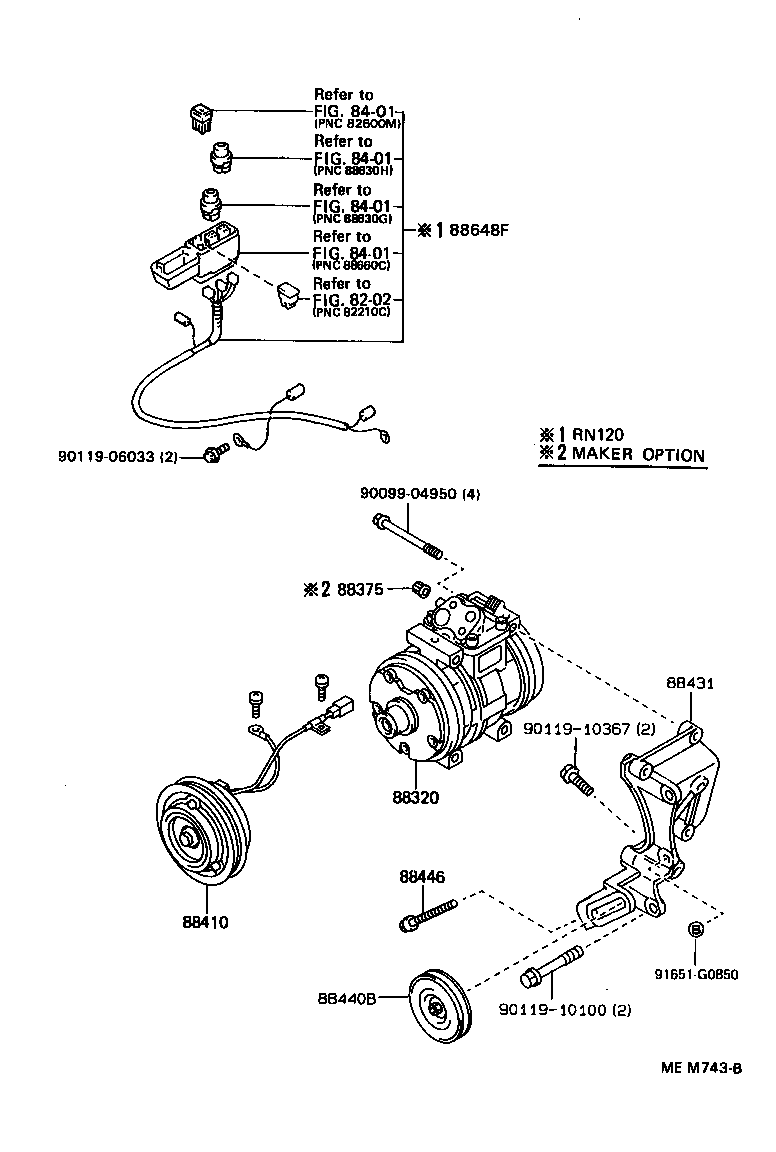

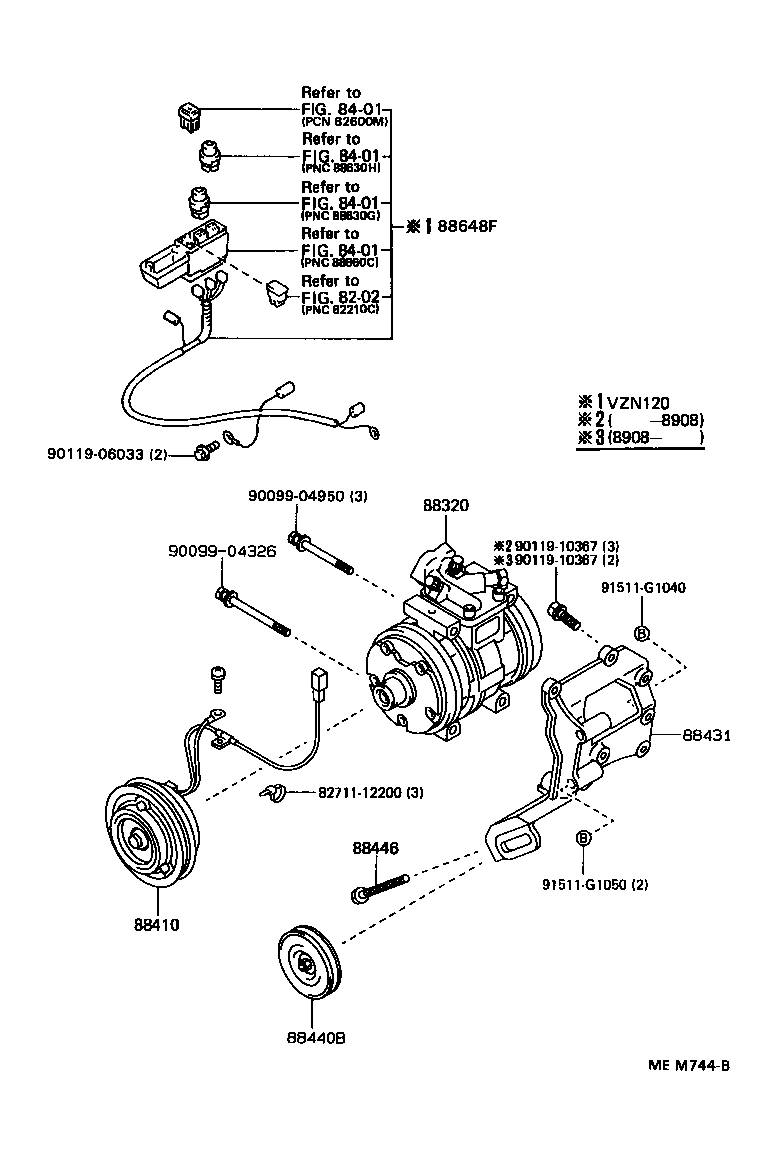

Heating & Air Conditioning - Compressor
24 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88321 | Head, Cooler Compressor Cylinder |
| 88321A | Plate Sub-assy, Valve |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88335 | Gasket Kit, Overhaul |
| 88343B | Reed, Suction Valve |
| 88344C | Reed, Discharge Valve |
| 88356 | Label, Compressor Caution |
| 88360A | Ring, Compressor Seal Plate Snap |
| 88360C | Seal Assy, Shaft |
| 88371A | Valve, Suction |
| 88375 | Cap, Cooler Compressor Service Valve |
| 88376 | Cap, Blind |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88434B | Stay, Compressor |
| 88437A | Attachment, Compressor |
| 88440B | Pulley Assy, Idle |
| 88446 | Bolt, Idle Pulley |
| 88469B | Collar |
| 88648F | Wire, Magnet Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
