Toyota Hilux
1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe
Discontinued model
Data version 2006-02

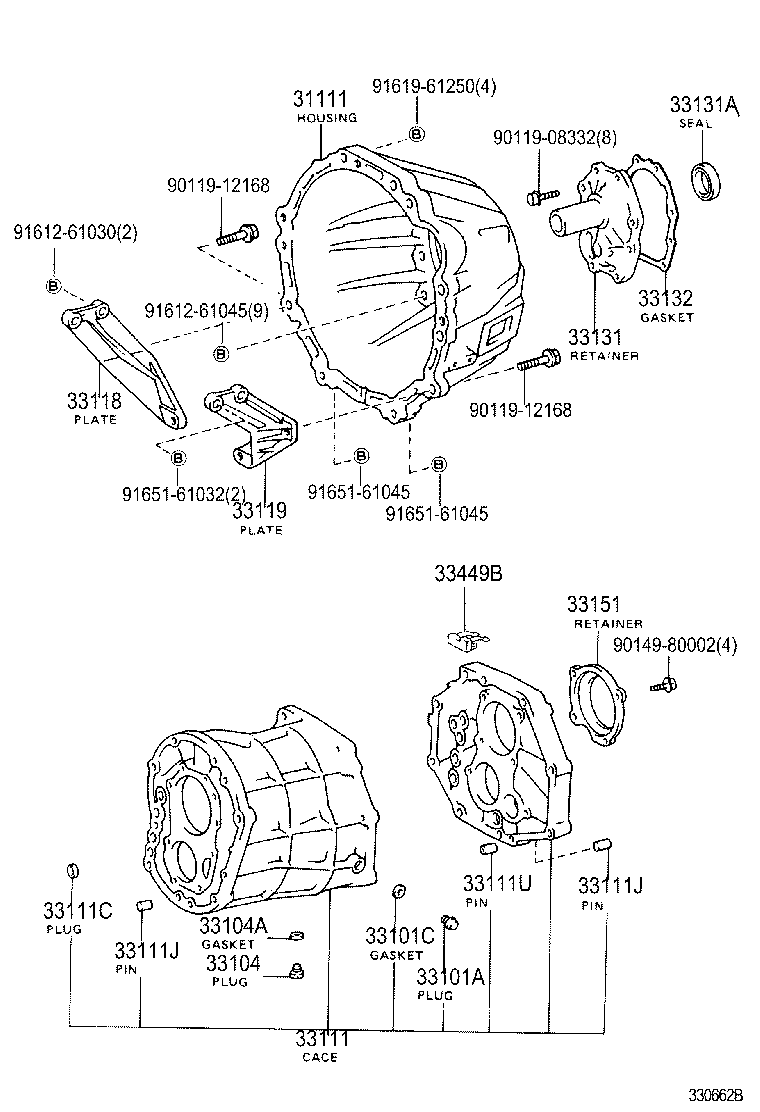

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31111 — Housing, Clutch | ||||
| 31111-22114 |
Housing, Clutch
1997-08 → 2001-08
ended
|
LN145,150 | — | |
| 31111-26032 |
Housing, Clutch
1997-08 → 2001-08
ended
|
RZN168,173 | — | |
| 31111-35032 |
Housing, Clutch
1997-08 → 1998-12
ended
|
LN165,170 | — | |
| 31111-35032 |
Housing, Clutch
1998-12 → 2001-08
ended
|
LN165,170 | — | |
| 31111-25050 |
Housing, Clutch
2001-08 → 2005-08
ended
|
KDN145,150 | — | |
| 31111-35101 |
Housing, Clutch
2001-08 → 2005-08
ended
|
KDN165,170 | — | |
| 33101A — Plug(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
Plug(FOR MANUAL TRANSMISSION FILLER)
1997-08 → 2001-08
ended
|
LN145,150,165,170,RZN168,173 | — | |
| 90341-18006 |
Plug(FOR MANUAL TRANSMISSION FILLER)
2001-08 → 2005-08
ended
|
KDN145,150,165,170 | — | |
| 33101C — Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
1997-08 → 2001-08
ended
|
LN145,150,165,170,RZN168,173 | — | |
| 90430-18008 |
Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2001-08 → 2005-08
ended
|
KDN145,150,165,170 | — | |
| 33104 — Plug Sub-assy, Drain(MTM) | ||||
| 90341-18006 |
Plug Sub-assy, Drain(MTM)
1997-08 → 2001-08
ended
|
LN165,170,RZN168,173 | — | |
| 90341-18057 |
Plug Sub-assy, Drain(MTM)
1997-08 → 2001-08
ended
|
LN145,150 | — | |
| 90341-18006 |
Plug Sub-assy, Drain(MTM)
2001-08 → 2005-08
ended
|
KDN165,170 | — | |
| 90341-18057 |
Plug Sub-assy, Drain(MTM)
2001-08 → 2005-08
ended
|
KDN145,150 | — | |
| 33104A — Gasket, Drain Plug(MTM) | ||||
| 90430-18008 |
Gasket, Drain Plug(MTM)
1997-08 → 2001-08
ended
|
LN145,150,165,170,RZN168,173 | — | |
| 90430-18008 |
Gasket, Drain Plug(MTM)
2001-08 → 2005-08
ended
|
KDN145,150,165,170 | — | |
| 33111 — Case, Manual Transmission | ||||
| 33101-30071 |
Case, Manual Transmission
1997-08 → 2001-08
ended
|
LN165,170,RZN168,173 | — | |
| 33101-35050 |
Case, Manual Transmission
1997-08 → 2001-08
ended
|
LN145,150 | — | |
| 33101-35050 |
Case, Manual Transmission
2001-08 → 2005-01
ended
|
KDN145,150 | — | |
| 33101-35051 |
Case, Manual Transmission
2005-01 → 2005-08
ended
|
KDN145,150 | — | |
| 33101-35100 |
Case, Manual Transmission
2001-08 → 2002-02
ended
|
KDN165,170 | — | |
| 33101-60040 |
Case, Manual Transmission
2002-02 → 2005-08
ended
|
KDN165,170 | — | |
| 33111C — Plug(FOR TRANSMISSION CASE) | ||||
| 90331-14004 note |
Plug(FOR TRANSMISSION CASE)
1997-08 → 2001-08
ended
|
LN145,150 | — | |
| 96411-41800 note |
Plug(FOR TRANSMISSION CASE)
1997-08 → 2001-08
ended
|
LN165,170,RZN168,173 | — | |
| 90331-14004 note |
Plug(FOR TRANSMISSION CASE)
2001-08 → 2005-08
ended
|
KDN165,170 | — | |
| 90331-14004 note |
Plug(FOR TRANSMISSION CASE)
2001-08 → 2005-08
ended
|
KDN145,150 | — | |
| 96411-41800 note |
Plug(FOR TRANSMISSION CASE)
2001-08 → 2005-08
ended
|
KDN165,170 | — | |
| 33111J — Pin, Straight(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
1997-08 → 2001-08
ended
|
LN145,150 | — | |
| 90250-12002 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
1997-08 → 2001-08
ended
|
LN165,170,RZN168,173 | — | |
| 90250-12002 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2001-08 → 2005-08
ended
|
KDN145,150 | — | |
| 90250-12002 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2001-08 → 2005-08
ended
|
KDN165,170 | — | |
| 33111U — Pin, Ring(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 note |
Pin, Ring(FOR MANUAL TRANSMISSION CASE)
1997-08 → 2001-08
ended
|
LN145,150 | — | |
| 90253-15001 note |
Pin, Ring(FOR MANUAL TRANSMISSION CASE)
2001-08 → 2005-08
ended
|
KDN145,150 | — | |
| 90253-15001 note |
Pin, Ring(FOR MANUAL TRANSMISSION CASE)
2001-08 → 2005-08
ended
|
KDN165,170 | — | |
| 33118 — Plate, Stiffener, RH(MTM) | ||||
| 33118-25020 |
Plate, Stiffener, RH(MTM)
1997-08 → 2001-08
ended
|
LN145,150 | — | |
| 33118-26011 |
Plate, Stiffener, RH(MTM)
1997-08 → 2001-08
ended
|
RZN168,173 | — | |
| 33118-35060 |
Plate, Stiffener, RH(MTM)
1997-08 → 2001-08
ended
|
LN165,170 | — | |
| 33118-35070 |
Plate, Stiffener, RH(MTM)
2001-08 → —
|
KDN145,150 | — | |
| 33119 — Plate, Stiffener, LH(MTM) | ||||
| 33119-25020 |
Plate, Stiffener, LH(MTM)
1997-08 → 2001-08
ended
|
LN145,150,170 | — | |
| 33119-26021 |
Plate, Stiffener, LH(MTM)
1997-08 → 2001-08
ended
|
RZN168,173 | — | |
| 33119-25070 |
Plate, Stiffener, LH(MTM)
2001-08 → —
|
KDN145,150 | — | |
| 33131 — Retainer, Bearing, Front(MTM) | ||||
| 33131-26020 |
Retainer, Bearing, Front(MTM)
1997-08 → 2001-08
ended
|
LN145,150 | — | |
| 33131-30080 |
Retainer, Bearing, Front(MTM)
1997-08 → 2001-08
ended
|
LN165,170,RZN168,173 | — | |
| 33131-26020 |
Retainer, Bearing, Front(MTM)
2001-08 → 2005-08
ended
|
KDN145,150 | — | |
| 33131-35031 |
Retainer, Bearing, Front(MTM)
2001-08 → 2005-08
ended
|
KDN165,170 | — | |
| 33131A — Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30014 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
1997-08 → 2001-08
ended
|
LN145,150,165,170,RZN168,173 | — | |
| 90311-30014 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
2001-08 → 2005-08
ended
|
KDN145,150 | — | |
| 90311-32012 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
2001-08 → 2005-08
ended
|
KDN165,170 | — | |
| 33132 — Gasket, Front Bearing Retainer(MTM) | ||||
| 33132-28010 |
Gasket, Front Bearing Retainer(MTM)
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 33132-28010 |
Gasket, Front Bearing Retainer(MTM)
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 33132-28010 |
Gasket, Front Bearing Retainer(MTM)
2001-08 → 2005-08
ended
|
KDN145,150 | — | |
| 33151 — Retainer, Output Shaft Rear Bearing(MTM) | ||||
| 33107-30020 |
Retainer, Output Shaft Rear Bearing(MTM)
1997-08 → 2000-10
ended
|
LN165,170,RZN168,173 | — | |
| 33151-30051 |
Retainer, Output Shaft Rear Bearing(MTM)
2000-10 → 2001-08
ended
|
LN165,170,RZN168,173 | — | |
| 33151-35030 |
Retainer, Output Shaft Rear Bearing(MTM)
1997-08 → 2001-08
ended
|
LN145,150 | — | |
| 33151-35020 |
Retainer, Output Shaft Rear Bearing(MTM)
2001-08 → 2005-08
ended
|
KDN165,170 | — | |
| 33151-35030 |
Retainer, Output Shaft Rear Bearing(MTM)
2001-08 → 2005-08
ended
|
KDN145,150 | — | |
| 33449B — Magnet, Transmission | ||||
| 33449-26010 |
Magnet, Transmission
1997-08 → 2001-08
ended
|
LN145,150 | — | |
| 33449-30010 note |
Magnet, Transmission
1997-08 → 2001-08
ended
|
LN165,170,RZN168,173 | — | |
| 33449-30020 note |
Magnet, Transmission
1997-08 → 2001-08
ended
|
LN165,170,RZN168,173 | — | |
| 33449-26010 |
Magnet, Transmission
2001-08 → 2005-08
ended
|
KDN145,150 | — | |
| 33449-35030 |
Magnet, Transmission
2001-08 → 2005-08
ended
|
KDN165,170 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
