Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

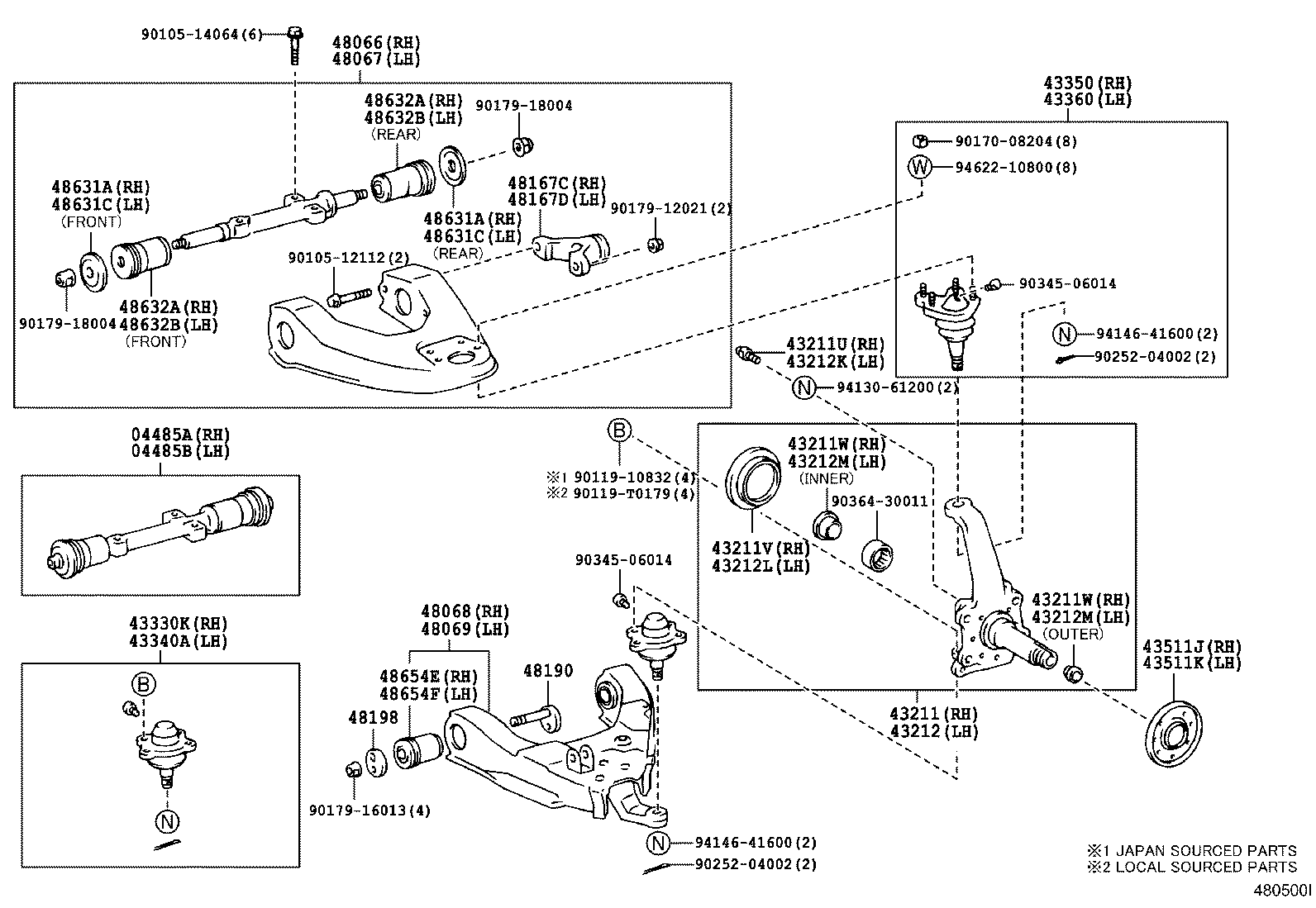

Exploded illustration 480500I 9017918004 — not listed in this catalogue 48631A — RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH) (8 parts) 48631C — RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH) (8 parts) 48632A — BUSH, FRONT SUSPENSION UPPER ARM, RH (11 parts) 48632B — BUSH, FRONT SUSPENSION UPPER ARM, LH (11 parts) 48632B — BUSH, FRONT SUSPENSION UPPER ARM, LH (11 parts) 48632A — BUSH, FRONT SUSPENSION UPPER ARM, RH (11 parts) 9010512112 — not listed in this catalogue 48631A — RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH) (8 parts) 48631C — RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH) (8 parts) 9017918004 — not listed in this catalogue 9017912021 — not listed in this catalogue 48167C — ARM, FRONT SUSPENSION TORQUE, RH (3 parts) 48167D — ARM, FRONT SUSPENSION TORQUE, LH (3 parts) 9017008204 — not listed in this catalogue 9462210800 — not listed in this catalogue 43350 — JOINT ASSY, FRONT UPPER BALL, RH (6 parts) 9010514064 — not listed in this catalogue 04485A — SHAFT KIT, FRONT SUSPENSION UPPER ARM, RH (9 parts) 04485B — SHAFT KIT, FRONT SUSPENSION UPPER ARM, LH (9 parts) 48067 — ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH (13 parts) 48066 — ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH (13 parts) 48190 — CAM ASSY, CAMBER ADJUST (3 parts) 48198 — CAM, CAMBER ADJUST, NO.2 (3 parts) 9017916013 — not listed in this catalogue 48654E — BUSH, FRONT LOWER ARM, NO.1 RH (6 parts) 48654F — BUSH, FRONT LOWER ARM, NO.1 LH (6 parts) 48068 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH (7 parts) 48069 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH (7 parts) 9414641600 — not listed in this catalogue 9025204002 — not listed in this catalogue 43360 — JOINT ASSY, FRONT UPPER BALL, LH (6 parts) 9034506014 — not listed in this catalogue 9414641600 — not listed in this catalogue 9025204002 — not listed in this catalogue 43211V — SEAL, OIL (FOR STEERING KNUCKLE RH) (4 parts) 43212L — SEAL, OIL (FOR STEERING KNUCKLE LH) (4 parts) 9011910832 — not listed in this catalogue 9413061200 — not listed in this catalogue 43511K — SEAL, DUST(FOR FRONT AXLE HUB LH) (7 parts) 43211U — BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE RH) (3 parts) 43212K — BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE LH) (3 parts) 43211W — BUSH (FOR STEERING KNUCKLE RH) (6 parts) 43212M — BUSH (FOR STEERING KNUCKLE LH) (6 parts) 9036430011 — not listed in this catalogue 43212M — BUSH (FOR STEERING KNUCKLE LH) (6 parts) 43211W — BUSH (FOR STEERING KNUCKLE RH) (6 parts) 43330K — JOINT ASSY, LOWER BALL, FRONT RH (6 parts) 43340A — JOINT ASSY, LOWER BALL, FRONT LH (6 parts) 43511J — SEAL, DUST(FOR FRONT AXLE HUB RH) (7 parts) 90119T0179 — not listed in this catalogue 9034506014 — not listed in this catalogue 43212 — KNUCKLE, STEERING, LH (17 parts) 43211 — KNUCKLE, STEERING, RH (17 parts)
480500I · 36 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
218 parts on this figure
Part number Description Fitment Price
04485A — Shaft Kit, Front Suspension Upper Arm, RH
04485-35020 Shaft Kit, Front Suspension Upper Arm, RH
1997-08 → 2001-08 ended
LN145 LHD;LN145 RHD CBU —
04485-35020 Shaft Kit, Front Suspension Upper Arm, RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
04485-35040 Shaft Kit, Front Suspension Upper Arm, RH
1997-08 → 1999-08 ended
RZN168 SCB —
04485-35040 Shaft Kit, Front Suspension Upper Arm, RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
04485-35050 Shaft Kit, Front Suspension Upper Arm, RH
1997-11 → 2001-08 ended
LN150 —
04485-35020 Shaft Kit, Front Suspension Upper Arm, RH
2001-08 → 2002-08 ended
KDN145 —
04485-35020 Shaft Kit, Front Suspension Upper Arm, RH
2003-05 → 2005-08 ended
KDN145 —
04485-35040 Shaft Kit, Front Suspension Upper Arm, RH
2001-08 → 2005-08 ended
KDN165,170,190 —
04485-35050 Shaft Kit, Front Suspension Upper Arm, RH
2001-08 → 2005-08 ended
KDN150 —
04485B — Shaft Kit, Front Suspension Upper Arm, LH
04485-35020 Shaft Kit, Front Suspension Upper Arm, LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
04485-35020 Shaft Kit, Front Suspension Upper Arm, LH
1997-08 → 2001-08 ended
LN145 LHD;LN145 RHD CBU —
04485-35040 Shaft Kit, Front Suspension Upper Arm, LH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
04485-35040 Shaft Kit, Front Suspension Upper Arm, LH
1997-08 → 1999-08 ended
RZN168 SCB —
04485-35050 Shaft Kit, Front Suspension Upper Arm, LH
1997-11 → 2001-08 ended
LN150 —
04485-35020 Shaft Kit, Front Suspension Upper Arm, LH
2001-08 → 2002-08 ended
KDN145 —
04485-35020 Shaft Kit, Front Suspension Upper Arm, LH
2003-05 → 2005-08 ended
KDN145 —
04485-35040 Shaft Kit, Front Suspension Upper Arm, LH
2001-08 → 2005-08 ended
KDN165,170,190 —
04485-35050 Shaft Kit, Front Suspension Upper Arm, LH
2001-08 → 2005-08 ended
KDN150 —
43211 — Knuckle, Steering, RH
43201-34010 Knuckle, Steering, RH
1997-08 → 1999-08 ended
RZN168 SCB —
43201-34010 Knuckle, Steering, RH
1997-08 → 2001-07 ended
RZN168 DCB;LN165,170,RZN173 —
43201-34011 Knuckle, Steering, RH
2001-07 → 2001-08 ended
LN165,170,RZN168,173 —
43201-34020 note Knuckle, Steering, RH
1997-08 → 1999-08 ended
RZN168 SCB —
43201-34020 note Knuckle, Steering, RH
1997-08 → 2001-07 ended
RZN168 DCB;LN165,170,RZN173 —
43201-34021 note Knuckle, Steering, RH
2001-07 → 2001-08 ended
LN165,170,RZN168,173 —
43201-35030 Knuckle, Steering, RH
1999-08 → 2001-08 ended
LN190 —
43201-35060 note Knuckle, Steering, RH
1999-08 → 2001-08 ended
LN190 —
43211-35200 Knuckle, Steering, RH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
43211-35200 Knuckle, Steering, RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
43211-35210 note Knuckle, Steering, RH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
43211-35210 note Knuckle, Steering, RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
43201-34011 Knuckle, Steering, RH
2001-08 → 2005-08 ended
KDN165,170 —
43201-34021 note Knuckle, Steering, RH
2001-08 → 2005-08 ended
KDN165,170 —
43201-35060 Knuckle, Steering, RH
2001-08 → 2005-08 ended
KDN190 —
43211-35200 Knuckle, Steering, RH
2001-08 → 2005-08 ended
KDN145,150 —
43211-35210 note Knuckle, Steering, RH
2001-08 → 2005-08 ended
KDN145,150 —
43211U — Bolt, Round Hexagon (FOR STEERING KNUCKLE RH)
90106-12012 Bolt, Round Hexagon (FOR STEERING KNUCKLE RH)
1997-08 → 1999-08 ended
RZN168 SCB —
90106-12012 Bolt, Round Hexagon (FOR STEERING KNUCKLE RH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
90106-12012 Bolt, Round Hexagon (FOR STEERING KNUCKLE RH)
2001-08 → 2005-08 ended
KDN165,170,190 —
43211V — Seal, Oil (FOR STEERING KNUCKLE RH)
90316-60002 Seal, Oil (FOR STEERING KNUCKLE RH)
1997-08 → 1999-08 ended
RZN168 SCB —
90316-60002 Seal, Oil (FOR STEERING KNUCKLE RH)
1997-08 → 2001-07 ended
RZN168 DCB;LN165,170,RZN173 —
90316-60004 Seal, Oil (FOR STEERING KNUCKLE RH)
2001-07 → 2001-08 ended
LN165,170,RZN168,173 —
90316-60004 Seal, Oil (FOR STEERING KNUCKLE RH)
2001-08 → 2005-08 ended
KDN165,170 —
43211W — Bush (FOR STEERING KNUCKLE RH)
90381-30003 note Bush (FOR STEERING KNUCKLE RH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,RZN173 —
90381-30003 note Bush (FOR STEERING KNUCKLE RH)
1997-08 → 1999-08 ended
RZN168 SCB —
90381-32001 note Bush (FOR STEERING KNUCKLE RH)
1997-08 → 1999-08 ended
RZN168 SCB —
90381-32001 note Bush (FOR STEERING KNUCKLE RH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,RZN173 —
90381-30003 note Bush (FOR STEERING KNUCKLE RH)
2001-08 → 2005-08 ended
KDN165,170 —
90381-32001 note Bush (FOR STEERING KNUCKLE RH)
2001-08 → 2005-08 ended
KDN165,170 —
43212 — Knuckle, Steering, LH
43202-34010 Knuckle, Steering, LH
1997-08 → 1999-08 ended
RZN168 SCB —
43202-34010 Knuckle, Steering, LH
1997-08 → 2001-07 ended
RZN168 DCB;LN165,170,RZN173 —
43202-34011 Knuckle, Steering, LH
2001-07 → 2001-08 ended
LN165,170,RZN168,173 —
43202-34020 note Knuckle, Steering, LH
1997-08 → 2001-07 ended
RZN168 DCB;LN165,170,RZN173 —
43202-34020 note Knuckle, Steering, LH
1997-08 → 1999-08 ended
RZN168 SCB —
43202-34021 note Knuckle, Steering, LH
2001-07 → 2001-08 ended
LN165,170,RZN168,173 —
43202-35020 Knuckle, Steering, LH
1999-08 → 2001-08 ended
LN190 —
43202-35050 note Knuckle, Steering, LH
1999-08 → 2001-08 ended
LN190 —
43212-35160 Knuckle, Steering, LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
43212-35160 Knuckle, Steering, LH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
43212-35170 note Knuckle, Steering, LH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
43212-35170 note Knuckle, Steering, LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
43202-34011 Knuckle, Steering, LH
2001-08 → 2005-08 ended
KDN165,170 —
43202-34021 note Knuckle, Steering, LH
2001-08 → 2005-08 ended
KDN165,170 —
43202-35050 Knuckle, Steering, LH
2001-08 → 2005-08 ended
KDN190 —
43212-35160 Knuckle, Steering, LH
2001-08 → 2005-08 ended
KDN145,150 —
43212-35170 note Knuckle, Steering, LH
2001-08 → 2005-08 ended
KDN145,150 —
43212K — Bolt, Round Hexagon (FOR STEERING KNUCKLE LH)
90106-12012 Bolt, Round Hexagon (FOR STEERING KNUCKLE LH)
1997-08 → 1999-08 ended
RZN168 SCB —
90106-12012 Bolt, Round Hexagon (FOR STEERING KNUCKLE LH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
90106-12012 Bolt, Round Hexagon (FOR STEERING KNUCKLE LH)
2001-08 → 2005-08 ended
KDN165,170,190 —
43212L — Seal, Oil (FOR STEERING KNUCKLE LH)
90316-60002 Seal, Oil (FOR STEERING KNUCKLE LH)
1997-08 → 1999-08 ended
RZN168 SCB —
90316-60002 Seal, Oil (FOR STEERING KNUCKLE LH)
1997-08 → 2001-07 ended
RZN168 DCB;LN165,170,RZN173 —
90316-60004 Seal, Oil (FOR STEERING KNUCKLE LH)
2001-07 → 2001-08 ended
LN165,170,RZN168,173 —
90316-60004 Seal, Oil (FOR STEERING KNUCKLE LH)
2001-08 → —
KDN165,170 —
43212M — Bush (FOR STEERING KNUCKLE LH)
90381-30003 note Bush (FOR STEERING KNUCKLE LH)
1997-08 → 1999-08 ended
RZN168 SCB —
90381-30003 note Bush (FOR STEERING KNUCKLE LH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,RZN173 —
90381-32001 note Bush (FOR STEERING KNUCKLE LH)
1997-08 → 1999-08 ended
RZN168 SCB —
90381-32001 note Bush (FOR STEERING KNUCKLE LH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,RZN173 —
90381-30003 note Bush (FOR STEERING KNUCKLE LH)
2001-08 → —
KDN165,170 —
90381-32001 note Bush (FOR STEERING KNUCKLE LH)
2001-08 → —
KDN165,170 —
43330K — Joint Assy, Lower Ball, Front RH
43330-39315 Joint Assy, Lower Ball, Front RH
1997-08 → 1999-08 ended
RZN168 SCB —
43330-39315 Joint Assy, Lower Ball, Front RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
43330-39445 Joint Assy, Lower Ball, Front RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
43330-39445 Joint Assy, Lower Ball, Front RH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
43330-39315 Joint Assy, Lower Ball, Front RH
2001-08 → 2005-08 ended
KDN165,170,190 —
43330-39445 Joint Assy, Lower Ball, Front RH
2001-08 → 2005-08 ended
KDN145,150 —
43340A — Joint Assy, Lower Ball, Front LH
43330-39445 Joint Assy, Lower Ball, Front LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
43330-39445 Joint Assy, Lower Ball, Front LH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
43340-39245 Joint Assy, Lower Ball, Front LH
1997-08 → 1999-08 ended
RZN168 SCB —
43340-39245 Joint Assy, Lower Ball, Front LH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
43330-39445 Joint Assy, Lower Ball, Front LH
2001-08 → 2005-08 ended
KDN145,150 —
43340-39245 Joint Assy, Lower Ball, Front LH
2001-08 → 2005-08 ended
KDN165,170,190 —
43350 — Joint Assy, Front Upper Ball, RH
43350-39085 Joint Assy, Front Upper Ball, RH
1997-08 → 1999-08 ended
RZN168 SCB —
43350-39085 Joint Assy, Front Upper Ball, RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
43350-39125 Joint Assy, Front Upper Ball, RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
43350-39125 Joint Assy, Front Upper Ball, RH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
43350-39085 Joint Assy, Front Upper Ball, RH
2001-08 → 2005-08 ended
KDN165,170,190 —
43350-39125 Joint Assy, Front Upper Ball, RH
2001-08 → 2005-08 ended
KDN145,150 —
43360 — Joint Assy, Front Upper Ball, LH
43350-39125 Joint Assy, Front Upper Ball, LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
43350-39125 Joint Assy, Front Upper Ball, LH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
43360-39085 Joint Assy, Front Upper Ball, LH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
43360-39085 Joint Assy, Front Upper Ball, LH
1997-08 → 1999-08 ended
RZN168 SCB —
43350-39125 Joint Assy, Front Upper Ball, LH
2001-08 → 2005-08 ended
KDN145,150 —
43360-39085 Joint Assy, Front Upper Ball, LH
2001-08 → 2005-08 ended
KDN165,170,190 —
43511J — Seal, Dust(FOR FRONT AXLE HUB RH)
90313-92001 Seal, Dust(FOR FRONT AXLE HUB RH)
1997-08 → 1999-08 ended
RZN168 SCB —
90313-92001 Seal, Dust(FOR FRONT AXLE HUB RH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
90313-98001 note Seal, Dust(FOR FRONT AXLE HUB RH)
1997-08 → 1999-08 ended
RZN168 SCB —
90313-98001 note Seal, Dust(FOR FRONT AXLE HUB RH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
90313-92001 Seal, Dust(FOR FRONT AXLE HUB RH)
2001-08 → 2005-08 ended
KDN165,170 —
90313-98001 Seal, Dust(FOR FRONT AXLE HUB RH)
2001-08 → 2005-08 ended
KDN190 —
90313-98001 note Seal, Dust(FOR FRONT AXLE HUB RH)
2001-08 → 2005-08 ended
KDN165,170 —
43511K — Seal, Dust(FOR FRONT AXLE HUB LH)
90313-92001 Seal, Dust(FOR FRONT AXLE HUB LH)
1997-08 → 1999-08 ended
RZN168 SCB —
90313-92001 Seal, Dust(FOR FRONT AXLE HUB LH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
90313-98002 note Seal, Dust(FOR FRONT AXLE HUB LH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
90313-98002 note Seal, Dust(FOR FRONT AXLE HUB LH)
1997-08 → 1999-08 ended
RZN168 SCB —
90313-92001 Seal, Dust(FOR FRONT AXLE HUB LH)
2001-08 → 2005-08 ended
KDN165,170 —
90313-98002 Seal, Dust(FOR FRONT AXLE HUB LH)
2001-08 → 2005-08 ended
KDN190 —
90313-98002 note Seal, Dust(FOR FRONT AXLE HUB LH)
2001-08 → 2005-08 ended
KDN165,170 —
48066 — Arm Sub-assy, Front Suspension, Upper RH
48066-34030 note Arm Sub-assy, Front Suspension, Upper RH
1997-11 → 2001-08 ended
LN150 —
48066-35050 Arm Sub-assy, Front Suspension, Upper RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
48066-35050 Arm Sub-assy, Front Suspension, Upper RH
1997-08 → 2001-08 ended
LN145 LHD;LN145 RHD CBU —
48066-35080 Arm Sub-assy, Front Suspension, Upper RH
1997-11 → 2001-08 ended
LN150 —
48066-35100 Arm Sub-assy, Front Suspension, Upper RH
1997-08 → 1999-08 ended
RZN168 SCB —
48066-35100 Arm Sub-assy, Front Suspension, Upper RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48066-35130 note Arm Sub-assy, Front Suspension, Upper RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
48066-35130 note Arm Sub-assy, Front Suspension, Upper RH
1997-08 → 2001-08 ended
LN145 LHD;LN145 RHD CBU —
48066-34030 note Arm Sub-assy, Front Suspension, Upper RH
2001-08 → 2005-08 ended
KDN150 —
48066-35050 Arm Sub-assy, Front Suspension, Upper RH
2001-08 → 2005-08 ended
KDN145 —
48066-35080 Arm Sub-assy, Front Suspension, Upper RH
2001-08 → 2005-08 ended
KDN150 —
48066-35100 Arm Sub-assy, Front Suspension, Upper RH
2001-08 → 2005-08 ended
KDN165,170,190 —
48066-35130 note Arm Sub-assy, Front Suspension, Upper RH
2001-08 → 2005-08 ended
KDN145 —
48067 — Arm Sub-assy, Front Suspension, Upper LH
48066-34030 note Arm Sub-assy, Front Suspension, Upper LH
1997-11 → 2001-08 ended
LN150 —
48066-35050 Arm Sub-assy, Front Suspension, Upper LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
48066-35050 Arm Sub-assy, Front Suspension, Upper LH
1997-08 → 2001-08 ended
LN145 LHD;LN145 RHD CBU —
48066-35080 Arm Sub-assy, Front Suspension, Upper LH
1997-11 → 2001-08 ended
LN150 —
48066-35130 note Arm Sub-assy, Front Suspension, Upper LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
48066-35130 note Arm Sub-assy, Front Suspension, Upper LH
1997-08 → 2001-08 ended
LN145 LHD;LN145 RHD CBU —
48067-35040 Arm Sub-assy, Front Suspension, Upper LH
1997-08 → 1999-08 ended
RZN168 SCB —
48067-35040 Arm Sub-assy, Front Suspension, Upper LH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48066-34030 note Arm Sub-assy, Front Suspension, Upper LH
2001-08 → 2005-08 ended
KDN150 —
48066-35050 Arm Sub-assy, Front Suspension, Upper LH
2001-08 → 2005-08 ended
KDN145 —
48066-35080 Arm Sub-assy, Front Suspension, Upper LH
2001-08 → 2005-08 ended
KDN150 —
48066-35130 note Arm Sub-assy, Front Suspension, Upper LH
2001-08 → 2005-08 ended
KDN145 —
48067-35040 Arm Sub-assy, Front Suspension, Upper LH
2001-08 → 2005-08 ended
KDN165,170,190 —
48068 — Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068-35090 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1997-08 → 1999-08 ended
RZN168 SCB —
48068-35090 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48605-35180 note Arm Sub-assy, Front Suspension, Lower NO.1 RH
2000-10 → 2001-08 ended
LN145 DCB DLX CBU —
48605-35181 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
48605-35181 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
48068-35090 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2001-08 → 2005-08 ended
KDN165,170,190 —
48605-35181 Arm Sub-assy, Front Suspension, Lower NO.1 RH
2001-08 → 2005-08 ended
KDN145,150 —
48069 — Arm Sub-assy, Front Suspension, Lower NO.1 LH
48069-35090 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1997-08 → 1999-08 ended
RZN168 SCB —
48069-35090 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48606-35180 note Arm Sub-assy, Front Suspension, Lower NO.1 LH
2000-10 → 2001-08 ended
LN145 DCB DLX CBU —
48606-35181 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
48606-35181 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
48069-35090 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2001-08 → 2005-08 ended
KDN165,170,190 —
48606-35181 Arm Sub-assy, Front Suspension, Lower NO.1 LH
2001-08 → 2005-08 ended
KDN145,150 —
48167C — Arm, Front Suspension Torque, RH
48106-35011 Arm, Front Suspension Torque, RH
1997-08 → 1999-08 ended
RZN168 SCB —
48106-35011 Arm, Front Suspension Torque, RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48106-35011 Arm, Front Suspension Torque, RH
2001-08 → 2005-08 ended
KDN165,170,190 —
48167D — Arm, Front Suspension Torque, LH
48106-35011 Arm, Front Suspension Torque, LH
1997-08 → 1999-08 ended
RZN168 SCB —
48106-35011 Arm, Front Suspension Torque, LH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48106-35011 Arm, Front Suspension Torque, LH
2001-08 → 2005-08 ended
KDN165,170,190 —
48190 — Cam Assy, Camber Adjust
48190-35020 Cam Assy, Camber Adjust
1997-08 → 1999-08 ended
RZN168 SCB —
48190-35020 Cam Assy, Camber Adjust
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48190-35020 Cam Assy, Camber Adjust
2001-08 → —
KDN165,170,190 —
48198 — Cam, Camber Adjust, NO.2
48198-35010 Cam, Camber Adjust, NO.2
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48198-35010 Cam, Camber Adjust, NO.2
1997-08 → 1999-08 ended
RZN168 SCB —
48198-35010 Cam, Camber Adjust, NO.2
2001-08 → —
KDN165,170,190 —
48631A — Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM RH)
90948-02020 Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM RH)
1997-11 → 2001-08 ended
LN150 —
90948-02065 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM RH)
1997-08 → 1999-08 ended
RZN168 SCB —
90948-02065 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM RH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
90948-02142 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM RH)
1997-08 → 1999-08 ended
RZN168 SCB —
90948-02142 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM RH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
90948-02020 Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM RH)
2001-08 → 2005-08 ended
KDN150 —
90948-02065 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM RH)
2001-08 → 2005-08 ended
KDN165,170,190 —
90948-02142 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM RH)
2001-08 → 2005-08 ended
KDN165,170,190 —
48631C — Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM LH)
90948-02020 Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM LH)
1997-11 → 2001-08 ended
LN150 —
90948-02065 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM LH)
1997-08 → 1999-08 ended
RZN168 SCB —
90948-02065 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM LH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
90948-02142 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM LH)
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
90948-02142 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM LH)
1997-08 → 1999-08 ended
RZN168 SCB —
90948-02020 Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM LH)
2001-08 → 2005-08 ended
KDN150 —
90948-02065 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM LH)
2001-08 → 2005-08 ended
KDN165,170,190 —
90948-02142 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM LH)
2001-08 → 2005-08 ended
KDN165,170,190 —
48632A — Bush, Front Suspension Upper Arm, RH
48632-26010 note Bush, Front Suspension Upper Arm, RH
1997-08 → 1999-08 ended
RZN168 SCB —
48632-26010 note Bush, Front Suspension Upper Arm, RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48632-30012 Bush, Front Suspension Upper Arm, RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
48632-30012 Bush, Front Suspension Upper Arm, RH
1997-08 → 2001-08 ended
LN145 LHD;LN145 RHD CBU —
48632-35020 Bush, Front Suspension Upper Arm, RH
1997-11 → 2001-08 ended
LN150 —
48635-26010 note Bush, Front Suspension Upper Arm, RH
1997-08 → 1999-08 ended
RZN168 SCB —
48635-26010 note Bush, Front Suspension Upper Arm, RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48632-26010 note Bush, Front Suspension Upper Arm, RH
2001-08 → 2005-08 ended
KDN165,170,190 —
48632-30012 Bush, Front Suspension Upper Arm, RH
2001-08 → 2005-08 ended
KDN145 —
48632-35020 Bush, Front Suspension Upper Arm, RH
2001-08 → 2005-08 ended
KDN150 —
48635-26010 note Bush, Front Suspension Upper Arm, RH
2001-08 → 2005-08 ended
KDN165,170,190 —
48632B — Bush, Front Suspension Upper Arm, LH
48632-26010 note Bush, Front Suspension Upper Arm, LH
1997-08 → 1999-08 ended
RZN168 SCB —
48632-26010 note Bush, Front Suspension Upper Arm, LH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48632-30012 Bush, Front Suspension Upper Arm, LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
48632-30012 Bush, Front Suspension Upper Arm, LH
1997-08 → 2001-08 ended
LN145 LHD;LN145 RHD CBU —
48632-35020 Bush, Front Suspension Upper Arm, LH
1997-11 → 2001-08 ended
LN150 —
48635-26010 note Bush, Front Suspension Upper Arm, LH
1997-08 → 1999-08 ended
RZN168 SCB —
48635-26010 note Bush, Front Suspension Upper Arm, LH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48632-26010 note Bush, Front Suspension Upper Arm, LH
2001-08 → 2005-08 ended
KDN165,170,190 —
48632-30012 Bush, Front Suspension Upper Arm, LH
2001-08 → 2005-08 ended
KDN145 —
48632-35020 Bush, Front Suspension Upper Arm, LH
2001-08 → 2005-08 ended
KDN150 —
48635-26010 note Bush, Front Suspension Upper Arm, LH
2001-08 → 2005-08 ended
KDN165,170,190 —
48654E — Bush, Front Lower Arm, NO.1 RH
48061-35011 Bush, Front Lower Arm, NO.1 RH
1997-08 → 1999-08 ended
RZN168 SCB —
48061-35011 Bush, Front Lower Arm, NO.1 RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48654-35100 Bush, Front Lower Arm, NO.1 RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
48654-35100 Bush, Front Lower Arm, NO.1 RH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
48061-35011 Bush, Front Lower Arm, NO.1 RH
2001-08 → 2005-08 ended
KDN165,170,190 —
48654-35100 Bush, Front Lower Arm, NO.1 RH
2001-08 → 2005-08 ended
KDN145,150 —
48654F — Bush, Front Lower Arm, NO.1 LH
48061-35011 Bush, Front Lower Arm, NO.1 LH
1997-08 → 1999-08 ended
RZN168 SCB —
48061-35011 Bush, Front Lower Arm, NO.1 LH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
48654-35100 Bush, Front Lower Arm, NO.1 LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
48654-35100 Bush, Front Lower Arm, NO.1 LH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
48061-35011 Bush, Front Lower Arm, NO.1 LH
2001-08 → 2005-08 ended
KDN165,170,190 —
48654-35100 Bush, Front Lower Arm, NO.1 LH
2001-08 → 2005-08 ended
KDN145,150 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
