Toyota Hilux
1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe
Discontinued model
Data version 2006-02

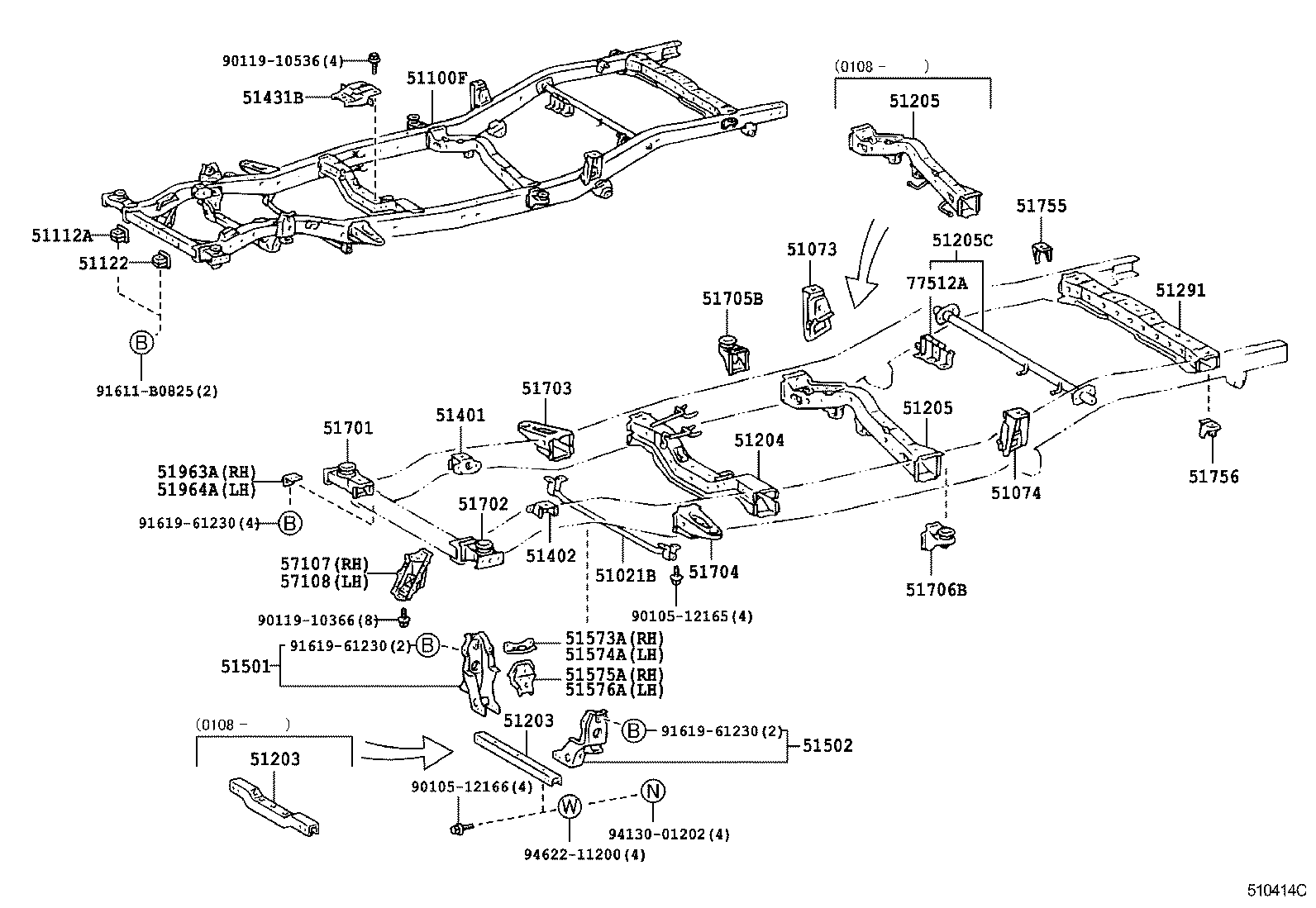

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51021B — Crossmember Sub-assy, Frame Auxiliary | ||||
| 51021-35010 |
Crossmember Sub-assy, Frame Auxiliary
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51021-35010 |
Crossmember Sub-assy, Frame Auxiliary
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51021-35010 |
Crossmember Sub-assy, Frame Auxiliary
2001-08 → —
|
KDN145,150 | — | |
| 51073 — Bracket Sub-assy, Rear Body Mounting, NO.2 RH | ||||
| 51742-35120 |
Bracket Sub-assy, Rear Body Mounting, NO.2 RH
1997-08 → 1999-08
ended
|
RZN168 SCB;LN145 RHD IV3 | — | |
| 51742-35120 |
Bracket Sub-assy, Rear Body Mounting, NO.2 RH
1997-08 → 2001-08
ended
|
LN145 LHD SCB;LN145 RHD +2 | — | |
| 51742-35120 |
Bracket Sub-assy, Rear Body Mounting, NO.2 RH
2001-08 → —
|
KDN145,150,165,170 SCB,XTR | — | |
| 51074 — Bracket Sub-assy, Rear Body Mounting, NO.2 LH | ||||
| 51743-35120 |
Bracket Sub-assy, Rear Body Mounting, NO.2 LH
1997-08 → 1999-08
ended
|
RZN168 SCB;LN145 RHD IV3 | — | |
| 51743-35120 |
Bracket Sub-assy, Rear Body Mounting, NO.2 LH
1997-08 → 2001-08
ended
|
LN145 LHD SCB;LN145 RHD +2 | — | |
| 51743-35120 |
Bracket Sub-assy, Rear Body Mounting, NO.2 LH
2001-08 → —
|
KDN145,150,165,170 SCB,XTR | — | |
| 51100F — Frame Sub-assy | ||||
| 51001-3G020 |
Frame Sub-assy
1997-08 → 2001-08
ended
|
RZN168 DCB | — | |
| 51001-3G030 |
Frame Sub-assy
1997-08 → 2001-08
ended
|
LN165 DCB | — | |
| 51001-3G060 note |
Frame Sub-assy
1997-08 → 1999-08
ended
|
LN165 LHD DCB DLX +1 | — | |
| 51001-3G120 |
Frame Sub-assy
1997-08 → 2001-08
ended
|
LN165 SCB | — | |
| 51001-3G150 |
Frame Sub-assy
1997-08 → 1999-08
ended
|
RZN168 SCB | — | |
| 51001-3G180 |
Frame Sub-assy
1997-11 → 2001-08
ended
|
LN150 | — | |
| 51001-3G320 |
Frame Sub-assy
1997-08 → 2001-08
ended
|
LN145 DCB | — | |
| 51001-3G330 note |
Frame Sub-assy
1997-08 → 2001-08
ended
|
LN145 DCB DLX CBU | — | |
| 51001-3G360 |
Frame Sub-assy
1997-08 → 2001-08
ended
|
LN145 RHD CBU | — | |
| 51001-3G360 |
Frame Sub-assy
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51001-3G390 |
Frame Sub-assy
1997-08 → 2001-08
ended
|
LN145 LHD SCB | — | |
| 51002-3G250 |
Frame Sub-assy
1999-08 → 2001-08
ended
|
LN190 | — | |
| 51002-3G410 note |
Frame Sub-assy
1999-08 → 2001-08
ended
|
LN165 LHD DCB DLX +1 | — | |
| 51003-3D870 |
Frame Sub-assy
1997-11 → 2001-08
ended
|
RZN173 | — | |
| 51003-3D890 |
Frame Sub-assy
1997-11 → 2001-08
ended
|
LN170 | — | |
| 51001-3M070 |
Frame Sub-assy
2001-08 → —
|
KDN165 RHD SCB | — | |
| 51001-3M080 |
Frame Sub-assy
2001-08 → —
|
KDN170 | — | |
| 51001-3M100 |
Frame Sub-assy
2001-08 → —
|
KDN165 DCB | — | |
| 51001-3M110 note |
Frame Sub-assy
2001-08 → —
|
KDN165 LHD DCB DLX +1 | — | |
| 51001-3M120 |
Frame Sub-assy
2001-08 → —
|
KDN190 | — | |
| 51001-3M180 |
Frame Sub-assy
2001-08 → —
|
KDN145 RHD | — | |
| 51001-3M190 |
Frame Sub-assy
2001-08 → —
|
KDN145 LHD SCB | — | |
| 51001-3M200 |
Frame Sub-assy
2001-08 → —
|
KDN150 RHD | — | |
| 51001-3M210 |
Frame Sub-assy
2001-08 → —
|
KDN150 LHD | — | |
| 51001-3M220 |
Frame Sub-assy
2001-08 → —
|
KDN145 DCB | — | |
| 51001-3M280 |
Frame Sub-assy
2001-08 → —
|
KDN165 LHD SCB | — | |
| 51112A — Extension, Side Rail, RH | ||||
| 51112-35070 note |
Extension, Side Rail, RH
1997-08 → 2001-08
ended
|
LN145,150,165,170,190,RZN168,173 | — | |
| 51112-35080 |
Extension, Side Rail, RH
1997-08 → 2001-08
ended
|
LN145,150,165,170,190,RZN168,173 | — | |
| 51112-35070 |
Extension, Side Rail, RH
2001-08 → 2005-08
ended
|
KDN190;KDN165 RHD DCB | — | |
| 51112-35070 note |
Extension, Side Rail, RH
2001-08 → 2005-08
ended
|
KDN165 SCB;KDN145,150,170;KDN165 LHD DCB | — | |
| 51112-35080 |
Extension, Side Rail, RH
2001-08 → 2005-08
ended
|
KDN165 SCB;KDN145,150,170;KDN165 LHD DCB | — | |
| 51122 — Extension, Side Rail, LH | ||||
| 51112-35070 note |
Extension, Side Rail, LH
1997-08 → 2001-08
ended
|
LN145,150,165,170,190,RZN168,173 | — | |
| 51112-35080 |
Extension, Side Rail, LH
1997-08 → 2001-08
ended
|
LN145,150,165,170,190,RZN168,173 | — | |
| 51112-35070 |
Extension, Side Rail, LH
2001-08 → 2005-08
ended
|
KDN190;KDN165 RHD DCB | — | |
| 51112-35070 note |
Extension, Side Rail, LH
2001-08 → 2005-08
ended
|
KDN165 SCB;KDN145,150,170;KDN165 LHD DCB | — | |
| 51112-35080 |
Extension, Side Rail, LH
2001-08 → 2005-08
ended
|
KDN165 SCB;KDN145,150,170;KDN165 LHD DCB | — | |
| 51203 — Crossmember Sub-assy, Frame, NO.2 | ||||
| 51202-35340 |
Crossmember Sub-assy, Frame, NO.2
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51202-35340 |
Crossmember Sub-assy, Frame, NO.2
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51203-35270 |
Crossmember Sub-assy, Frame, NO.2
1997-08 → 1999-08
ended
|
RZN168 SCB | — | |
| 51203-35270 |
Crossmember Sub-assy, Frame, NO.2
1997-08 → 2001-08
ended
|
RZN168 DCB;LN165,170,RZN173 | — | |
| 51203-35360 |
Crossmember Sub-assy, Frame, NO.2
1999-08 → 2001-08
ended
|
LN190 | — | |
| 51202-35451 |
Crossmember Sub-assy, Frame, NO.2
2001-08 → —
|
KDN145,150 | — | |
| 51203-35270 |
Crossmember Sub-assy, Frame, NO.2
2001-08 → —
|
KDN165,170 | — | |
| 51203-35360 |
Crossmember Sub-assy, Frame, NO.2
2001-08 → —
|
KDN190 | — | |
| 51204 — Crossmember Sub-assy, Frame, NO.3 | ||||
| 51202-35370 |
Crossmember Sub-assy, Frame, NO.3
1997-08 → 1999-08
ended
|
RZN168 SCB | — | |
| 51202-35370 |
Crossmember Sub-assy, Frame, NO.3
1997-08 → 2001-08
ended
|
RZN168,173 DCB,XTR | — | |
| 51202-35400 |
Crossmember Sub-assy, Frame, NO.3
1997-08 → 2001-08
ended
|
LN165,170 | — | |
| 51202-35440 |
Crossmember Sub-assy, Frame, NO.3
1999-08 → 2001-08
ended
|
LN190 | — | |
| 51203-35310 |
Crossmember Sub-assy, Frame, NO.3
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51203-35310 |
Crossmember Sub-assy, Frame, NO.3
1997-08 → 2001-08
ended
|
LN145 RHD CBU | — | |
| 51203-35340 |
Crossmember Sub-assy, Frame, NO.3
1997-08 → 2001-08
ended
|
LN145,150 LHD | — | |
| 51202-35420 |
Crossmember Sub-assy, Frame, NO.3
2001-08 → —
|
KDN165,170 | — | |
| 51202-35440 |
Crossmember Sub-assy, Frame, NO.3
2001-08 → —
|
KDN190 | — | |
| 51203-35310 |
Crossmember Sub-assy, Frame, NO.3
2001-08 → —
|
KDN145,150 RHD | — | |
| 51203-35340 |
Crossmember Sub-assy, Frame, NO.3
2001-08 → —
|
KDN145,150 LHD | — | |
| 51205 — Crossmember Sub-assy, Frame, NO.4 | ||||
| 51204-35540 |
Crossmember Sub-assy, Frame, NO.4
1997-08 → 1999-08
ended
|
LN145 | — | |
| 51204-35550 |
Crossmember Sub-assy, Frame, NO.4
1997-11 → 1999-08
ended
|
LN150 | — | |
| 51204-35560 note |
Crossmember Sub-assy, Frame, NO.4
1997-08 → 1999-08
ended
|
LN165 | — | |
| 51204-35590 note |
Crossmember Sub-assy, Frame, NO.4
1997-11 → 1998-01
ended
|
RZN173 | — | |
| 51204-35590 note |
Crossmember Sub-assy, Frame, NO.4
1997-11 → 1999-08
ended
|
LN170 | — | |
| 51204-35640 |
Crossmember Sub-assy, Frame, NO.4
1997-08 → 1999-08
ended
|
RZN168 DCB | — | |
| 51204-35640 note |
Crossmember Sub-assy, Frame, NO.4
1997-08 → 1999-08
ended
|
RZN168 SCB | — | |
| 51204-35670 note |
Crossmember Sub-assy, Frame, NO.4
1998-01 → 1999-08
ended
|
RZN173 | — | |
| 51204-35680 note |
Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08
ended
|
RZN173 | — | |
| 51204-35700 |
Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08
ended
|
LN190 | — | |
| 51204-35710 note |
Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08
ended
|
LN165 | — | |
| 51204-35730 |
Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08
ended
|
LN150 | — | |
| 51204-35780 note |
Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08
ended
|
RZN168 | — | |
| 51204-35790 note |
Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08
ended
|
LN170 | — | |
| 51204-35800 |
Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08
ended
|
LN145 | — | |
| 51204-35720 |
Crossmember Sub-assy, Frame, NO.4
2001-08 → —
|
KDN190 | — | |
| 51204-35730 |
Crossmember Sub-assy, Frame, NO.4
2001-08 → —
|
KDN150 | — | |
| 51204-35780 note |
Crossmember Sub-assy, Frame, NO.4
2001-08 → —
|
KDN165 | — | |
| 51204-35790 note |
Crossmember Sub-assy, Frame, NO.4
2001-08 → —
|
KDN170 | — | |
| 51204-35800 |
Crossmember Sub-assy, Frame, NO.4
2001-08 → —
|
KDN145 | — | |
| 51205C — Crossmember Sub-assy, Frame, NO.5 | ||||
| 51205-35250 |
Crossmember Sub-assy, Frame, NO.5
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51205-35250 |
Crossmember Sub-assy, Frame, NO.5
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51205-35260 |
Crossmember Sub-assy, Frame, NO.5
1997-08 → 1999-08
ended
|
RZN168 SCB | — | |
| 51205-35260 |
Crossmember Sub-assy, Frame, NO.5
1997-08 → 2001-08
ended
|
RZN168 DCB;LN165,170,190,RZN173 | — | |
| 51205-35250 |
Crossmember Sub-assy, Frame, NO.5
2001-08 → —
|
KDN145,150 | — | |
| 51205-35260 |
Crossmember Sub-assy, Frame, NO.5
2001-08 → —
|
KDN165,170,190 | — | |
| 51291 — Crossmember, Frame, Rear | ||||
| 51209-35180 |
Crossmember, Frame, Rear
1997-08 → 1999-08
ended
|
RZN168 SCB;LN145 RHD IV3 | — | |
| 51209-35180 |
Crossmember, Frame, Rear
1997-08 → 2001-08
ended
|
LN145 LHD;RZN168 DCB;LN145 RHD +1 | — | |
| 51209-35180 |
Crossmember, Frame, Rear
2001-08 → 2001-11
ended
|
KDN145,150,165,170,190 | — | |
| 51209-35200 |
Crossmember, Frame, Rear
2001-11 → —
|
KDN145,150,165,170,190 | — | |
| 51401 — Bracket Sub-assy, Engine Front Mounting, RH | ||||
| 51047-35070 |
Bracket Sub-assy, Engine Front Mounting, RH
1997-08 → 2001-08
ended
|
LN165,170,190 | — | |
| 51047-35090 |
Bracket Sub-assy, Engine Front Mounting, RH
1997-08 → 1999-08
ended
|
RZN168 SCB | — | |
| 51047-35090 |
Bracket Sub-assy, Engine Front Mounting, RH
1997-08 → 2001-08
ended
|
RZN168,173 DCB,XTR | — | |
| 51401-35370 |
Bracket Sub-assy, Engine Front Mounting, RH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51401-35370 |
Bracket Sub-assy, Engine Front Mounting, RH
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51047-35080 |
Bracket Sub-assy, Engine Front Mounting, RH
2001-08 → —
|
KDN165,170,190 | — | |
| 51401-35350 |
Bracket Sub-assy, Engine Front Mounting, RH
2001-08 → —
|
KDN145,150 | — | |
| 51402 — Bracket Sub-assy, Engine Front Mounting, LH | ||||
| 51048-35070 |
Bracket Sub-assy, Engine Front Mounting, LH
1997-08 → 2001-08
ended
|
LN165,170,190 | — | |
| 51048-35090 |
Bracket Sub-assy, Engine Front Mounting, LH
1997-08 → 1999-08
ended
|
RZN168 SCB | — | |
| 51048-35090 |
Bracket Sub-assy, Engine Front Mounting, LH
1997-08 → 2001-08
ended
|
RZN168,173 DCB,XTR | — | |
| 51402-35320 |
Bracket Sub-assy, Engine Front Mounting, LH
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51402-35320 |
Bracket Sub-assy, Engine Front Mounting, LH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51048-35080 |
Bracket Sub-assy, Engine Front Mounting, LH
2001-08 → —
|
KDN165,170,190 | — | |
| 51402-35300 |
Bracket Sub-assy, Engine Front Mounting, LH
2001-08 → —
|
KDN145,150 | — | |
| 51431B — Bracket, Engine Rear Mounting | ||||
| 51431-35060 |
Bracket, Engine Rear Mounting
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51431-35060 |
Bracket, Engine Rear Mounting
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51431-35100 |
Bracket, Engine Rear Mounting
1999-08 → 2001-08
ended
|
LN190 | — | |
| 51431-35100 |
Bracket, Engine Rear Mounting
2001-08 → —
|
KDN190 | — | |
| 51431-35141 |
Bracket, Engine Rear Mounting
2001-08 → —
|
KDN165,170 | — | |
| 51431-35240 |
Bracket, Engine Rear Mounting
2001-08 → —
|
KDN145,150 | — | |
| 51501 — Support Sub-assy, Suspension Arm, RH | ||||
| 51501-35110 |
Support Sub-assy, Suspension Arm, RH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51501-35110 |
Support Sub-assy, Suspension Arm, RH
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51501-35120 |
Support Sub-assy, Suspension Arm, RH
1997-08 → 1999-08
ended
|
RZN168 SCB | — | |
| 51501-35120 |
Support Sub-assy, Suspension Arm, RH
1997-08 → 2001-08
ended
|
RZN168 DCB;LN165,170,190,RZN173 | — | |
| 51501-35130 note |
Support Sub-assy, Suspension Arm, RH
1997-08 → 2001-08
ended
|
LN165 LHD DCB DLX +1 | — | |
| 51501-35110 |
Support Sub-assy, Suspension Arm, RH
2001-08 → —
|
KDN145,150 | — | |
| 51501-35120 |
Support Sub-assy, Suspension Arm, RH
2001-08 → —
|
KDN165 RHD;KDN165,170,190 LHD (DCB,XTR) | — | |
| 51501-35130 |
Support Sub-assy, Suspension Arm, RH
2001-08 → —
|
KDN165 LHD SCB | — | |
| 51501-35130 note |
Support Sub-assy, Suspension Arm, RH
2001-08 → —
|
KDN165 LHD DCB DLX +1 | — | |
| 51502 — Support Sub-assy, Suspension Arm, LH | ||||
| 51502-35110 |
Support Sub-assy, Suspension Arm, LH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51502-35110 |
Support Sub-assy, Suspension Arm, LH
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51502-35120 |
Support Sub-assy, Suspension Arm, LH
1997-08 → 1999-08
ended
|
RZN168 SCB | — | |
| 51502-35120 |
Support Sub-assy, Suspension Arm, LH
1997-08 → 2001-08
ended
|
RZN168 DCB;LN165,170,190,RZN173 | — | |
| 51502-35130 note |
Support Sub-assy, Suspension Arm, LH
1997-08 → 2001-08
ended
|
LN165 LHD DCB DLX +1 | — | |
| 51502-35110 |
Support Sub-assy, Suspension Arm, LH
2004-01 → 2005-08
ended
|
KDN145,150 | — | |
| 51502-35110 |
Support Sub-assy, Suspension Arm, LH
2001-08 → 2004-01
ended
|
KDN145,150 | — | |
| 51502-35120 |
Support Sub-assy, Suspension Arm, LH
2001-08 → 2005-08
ended
|
KDN165 RHD;KDN165,170,190 LHD (DCB,XTR) | — | |
| 51502-35130 |
Support Sub-assy, Suspension Arm, LH
2003-11 → 2005-08
ended
|
KDN165 LHD SCB | — | |
| 51502-35130 |
Support Sub-assy, Suspension Arm, LH
2001-08 → 2003-11
ended
|
KDN165 LHD SCB | — | |
| 51502-35130 note |
Support Sub-assy, Suspension Arm, LH
2001-08 → 2005-08
ended
|
KDN165 LHD DCB DLX +1 | — | |
| 51573A — Reinforcement, Suspension Arm Support, NO.1 RH | ||||
| 51573-35030 |
Reinforcement, Suspension Arm Support, NO.1 RH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51573-35030 |
Reinforcement, Suspension Arm Support, NO.1 RH
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51573-35030 |
Reinforcement, Suspension Arm Support, NO.1 RH
2001-08 → —
|
KDN145,150 | — | |
| 51574A — Reinforcement, Suspension Arm Support, NO.1 LH | ||||
| 51573-35030 |
Reinforcement, Suspension Arm Support, NO.1 LH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51573-35030 |
Reinforcement, Suspension Arm Support, NO.1 LH
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51573-35030 |
Reinforcement, Suspension Arm Support, NO.1 LH
2001-08 → —
|
KDN145,150 | — | |
| 51575A — Reinforcement, Suspension Arm Support, NO.2 RH | ||||
| 51575-35060 |
Reinforcement, Suspension Arm Support, NO.2 RH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51575-35060 |
Reinforcement, Suspension Arm Support, NO.2 RH
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51575-35060 |
Reinforcement, Suspension Arm Support, NO.2 RH
2001-08 → 2005-08
ended
|
KDN145,150 | — | |
| 51576A — Reinforcement, Suspension Arm Support, NO.2 LH | ||||
| 51575-35060 |
Reinforcement, Suspension Arm Support, NO.2 LH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51575-35060 |
Reinforcement, Suspension Arm Support, NO.2 LH
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51575-35060 |
Reinforcement, Suspension Arm Support, NO.2 LH
2001-08 → 2004-01
ended
|
KDN145,150 | — | |
| 51575-35060 |
Reinforcement, Suspension Arm Support, NO.2 LH
2004-01 → 2005-08
ended
|
KDN145,150 | — | |
| 51701 — Bracket Sub-assy, Cab Mounting, NO.1 RH | ||||
| 51701-35160 |
Bracket Sub-assy, Cab Mounting, NO.1 RH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51701-35160 |
Bracket Sub-assy, Cab Mounting, NO.1 RH
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51701-35170 |
Bracket Sub-assy, Cab Mounting, NO.1 RH
1997-08 → 1999-08
ended
|
RZN168 SCB | — | |
| 51701-35170 |
Bracket Sub-assy, Cab Mounting, NO.1 RH
1997-08 → 2001-08
ended
|
RZN168 DCB;LN165,170,190,RZN173 | — | |
| 51701-35160 |
Bracket Sub-assy, Cab Mounting, NO.1 RH
2001-08 → —
|
KDN145,150 | — | |
| 51701-35170 |
Bracket Sub-assy, Cab Mounting, NO.1 RH
2001-08 → —
|
KDN165,170,190 | — | |
| 51702 — Bracket Sub-assy, Cab Mounting, NO.1 LH | ||||
| 51702-35120 |
Bracket Sub-assy, Cab Mounting, NO.1 LH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51702-35120 |
Bracket Sub-assy, Cab Mounting, NO.1 LH
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 51702-35140 |
Bracket Sub-assy, Cab Mounting, NO.1 LH
1997-08 → 1999-08
ended
|
RZN168 SCB | — | |
| 51702-35140 |
Bracket Sub-assy, Cab Mounting, NO.1 LH
1997-08 → 2001-08
ended
|
RZN168 DCB;LN165,170,190,RZN173 | — | |
| 51702-35120 |
Bracket Sub-assy, Cab Mounting, NO.1 LH
2001-08 → —
|
KDN145,150 | — | |
| 51702-35140 |
Bracket Sub-assy, Cab Mounting, NO.1 LH
2001-08 → —
|
KDN165,170,190 | — | |
| 51703 — Bracket Sub-assy, Cab Mounting, NO.2, RH | ||||
| 51703-35120 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51703-35120 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
1997-08 → 2001-08
ended
|
LN145 RHD CBU;LN145,150 LHD +1 | — | |
| 51703-35130 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
1997-08 → 2001-08
ended
|
LN165,170,RZN173 SCB,XTR | — | |
| 51703-35130 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
1997-08 → 1999-08
ended
|
RZN168 SCB | — | |
| 51703-35140 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
1997-08 → 2001-08
ended
|
LN145 DCB | — | |
| 51703-35150 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
1997-08 → 2001-08
ended
|
LN165,190,RZN168 DCB | — | |
| 51703-35120 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
2001-08 → —
|
KDN145,150 SCB,XTR | — | |
| 51703-35130 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
2001-08 → —
|
KDN165,170 SCB,XTR | — | |
| 51703-35140 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
2001-08 → —
|
KDN145 DCB | — | |
| 51703-35150 |
Bracket Sub-assy, Cab Mounting, NO.2, RH
2001-08 → —
|
KDN165,190 DCB | — | |
| 51704 — Bracket Sub-assy, Cab Mounting, NO.2 LH | ||||
| 51703-35120 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 51703-35120 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
1997-08 → 2001-08
ended
|
LN145 RHD CBU;LN145,150 LHD +1 | — | |
| 51704-35120 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
1997-08 → 1999-08
ended
|
RZN168 SCB | — | |
| 51704-35120 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
1997-08 → 2001-08
ended
|
LN165,170,RZN173 SCB,XTR | — | |
| 51704-35130 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
1997-08 → 2001-08
ended
|
LN145 DCB | — | |
| 51704-35140 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
1997-08 → 2001-08
ended
|
LN165,190,RZN168 DCB | — | |
| 51703-35120 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
2001-08 → —
|
KDN145,150 SCB,XTR | — | |
| 51704-35120 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
2001-08 → —
|
KDN165,170 SCB,XTR | — | |
| 51704-35130 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
2001-08 → —
|
KDN145 DCB | — | |
| 51704-35140 |
Bracket Sub-assy, Cab Mounting, NO.2 LH
2001-08 → —
|
KDN165,190 DCB | — | |
| 51705B — Bracket Sub-assy, Cab Mounting, NO.3 RH | ||||
| 51705-35130 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
1997-08 → 1999-08
ended
|
RZN168 SCB;LN145 RHD IV3 | — | |
| 51705-35130 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
1997-08 → 2001-08
ended
|
LN165 SCB;LN145 LHD SCB;LN145 +2 | — | |
| 51705-35150 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
1997-11 → 2001-08
ended
|
LN150,170,RZN173 | — | |
| 51705-35130 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2001-08 → —
|
KDN145,165 SCB | — | |
| 51705-35150 |
Bracket Sub-assy, Cab Mounting, NO.3 RH
2001-08 → —
|
KDN150,170 | — | |
| 51706B — Bracket Sub-assy, Cab Mounting, NO.3 LH | ||||
| 51705-35130 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
1997-08 → 1999-08
ended
|
RZN168 SCB;LN145 RHD IV3 | — | |
| 51705-35130 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
1997-08 → 2001-08
ended
|
LN165 SCB;LN145 LHD SCB;LN145 +2 | — | |
| 51705-35150 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
1997-11 → 2001-08
ended
|
LN150,170,RZN173 | — | |
| 51705-35130 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2001-08 → —
|
KDN145,165 SCB | — | |
| 51705-35150 |
Bracket Sub-assy, Cab Mounting, NO.3 LH
2001-08 → —
|
KDN150,170 | — | |
| 51755 — Bracket, Body Support, NO.3 RH | ||||
| 51755-35010 |
Bracket, Body Support, NO.3 RH
1997-08 → 1999-08
ended
|
RZN168 SCB;LN145 RHD IV3 | — | |
| 51755-35010 |
Bracket, Body Support, NO.3 RH
1997-08 → 2001-08
ended
|
LN145 LHD;RZN168 DCB;LN145 RHD +1 | — | |
| 51755-35010 |
Bracket, Body Support, NO.3 RH
2001-08 → —
|
KDN145,150,165,170,190 | — | |
| 51756 — Bracket, Body Support, NO.3 LH | ||||
| 51755-35010 |
Bracket, Body Support, NO.3 LH
1997-08 → 1999-08
ended
|
RZN168 SCB;LN145 RHD IV3 | — | |
| 51755-35010 |
Bracket, Body Support, NO.3 LH
1997-08 → 2001-08
ended
|
LN145 LHD;RZN168 DCB;LN145 RHD +1 | — | |
| 51755-35010 |
Bracket, Body Support, NO.3 LH
2001-08 → —
|
KDN145,150,165,170,190 | — | |
| 51963A — Hook, Transport, Front RH | ||||
| 51963-35070 |
Hook, Transport, Front RH
1997-08 → 1999-08
ended
|
RZN168 SCB;LN145 RHD IV3 | — | |
| 51963-35070 |
Hook, Transport, Front RH
1997-08 → 2001-08
ended
|
LN145 LHD;RZN168 DCB;LN145 RHD +1 | — | |
| 51963-35070 |
Hook, Transport, Front RH
2001-08 → —
|
KDN145,150,165,170,190 | — | |
| 51964A — Hook, Transport, Front LH | ||||
| 51964-35050 |
Hook, Transport, Front LH
1997-08 → 1999-08
ended
|
RZN168 SCB;LN145 RHD IV3 | — | |
| 51964-35050 |
Hook, Transport, Front LH
1997-08 → 2001-08
ended
|
LN145 LHD;RZN168 DCB;LN145 RHD +1 | — | |
| 51964-35050 |
Hook, Transport, Front LH
2001-08 → —
|
KDN145,150,165,170,190 | — | |
| 57107 — Bracket Sub-assy, Strut Bar, RH | ||||
| 57107-35060 |
Bracket Sub-assy, Strut Bar, RH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 57107-35060 |
Bracket Sub-assy, Strut Bar, RH
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 57107-35060 |
Bracket Sub-assy, Strut Bar, RH
2001-08 → —
|
KDN145,150 | — | |
| 57108 — Bracket Sub-assy, Strut Bar, LH | ||||
| 57108-35060 |
Bracket Sub-assy, Strut Bar, LH
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 57108-35060 |
Bracket Sub-assy, Strut Bar, LH
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 57108-35060 |
Bracket Sub-assy, Strut Bar, LH
2001-08 → —
|
KDN145,150 | — | |
| 77512A — Bracket, Fuel Tank, Rear | ||||
| 77512-35090 |
Bracket, Fuel Tank, Rear
1997-08 → 1999-08
ended
|
LN145 RHD IV3 | — | |
| 77512-35090 |
Bracket, Fuel Tank, Rear
1997-08 → 2001-08
ended
|
LN145,150 LHD;LN145 RHD CBU | — | |
| 77512-35090 |
Bracket, Fuel Tank, Rear
2001-08 → —
|
KDN145,150,165,170,190 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
