Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

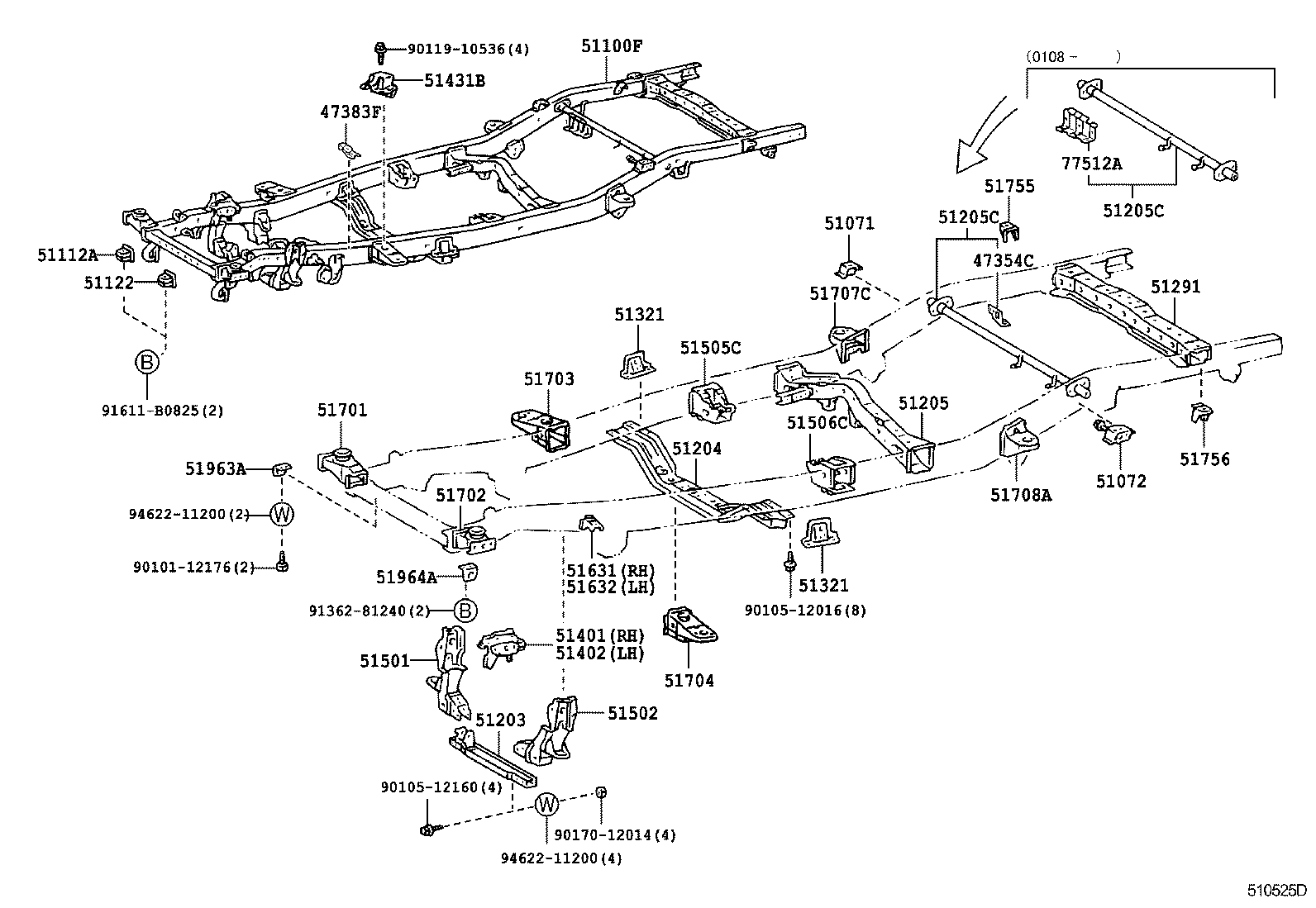

Exploded illustration 510525D 51071 — BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH (5 parts) 51707C — BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH (2 parts) 51701 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH (6 parts) 51964A — HOOK, TRANSPORT, FRONT LH (3 parts) 9136281240 — not listed in this catalogue 9010112176 — not listed in this catalogue 9462211200 — not listed in this catalogue 51963A — HOOK, TRANSPORT, FRONT RH (3 parts) 51501 — SUPPORT SUB-ASSY, SUSPENSION ARM, RH (9 parts) 51203 — CROSSMEMBER SUB-ASSY, FRAME, NO.2 (8 parts) 51321 — GUSSET, CROSSMEMBER, NO.2 RH (3 parts) 51703 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH (10 parts) 51505C — SUPPORT SUB-ASSY, ANCHOR ARM, RH (3 parts) 51205 — CROSSMEMBER SUB-ASSY, FRAME, NO.4 (20 parts) 51704 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH (10 parts) 51502 — SUPPORT SUB-ASSY, SUSPENSION ARM, LH (11 parts) 51401 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH (7 parts) 51402 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH (7 parts) 51631 — STOPPER, FRONT SUSPENSION REBOUND, RH (6 parts) 51632 — STOPPER, FRONT SUSPENSION REBOUND, LH (6 parts) 51321 — GUSSET, CROSSMEMBER, NO.2 RH (3 parts) 9010512016 — not listed in this catalogue 9017012014 — not listed in this catalogue 9462211200 — not listed in this catalogue 9010512160 — not listed in this catalogue 51506C — SUPPORT SUB-ASSY, ANCHOR ARM, LH (3 parts) 51072 — BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH (7 parts) 51708A — BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH (2 parts) 51756 — BRACKET, BODY SUPPORT, NO.3 LH (3 parts) 51291 — CROSSMEMBER, FRAME, REAR (4 parts) 51100F — FRAME SUB-ASSY (26 parts) 47383F — BRACKET, CONNECTOR (2 parts) 51112A — EXTENSION, SIDE RAIL, RH (5 parts) 51122 — EXTENSION, SIDE RAIL, LH (5 parts) 91611B0825 — not listed in this catalogue 51204 — CROSSMEMBER SUB-ASSY, FRAME, NO.3 (11 parts) 51755 — BRACKET, BODY SUPPORT, NO.3 RH (3 parts) 51702 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH (6 parts) 51205C — CROSSMEMBER SUB-ASSY, FRAME, NO.5 (6 parts) 77512A — BRACKET, FUEL TANK, REAR (3 parts) 9011910536 — not listed in this catalogue 51431B — BRACKET, ENGINE REAR MOUNTING (6 parts) 51205C — CROSSMEMBER SUB-ASSY, FRAME, NO.5 (6 parts) 47354C — BRACKET, FLEXIBLE HOSE, NO.4 (2 parts)
510525D · 35 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
213 parts on this figure
Part number Description Fitment Price
47354C — Bracket, Flexible Hose, NO.4
47354-35110 Bracket, Flexible Hose, NO.4
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
47354-35110 Bracket, Flexible Hose, NO.4
1997-08 → 1999-08 ended
RZN168 SCB —
47383F — Bracket, Connector
47383-35020 Bracket, Connector
1997-08 → 2001-08 ended
LN165,170,190,RZN168,173 —
47383-35020 Bracket, Connector
2001-08 → 2005-08 ended
KDN165,170,190 —
51071 — Bracket Sub-assy, Rear Body Mounting, NO.1 RH
51741-35080 Bracket Sub-assy, Rear Body Mounting, NO.1 RH
1997-08 → 2001-08 ended
LN145,165,190,RZN168 DCB —
51741-35090 Bracket Sub-assy, Rear Body Mounting, NO.1 RH
1997-08 → 1999-08 ended
RZN168 SCB;LN145 RHD IV3 —
51741-35090 Bracket Sub-assy, Rear Body Mounting, NO.1 RH
1997-08 → 2001-08 ended
LN165 SCB;LN145 LHD SCB;LN145 +2 —
51741-35080 Bracket Sub-assy, Rear Body Mounting, NO.1 RH
2001-08 → 2005-08 ended
KDN145,165,190 DCB —
51741-35090 Bracket Sub-assy, Rear Body Mounting, NO.1 RH
2001-08 → 2005-08 ended
KDN145,165 SCB —
51072 — Bracket Sub-assy, Rear Body Mounting, NO.1 LH
51072-35030 Bracket Sub-assy, Rear Body Mounting, NO.1 LH
1997-08 → 2001-08 ended
LN145 DCB —
51072-35040 Bracket Sub-assy, Rear Body Mounting, NO.1 LH
1997-08 → 2001-08 ended
LN165,190,RZN168 DCB —
51741-35090 Bracket Sub-assy, Rear Body Mounting, NO.1 LH
1997-08 → 2001-08 ended
LN165 SCB;LN145 LHD SCB;LN145 +2 —
51741-35090 Bracket Sub-assy, Rear Body Mounting, NO.1 LH
1997-08 → 1999-08 ended
RZN168 SCB;LN145 RHD IV3 —
51072-35030 Bracket Sub-assy, Rear Body Mounting, NO.1 LH
2001-08 → 2005-08 ended
KDN145 DCB —
51072-35040 Bracket Sub-assy, Rear Body Mounting, NO.1 LH
2001-08 → 2005-08 ended
KDN165,190 DCB —
51741-35090 Bracket Sub-assy, Rear Body Mounting, NO.1 LH
2001-08 → 2005-08 ended
KDN145,165 SCB —
51100F — Frame Sub-assy
51001-3G020 Frame Sub-assy
1997-08 → 2001-08 ended
RZN168 DCB —
51001-3G030 Frame Sub-assy
1997-08 → 2001-08 ended
LN165 DCB —
51001-3G060 note Frame Sub-assy
1997-08 → 1999-08 ended
LN165 LHD DCB DLX +1 —
51001-3G120 Frame Sub-assy
1997-08 → 2001-08 ended
LN165 SCB —
51001-3G150 Frame Sub-assy
1997-08 → 1999-08 ended
RZN168 SCB —
51001-3G180 Frame Sub-assy
1997-11 → 2001-08 ended
LN150 —
51001-3G320 Frame Sub-assy
1997-08 → 2001-08 ended
LN145 DCB —
51001-3G330 note Frame Sub-assy
1997-08 → 2001-08 ended
LN145 DCB DLX CBU —
51001-3G360 Frame Sub-assy
1997-08 → 1999-08 ended
LN145 RHD IV3 —
51001-3G360 Frame Sub-assy
1997-08 → 2001-08 ended
LN145 RHD CBU —
51001-3G390 Frame Sub-assy
1997-08 → 2001-08 ended
LN145 LHD SCB —
51002-3G250 Frame Sub-assy
1999-08 → 2001-08 ended
LN190 —
51002-3G410 note Frame Sub-assy
1999-08 → 2001-08 ended
LN165 LHD DCB DLX +1 —
51003-3D870 Frame Sub-assy
1997-11 → 2001-08 ended
RZN173 —
51003-3D890 Frame Sub-assy
1997-11 → 2001-08 ended
LN170 —
51001-3M070 Frame Sub-assy
2001-08 → —
KDN165 RHD SCB —
51001-3M080 Frame Sub-assy
2001-08 → —
KDN170 —
51001-3M100 Frame Sub-assy
2001-08 → —
KDN165 DCB —
51001-3M110 note Frame Sub-assy
2001-08 → —
KDN165 LHD DCB DLX +1 —
51001-3M120 Frame Sub-assy
2001-08 → —
KDN190 —
51001-3M180 Frame Sub-assy
2001-08 → —
KDN145 RHD —
51001-3M190 Frame Sub-assy
2001-08 → —
KDN145 LHD SCB —
51001-3M200 Frame Sub-assy
2001-08 → —
KDN150 RHD —
51001-3M210 Frame Sub-assy
2001-08 → —
KDN150 LHD —
51001-3M220 Frame Sub-assy
2001-08 → —
KDN145 DCB —
51001-3M280 Frame Sub-assy
2001-08 → —
KDN165 LHD SCB —
51112A — Extension, Side Rail, RH
51112-35070 note Extension, Side Rail, RH
1997-08 → 2001-08 ended
LN145,150,165,170,190,RZN168,173 —
51112-35080 Extension, Side Rail, RH
1997-08 → 2001-08 ended
LN145,150,165,170,190,RZN168,173 —
51112-35070 Extension, Side Rail, RH
2001-08 → 2005-08 ended
KDN190;KDN165 RHD DCB —
51112-35070 note Extension, Side Rail, RH
2001-08 → 2005-08 ended
KDN165 SCB;KDN145,150,170;KDN165 LHD DCB —
51112-35080 Extension, Side Rail, RH
2001-08 → 2005-08 ended
KDN165 SCB;KDN145,150,170;KDN165 LHD DCB —
51122 — Extension, Side Rail, LH
51112-35070 note Extension, Side Rail, LH
1997-08 → 2001-08 ended
LN145,150,165,170,190,RZN168,173 —
51112-35080 Extension, Side Rail, LH
1997-08 → 2001-08 ended
LN145,150,165,170,190,RZN168,173 —
51112-35070 Extension, Side Rail, LH
2001-08 → 2005-08 ended
KDN190;KDN165 RHD DCB —
51112-35070 note Extension, Side Rail, LH
2001-08 → 2005-08 ended
KDN165 SCB;KDN145,150,170;KDN165 LHD DCB —
51112-35080 Extension, Side Rail, LH
2001-08 → 2005-08 ended
KDN165 SCB;KDN145,150,170;KDN165 LHD DCB —
51203 — Crossmember Sub-assy, Frame, NO.2
51202-35340 Crossmember Sub-assy, Frame, NO.2
1997-08 → 1999-08 ended
LN145 RHD IV3 —
51202-35340 Crossmember Sub-assy, Frame, NO.2
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
51203-35270 Crossmember Sub-assy, Frame, NO.2
1997-08 → 1999-08 ended
RZN168 SCB —
51203-35270 Crossmember Sub-assy, Frame, NO.2
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,RZN173 —
51203-35360 Crossmember Sub-assy, Frame, NO.2
1999-08 → 2001-08 ended
LN190 —
51202-35451 Crossmember Sub-assy, Frame, NO.2
2001-08 → —
KDN145,150 —
51203-35270 Crossmember Sub-assy, Frame, NO.2
2001-08 → —
KDN165,170 —
51203-35360 Crossmember Sub-assy, Frame, NO.2
2001-08 → —
KDN190 —
51204 — Crossmember Sub-assy, Frame, NO.3
51202-35370 Crossmember Sub-assy, Frame, NO.3
1997-08 → 1999-08 ended
RZN168 SCB —
51202-35370 Crossmember Sub-assy, Frame, NO.3
1997-08 → 2001-08 ended
RZN168,173 DCB,XTR —
51202-35400 Crossmember Sub-assy, Frame, NO.3
1997-08 → 2001-08 ended
LN165,170 —
51202-35440 Crossmember Sub-assy, Frame, NO.3
1999-08 → 2001-08 ended
LN190 —
51203-35310 Crossmember Sub-assy, Frame, NO.3
1997-08 → 1999-08 ended
LN145 RHD IV3 —
51203-35310 Crossmember Sub-assy, Frame, NO.3
1997-08 → 2001-08 ended
LN145 RHD CBU —
51203-35340 Crossmember Sub-assy, Frame, NO.3
1997-08 → 2001-08 ended
LN145,150 LHD —
51202-35420 Crossmember Sub-assy, Frame, NO.3
2001-08 → —
KDN165,170 —
51202-35440 Crossmember Sub-assy, Frame, NO.3
2001-08 → —
KDN190 —
51203-35310 Crossmember Sub-assy, Frame, NO.3
2001-08 → —
KDN145,150 RHD —
51203-35340 Crossmember Sub-assy, Frame, NO.3
2001-08 → —
KDN145,150 LHD —
51205 — Crossmember Sub-assy, Frame, NO.4
51204-35540 Crossmember Sub-assy, Frame, NO.4
1997-08 → 1999-08 ended
LN145 —
51204-35550 Crossmember Sub-assy, Frame, NO.4
1997-11 → 1999-08 ended
LN150 —
51204-35560 note Crossmember Sub-assy, Frame, NO.4
1997-08 → 1999-08 ended
LN165 —
51204-35590 note Crossmember Sub-assy, Frame, NO.4
1997-11 → 1998-01 ended
RZN173 —
51204-35590 note Crossmember Sub-assy, Frame, NO.4
1997-11 → 1999-08 ended
LN170 —
51204-35640 Crossmember Sub-assy, Frame, NO.4
1997-08 → 1999-08 ended
RZN168 DCB —
51204-35640 note Crossmember Sub-assy, Frame, NO.4
1997-08 → 1999-08 ended
RZN168 SCB —
51204-35670 note Crossmember Sub-assy, Frame, NO.4
1998-01 → 1999-08 ended
RZN173 —
51204-35680 note Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08 ended
RZN173 —
51204-35700 Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08 ended
LN190 —
51204-35710 note Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08 ended
LN165 —
51204-35730 Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08 ended
LN150 —
51204-35780 note Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08 ended
RZN168 —
51204-35790 note Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08 ended
LN170 —
51204-35800 Crossmember Sub-assy, Frame, NO.4
1999-08 → 2001-08 ended
LN145 —
51204-35720 Crossmember Sub-assy, Frame, NO.4
2001-08 → —
KDN190 —
51204-35730 Crossmember Sub-assy, Frame, NO.4
2001-08 → —
KDN150 —
51204-35780 note Crossmember Sub-assy, Frame, NO.4
2001-08 → —
KDN165 —
51204-35790 note Crossmember Sub-assy, Frame, NO.4
2001-08 → —
KDN170 —
51204-35800 Crossmember Sub-assy, Frame, NO.4
2001-08 → —
KDN145 —
51205C — Crossmember Sub-assy, Frame, NO.5
51205-35250 Crossmember Sub-assy, Frame, NO.5
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
51205-35250 Crossmember Sub-assy, Frame, NO.5
1997-08 → 1999-08 ended
LN145 RHD IV3 —
51205-35260 Crossmember Sub-assy, Frame, NO.5
1997-08 → 1999-08 ended
RZN168 SCB —
51205-35260 Crossmember Sub-assy, Frame, NO.5
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
51205-35250 Crossmember Sub-assy, Frame, NO.5
2001-08 → —
KDN145,150 —
51205-35260 Crossmember Sub-assy, Frame, NO.5
2001-08 → —
KDN165,170,190 —
51291 — Crossmember, Frame, Rear
51209-35180 Crossmember, Frame, Rear
1997-08 → 1999-08 ended
RZN168 SCB;LN145 RHD IV3 —
51209-35180 Crossmember, Frame, Rear
1997-08 → 2001-08 ended
LN145 LHD;RZN168 DCB;LN145 RHD +1 —
51209-35180 Crossmember, Frame, Rear
2001-08 → 2001-11 ended
KDN145,150,165,170,190 —
51209-35200 Crossmember, Frame, Rear
2001-11 → —
KDN145,150,165,170,190 —
51321 — Gusset, Crossmember, NO.2 RH
51321-35050 Gusset, Crossmember, NO.2 RH
1997-08 → 1999-08 ended
RZN168 SCB —
51321-35050 Gusset, Crossmember, NO.2 RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
51321-35050 Gusset, Crossmember, NO.2 RH
2001-08 → 2005-08 ended
KDN165,170,190 —
51401 — Bracket Sub-assy, Engine Front Mounting, RH
51047-35070 Bracket Sub-assy, Engine Front Mounting, RH
1997-08 → 2001-08 ended
LN165,170,190 —
51047-35090 Bracket Sub-assy, Engine Front Mounting, RH
1997-08 → 1999-08 ended
RZN168 SCB —
51047-35090 Bracket Sub-assy, Engine Front Mounting, RH
1997-08 → 2001-08 ended
RZN168,173 DCB,XTR —
51401-35370 Bracket Sub-assy, Engine Front Mounting, RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
51401-35370 Bracket Sub-assy, Engine Front Mounting, RH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
51047-35080 Bracket Sub-assy, Engine Front Mounting, RH
2001-08 → —
KDN165,170,190 —
51401-35350 Bracket Sub-assy, Engine Front Mounting, RH
2001-08 → —
KDN145,150 —
51402 — Bracket Sub-assy, Engine Front Mounting, LH
51048-35070 Bracket Sub-assy, Engine Front Mounting, LH
1997-08 → 2001-08 ended
LN165,170,190 —
51048-35090 Bracket Sub-assy, Engine Front Mounting, LH
1997-08 → 1999-08 ended
RZN168 SCB —
51048-35090 Bracket Sub-assy, Engine Front Mounting, LH
1997-08 → 2001-08 ended
RZN168,173 DCB,XTR —
51402-35320 Bracket Sub-assy, Engine Front Mounting, LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
51402-35320 Bracket Sub-assy, Engine Front Mounting, LH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
51048-35080 Bracket Sub-assy, Engine Front Mounting, LH
2001-08 → —
KDN165,170,190 —
51402-35300 Bracket Sub-assy, Engine Front Mounting, LH
2001-08 → —
KDN145,150 —
51431B — Bracket, Engine Rear Mounting
51431-35060 Bracket, Engine Rear Mounting
1997-08 → 1999-08 ended
LN145 RHD IV3 —
51431-35060 Bracket, Engine Rear Mounting
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
51431-35100 Bracket, Engine Rear Mounting
1999-08 → 2001-08 ended
LN190 —
51431-35100 Bracket, Engine Rear Mounting
2001-08 → —
KDN190 —
51431-35141 Bracket, Engine Rear Mounting
2001-08 → —
KDN165,170 —
51431-35240 Bracket, Engine Rear Mounting
2001-08 → —
KDN145,150 —
51501 — Support Sub-assy, Suspension Arm, RH
51501-35110 Support Sub-assy, Suspension Arm, RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
51501-35110 Support Sub-assy, Suspension Arm, RH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
51501-35120 Support Sub-assy, Suspension Arm, RH
1997-08 → 1999-08 ended
RZN168 SCB —
51501-35120 Support Sub-assy, Suspension Arm, RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
51501-35130 note Support Sub-assy, Suspension Arm, RH
1997-08 → 2001-08 ended
LN165 LHD DCB DLX +1 —
51501-35110 Support Sub-assy, Suspension Arm, RH
2001-08 → —
KDN145,150 —
51501-35120 Support Sub-assy, Suspension Arm, RH
2001-08 → —
KDN165 RHD;KDN165,170,190 LHD (DCB,XTR) —
51501-35130 Support Sub-assy, Suspension Arm, RH
2001-08 → —
KDN165 LHD SCB —
51501-35130 note Support Sub-assy, Suspension Arm, RH
2001-08 → —
KDN165 LHD DCB DLX +1 —
51502 — Support Sub-assy, Suspension Arm, LH
51502-35110 Support Sub-assy, Suspension Arm, LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
51502-35110 Support Sub-assy, Suspension Arm, LH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
51502-35120 Support Sub-assy, Suspension Arm, LH
1997-08 → 1999-08 ended
RZN168 SCB —
51502-35120 Support Sub-assy, Suspension Arm, LH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
51502-35130 note Support Sub-assy, Suspension Arm, LH
1997-08 → 2001-08 ended
LN165 LHD DCB DLX +1 —
51502-35110 Support Sub-assy, Suspension Arm, LH
2001-08 → 2004-01 ended
KDN145,150 —
51502-35110 Support Sub-assy, Suspension Arm, LH
2004-01 → 2005-08 ended
KDN145,150 —
51502-35120 Support Sub-assy, Suspension Arm, LH
2001-08 → 2005-08 ended
KDN165 RHD;KDN165,170,190 LHD (DCB,XTR) —
51502-35130 Support Sub-assy, Suspension Arm, LH
2001-08 → 2003-11 ended
KDN165 LHD SCB —
51502-35130 note Support Sub-assy, Suspension Arm, LH
2001-08 → 2005-08 ended
KDN165 LHD DCB DLX +1 —
51502-35130 Support Sub-assy, Suspension Arm, LH
2003-11 → 2005-08 ended
KDN165 LHD SCB —
51505C — Support Sub-assy, Anchor Arm, RH
51505-35100 Support Sub-assy, Anchor Arm, RH
1997-08 → 1999-08 ended
RZN168 SCB —
51505-35100 Support Sub-assy, Anchor Arm, RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
51505-35100 Support Sub-assy, Anchor Arm, RH
2001-08 → —
KDN165,170,190 —
51506C — Support Sub-assy, Anchor Arm, LH
51506-35020 Support Sub-assy, Anchor Arm, LH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
51506-35020 Support Sub-assy, Anchor Arm, LH
1997-08 → 1999-08 ended
RZN168 SCB —
51506-35020 Support Sub-assy, Anchor Arm, LH
2001-08 → —
KDN165,170,190 —
51631 — Stopper, Front Suspension Rebound, RH
51061-35010 note Stopper, Front Suspension Rebound, RH
1997-08 → 2001-08 ended
LN165 LHD DCB DLX +1 —
51631-35040 Stopper, Front Suspension Rebound, RH
1997-08 → 1999-08 ended
RZN168 SCB —
51631-35040 Stopper, Front Suspension Rebound, RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
51061-35010 Stopper, Front Suspension Rebound, RH
2001-08 → —
KDN165 LHD SCB —
51061-35010 note Stopper, Front Suspension Rebound, RH
2001-08 → —
KDN165 LHD DCB DLX +1 —
51631-35040 Stopper, Front Suspension Rebound, RH
2001-08 → —
KDN165 RHD;KDN165,170,190 LHD (DCB,XTR) —
51632 — Stopper, Front Suspension Rebound, LH
51061-35010 note Stopper, Front Suspension Rebound, LH
1997-08 → 1999-08 ended
LN165 LHD DCB DLX +1 —
51631-35040 Stopper, Front Suspension Rebound, LH
1997-08 → 1999-08 ended
RZN168 SCB —
51631-35040 Stopper, Front Suspension Rebound, LH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
51061-35010 Stopper, Front Suspension Rebound, LH
2001-08 → —
KDN165 LHD SCB —
51061-35010 note Stopper, Front Suspension Rebound, LH
2001-08 → —
KDN165 LHD DCB DLX +1 —
51631-35040 Stopper, Front Suspension Rebound, LH
2001-08 → —
KDN165 RHD;KDN165,170,190 LHD (DCB,XTR) —
51701 — Bracket Sub-assy, Cab Mounting, NO.1 RH
51701-35160 Bracket Sub-assy, Cab Mounting, NO.1 RH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
51701-35160 Bracket Sub-assy, Cab Mounting, NO.1 RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
51701-35170 Bracket Sub-assy, Cab Mounting, NO.1 RH
1997-08 → 1999-08 ended
RZN168 SCB —
51701-35170 Bracket Sub-assy, Cab Mounting, NO.1 RH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
51701-35160 Bracket Sub-assy, Cab Mounting, NO.1 RH
2001-08 → —
KDN145,150 —
51701-35170 Bracket Sub-assy, Cab Mounting, NO.1 RH
2001-08 → —
KDN165,170,190 —
51702 — Bracket Sub-assy, Cab Mounting, NO.1 LH
51702-35120 Bracket Sub-assy, Cab Mounting, NO.1 LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
51702-35120 Bracket Sub-assy, Cab Mounting, NO.1 LH
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
51702-35140 Bracket Sub-assy, Cab Mounting, NO.1 LH
1997-08 → 1999-08 ended
RZN168 SCB —
51702-35140 Bracket Sub-assy, Cab Mounting, NO.1 LH
1997-08 → 2001-08 ended
RZN168 DCB;LN165,170,190,RZN173 —
51702-35120 Bracket Sub-assy, Cab Mounting, NO.1 LH
2001-08 → —
KDN145,150 —
51702-35140 Bracket Sub-assy, Cab Mounting, NO.1 LH
2001-08 → —
KDN165,170,190 —
51703 — Bracket Sub-assy, Cab Mounting, NO.2, RH
51703-35120 Bracket Sub-assy, Cab Mounting, NO.2, RH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
51703-35120 Bracket Sub-assy, Cab Mounting, NO.2, RH
1997-08 → 2001-08 ended
LN145 RHD CBU;LN145,150 LHD +1 —
51703-35130 Bracket Sub-assy, Cab Mounting, NO.2, RH
1997-08 → 1999-08 ended
RZN168 SCB —
51703-35130 Bracket Sub-assy, Cab Mounting, NO.2, RH
1997-08 → 2001-08 ended
LN165,170,RZN173 SCB,XTR —
51703-35140 Bracket Sub-assy, Cab Mounting, NO.2, RH
1997-08 → 2001-08 ended
LN145 DCB —
51703-35150 Bracket Sub-assy, Cab Mounting, NO.2, RH
1997-08 → 2001-08 ended
LN165,190,RZN168 DCB —
51703-35120 Bracket Sub-assy, Cab Mounting, NO.2, RH
2001-08 → —
KDN145,150 SCB,XTR —
51703-35130 Bracket Sub-assy, Cab Mounting, NO.2, RH
2001-08 → —
KDN165,170 SCB,XTR —
51703-35140 Bracket Sub-assy, Cab Mounting, NO.2, RH
2001-08 → —
KDN145 DCB —
51703-35150 Bracket Sub-assy, Cab Mounting, NO.2, RH
2001-08 → —
KDN165,190 DCB —
51704 — Bracket Sub-assy, Cab Mounting, NO.2 LH
51703-35120 Bracket Sub-assy, Cab Mounting, NO.2 LH
1997-08 → 2001-08 ended
LN145 RHD CBU;LN145,150 LHD +1 —
51703-35120 Bracket Sub-assy, Cab Mounting, NO.2 LH
1997-08 → 1999-08 ended
LN145 RHD IV3 —
51704-35120 Bracket Sub-assy, Cab Mounting, NO.2 LH
1997-08 → 2001-08 ended
LN165,170,RZN173 SCB,XTR —
51704-35120 Bracket Sub-assy, Cab Mounting, NO.2 LH
1997-08 → 1999-08 ended
RZN168 SCB —
51704-35130 Bracket Sub-assy, Cab Mounting, NO.2 LH
1997-08 → 2001-08 ended
LN145 DCB —
51704-35140 Bracket Sub-assy, Cab Mounting, NO.2 LH
1997-08 → 2001-08 ended
LN165,190,RZN168 DCB —
51703-35120 Bracket Sub-assy, Cab Mounting, NO.2 LH
2001-08 → —
KDN145,150 SCB,XTR —
51704-35120 Bracket Sub-assy, Cab Mounting, NO.2 LH
2001-08 → —
KDN165,170 SCB,XTR —
51704-35130 Bracket Sub-assy, Cab Mounting, NO.2 LH
2001-08 → —
KDN145 DCB —
51704-35140 Bracket Sub-assy, Cab Mounting, NO.2 LH
2001-08 → —
KDN165,190 DCB —
51707C — Bracket Sub-assy, Cab Mounting, NO.4 RH
51707-35080 Bracket Sub-assy, Cab Mounting, NO.4 RH
1997-08 → 2001-08 ended
LN145,165,190,RZN168 DCB —
51707-35080 Bracket Sub-assy, Cab Mounting, NO.4 RH
2001-08 → —
KDN145,165,190 DCB —
51708A — Bracket Sub-assy, Cab Mounting, NO.4 LH
51708-35080 Bracket Sub-assy, Cab Mounting, NO.4 LH
1997-08 → 2001-08 ended
LN145,165,190,RZN168 DCB —
51708-35080 Bracket Sub-assy, Cab Mounting, NO.4 LH
2001-08 → —
KDN145,165,190 DCB —
51755 — Bracket, Body Support, NO.3 RH
51755-35010 Bracket, Body Support, NO.3 RH
1997-08 → 2001-08 ended
LN145 LHD;RZN168 DCB;LN145 RHD +1 —
51755-35010 Bracket, Body Support, NO.3 RH
1997-08 → 1999-08 ended
RZN168 SCB;LN145 RHD IV3 —
51755-35010 Bracket, Body Support, NO.3 RH
2001-08 → —
KDN145,150,165,170,190 —
51756 — Bracket, Body Support, NO.3 LH
51755-35010 Bracket, Body Support, NO.3 LH
1997-08 → 1999-08 ended
RZN168 SCB;LN145 RHD IV3 —
51755-35010 Bracket, Body Support, NO.3 LH
1997-08 → 2001-08 ended
LN145 LHD;RZN168 DCB;LN145 RHD +1 —
51755-35010 Bracket, Body Support, NO.3 LH
2001-08 → —
KDN145,150,165,170,190 —
51963A — Hook, Transport, Front RH
51963-35070 Hook, Transport, Front RH
1997-08 → 1999-08 ended
RZN168 SCB;LN145 RHD IV3 —
51963-35070 Hook, Transport, Front RH
1997-08 → 2001-08 ended
LN145 LHD;RZN168 DCB;LN145 RHD +1 —
51963-35070 Hook, Transport, Front RH
2001-08 → —
KDN145,150,165,170,190 —
51964A — Hook, Transport, Front LH
51964-35050 Hook, Transport, Front LH
1997-08 → 1999-08 ended
RZN168 SCB;LN145 RHD IV3 —
51964-35050 Hook, Transport, Front LH
1997-08 → 2001-08 ended
LN145 LHD;RZN168 DCB;LN145 RHD +1 —
51964-35050 Hook, Transport, Front LH
2001-08 → —
KDN145,150,165,170,190 —
77512A — Bracket, Fuel Tank, Rear
77512-35090 Bracket, Fuel Tank, Rear
1997-08 → 1999-08 ended
LN145 RHD IV3 —
77512-35090 Bracket, Fuel Tank, Rear
1997-08 → 2001-08 ended
LN145,150 LHD;LN145 RHD CBU —
77512-35090 Bracket, Fuel Tank, Rear
2001-08 → —
KDN145,150,165,170,190 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
