Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

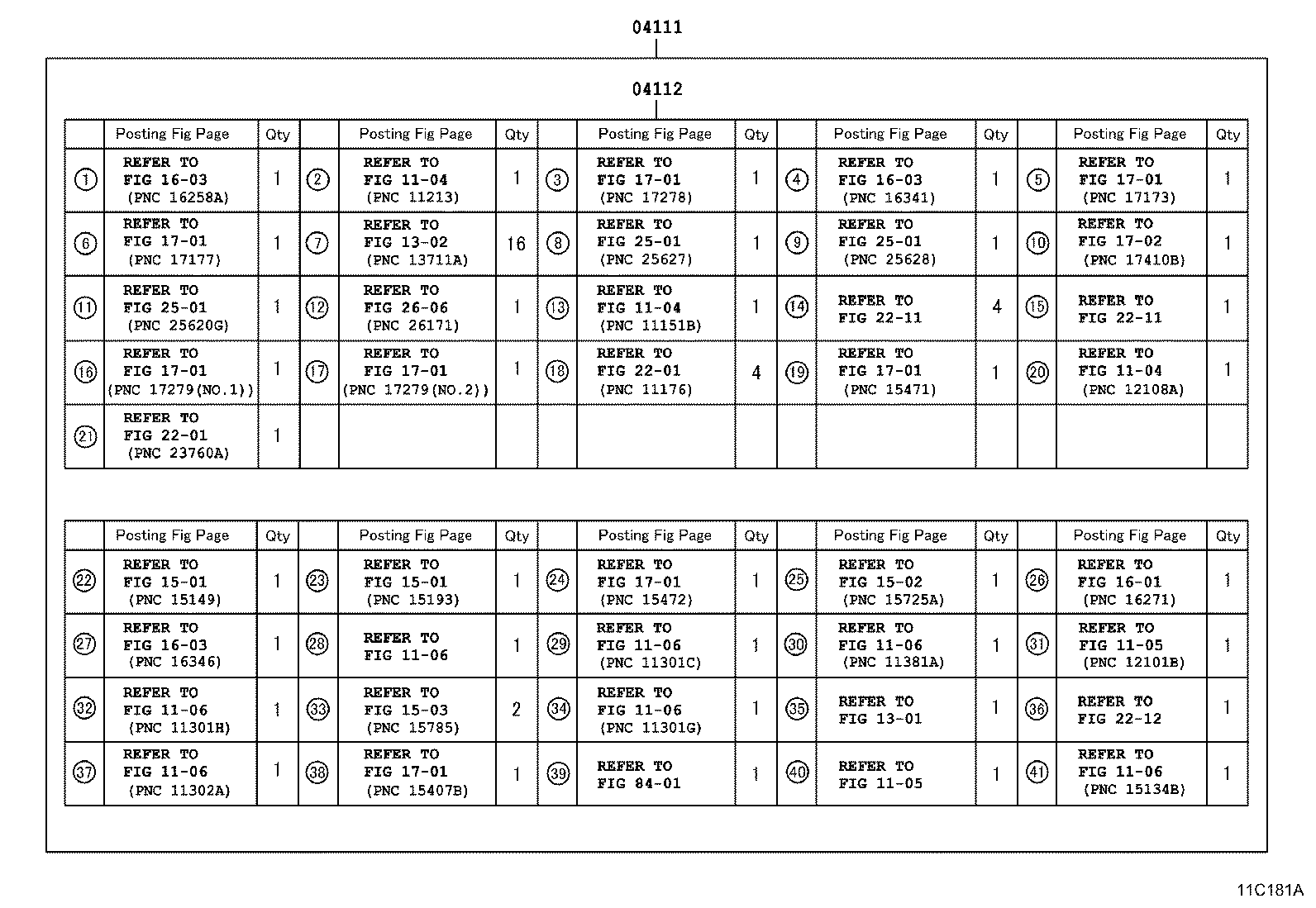

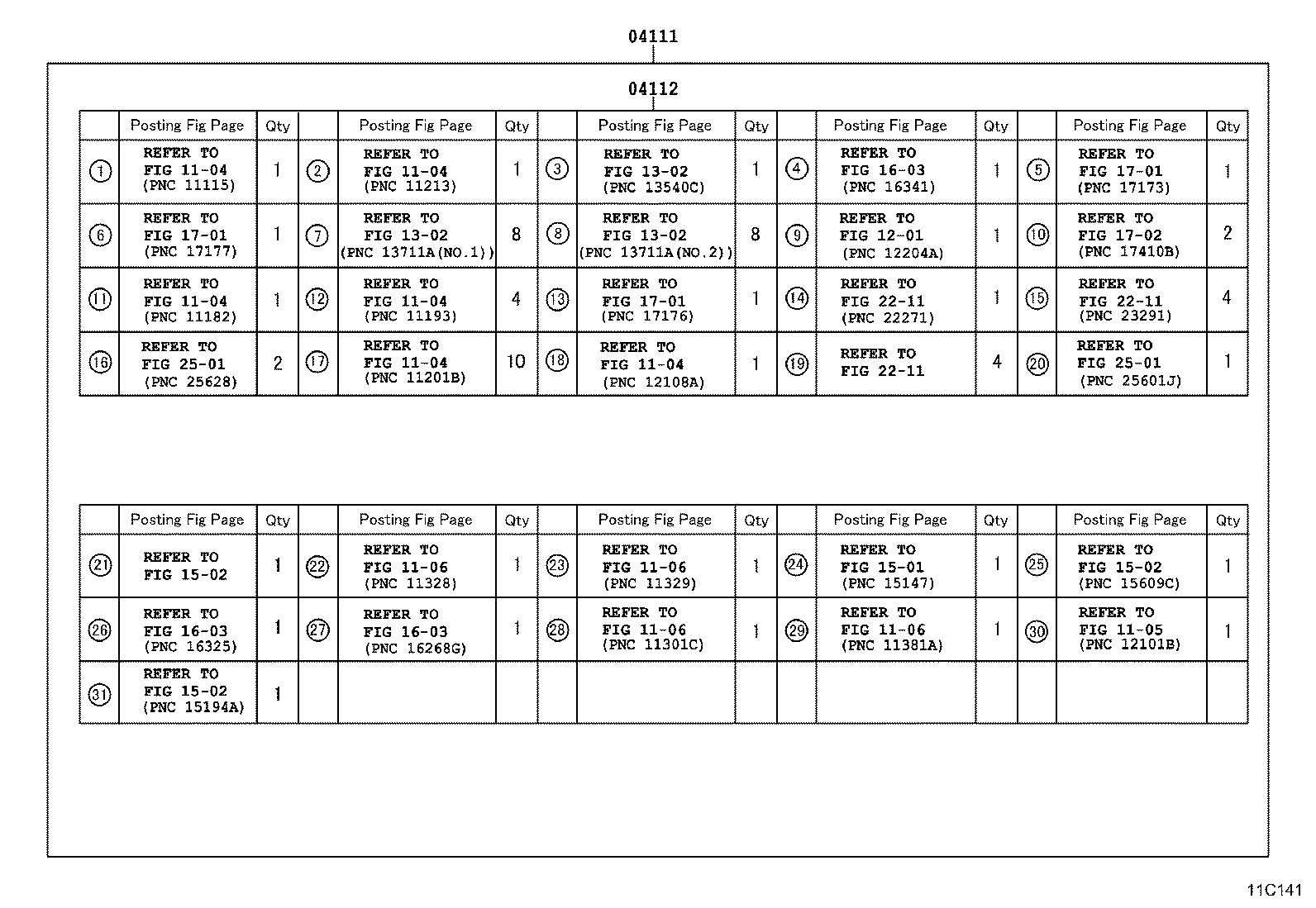

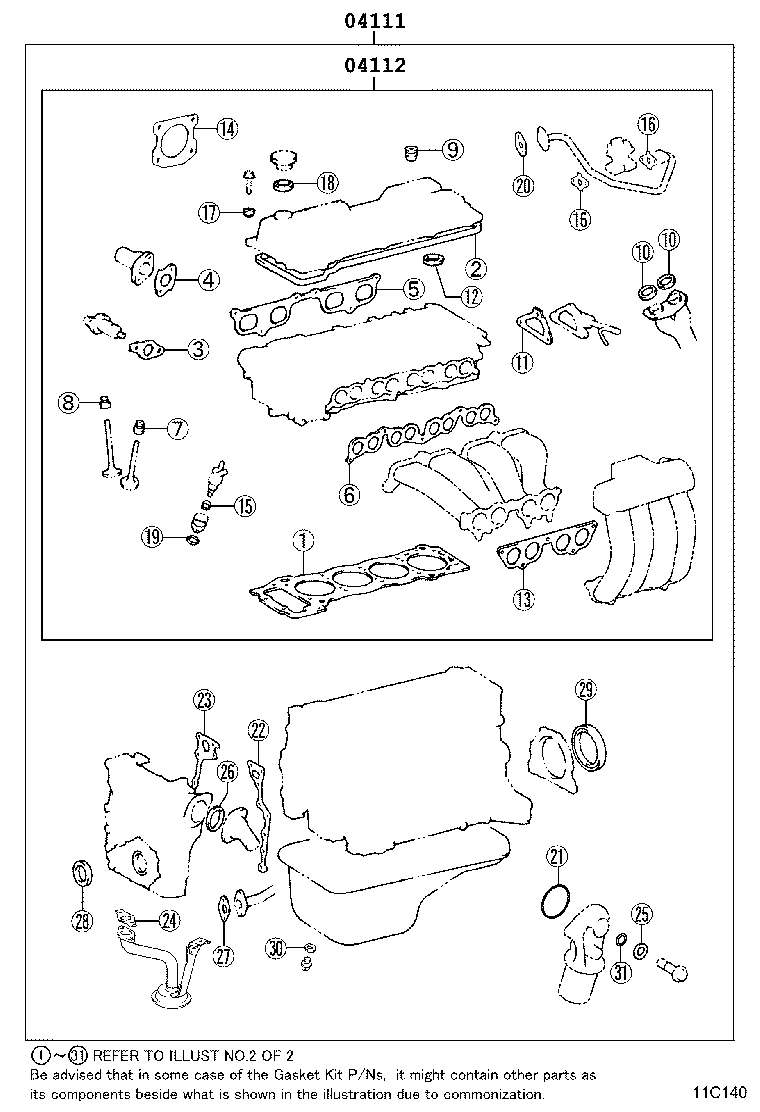

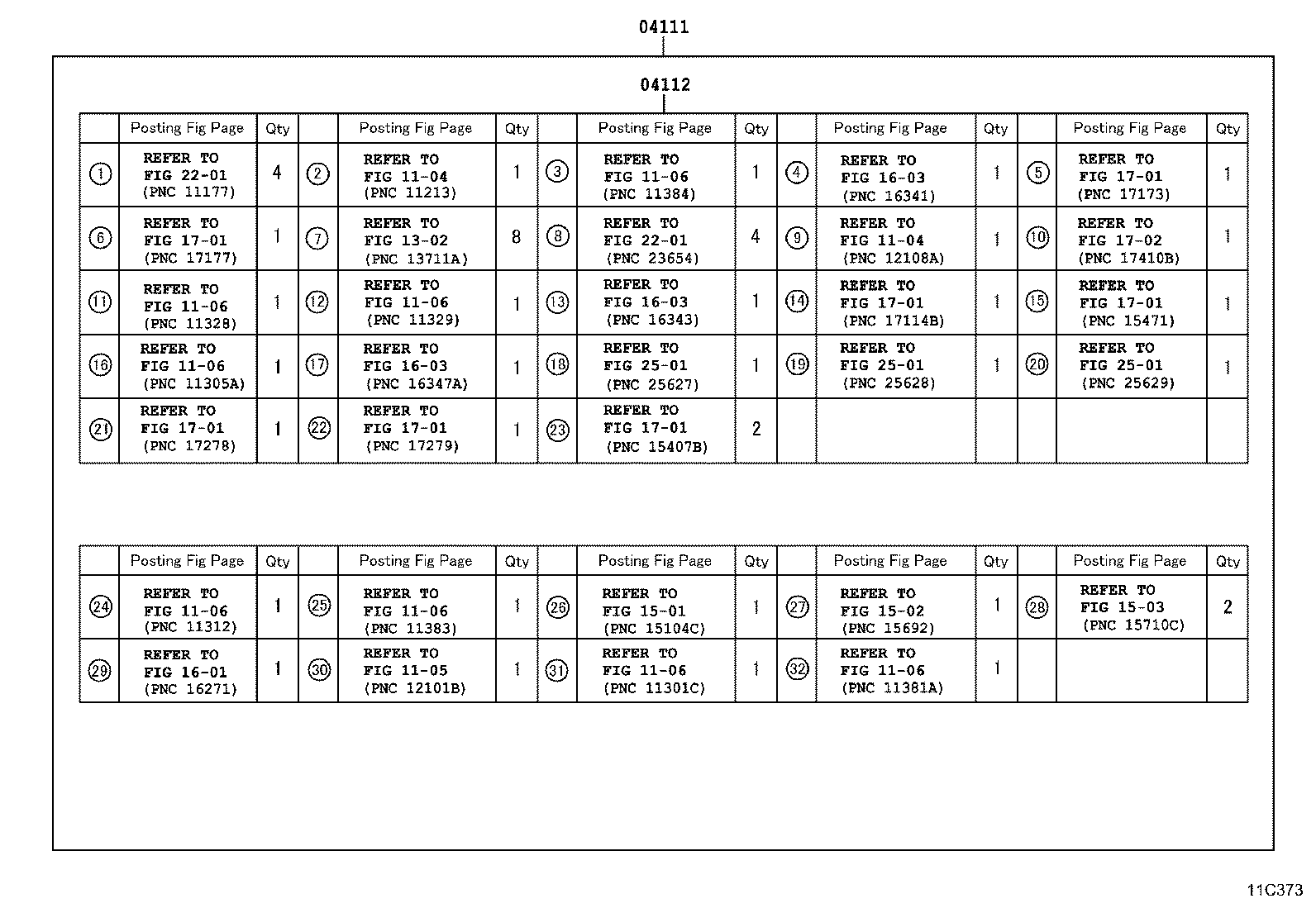

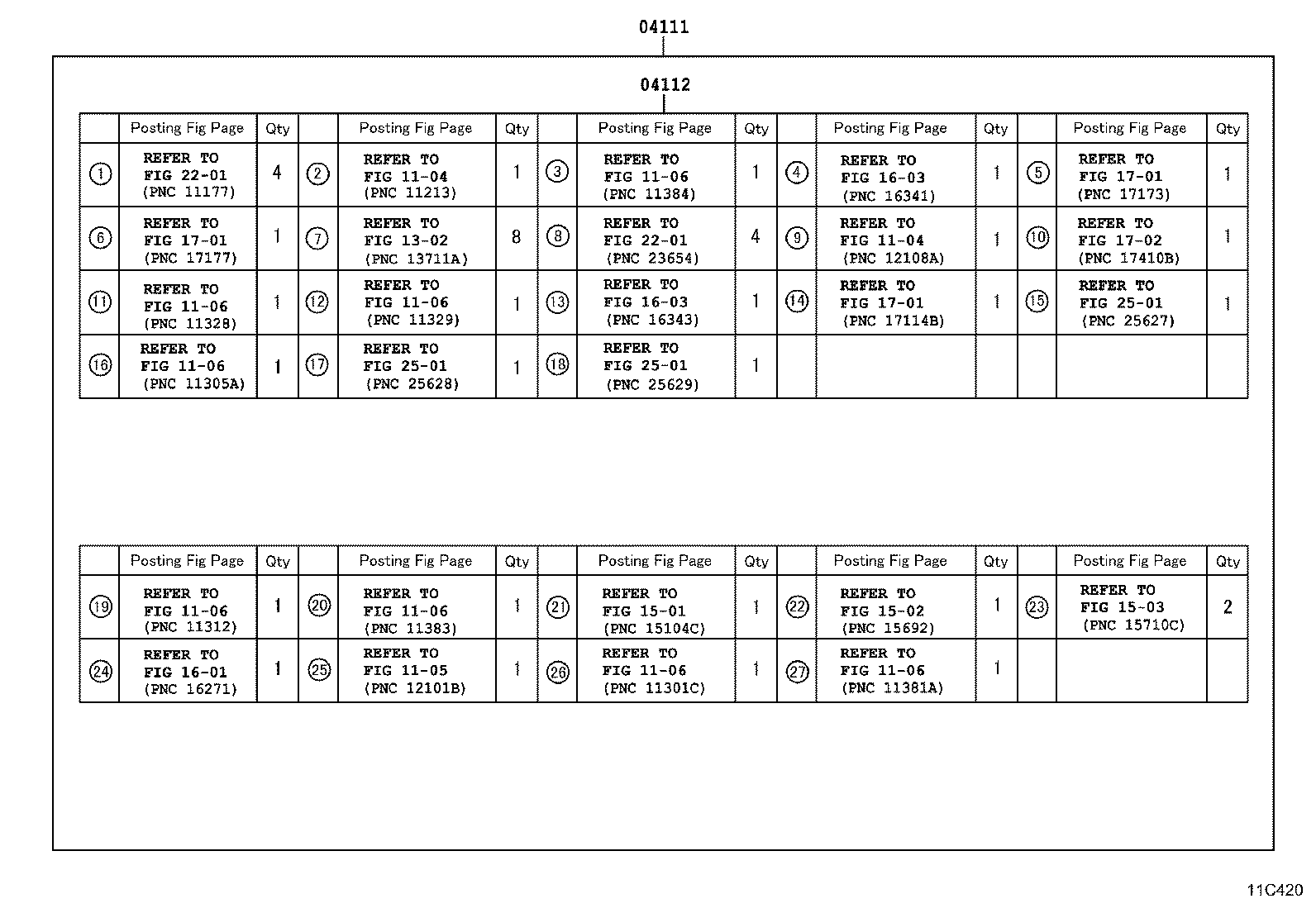

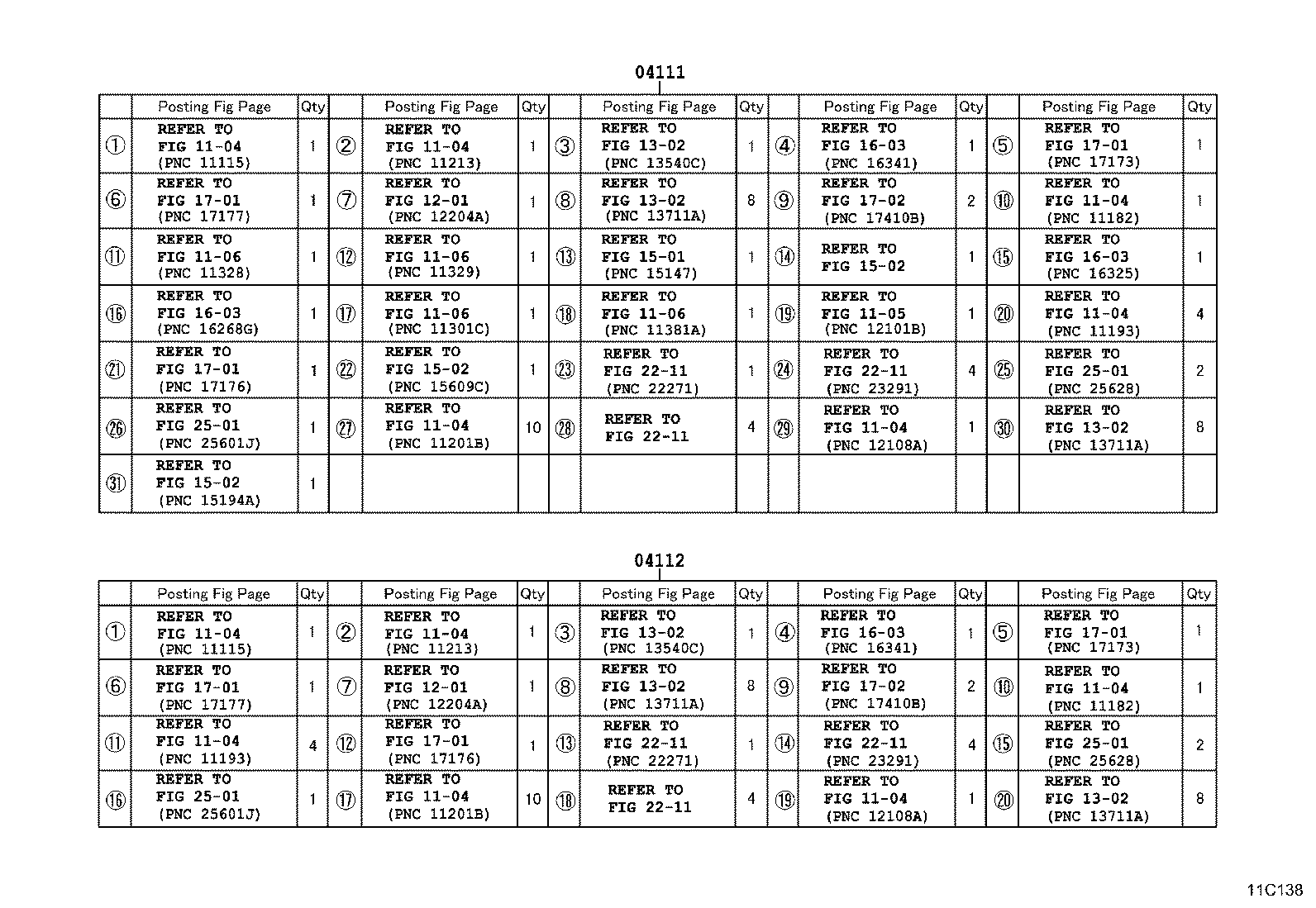

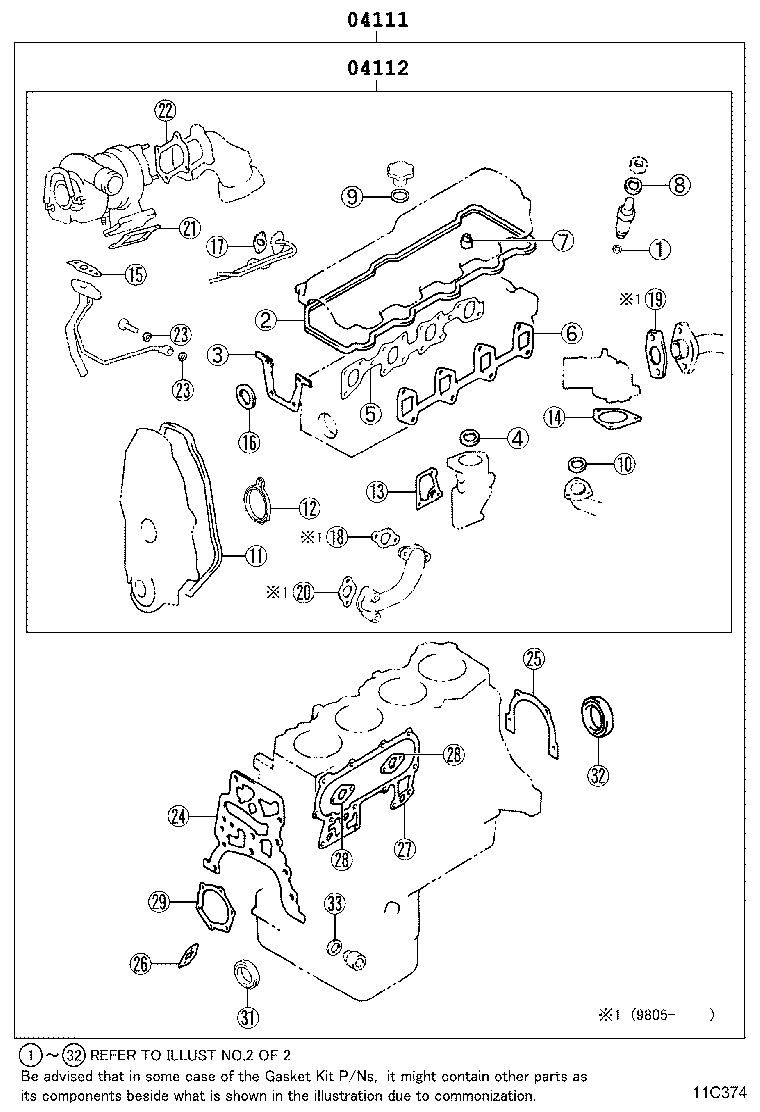

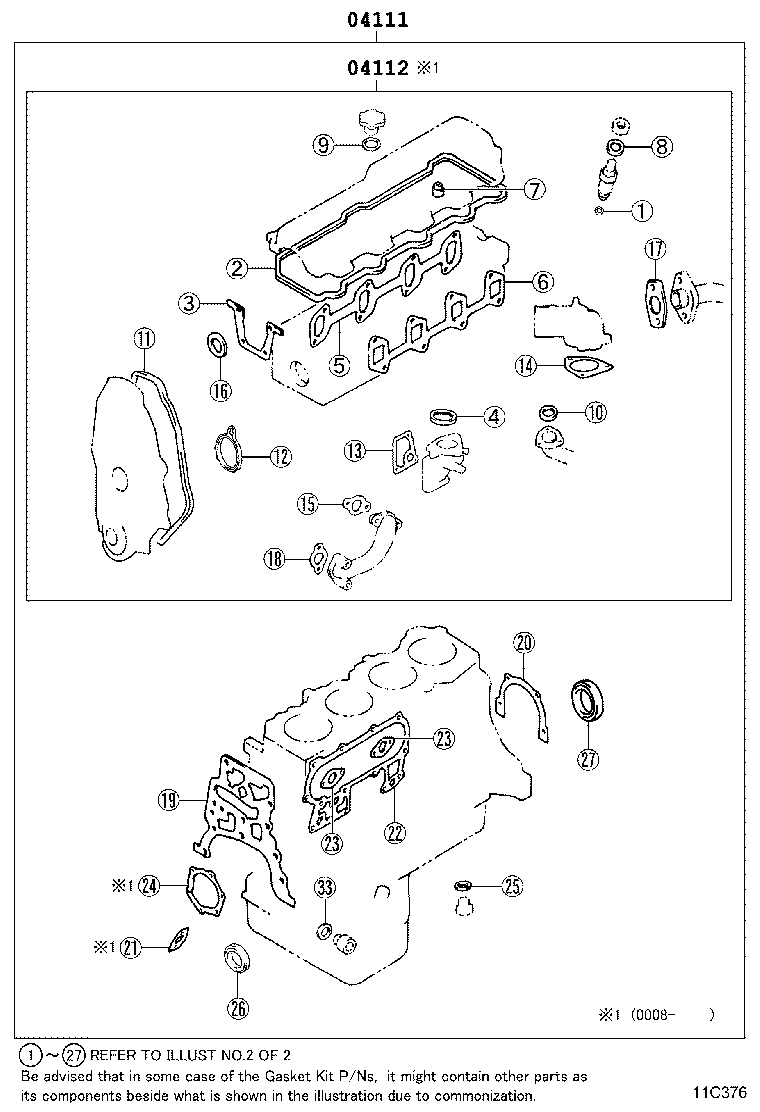

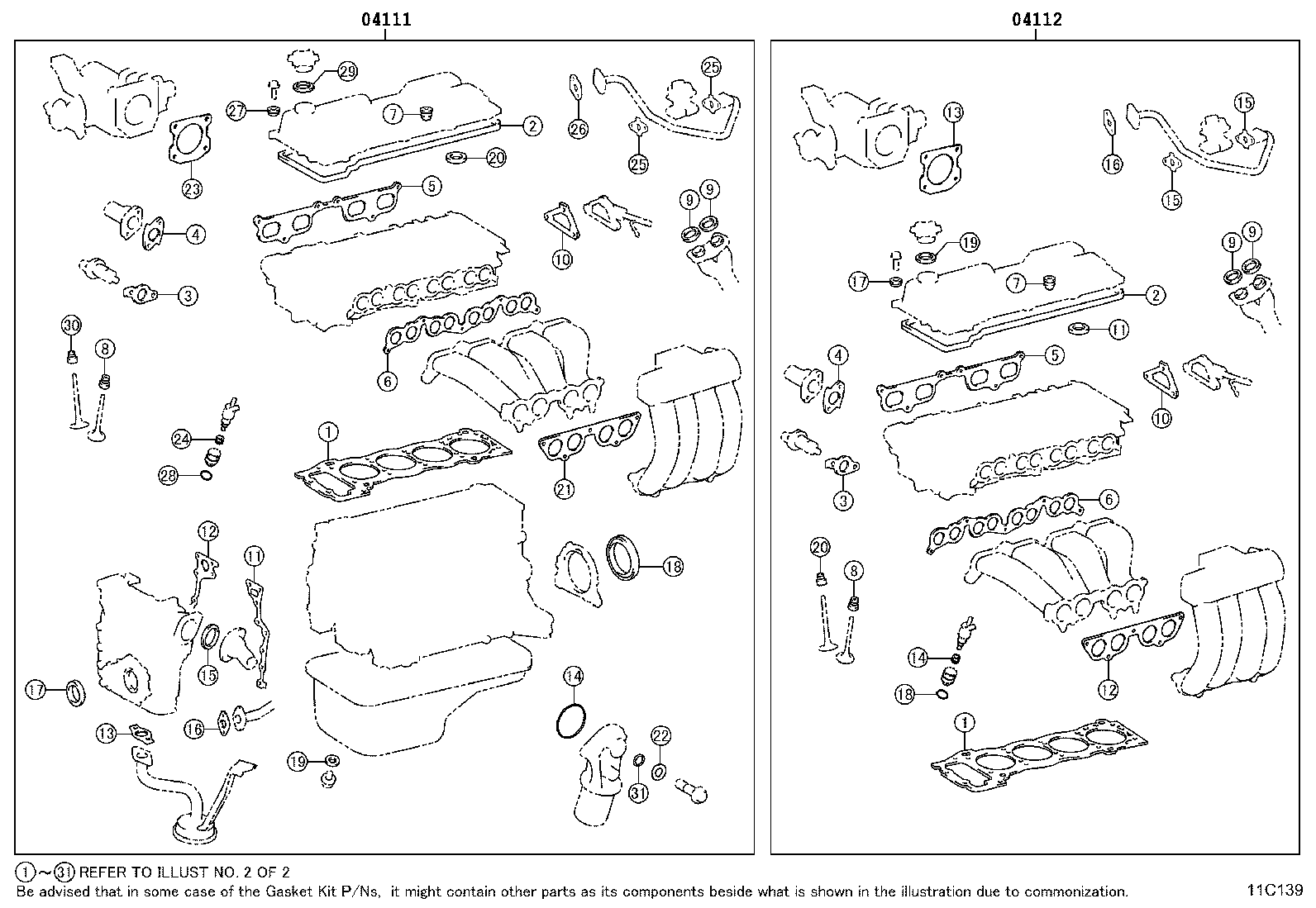

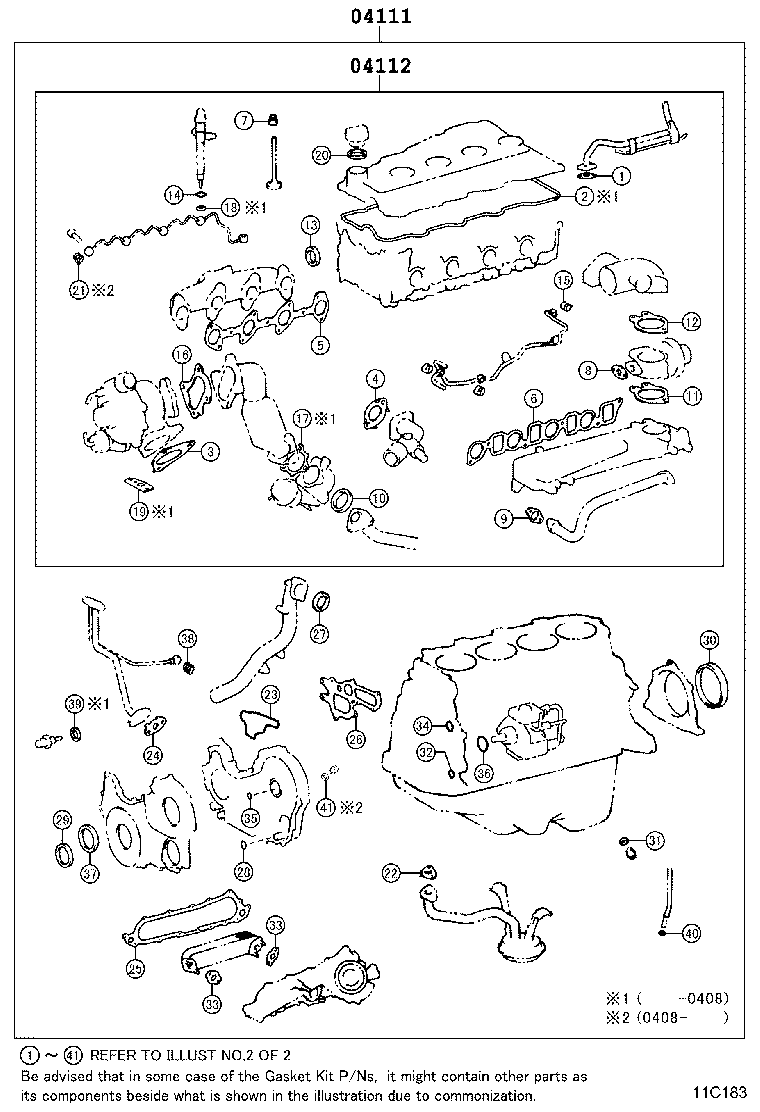

Figure 11C180 11C180 2001-08 → — Figure 11C181A 11C181A 2001-08 → — Figure 11C183 11C183 2001-08 → — Figure 11C182A 11C182A 2001-08 → — Figure 11C374 11C374 1997-08 → 2001-08 Figure 11C373 11C373 1997-08 → 2001-08 Figure 11C376 11C376 1997-08 → 2001-08 Figure 11C420 11C420 1997-08 → 2001-08 Figure 11C139 11C139 1997-08 → 1999-03 Figure 11C138 11C138 1997-08 → 1999-03 Figure 11C140 11C140 1999-03 → 2001-08 Figure 11C141 11C141 1999-03 → 2001-08

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
