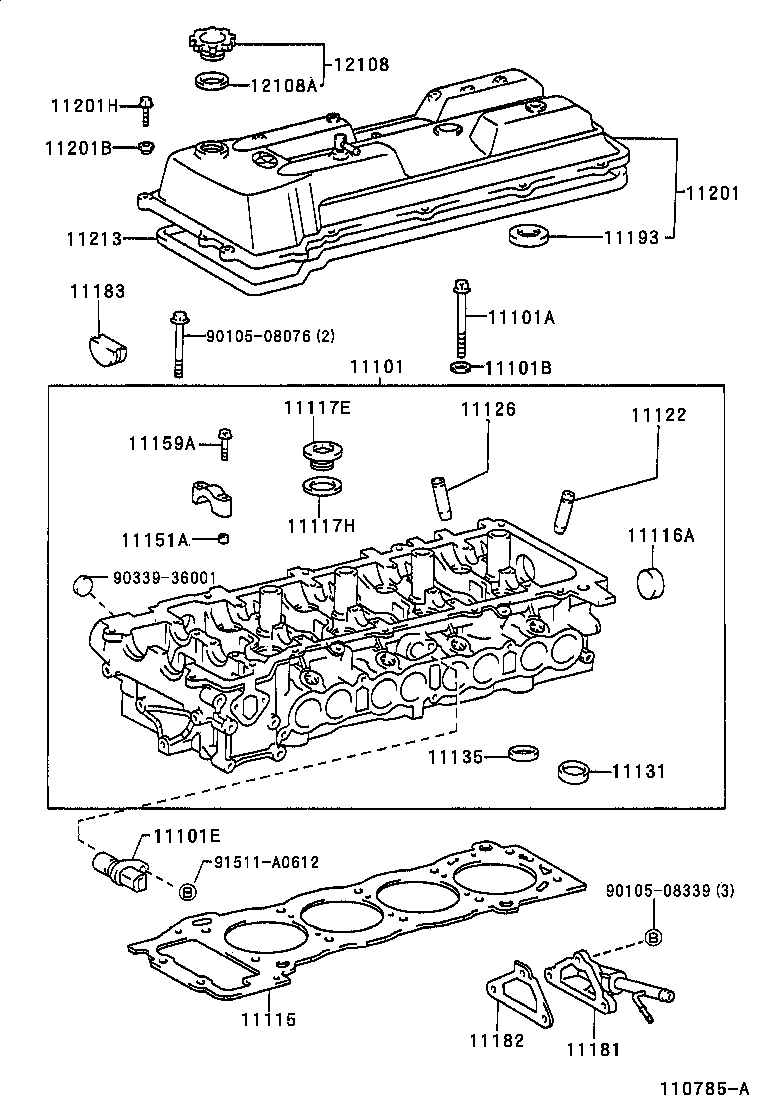

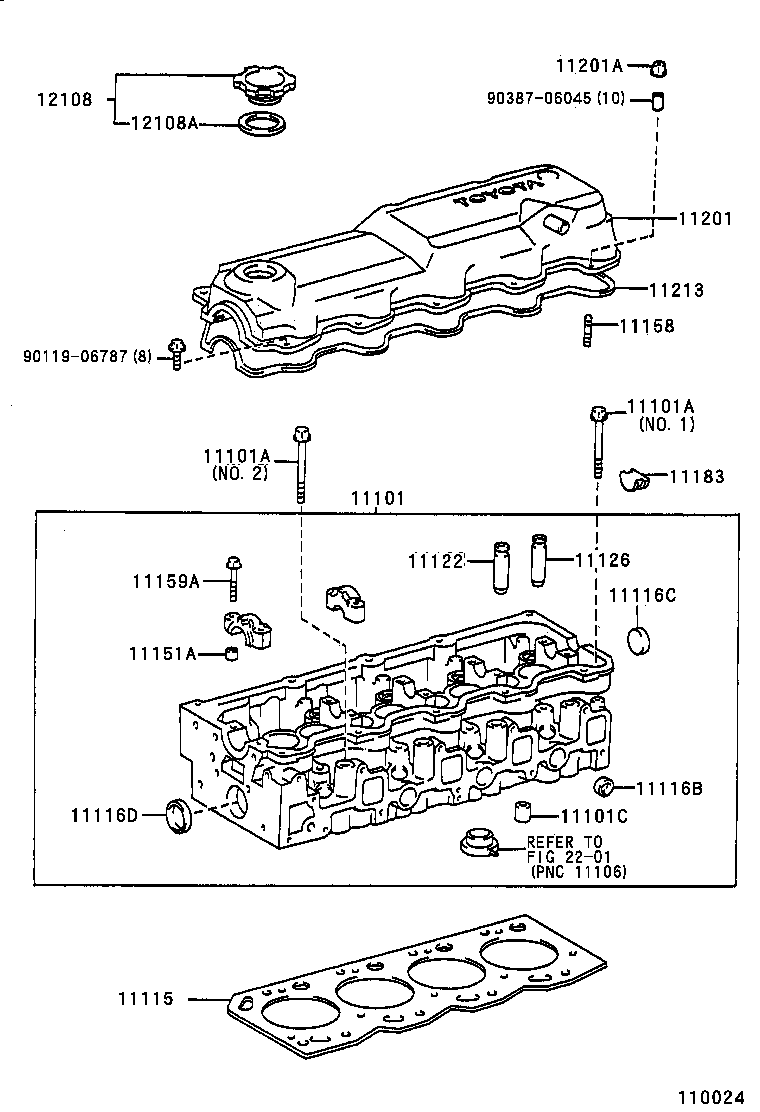

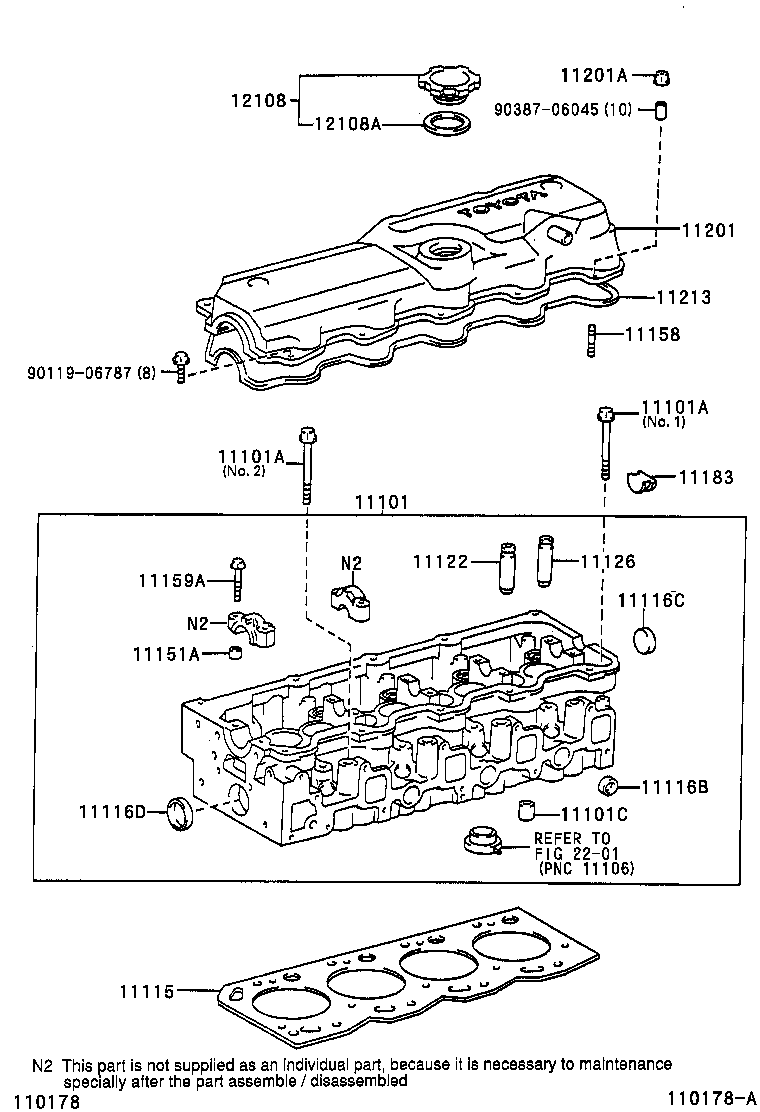

Cylinder Head
36 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101C | Tube(FOR CYLINDER HEAD) |
| 11101E | Sensor, Cam Position |
| 11101U | Spacer(FOR CYLINDER HEAD SET BOLT) |
| 11115 | Gasket, Cylinder Head |
| 11116A | Plug, Tight, NO.1 |
| 11116B | Plug, Tight, NO.2 |
| 11116C | Plug, Tight, NO.3 |
| 11116D | Plug, Tight, NO.4 |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11122 | Bush, Intake Valve Guide |
| 11126 | Bush, Exhaust Valve Guide |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11151B | Seal, Oil(FOR CAMSHAFT SETTING) |
| 11155A | Pin, Ring W/Head |
| 11158 | Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER) |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11181 | Plate, Cylinder Head, Rear |
| 11182 | Gasket, Cylinder Head Rear Plate |
| 11183 | Plug, Semicircular |
| 11193 | Gasket, Spark Plug Tube |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201A | Nut, Cap(FOR CYLINDER HEAD COVER) |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11213 | Gasket, Cylinder Head Cover |
| 11229 | Gasket, Cylinder Head Cover, NO.3 |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12282D | Hanger, Engine, NO.2 |
| 12284A | Hanger, Engine, NO.1 Upper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
