Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

32 part groups · 9 illustrations

Illustrations

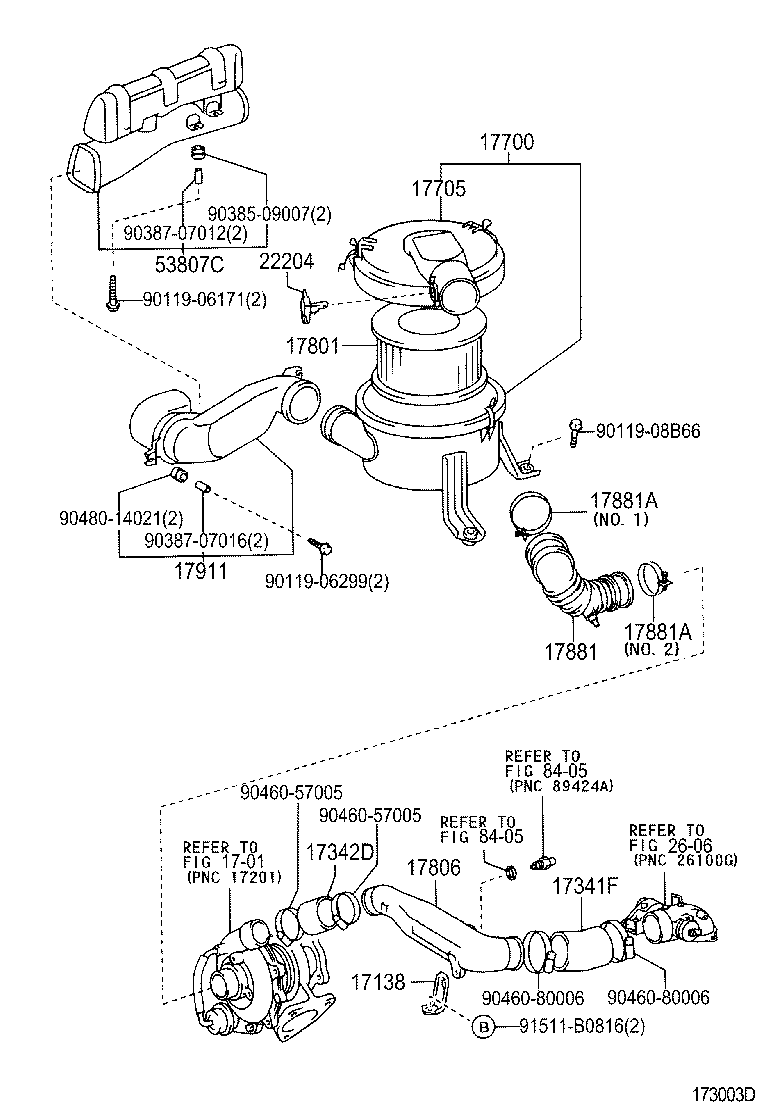

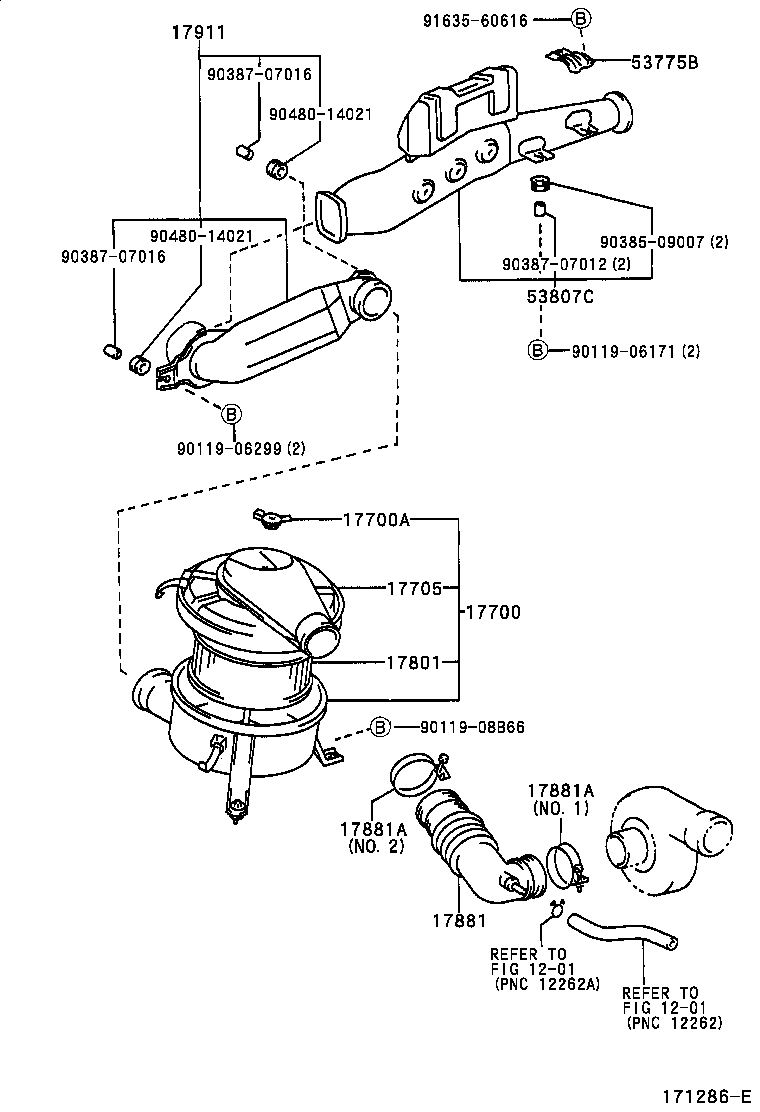

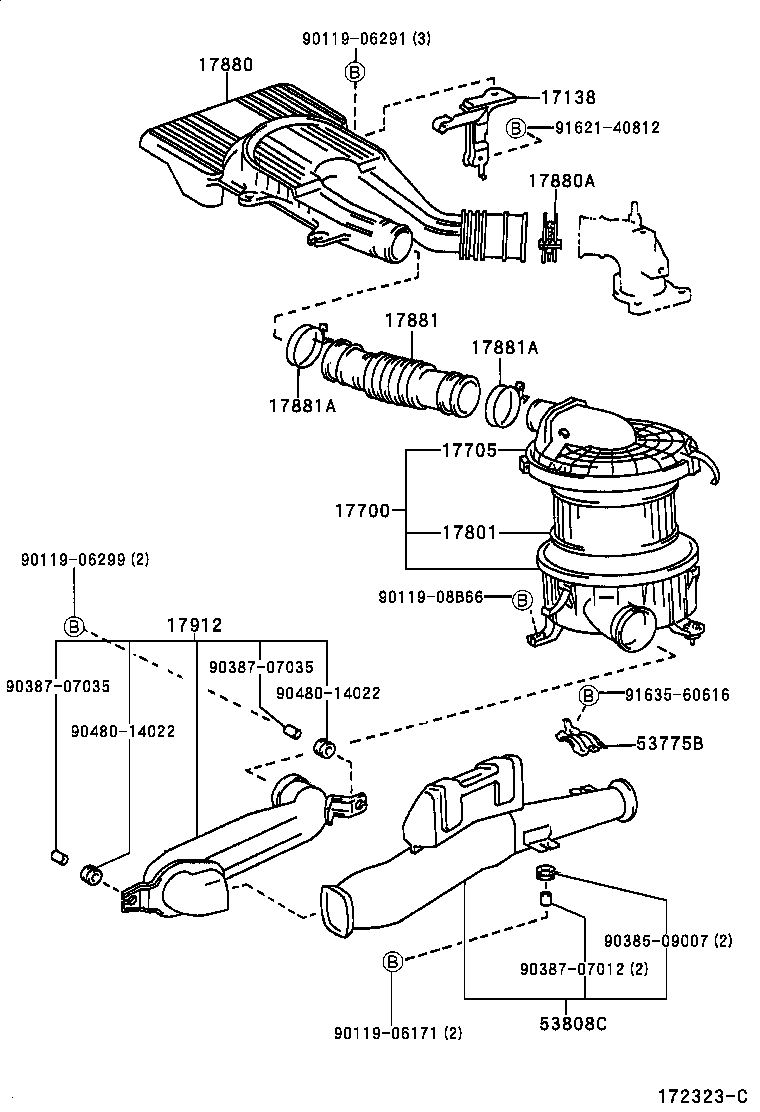

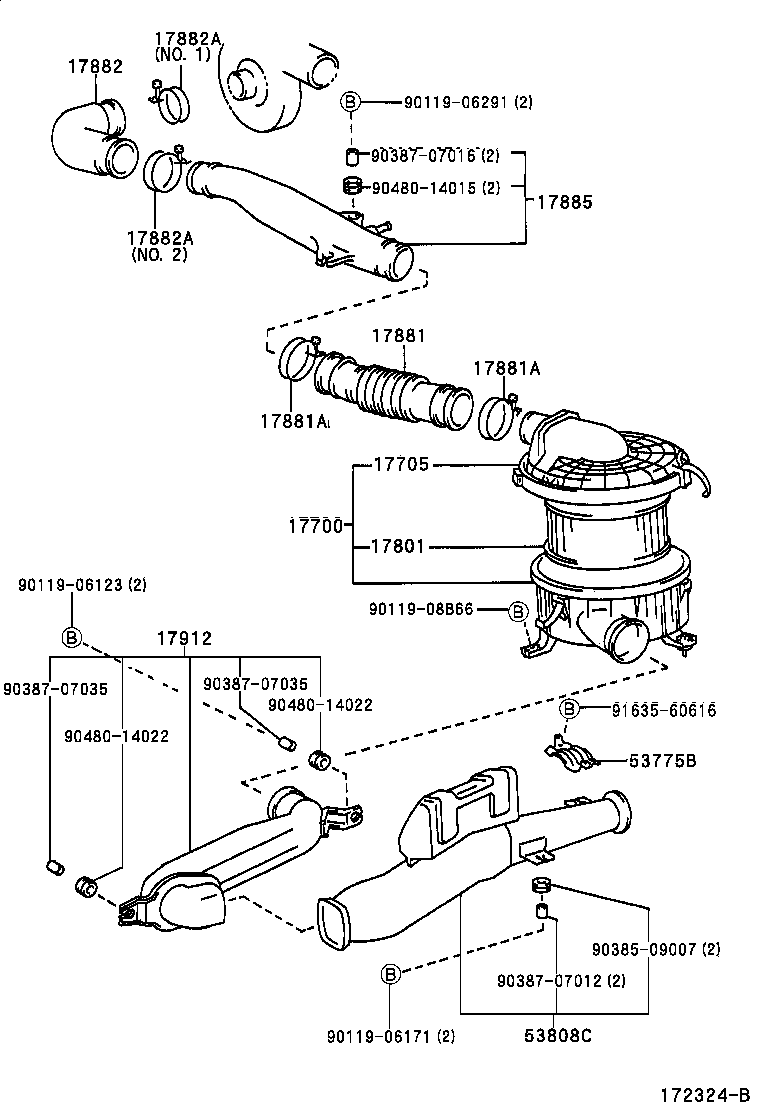

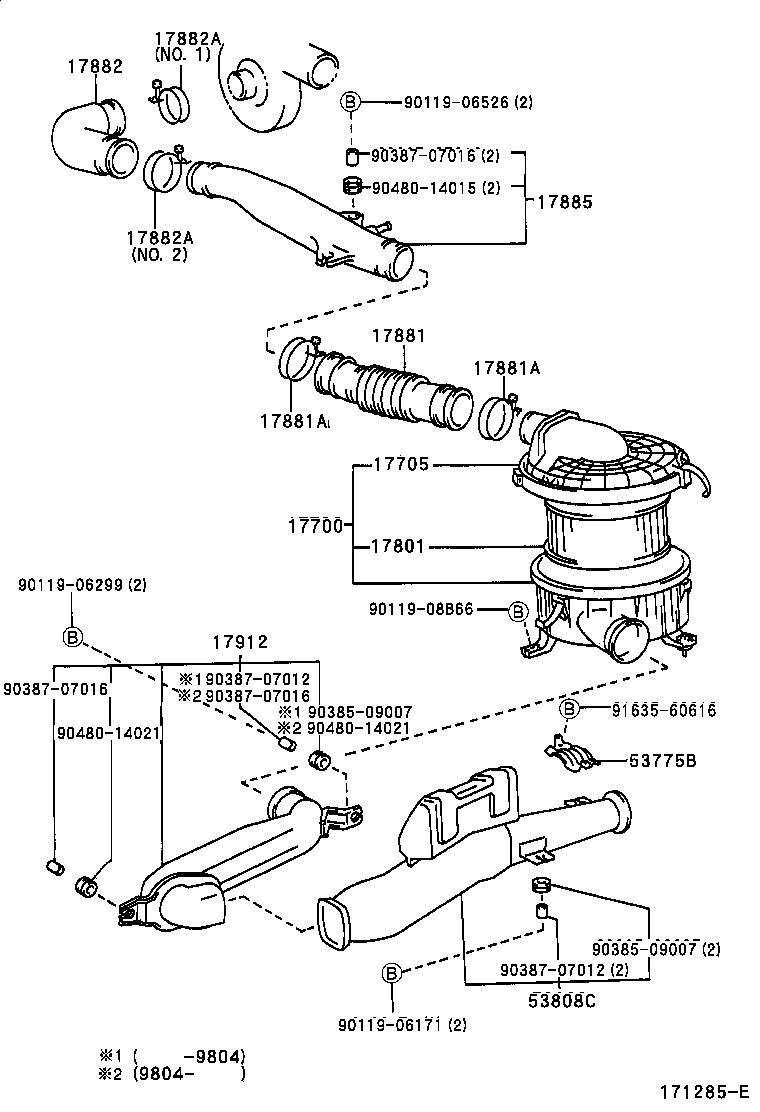

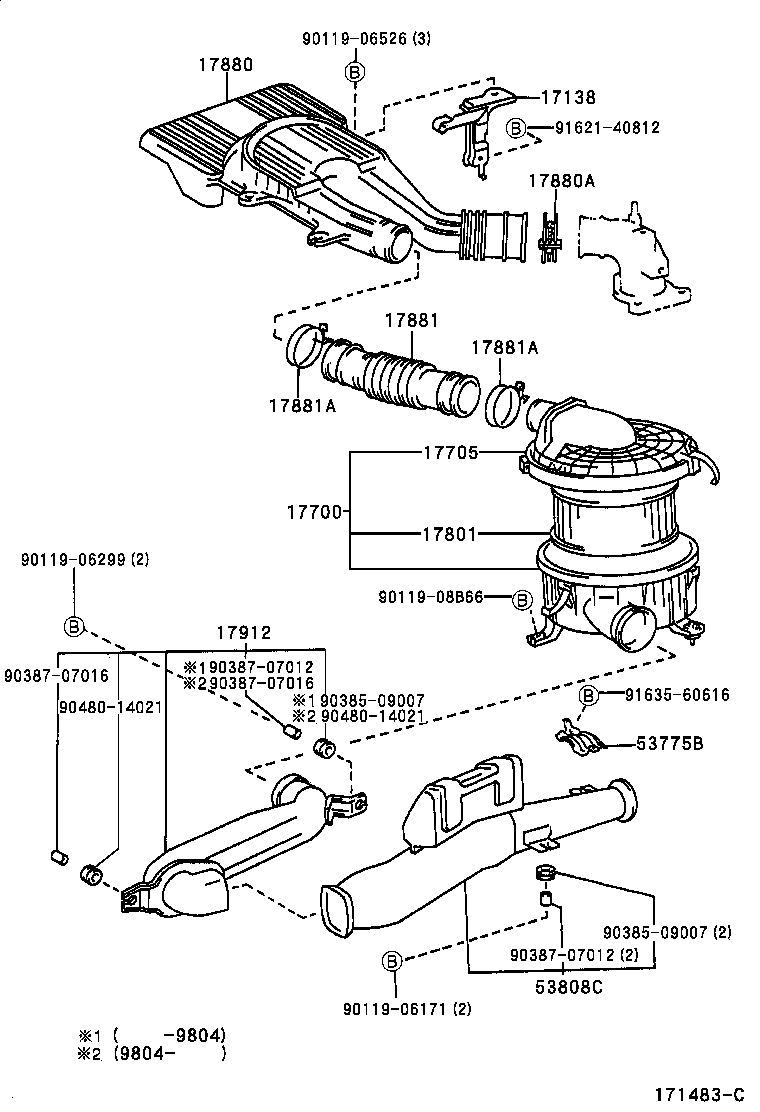

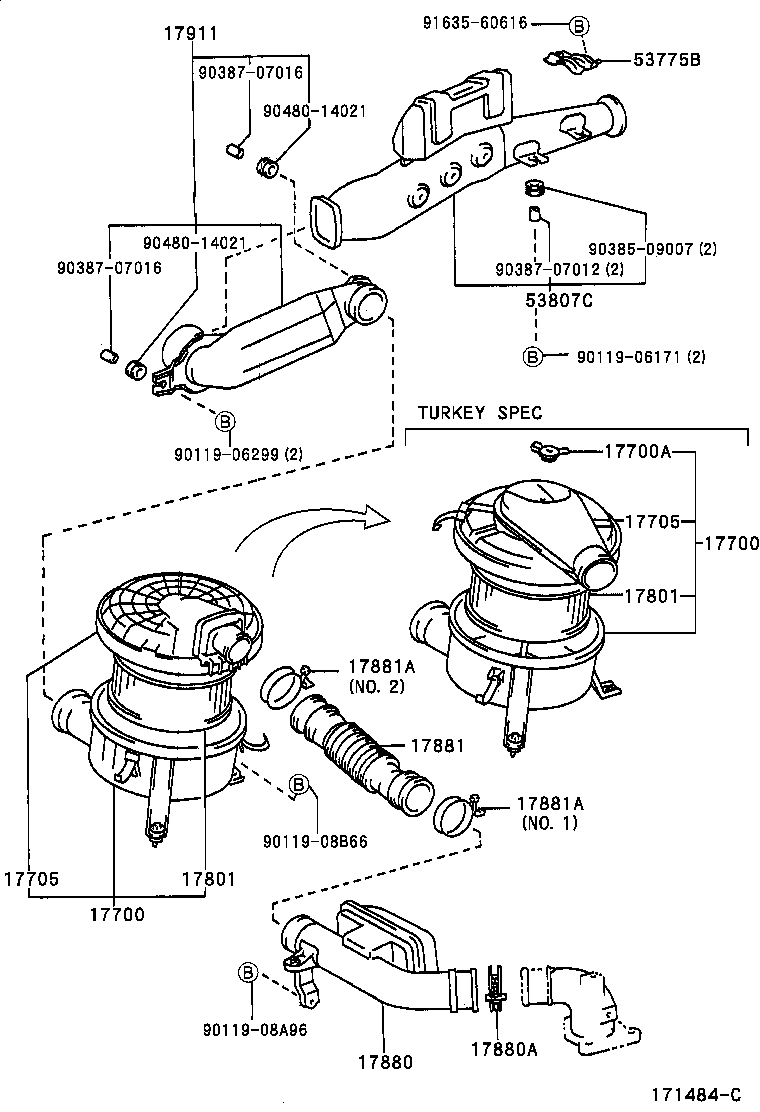

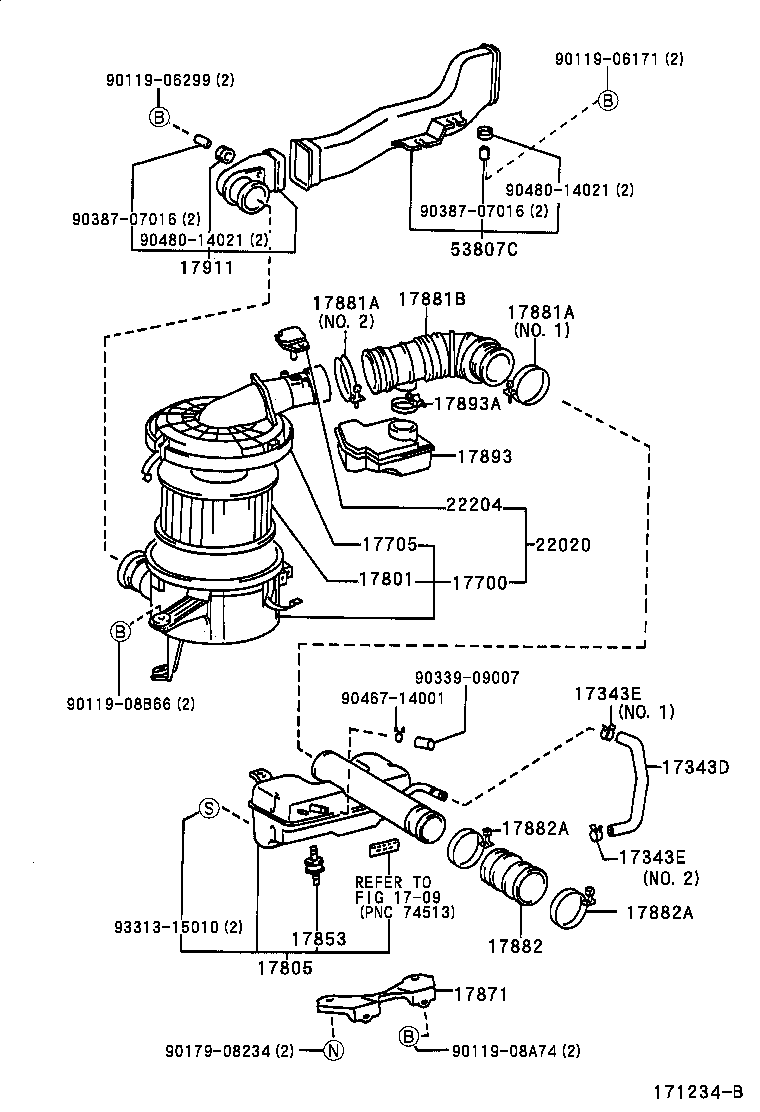

Figure 173002E 173002E 2001-08 → — Figure 173003D 173003D 2001-08 → — Figure 171483C 171483C 1997-08 → 1999-08 Figure 171285E 171285E 1997-08 → 1999-08 Figure 171484C 171484C 1997-08 → 2001-08 Figure 171286E 171286E 1997-08 → 2001-08 Figure 172323C 172323C 1999-08 → 2001-08 Figure 172324B 172324B 1999-08 → 2001-08 Figure 171234B 171234B 1997-08 → —

Part groups

PNCDescription
17138 Stay, Intake Pipe OR Hose
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806D Clamp(FOR AIR CLEANER PIPE)
17853 Insulator, Air Cleaner Bracket
17871 Stay, Air Connector
17878 Pipe, Intake Air Connector, NO.3
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881B Hose, Air Cleaner, NO.1
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17885 Pipe, Air Cleaner
17893 Resonator, Intake Air
17893A Clamp, Hose
17911 Duct, Cool Air Intake, NO.1
17912 Duct, Cool Air Intake, NO.2
22020 Meter Assy, Air Flow W/Air Cleaner
22204 Meter Sub-assy, Intake Air Flow
53775B Bracket, Cool Air Intake Duct Mounting
53807C Duct Sub-assy, Front Fender Air, RH
53808C Duct Sub-assy, Front Fender Air, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
