Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

27 part groups · 4 illustrations

Illustrations

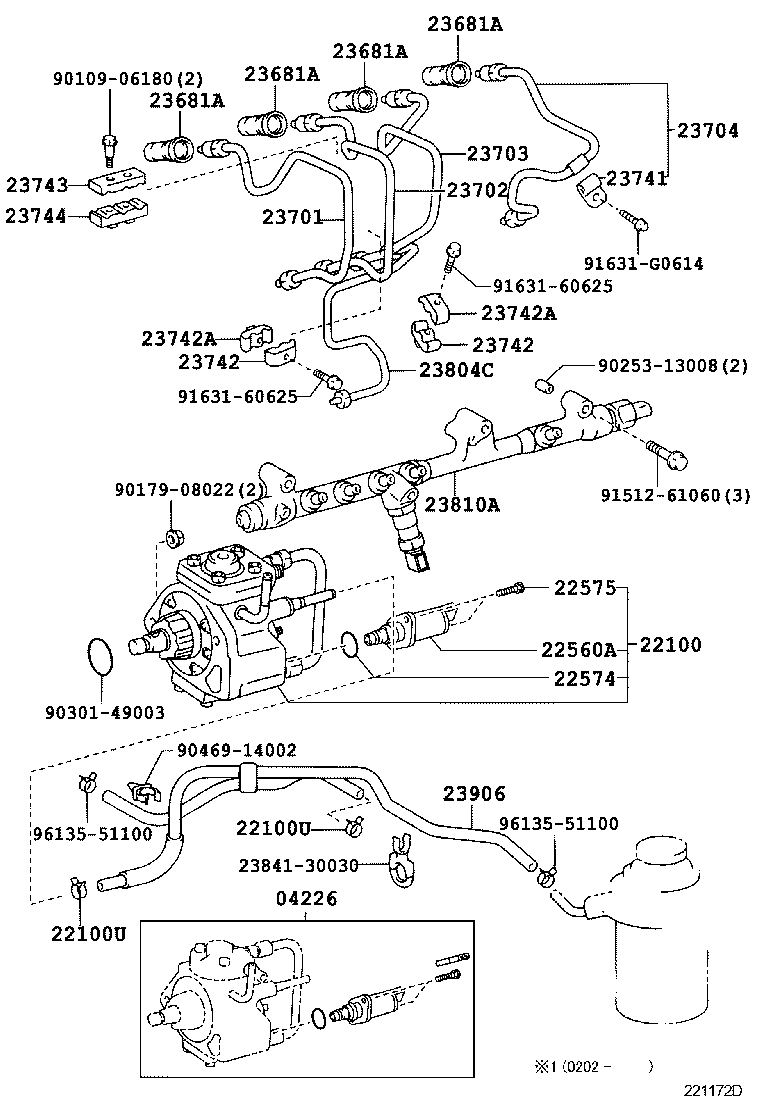

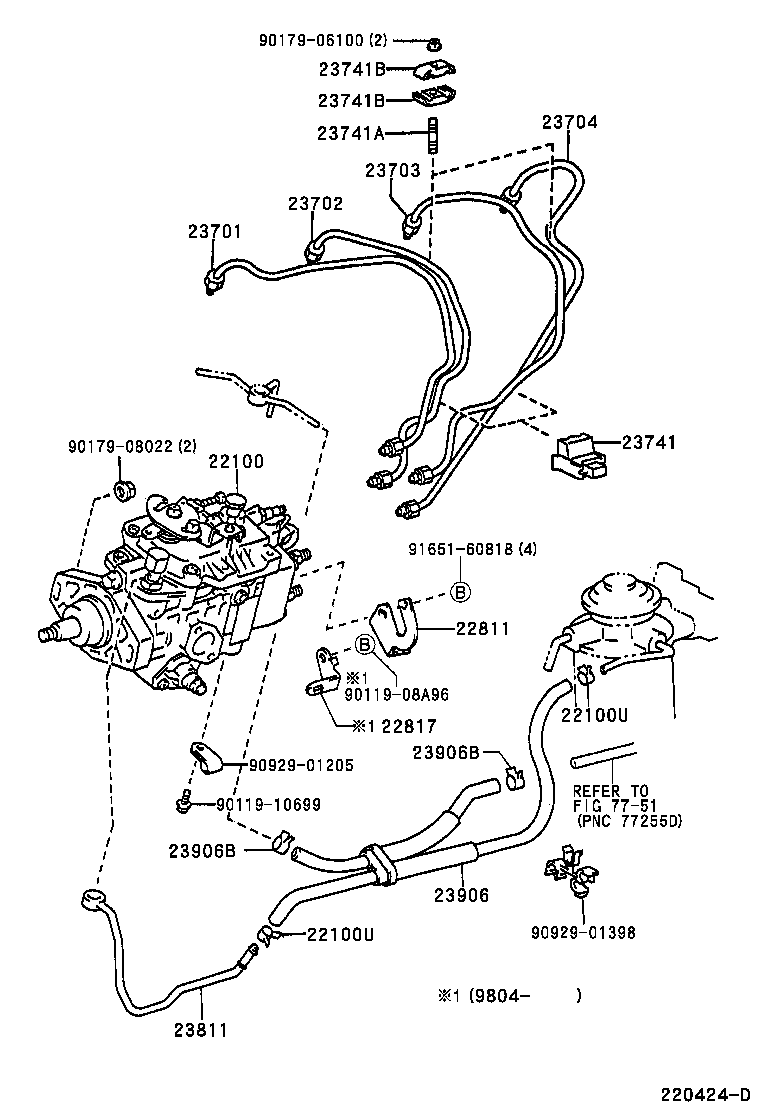

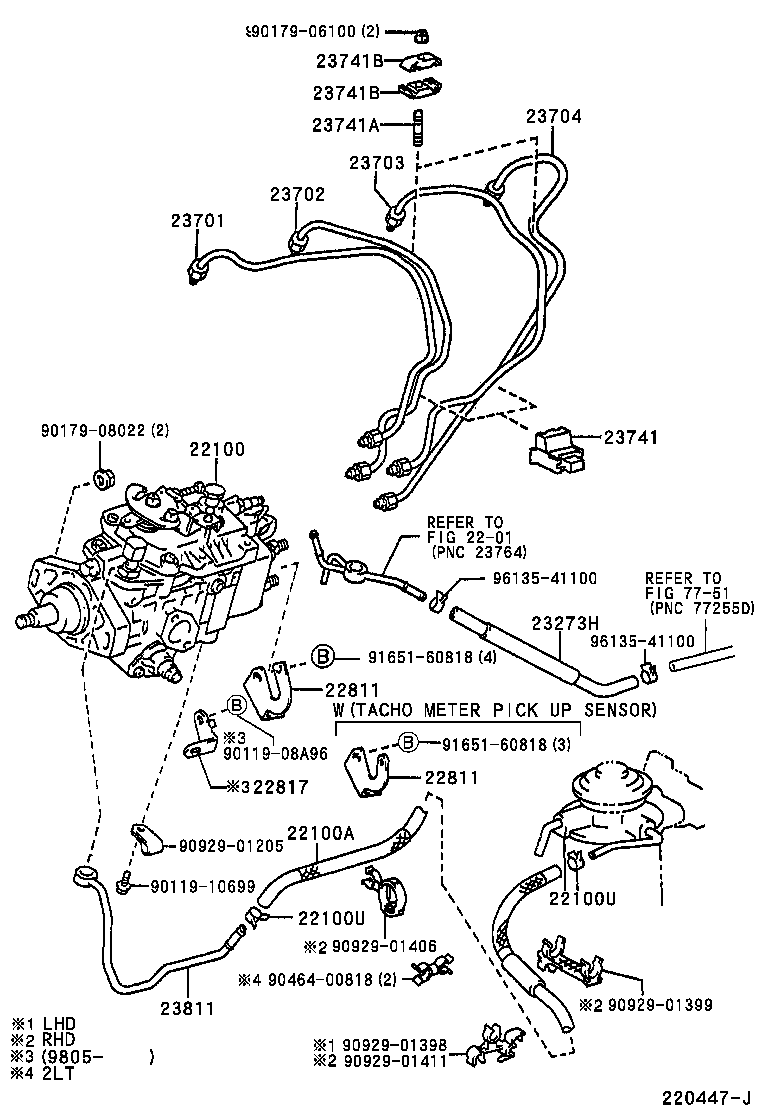

Figure 221171E 221171E 2001-08 → — Figure 221172D 221172D 2001-08 → — Figure 220447J 220447J 1997-08 → 2001-08 Figure 220424D 220424D 1997-08 → 2001-08

Part groups

PNCDescription
04226 Valve Kit, Suction Control
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100U Clip, Hose Fuel(FOR INJECTION PUMP)
22560A Valve Assy, Suction Control
22574 Gasket, Suction Control Valve Solenoid
22575 Bolt, Suction Control Valve
22811 Stay, Injection Pump, NO.1
22817 Bracket, Pump Stay
23273H Hose, Fuel, NO.2
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741A Bolt, Stud(FOR INJECTION PIPE CLAMP)
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23743 Clamp, Injection Pipe, NO.3
23744 Clamp, Injection Pipe, NO.4
23804C Pipe Sub-assy, Fuel Inlet
23810A Rail Assy, Common
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23906 Hose Sub-assy, Fuel
23906B Clip, Hose(FOR FUEL HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
