Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

8 part groups · 3 illustrations

Illustrations

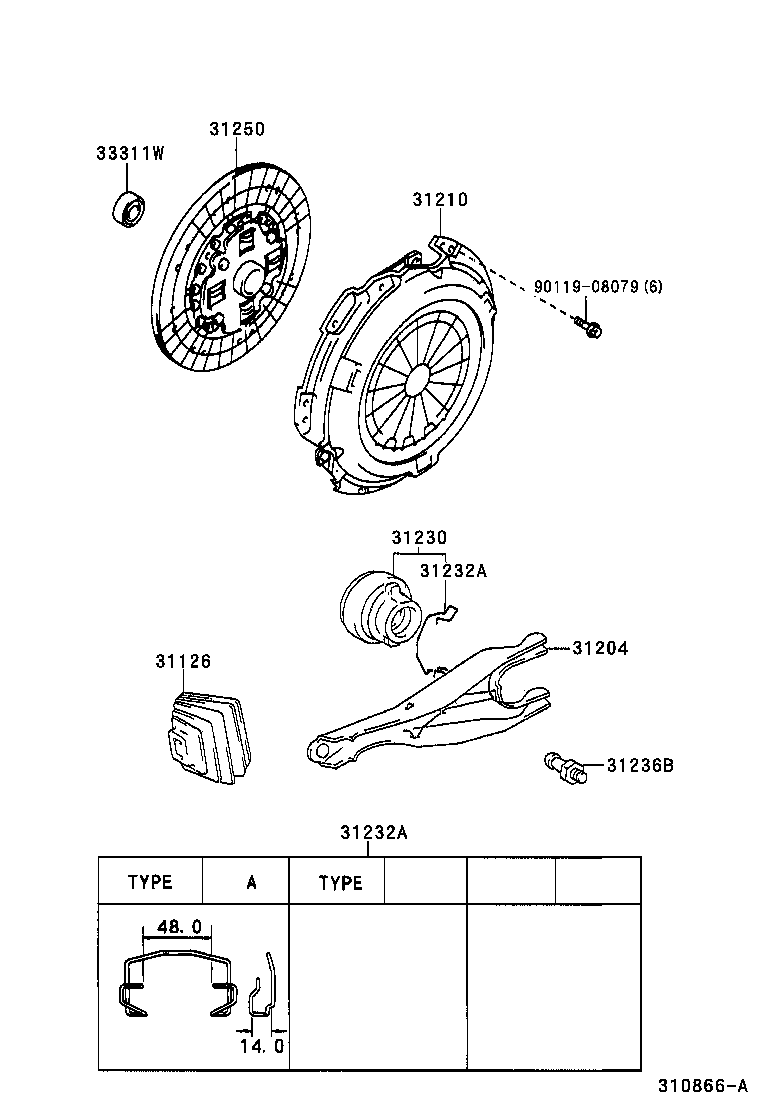

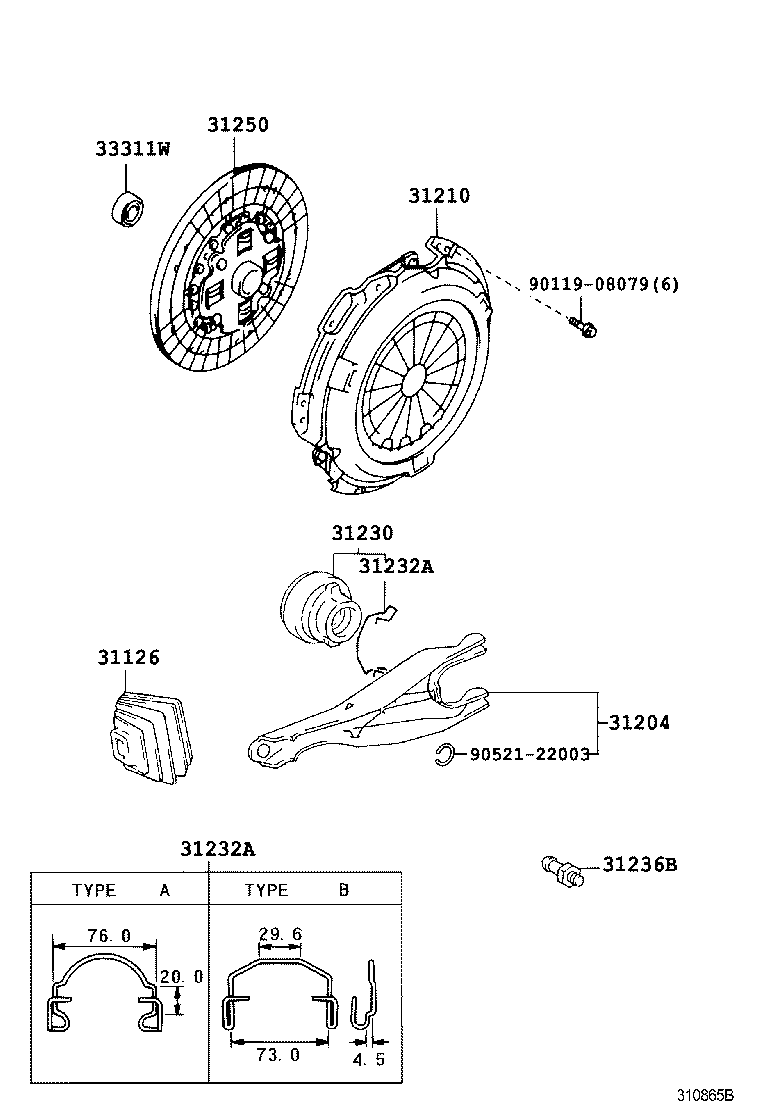

Figure 310352A 310352A 1997-08 → — Figure 310866A 310866A 2001-08 → — Figure 310865B 310865B 2001-08 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31232A Clip, Release Bearing Hub
31236B Support, Release Fork
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
