Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

21 part groups · 2 illustrations

Illustrations

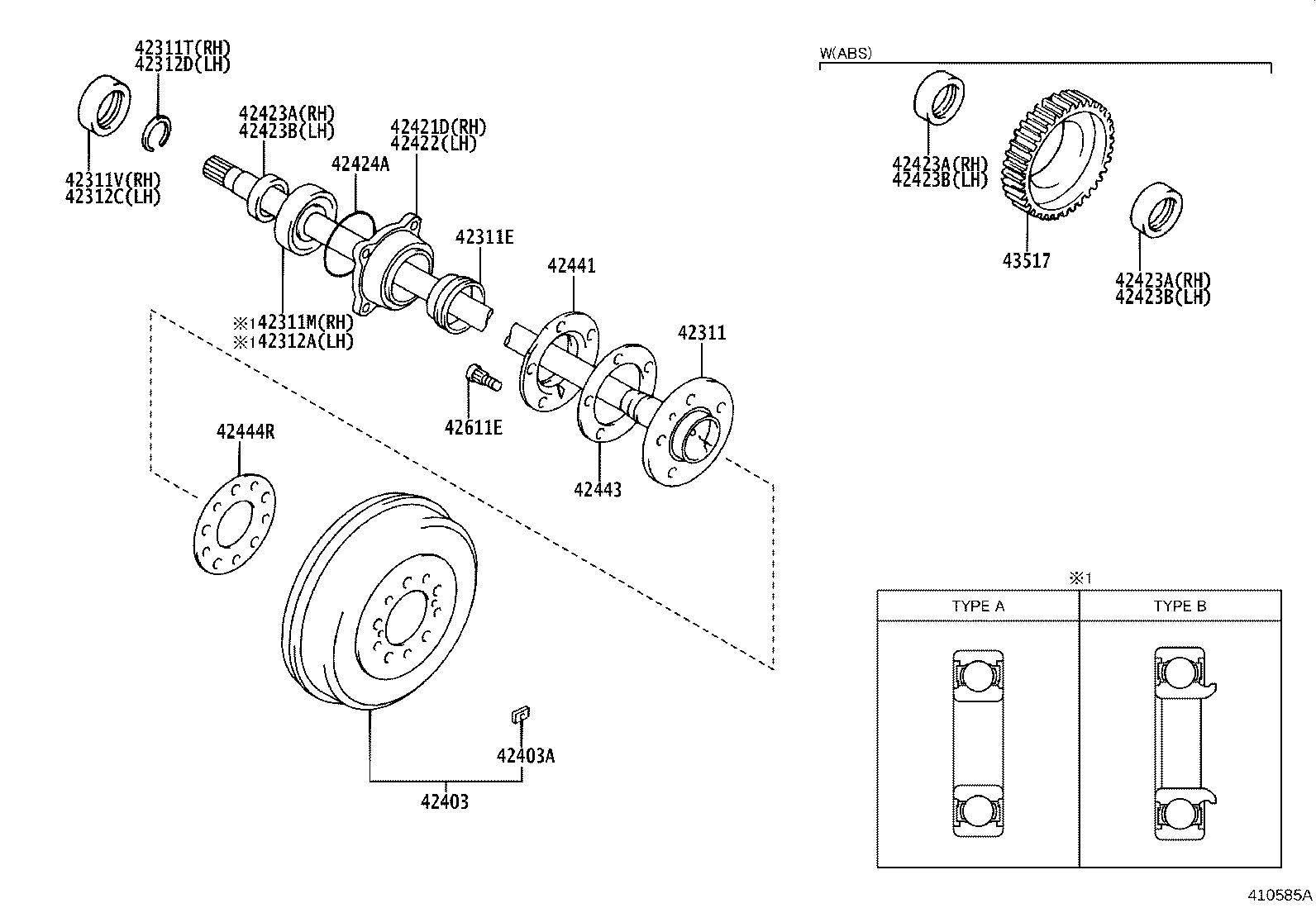

Figure 410584D 410584D 1997-08 → — Figure 410585A 410585A 1997-08 → —

Part groups

PNCDescription
42301 Shaft Sub-assy, Rear Axle
42311 Shaft, Rear Axle
42311E Seal, Oil(FOR REAR AXLE SHAFT OUTER)
42311M Bearing(FOR REAR AXLE SHAFT RH)
42311T Ring, Snap(FOR REAR AXLE SHAFT RH)
42311V Seal, Oil(FOR REAR AXLE SHAFT RH)
42312A Bearing(FOR REAR AXLE SHAFT LH)
42312C Seal, Oil(FOR REAR AXLE SHAFT LH)
42312D Ring, Snap(FOR REAR AXLE SHAFT LH)
42403 Drum Sub-assy, Rear Brake
42403A Piece, Balance (FOR REAR BRAKE DRUM)
42421D Case, Rear Axle Bearing, RH
42422 Case, Rear Axle Bearing, LH
42423A Retainer, Rear Axle Bearing, Inner RH
42423B Retainer, Rear Axle Bearing, Inner LH
42424A Ring, O (FOR BEARING RETAINER SET)
42441 Deflector, Brake Drum Oil
42443 Gasket, Brake Drum Oil Deflector
42444R Gasket, Brake Drum (FOR REAR AXLE)
42611E Bolt, Hub (FOR REAR AXLE)
43517 Rotor, Skid Control, Rear
