Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

14 part groups · 4 illustrations

Illustrations

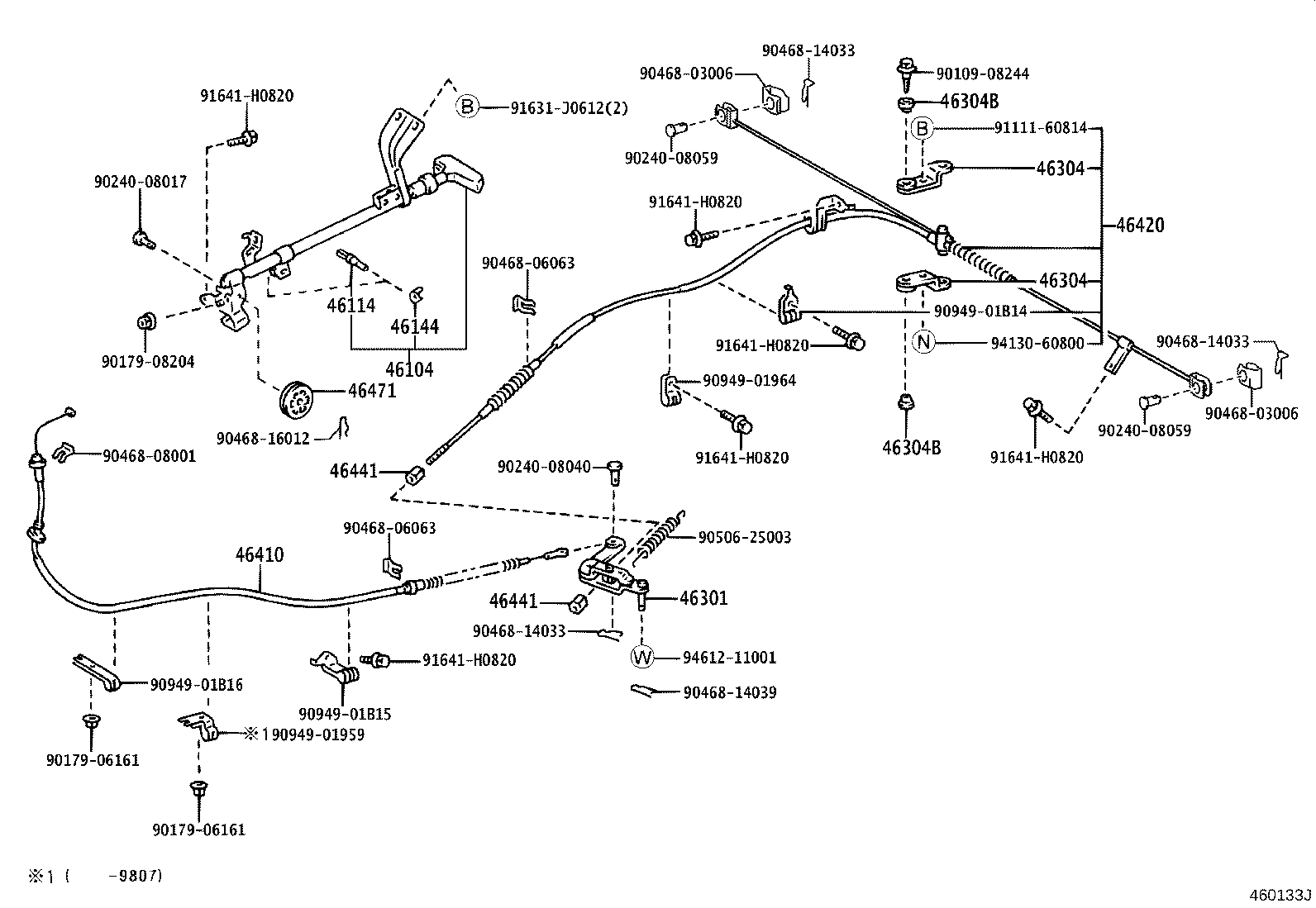

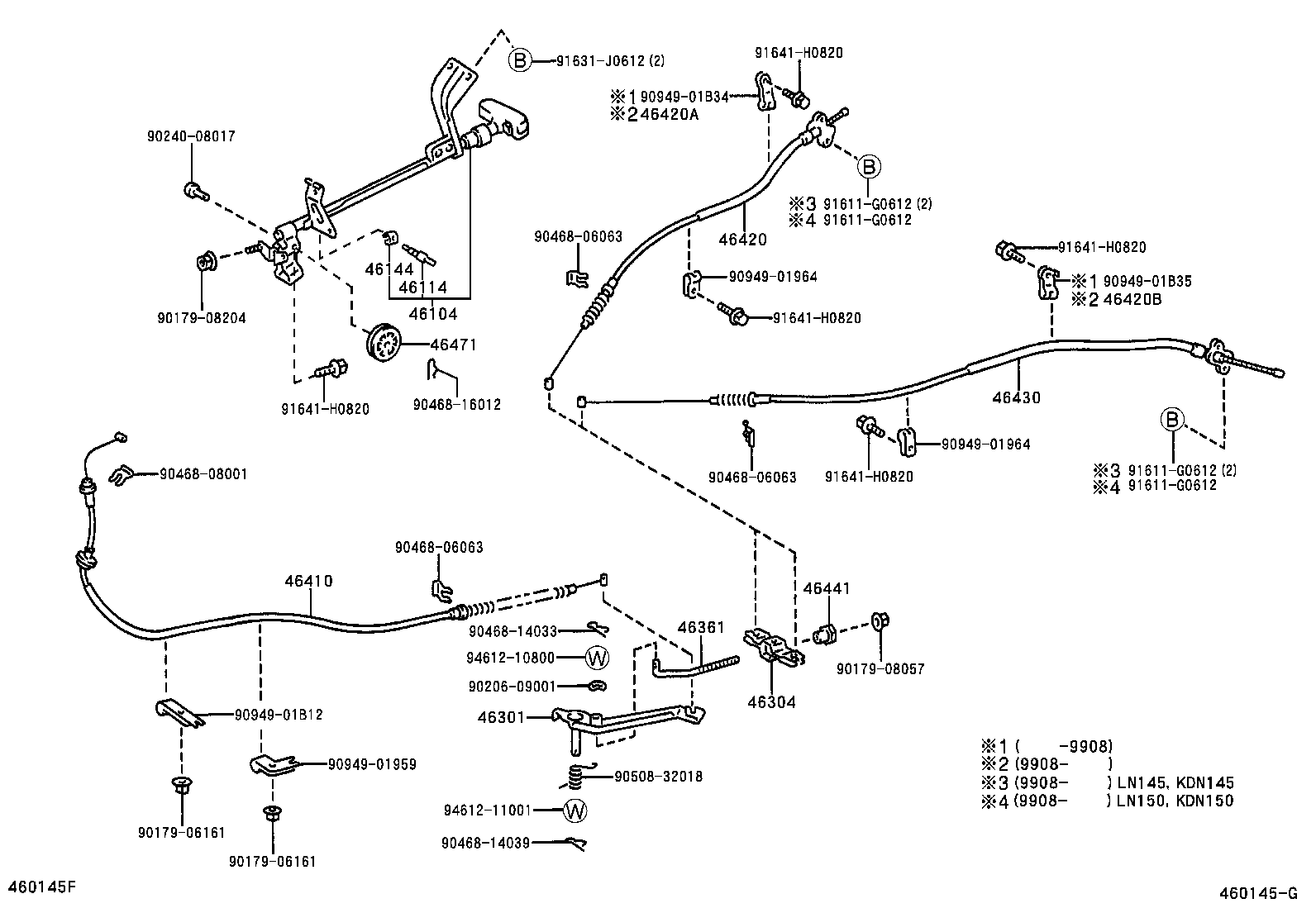

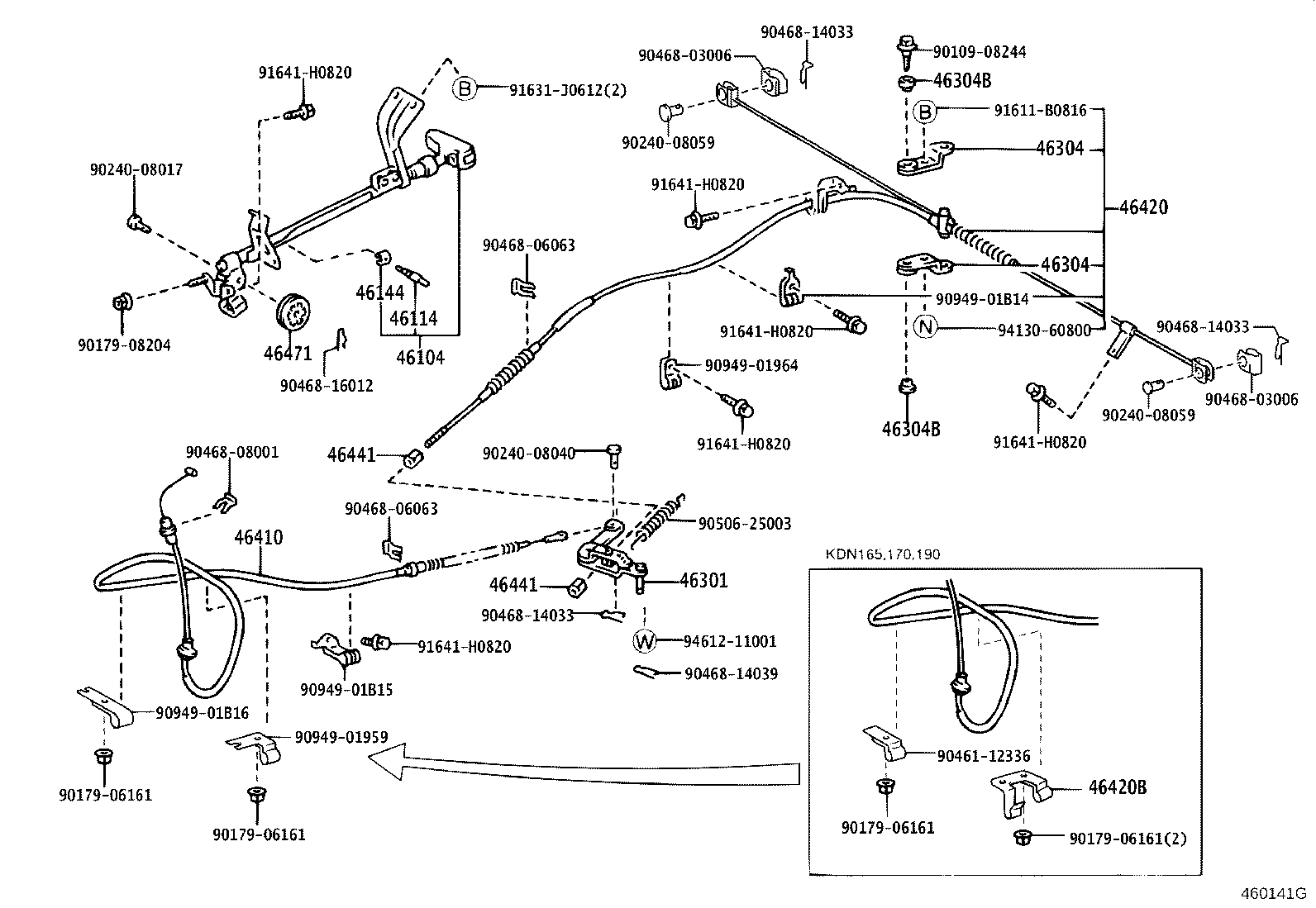

Figure 460221H 460221H 1997-08 → — Figure 460133J 460133J 1997-08 → — Figure 460145G 460145G 1997-08 → — Figure 460141G 460141G 1997-08 → —

Part groups

PNCDescription
46104 Handle Sub-assy, Parking Brake Control
46114 Pin, Parking Brake Plunger
46144 Anti-rattle, Parking Brake Plunger
46301 Lever Sub-assy, Parking Brake Intermediate
46304 Equalizer Sub-assy, Parking Brake
46304B Bush(FOR PARKING BRAKE EQUALIZER)
46361 Rod, Parking Brake Pull
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46471 Pulley, Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
