Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

29 part groups · 2 illustrations

Illustrations

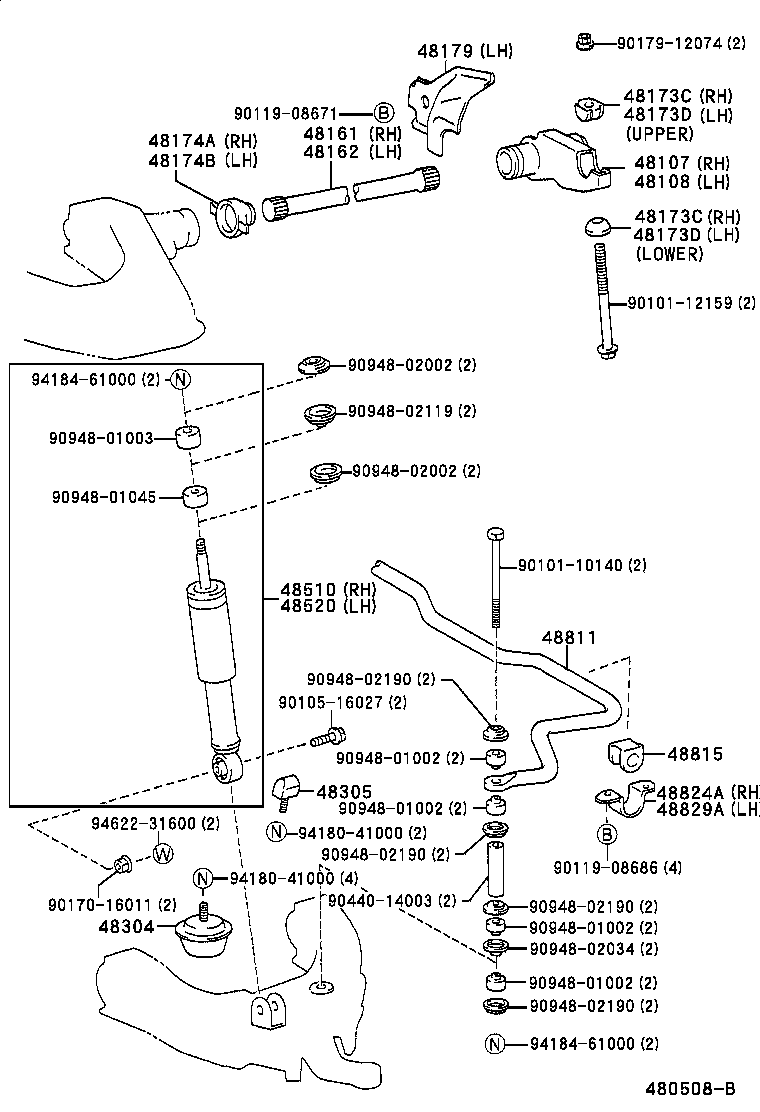

Figure 480506E 480506E 1997-08 → — Figure 480508B 480508B 1997-08 → —

Part groups

PNCDescription
48107 Arm Sub-assy, Anchor, RH
48108 Arm Sub-assy, Anchor, LH
48161 Spring, Torsion Bar, RH
48162 Spring, Torsion Bar, LH
48173 Seat, Anchor Arm Adjuster
48173A Bolt, Hexagon(FOR ANCHOR ARM ADJUSTING)
48173C Seat, Anchor Arm Adjuster, RH
48173D Seat, Anchor Arm Adjuster, LH
48174 Cover, Torsion Bar Dust
48174A Cover, Torsion Bar Dust, RH
48174B Cover, Torsion Bar Dust, LH
48179 Protector, Torsion Bar Dust Cover, LH
48304 Bumper Sub-assy, Front Spring, NO.1
48305 Bumper Sub-assy, Front Spring, NO.2
48510 Absorber Assy, Shock, Front RH
48520 Absorber Assy, Shock, Front LH
48660 Bar Assy, Strut, RH
48667 Retainer, Strut Bar
48670 Bar Assy, Strut, LH
48674 Cushion, Strut Bar
48674A Retainer, Cushion(FOR STRUT BAR CUSHION)
48674B Collar(FOR STRUT BAR CUSHION)
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48819A Bolt, Front Stabilizer
48823B Cover, Front Stabilizer Bracket
48824A Bracket, Front Stabilizer, NO.1 RH
48829A Bracket, Front Stabilizer, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
