Toyota Hilux
1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe
Discontinued model
Data version 2006-02
Rear Spring & Shock Absorber

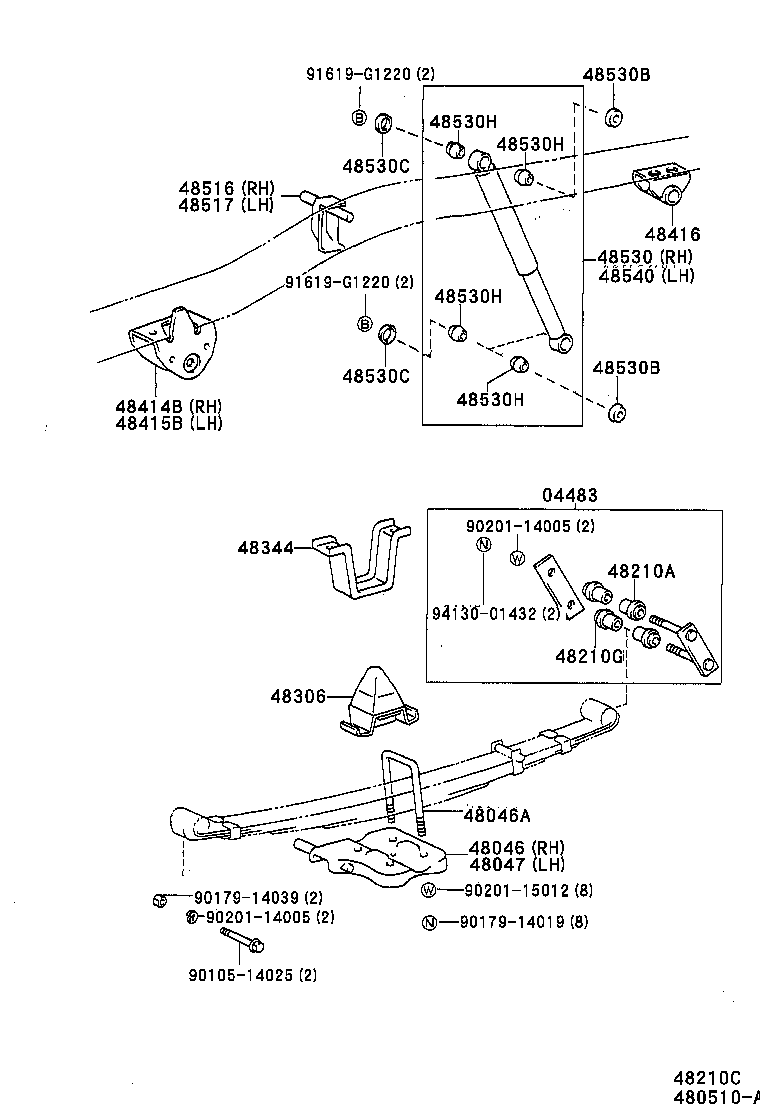

40 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 04483 | Shackle Kit, Rear Spring |
| 04484 | Pin Kit, Rear Spring |
| 48046 | Seat Sub-assy, Spring U Bolt, RH |
| 48046A | Bolt, U(FOR REAR SPRING) |
| 48047 | Seat Sub-assy, Spring U Bolt, LH |
| 48191A | Wedge, Caster(FOR REAR LEAF SPRING) |
| 48210 | Spring Assy, Rear RH |
| 48210A | Bush(FOR REAR SPRING SHACKLE UPPER) |
| 48210B | Bush(FOR REAR SPRING PIN) |
| 48210C | Bush(FOR REAR SPRING LEAF) |
| 48210G | Bush(FOR REAR SPRING SHACKLE LOWER) |
| 48211 | Leaf, Rear Spring, NO.1 |
| 48212 | Leaf, Rear Spring, NO.2 |
| 48213 | Leaf, Rear Spring, NO.3 |
| 48214 | Leaf, Rear Spring, NO.4 |
| 48215 | Leaf, Rear Spring, NO.5 |
| 48216 | Leaf, Rear Spring, NO.6 |
| 48220 | Spring Assy, Rear LH |
| 48246 | Case, Rear Spring Clip Bolt |
| 48247 | Bolt, Rear Spring, Center |
| 48252 | Silencer, Rear Spring |
| 48253 | Spacer, Rear Spring, NO.1 |
| 48256 | Bolt, Hexagon(FOR REAR SPRING CLIP SET) |
| 48284 | Nut, Rear Spring Center Bolt |
| 48284A | Nut, Rear Spring Clip |
| 48306 | Bumper Sub-assy, Rear Spring |
| 48341 | Bumper, Rear Spring |
| 48344 | Stopper, Bumper, Rear |
| 48375 | Damper, Leaf Spring Dynamic |
| 48414B | Bracket, Spring, NO.3 RH |
| 48415B | Bracket, Spring, NO.3 LH |
| 48416 | Bracket, Spring, NO.4 |
| 48516 | Bracket, Rear Shock Absorber, Upper RH |
| 48517 | Bracket, Rear Shock Absorber, Upper LH |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48530A | Bush(FOR REAR SHOCK ABSORBER) |
| 48530B | Washer, Rear Shock Absorber Cushion, NO.1 |
| 48530C | Washer, Rear Shock Absorber Cushion, NO.2 |
| 48530H | Bush, Rear Shock Absorber |
| 48540 | Absorber Assy, Shock, Rear LH |
