Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 2 illustrations

Illustrations

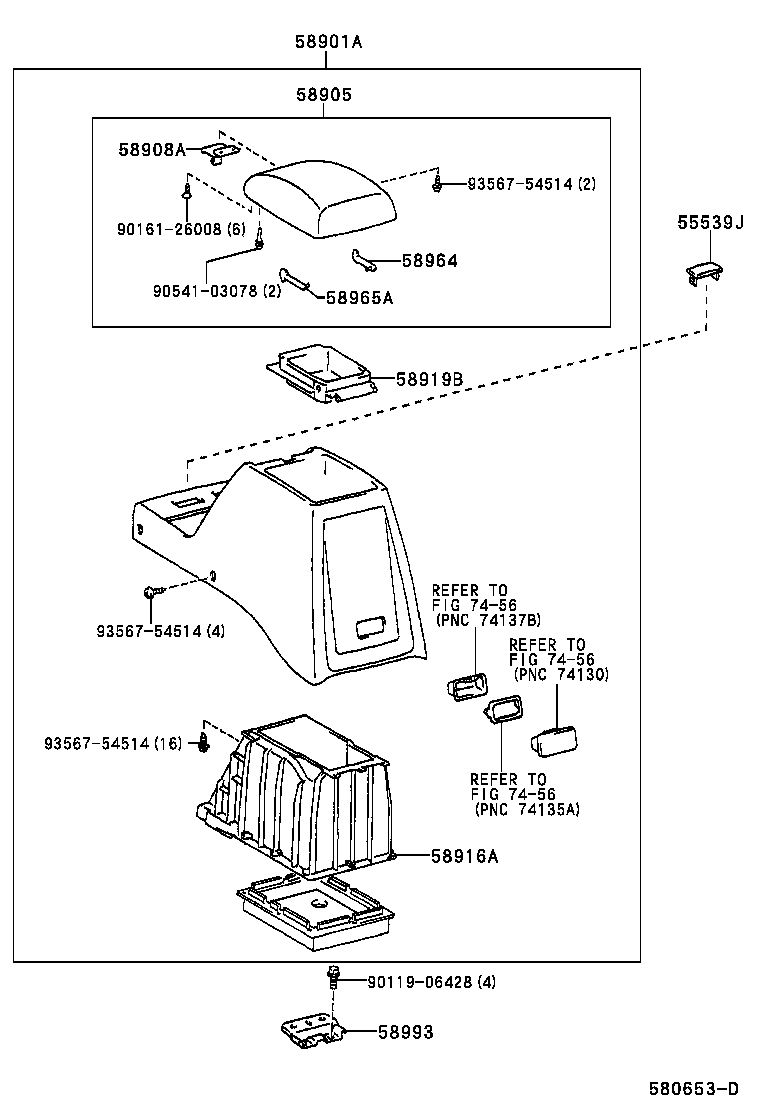

Figure 581422B 581422B 1997-08 → — Figure 580653D 580653D 1997-08 → —

Part groups

PNCDescription
55355D Cushion, Instrument Panel, NO.1
55356E Cushion, Instrument Panel, NO.2
55539J Cover, Spare Switch Hole
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58841A Cover, Shifting Hole
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58916A Insert, Console Box, Rear
58919B Plate, Console Box
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58993 Bracket, Console Box Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
