Toyota Hilux
1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe
Discontinued model
Data version 2006-02

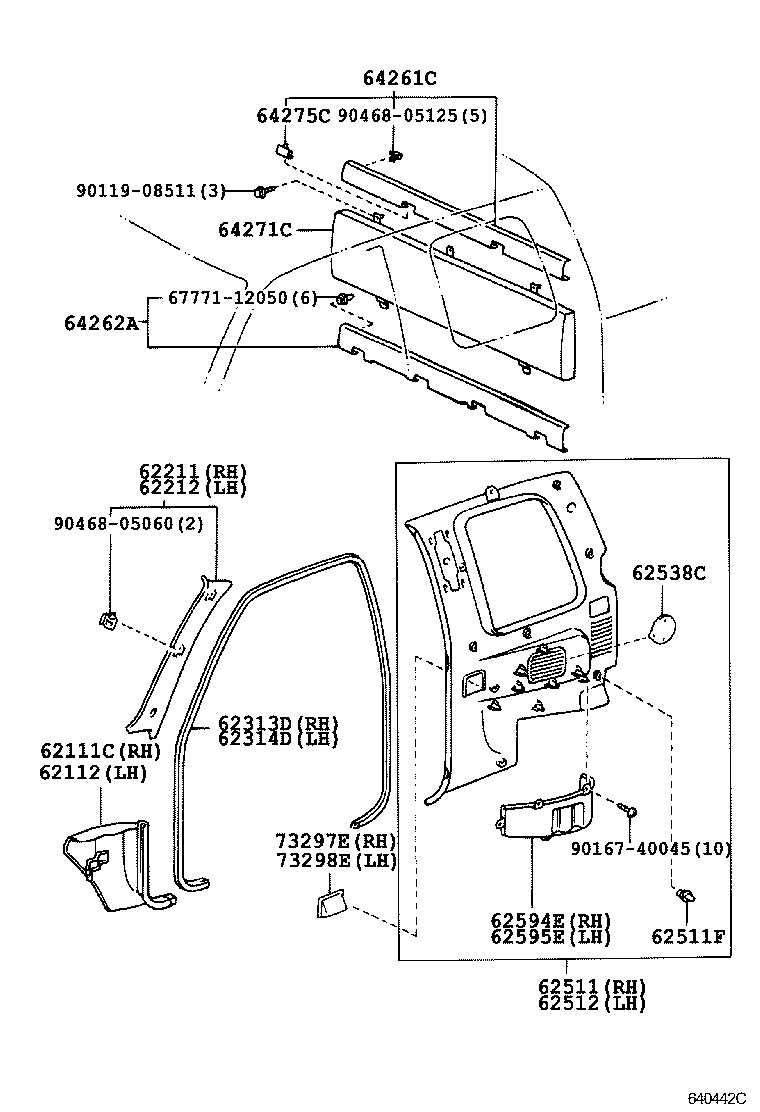

Inside Trim Board
30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62421 | Cover, Center Pillar Garnish, RH |
| 62422 | Cover, Center Pillar Garnish, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511F | Retainer (FOR QUARTER INSIDE TRIM BOARD) |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62513A | Panel, Quarter Trim, Lower RH |
| 62514A | Panel, Quarter Trim, Lower LH |
| 62538C | Cover, Quarter Trim, Hole |
| 62594E | Pocket, Quarter Trim, RH |
| 62595E | Pocket, Quarter Trim, LH |
| 62631E | Retainer, Quater Trim |
| 64261C | Garnish, Back Panel, Upper |
| 64262A | Garnish, Back Panel, Lower |
| 64271C | Trim, Back Panel |
| 64271D | Clip(FOR BACK PANEL TRIM) |
| 64275C | Cover, Back Panel Trim |
| 73297E | Cover, Deck Trim Side Belt Hole, RH |
| 73298E | Cover, Quarter Trim Belt Hole, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
