Toyota Hilux

1997-08 → 2005-08 · chassis KDN1##,LN1##,RZN168,173 · catalogue 672560 · Europe

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

11 part groups · 2 illustrations

Illustrations

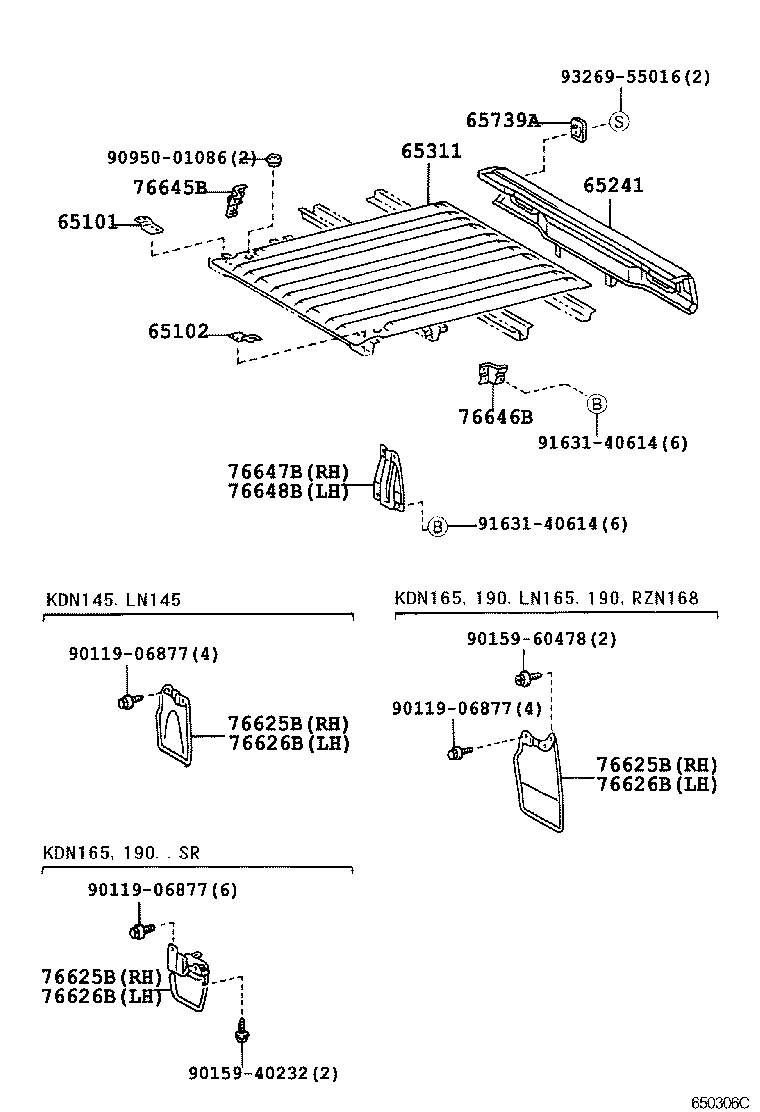

Figure 650149G 650149G 1997-08 → — Figure 650306C 650306C 1997-08 → —

Part groups

PNCDescription
65101 Bracket Sub-assy, Main Sill Mounting, NO.1
65102 Bracket Sub-assy, Main Sill Mounting, NO.2
65241 Sill, Rear Cross
65311 Panel, Floor, Center
65739A Bumper, Tail Gate
76625B Mudguard, Rear Body, RH
76626B Mudguard, Rear Body, LH
76645B Bracket, Rear Body Mudguard, RH
76646B Bracket, Rear Body Mudguard, LH
76647B Support, Rear Body Mudguard, RH
76648B Support, Rear Body Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
